◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#176059) — 13 parça
çizim 513649
35 9 160 49
BalonParca AdiParca NoAdetTipApplied Date
9 PLATE; NAME,SPD RANGE
SPEED LIMITER 90KM(NMJ) 		8-98306-952-0 01 1 1601-
35 PLATE; CAUTION,CAB
CAUTIONS RUSSIAN<SL6> 		8-98212-191-0 01 1 1601-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS RUSSIAN<SL6> 		8-98065-363-0 01 1 1601-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS RUSSIAN<SL6> 		8-98305-919-0 01 1 1601-
160 PLATE; CAUTION,TOWING
CAUTIONS RUSSIAN<SL6> 		8-98224-246-0 01 1 1601-
160 PLATE; CAUTION,TOWING
EXC. CAUTIONS RUSSIAN<SL6> 		1-85888-737-1 01 1 1601-

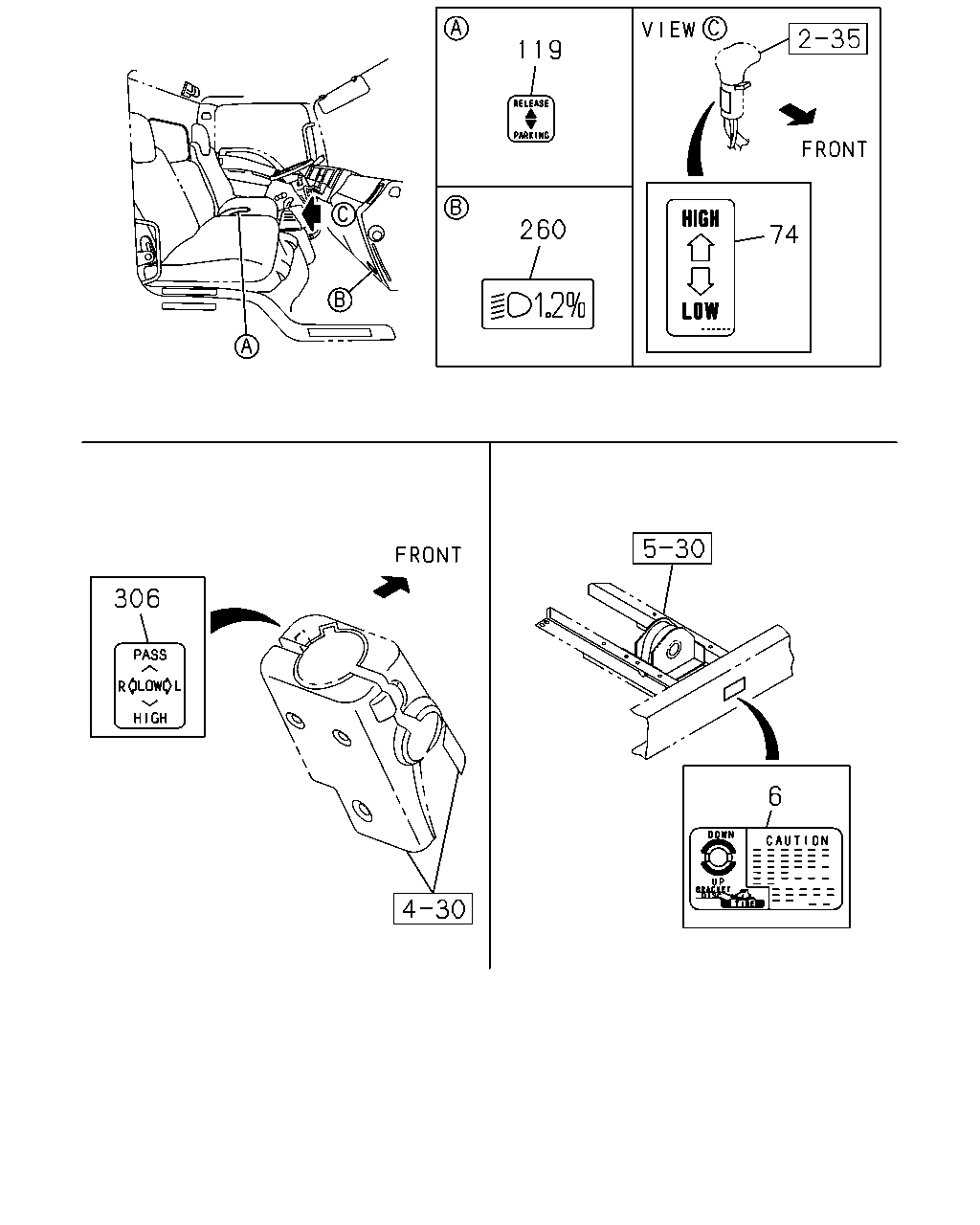

çizim 514452
119 260 74 306 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> CAUTIONS RUSSIAN<SL6> 		8-98138-684-0 01 1 1601-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. CAUTIONS RUSSIAN<SL6> 		8-98082-437-0 01 1 1601-
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 1601-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS RUSSIAN<SL6> 		8-98212-434-0 01 1 1601-
119 PLATE; CAUTION,HAND BRK LEVER
EXC. CAUTIONS RUSSIAN<SL6> 		1-85881-759-0 01 1 1601-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 1601-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1601-
