◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#176050) — 63 parça

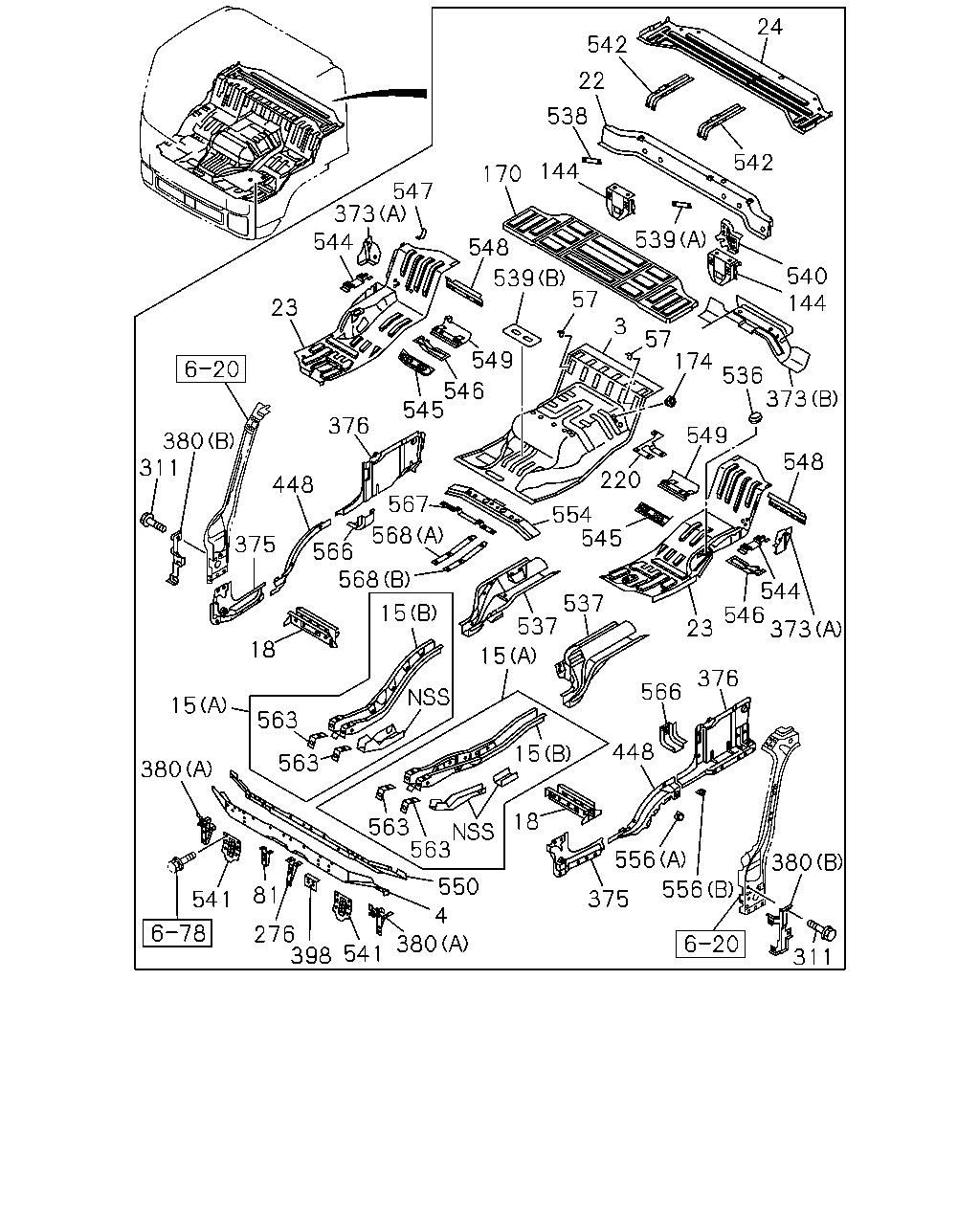

çizim 513559
542 24 542 540 538 22 539 144 170 547 373 544 23 380 311 448 375 18 15 380 541 376 566 568 563 563 563 563 550 4 380 541 398 276 81 375 15 545 548 549 546 567 568 15 15 539 57 536 174 373 549 220 554 545 537 537 23 566 448 556 376 548 544 373 546 556 380 144 311 18 3 57
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98069-933-5 01 1 1601-
4 FRAME; FLOOR,FRT 8-98077-807-1 01 1 1601-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1601-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1601-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1601-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1601-
18 FRAME; FLOOR,CENTER SIDE 8-98017-381-1 01 1 1601-
18 FRAME; FLOOR,CENTER SIDE 8-98017-387-1 01 1 1601-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1601-
23 PANEL; FLOOR,SIDE 8-98080-739-0 01 1 1601-
23 PANEL; FLOOR,SIDE 8-98305-295-0 01 1 1601-
24 PANEL; BED PAN 8-97584-378-6 01 1 1601-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1601-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1601-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1601-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1601-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1601-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1601-
220 PATCH 8-97589-704-0 01 1 1601-
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1601-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1601-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1601-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1601-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 1601-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1601-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1601-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1601-
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1601-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1601-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1601-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1601-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1601-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1601-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1601-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1601-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1601-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1601-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1601-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1601-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1601-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 1601-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1601-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1601-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1601-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1601-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1601-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1601-
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1601-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1601-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1601-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1601-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1601-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1601-
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1601-
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 1601-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 1601-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1601-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1601-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1601-
566 REINFORCEMENT; FENDER,RR 8-98076-133-0 02 1 1601-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1601-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1601-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1601-
