◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#176039) — 243 parça

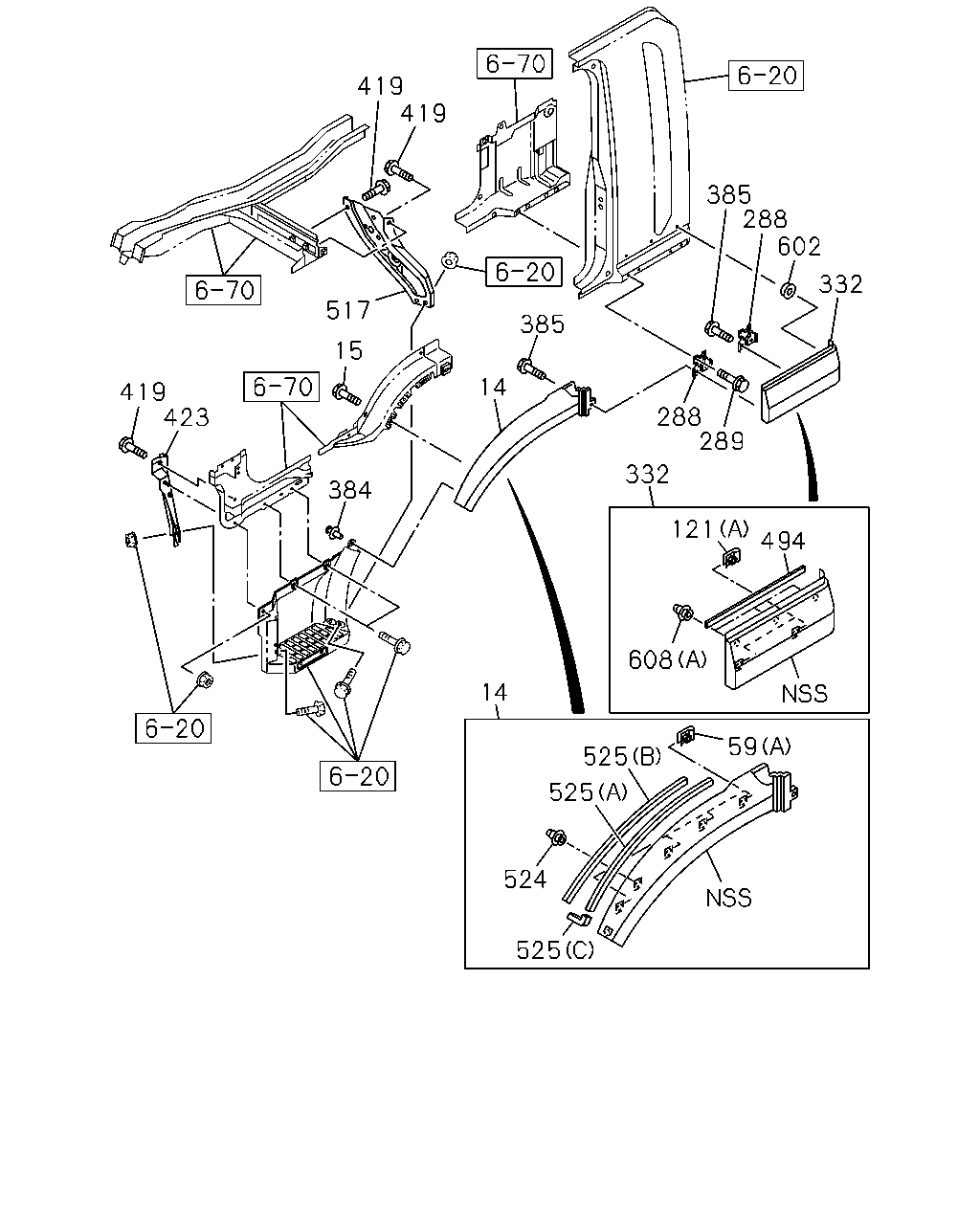

çizim 514248
419 419 517 15 419 423 384 14 385 385 288 602 332 288 289 332 121 494 608 14 525 525 524 525 59
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
BLACK 		8-98041-399-3 01 1 1601-
14 FENDER; FRT
BLACK 		8-98041-398-3 01 1 1601-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1601-
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1601-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 1601-
59 GROMMET; SCREW
BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1601-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1601-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1601-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1601-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1601-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1601-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1601-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 1601-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 1601-
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-606-2 01 1 1601-
332 FENDER; RR
BODY COLOR AL GRAY(517) GRAY 		8-97413-596-2 01 1 1601-
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-507-2 01 1 1601-
332 FENDER; RR
BODY COLOR ARC WHITE(729) WHITE 		8-97407-506-2 01 1 1601-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-310-2 01 1 1601-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) RED 		8-97411-304-2 01 1 1601-
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-609-2 01 1 1601-
332 FENDER; RR
BODY COLOR DARK BLUE(695) BLUE 		8-97413-599-2 01 1 1601-
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-313-2 01 1 1601-
332 FENDER; RR
BODY COLOR FIRE RED(915) RED 		8-97411-307-2 01 1 1601-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-608-2 01 1 1601-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) RED 		8-97413-598-2 01 1 1601-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-314-2 01 1 1601-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97411-308-2 01 1 1601-
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-615-2 01 1 1601-
332 FENDER; RR
BODY COLOR GREEN(989) GREEN 		8-97413-605-2 01 1 1601-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-613-2 01 1 1601-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97413-603-2 01 1 1601-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-612-2 01 1 1601-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) BLUE 		8-97413-602-2 01 1 1601-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-675-2 01 1 1601-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-674-2 01 1 1601-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-607-2 01 1 1601-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97413-597-2 01 1 1601-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-311-2 01 1 1601-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97411-305-2 01 1 1601-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-315-2 01 1 1601-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) BLUE 		8-97411-309-2 01 1 1601-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-611-2 01 1 1601-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97413-601-2 01 1 1601-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-610-2 01 1 1601-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97413-600-2 01 1 1601-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1601-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1601-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 1601-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1601-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1601-
494 FINISHER; FENDER 8-98072-723-0 01 1 1601-
494 FINISHER; FENDER 8-98041-172-1 01 1 1601-
517 SUPPORT; STEP PANEL 8-98037-351-2 01 1 1601-
517 SUPPORT; STEP PANEL 8-98037-350-2 01 1 1601-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1601-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1601-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1601-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1601-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1601-
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1601-
608 CLIP
BUMPER W/HEADLAMPS<SLB> (B) 		8-98282-490-0 02 1 1601-

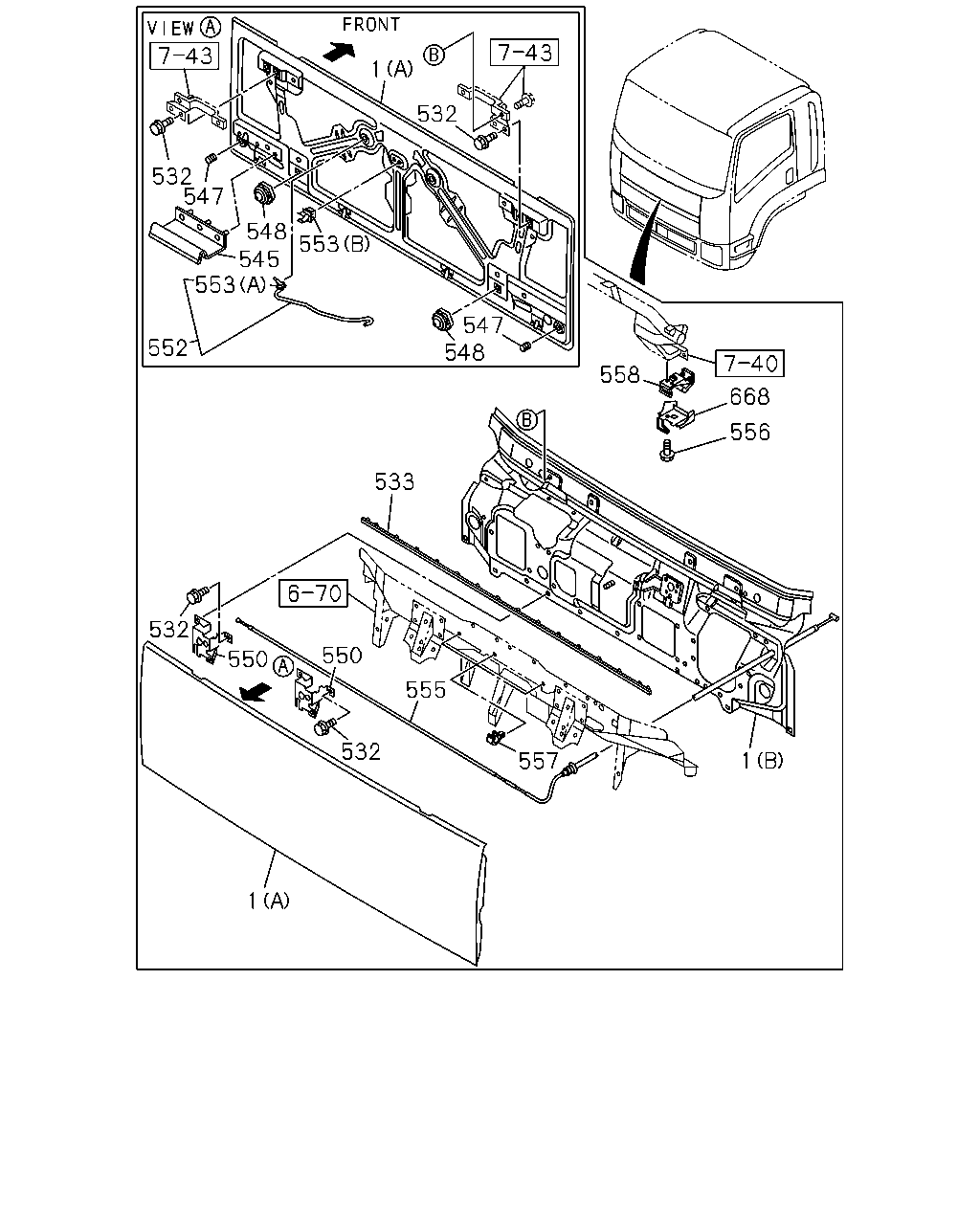

çizim 514280
532 553 552 548 1 553 545 547 547 548 532 558 668 533 532 550 550 532 555 557 1 556 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 1601-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1601-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 1601-
533 SEAL; FRT PANEL 8-98096-289-0 01 1 1601-
545 SEAL; FRT LID 8-98123-265-0 01 1 1601-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1601-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1601-
550 LOCK ASM; FRT LID 8-98036-568-2 02 1 1601-
552 STAY; FRT LID 8-98089-839-1 01 1 1601-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1601-
553 CLIP; STAY
(A) 		8-98094-542-0 01 1 1601-
555 CABLE; FRT LID 8-98036-574-1 01 1 1601-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1601-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1601-
558 LEVER; FRT LID 8-97865-110-0 01 1 1601-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1601-

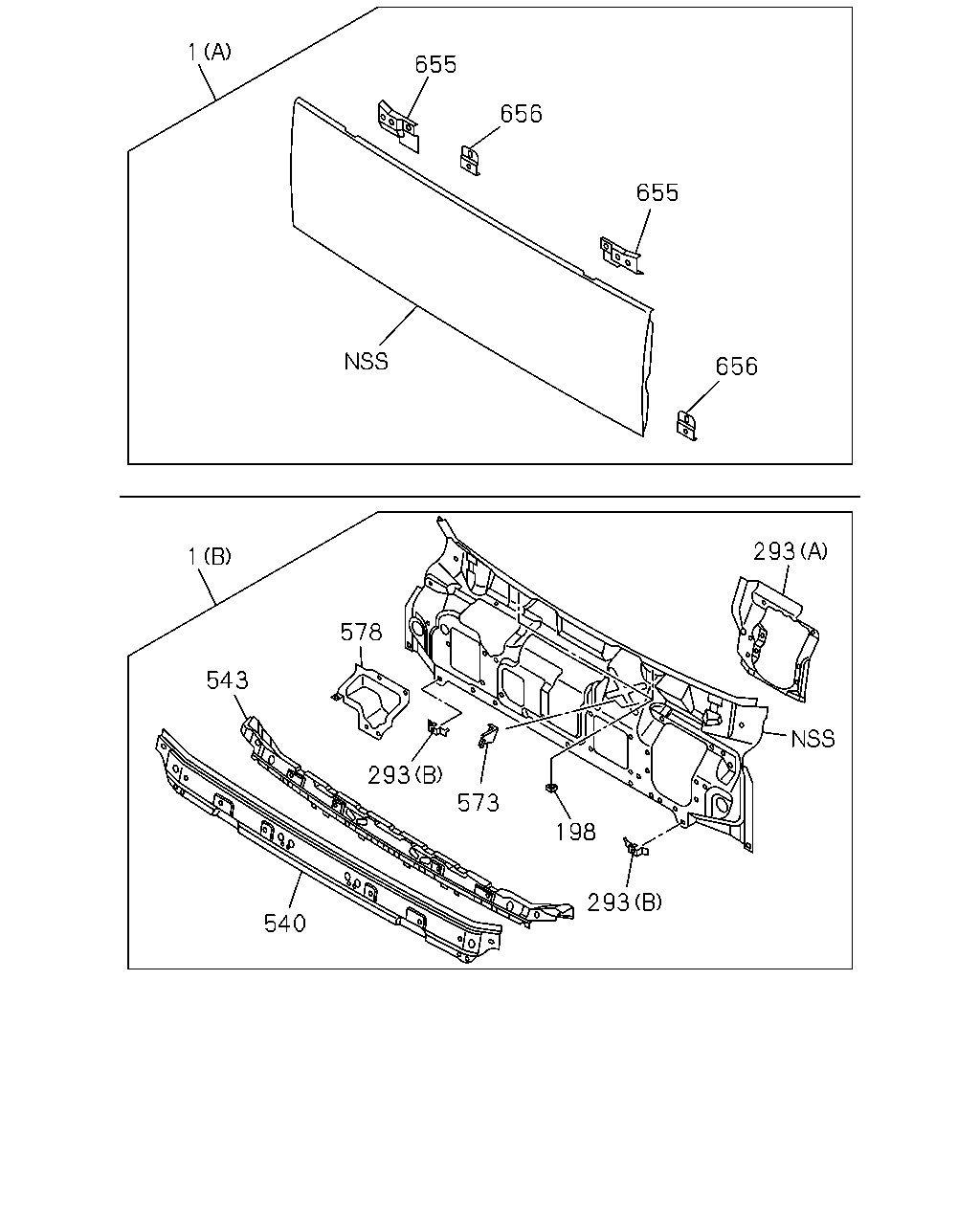

çizim 514283
655 656 655 656 1 1 578 293 573 198 293 293 543 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 1601-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1601-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1601-
293 BRACKET; PANEL
(A) 		8-97586-008-1 01 1 1601-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1601-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 1601-
540 PANEL; FRONT,OUTER 8-97585-967-1 01 1 1601-
543 CLOSING; FRT MTG RAIL 8-98021-034-3 01 1 1601-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1601-
578 COVER; WIPER MOTOR 8-98017-702-1 01 1 1601-
655 PATCH; HINGE 8-98031-263-0 01 1 1601-
655 PATCH; HINGE 8-98031-264-0 01 1 1601-
656 PATCH; STRIKER 8-98031-265-0 02 1 1601-

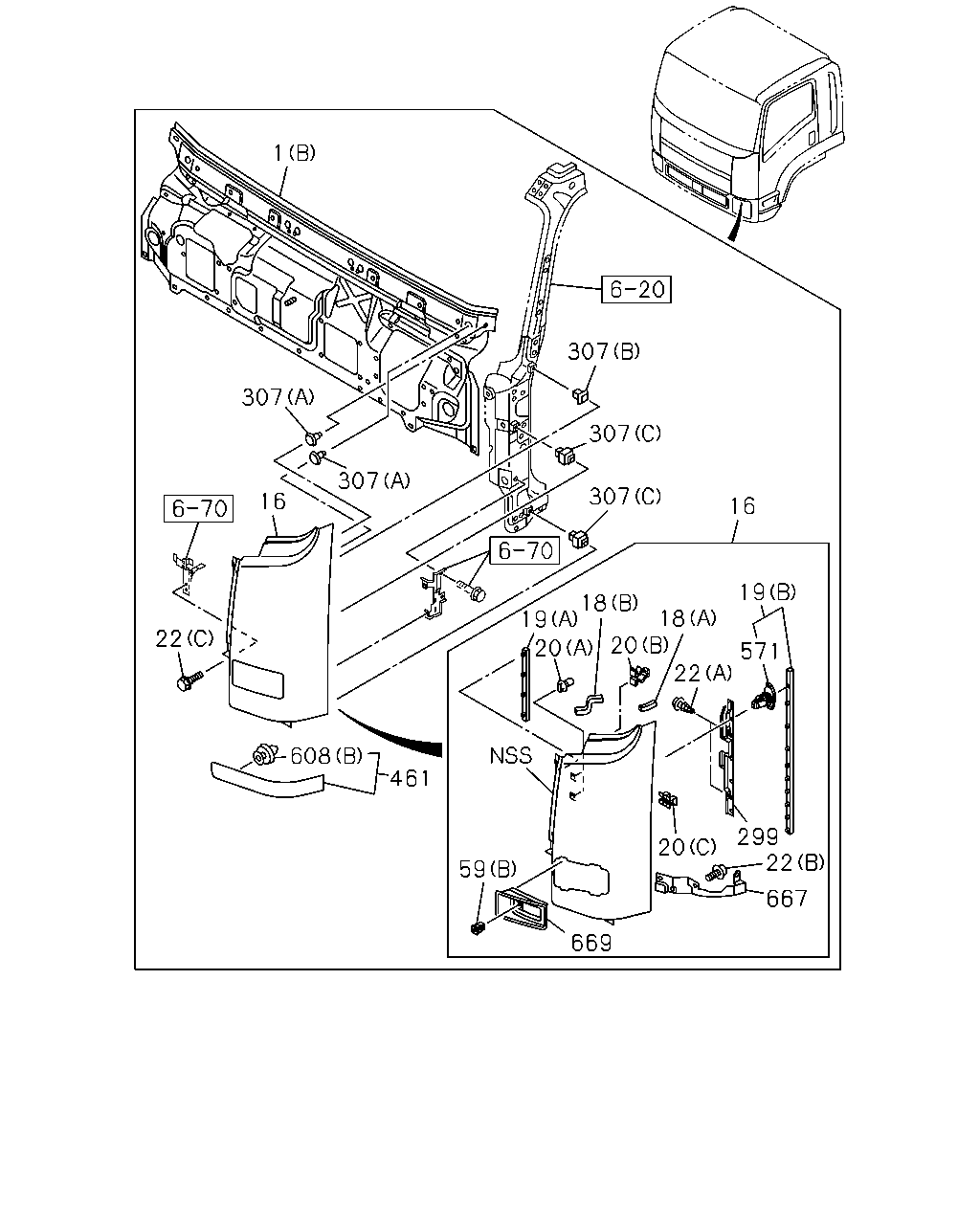

çizim 514298
1 307 307 16 22 608 461 307 307 307 16 18 19 20 20 18 19 571 22 20 299 22 667 669 59
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-961-6 01 1 1601-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> GRAY 		8-97466-427-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) BUMPER W/HEADLAMPS<SLB> GRAY 		8-97466-411-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> WHITE 		8-97466-419-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> WHITE 		8-97466-403-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> RED 		8-97466-420-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) BUMPER W/HEADLAMPS<SLB> RED 		8-97466-404-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97466-430-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97466-414-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> RED 		8-97466-425-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> RED 		8-97466-409-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> RED 		8-97466-429-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) BUMPER W/HEADLAMPS<SLB> RED 		8-97466-413-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> YELLOW 		8-97466-424-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) BUMPER W/HEADLAMPS<SLB> YELLOW 		8-97466-408-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> GREEN 		8-97466-434-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) BUMPER W/HEADLAMPS<SLB> GREEN 		8-97466-418-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> ORANGE 		8-97466-433-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) BUMPER W/HEADLAMPS<SLB> ORANGE 		8-97466-417-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97466-422-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97466-406-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> WHITE 		8-97466-426-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) BUMPER W/HEADLAMPS<SLB> WHITE 		8-97466-410-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97466-428-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97466-412-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> BEIGE 		8-97466-421-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BUMPER W/HEADLAMPS<SLB> BEIGE 		8-97466-405-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97466-423-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BUMPER W/HEADLAMPS<SLB> BLUE 		8-97466-407-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> YELLOW 		8-97466-432-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) BUMPER W/HEADLAMPS<SLB> YELLOW 		8-97466-416-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> DARK GREEN 		8-97466-431-0 01 1 1601-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) BUMPER W/HEADLAMPS<SLB> DARK GREEN 		8-97466-415-0 01 1 1601-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98038-608-0 02 1 1601-
18 SEAL; A-POST UPR,FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98043-511-1 02 1 1601-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98036-581-0 01 1 1601-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98041-359-2 01 1 1601-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (A) 		8-98036-580-0 01 1 1601-
19 SEAL; FRT SIDE PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-98041-358-2 01 1 1601-
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (A) 		8-97410-739-1 04 1 1601-
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (B) 		8-97410-740-3 02 1 1601-
20 CLIP; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (C) 		8-98046-457-0 08 1 1601-
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1601-
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1601-
22 SCREW; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> (C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1601-
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1601-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 1601-
59 GROMMET; SCREW
BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1601-
299 COVER; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> 		8-98034-814-1 01 1 1601-
299 COVER; FRT PANEL SIDE
BUMPER W/HEADLAMPS<SLB> 		8-98034-813-1 01 1 1601-
307 GROMMET; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (B) 		8-97410-738-0 02 1 1601-
307 GROMMET; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (C) 		8-98021-300-1 04 1 1601-
307 GROMMET; FRT PANEL
BUMPER W/HEADLAMPS<SLB> (A) OD=20 		8-98034-363-1 04 1 1601-
461 PANEL; FRT SIDE
BUMPER W/HEADLAMPS<SLB> 		8-98058-164-2 01 1 1601-
461 PANEL; FRT SIDE
BUMPER W/HEADLAMPS<SLB> 		8-98058-163-2 01 1 1601-
571 CLIP; SEAL
BUMPER W/HEADLAMPS<SLB> NATURAL 		8-98027-457-0 20 1 1601-
608 CLIP
(A) D5.4X8 		1-09983-154-0 06 1 1601-
608 CLIP
BUMPER W/HEADLAMPS<SLB> (B) 		8-98282-490-0 02 1 1601-
667 STAY; EXT,SIDE PANEL
BUMPER W/HEADLAMPS<SLB> 		8-98063-344-0 01 1 1601-
667 STAY; EXT,SIDE PANEL
BUMPER W/HEADLAMPS<SLB> 		8-98063-343-0 01 1 1601-
669 BEZEL; LAMP,FT TURN
BUMPER W/HEADLAMPS<SLB> 		8-97466-566-0 01 1 1601-
669 BEZEL; LAMP,FT TURN
BUMPER W/HEADLAMPS<SLB> 		8-97466-550-0 01 1 1601-

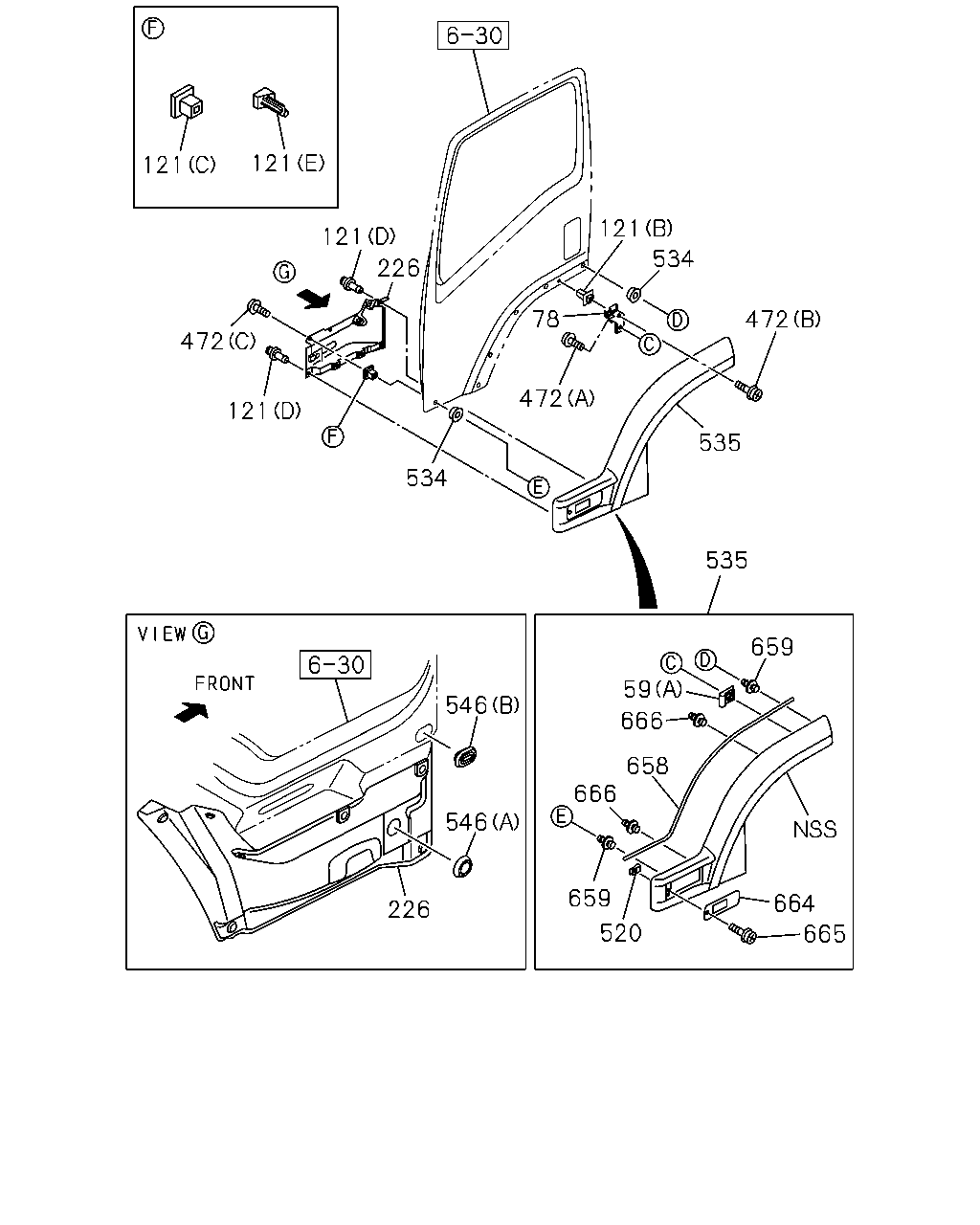

çizim 514507
121 121 121 472 121 226 534 121 78 472 534 472 535 535 546 546 226 659 59 666 658 666 659 520 664 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 1601-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 1601-
59 GROMMET; SCREW
BUMPER W/HEADLAMPS<SLB> (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 1601-
78 BRACKET; FENDER 8-98041-166-1 01 1 1601-
78 BRACKET; FENDER 8-98041-165-1 01 1 1601-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1601-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1601-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1601-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1601-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1601-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1601-
226 PROTECTOR; FRT 8-98037-715-2 01 1 1601-
226 PROTECTOR; FRT 8-98037-714-2 01 1 1601-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1601-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1601-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1601-
520 NUT; FENDER 8-94279-501-0 02 1 1601-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1601-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97418-321-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) GRAY 		8-97418-307-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-394-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) WHITE 		8-97415-393-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97418-323-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) RED 		8-97418-309-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97418-317-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) BLUE 		8-97418-303-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97418-371-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) RED 		8-97418-368-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97418-322-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) RED 		8-97418-308-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-369-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97418-366-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97418-319-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR GREEN(989) GREEN 		8-97418-305-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97418-326-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97418-312-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-329-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) BLUE 		8-97418-315-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97429-710-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) WHITE 		8-97429-709-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97418-316-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97418-302-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-328-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97418-314-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97418-318-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) BLUE 		8-97418-304-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97418-327-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97418-313-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97418-320-1 01 1 1601-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97418-306-1 01 1 1601-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1601-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1601-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1601-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1601-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-620-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) GRAY 		8-97421-609-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-597-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97421-469-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-637-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) RED 		8-97421-471-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-623-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97421-612-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-481-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) RED 		8-97421-477-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-622-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) RED 		8-97421-611-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-479-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97421-475-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-629-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) GREEN 		8-97421-618-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-627-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97421-616-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-626-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97421-615-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-628-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97421-617-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-621-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97421-610-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-640-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97421-473-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-483-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97421-634-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-625-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97421-614-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-624-0 01 1 1601-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97421-613-0 01 1 1601-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1601-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
