Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

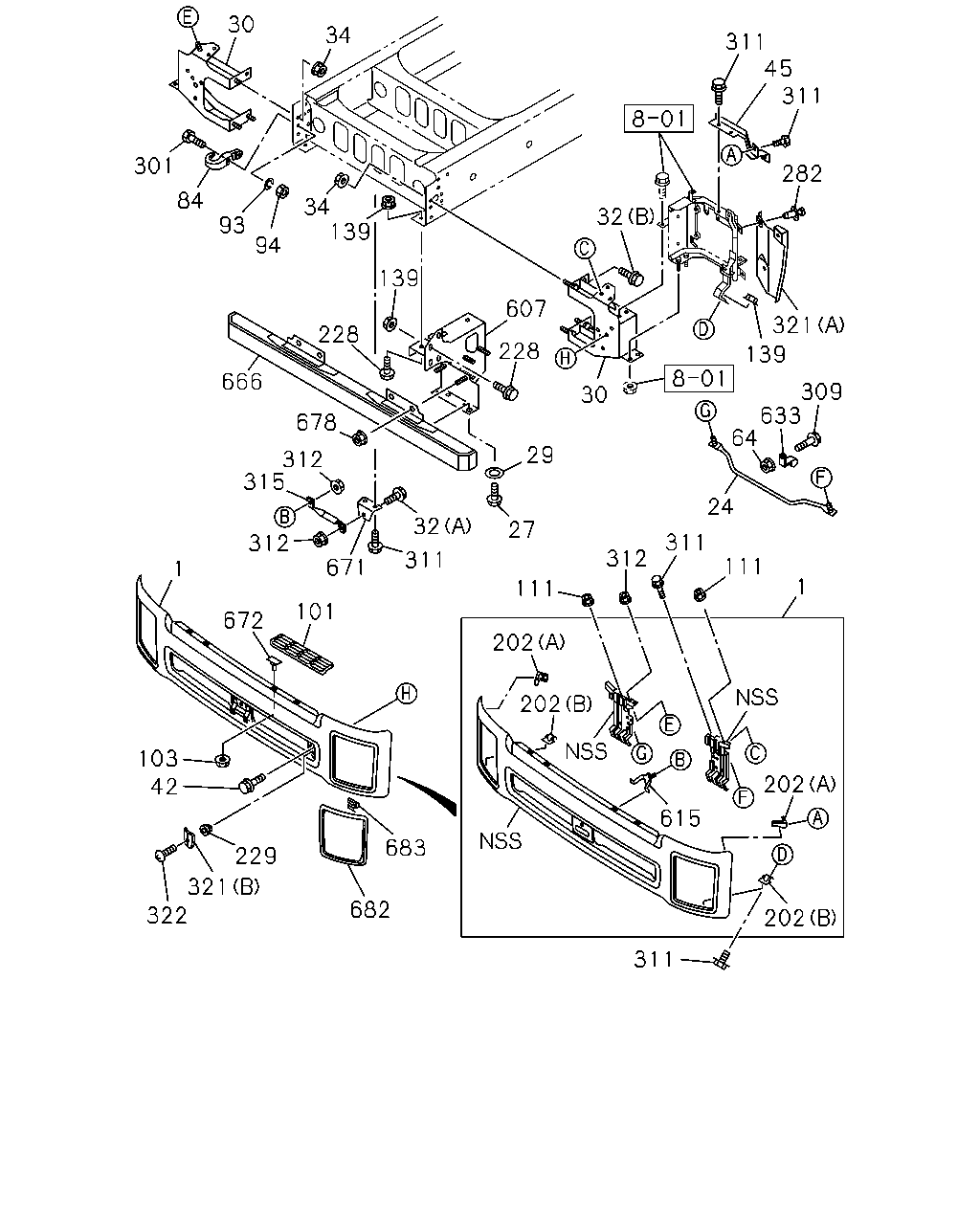

6-01 - FRONT BUMPER
▶
6-01 — FRONT BUMPER
(#176036) — 52 parça
30
301
93
84
34
34
94
139
228
666
678
312
315
312
32
671
311
101
672
1
27
607
139
32
311
311
45
282
30
228
321
139
633
64
24
311
29
312
111
111
1
309
103
42
229
321
322
683
682
202
202
615
202
202
311
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE
8-97409-903-1
01
1
1601-
24
BAR; FRT BUMPER
8-97625-359-0
01
1
1601-
27
BOLT; BUMPER TO BACK BAR
M12X35 FLANGE
0-28651-235-0
04
1
1601-
29
WASHER; FRT BUMPER
ID=12.5 OD=32
0-91614-712-0
08
1
1601-
30
BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
8-98034-434-2
01
1
1601-
30
BRACKET; FRT BUMPER
BUMPER W/HEADLAMPS<SLB>
8-98034-435-2
01
1
1601-
32
BOLT; BRKT,BUMPER
(B) M12X35 FLANGE
0-28051-235-0
02
1
1601-
32
BOLT; BRKT,BUMPER
(A) M10X30
8-94324-205-0
01
1
1601-
34
NUT; BRKT,BUMPER
M12 FLANGE
0-91180-212-0
06
1
1601-
42
BOLT; BUMPER
M10X30
8-94324-205-0
06
1
1601-
45
BRACKET; BRKT TO BUMPER
8-97613-648-2
01
1
1601-
45
BRACKET; BRKT TO BUMPER
8-97613-647-2
01
1
1601-
64
NUT; CLIP
M6 FLANGE
0-91180-106-0
01
1
1601-
84
HOOK
1-57181-027-1
01
1
1601-
93
WASHER; LK,HOOK
ID=16.2
0-91510-816-0
02
1
1601-
94
NUT; HOOK
M16
0-91110-516-0
02
1
1601-
101
STEP; BUMPER
8-97611-543-0
01
1
1601-
101
STEP; BUMPER
8-97611-542-0
01
1
1601-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1601-
111
NUT; STAY
M8 FLANGE
0-91180-108-0
02
1
1601-
139
NUT; BRKT FIX
M16
0-91110-516-0
02
1
1601-
139
NUT; BRKT FIX
M14 FLANGE
0-91180-214-0
06
1
1601-
202
BRACKET; BUMPER SIDE
BUMPER W/HEADLAMPS<SLB> (A)
8-97613-636-0
01
1
1601-
202
BRACKET; BUMPER SIDE
BUMPER W/HEADLAMPS<SLB> (A)
8-97613-637-0
01
1
1601-
202
BRACKET; BUMPER SIDE
BUMPER W/HEADLAMPS<SLB> (B)
8-97613-640-1
01
1
1601-
202
BRACKET; BUMPER SIDE
BUMPER W/HEADLAMPS<SLB> (B)
8-97613-641-1
01
1
1601-
228
BOLT; BRKT
M16X40
0-20851-640-0
02
1
1601-
228
BOLT; BRKT
M14X45 FLANGE
0-28851-445-0
06
1
1601-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1601-
282
FASTENER; BUMPER FILLER
D8X13.5
1-09987-248-1
08
1
1601-
301
BOLT; HOOK TO FRAME
M16X70
0-10861-670-0
02
1
1601-
309
BOLT; CLIP
M6X16 FLANGE
0-28650-616-0
01
1
1601-
311
BOLT; BRKT
M10X25 FLANGE
0-28651-025-0
06
1
1601-
311
BOLT; BRKT
M10X30
8-94324-205-0
07
1
1601-
312
NUT; BRKT
M10 FLANGE
0-91180-210-0
05
1
1601-
315
STAY; BUMPER
8-97613-645-1
01
1
1601-
321
COVER; BUMPER FRT SIDE
(B)
8-97616-297-1
01
1
1601-
321
COVER; BUMPER FRT SIDE
(A)
8-97619-120-0
01
1
1601-
321
COVER; BUMPER FRT SIDE
(B)
8-97616-296-1
01
1
1601-
321
COVER; BUMPER FRT SIDE
(A)
8-97619-119-0
01
1
1601-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1601-
607
BRACKET
8-98279-074-0
01
1
1601-
607
BRACKET
8-98279-073-0
01
1
1601-
615
BRACKET; BUMPER CENTER
BUMPER W/HEADLAMPS<SLB>
8-97613-643-1
01
1
1601-
633
CLIP; BUMPER
ID=16 H=24 L=20
0-95207-315-0
01
1
1601-
666
PROTECTOR; UNDER
8-98196-475-0
01
1
1601-
671
BRACKET; STAY
8-97620-889-0
01
1
1601-
672
STUD; STEP
M6X20
8-97611-666-0
04
1
1601-
678
NUT; BUMPER TO BACK BAR
M12 FLANGE
0-91180-212-0
04
1
1601-
682
BEZEL; BUMPER
8-97611-531-2
01
1
1601-
682
BEZEL; BUMPER
8-97611-530-2
01
1
1601-
683
CLIP; BEZEL,BUMPER
8-98084-293-0
08
1
1601-
