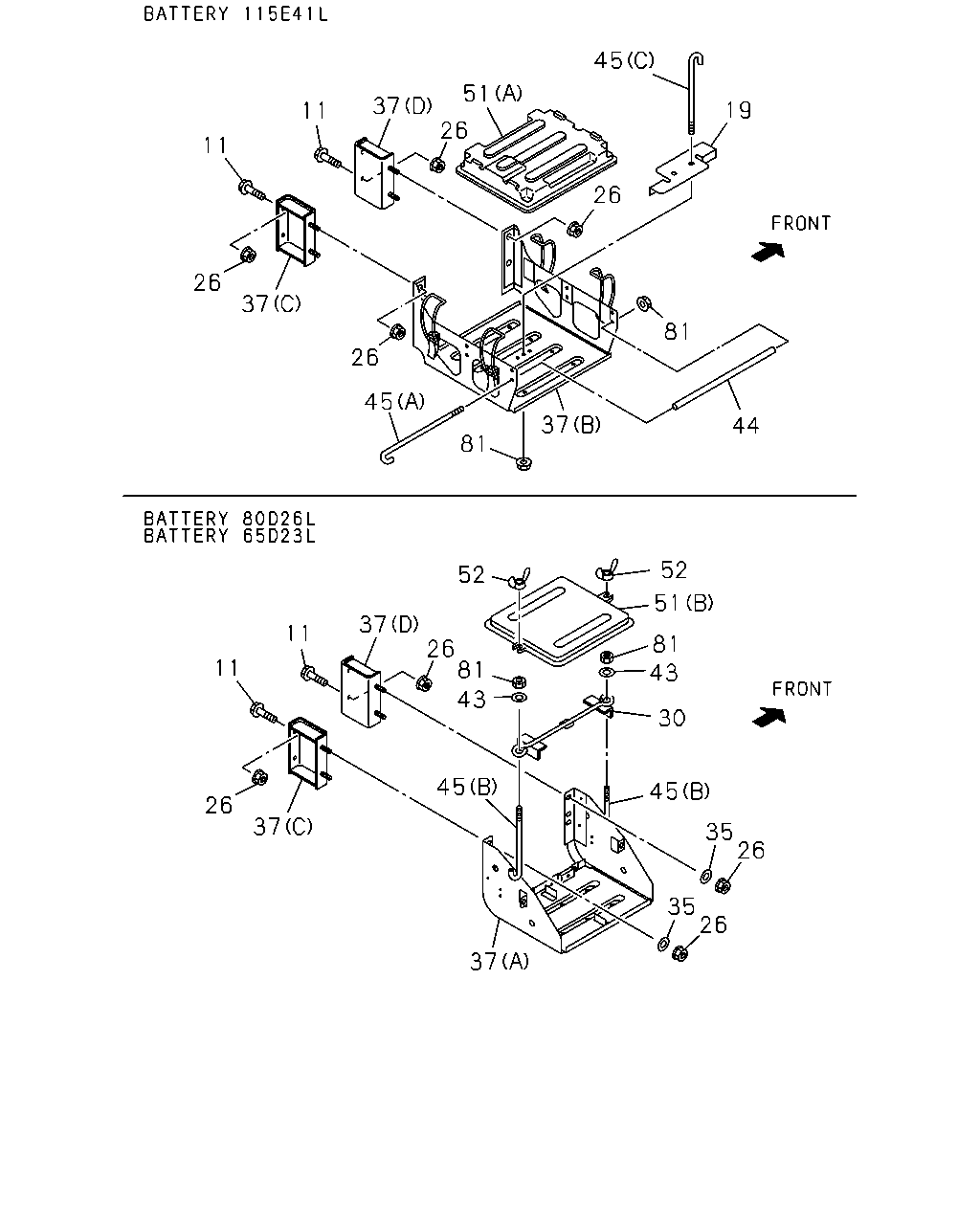

5-20 — BATTERY CARRIER (#176034) — 26 parça

11 11 37 26 37 26 45 81 37 26 51 45 26 81 44 19 11 11 37 26 37 52 26 81 43 45 37 52 51 81 43 30 45 35 35 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	BOLT; BRKT FIX M10X35 FLANGE	0-28651-035-0	04	1	1601-
19	STAY; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA>	8-98120-443-0	01	1	1601-
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1601-
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1601-
30	PLATE; BATTERY EXC. BATTERY 115E41L<8MA>	5-53615-004-1	01	1	1601-
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	1601-
37	BRACKET; BATTERY (D)	8-98088-828-0	01	1	1601-
37	BRACKET; BATTERY (C)	8-98162-291-0	01	1	1601-
37	BRACKET; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (B)	8-98261-636-0	01	1	1601-
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	1601-
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1601-
37	BRACKET; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (B)	8-98120-393-0	01	1	1601-
43	WASHER; PL,CLAMP EXC. BATTERY 115E41L<8MA> ID=8.4 OD=22	0-91614-708-0	02	1	1601-
44	SPACER; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF>	8-98261-682-0	02	1	1601-
44	SPACER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA>	8-98120-442-0	01	1	1601-
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A) L=430	8-97134-740-0	02	1	1601-
45	ROD; TENSION,BATTERY EXC. BATTERY 115E41L<8MA> (B) L=120	9-53616-615-0	02	1	1601-
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	01	1	1601-
45	ROD; TENSION,BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (C) L=235	8-98120-478-0	02	1	1601-
51	COVER; BATTERY BATTERY 115E41L<8MA> EXC. KD PREPARATORY PACK<6HF> (A)	1-53612-037-2	01	1	1601-
51	COVER; BATTERY EXC. BATTERY 115E41L<8MA> (B)	8-97120-747-0	01	1	1601-
51	COVER; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> (A)	8-98124-443-0	01	1	1601-
52	NUT; WING,COVER FIX EXC. BATTERY 115E41L<8MA> M8 WING NUT	0-91118-408-0	02	1	1601-
81	NUT; BATTERY KD PREPARATORY PACK<6HF> BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	03	1	1601-
81	NUT; BATTERY EXC. KD PREPARATORY PACK<6HF> M8 FLANGE	0-91180-108-0	02	1	1601-
81	NUT; BATTERY KD PREPARATORY PACK<6HF> EXC. BATTERY 115E41L<8MA> M8 FLANGE	0-91180-108-0	02	1	1601-
