Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#176032) — 33 parça
◀

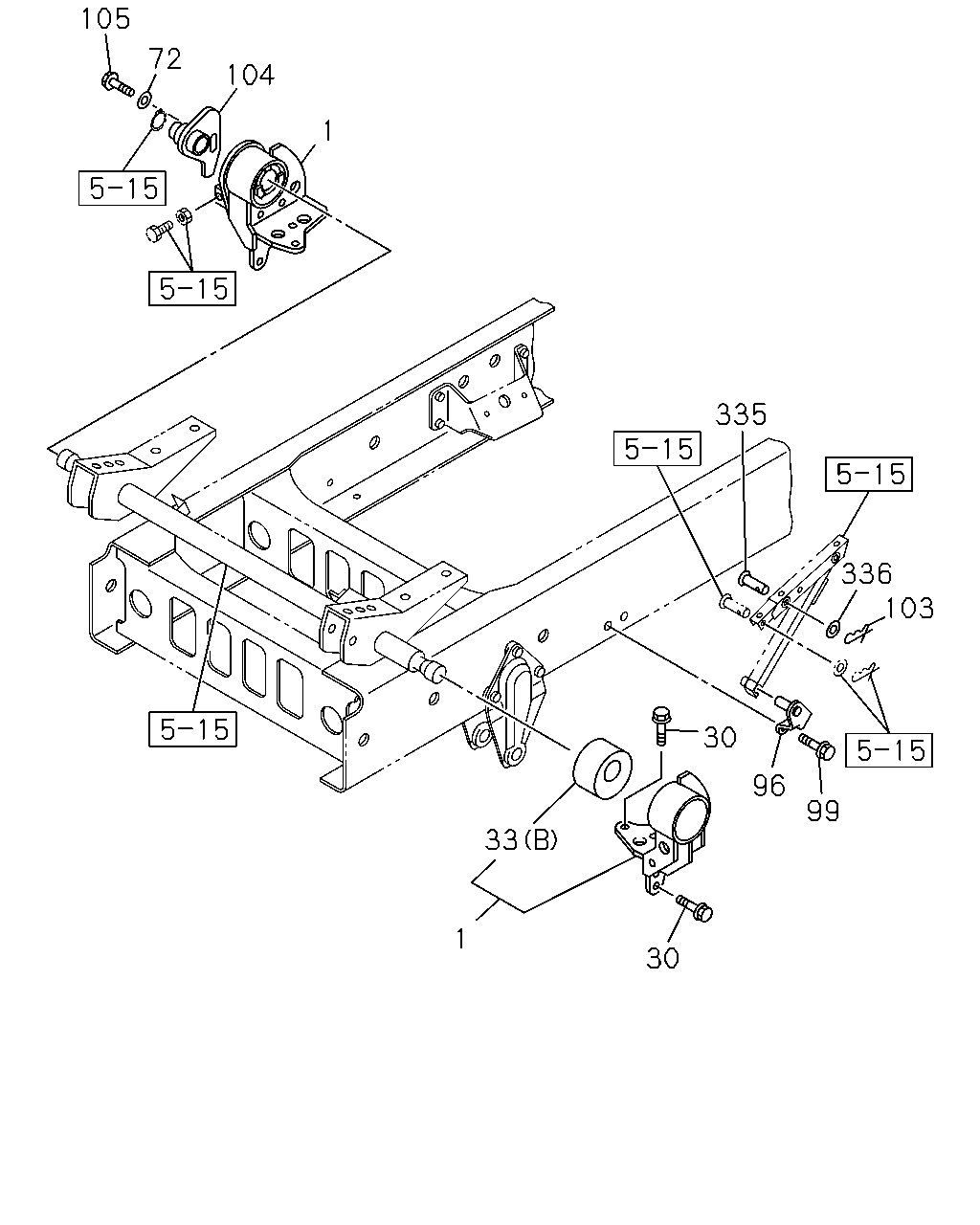

[510A] FRONT (14 parça)

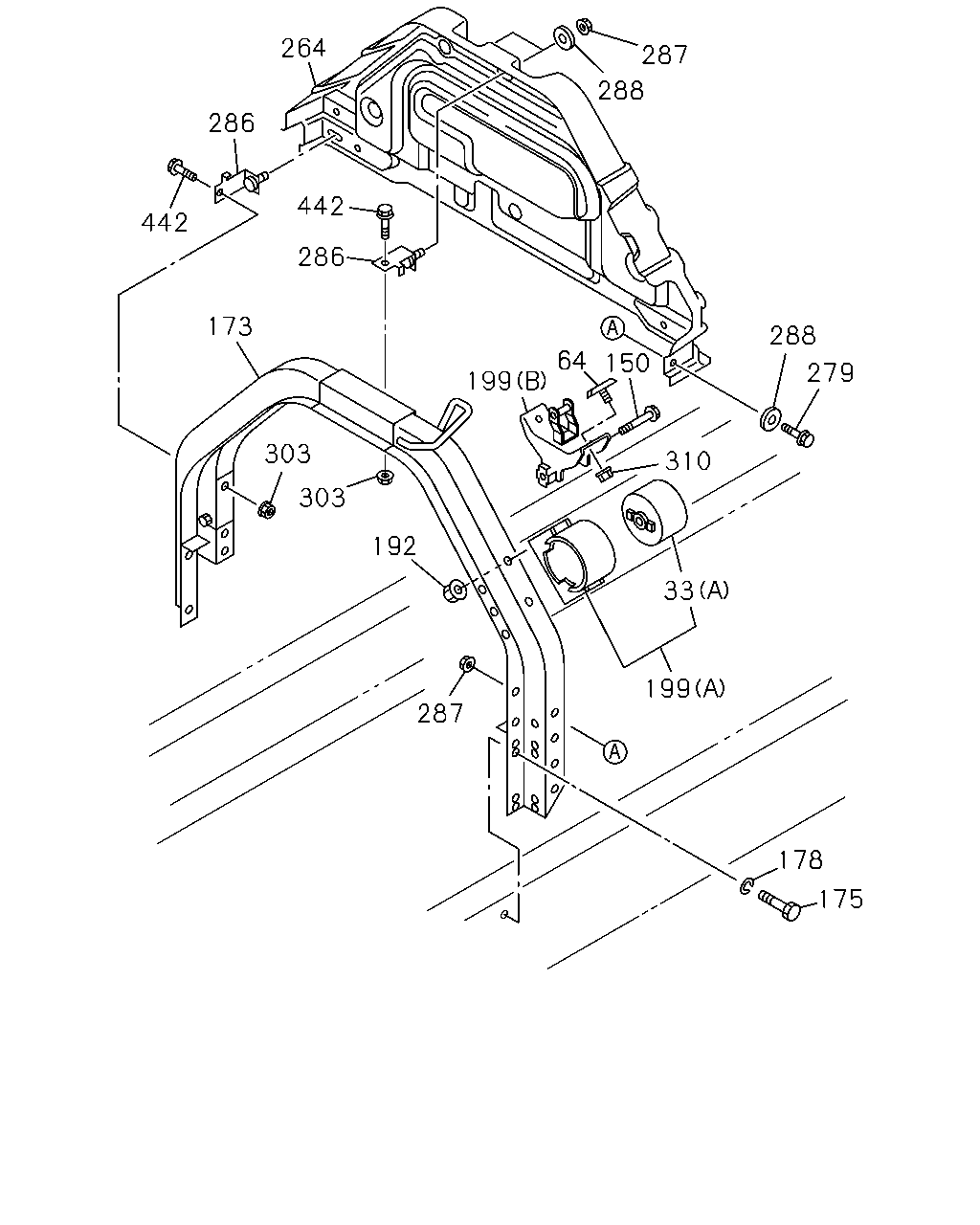

[510A] REAR (19 parça)
▶
105
104
72
1
33
1
30
96
99
30
103
336
335
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
8-98017-663-1
01
1
1601-
1
BRACKET; CAB MTG
8-98017-662-1
01
1
1601-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE
0-28861-445-0
10
1
1601-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A)
8-98010-759-2
02
1
1601-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98065-943-0
01
1
1601-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98065-943-0
01
1
1601-
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
1601-
96
BRACKET; CAB STAY
1-62500-628-0
01
1
1601-
99
BOLT; BRKT
M10X30 FLANGE
0-28661-030-0
02
1
1601-
103
PIN; SPLIT,CAB STAY
L=32.6
8-98062-280-0
01
1
1601-
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98330-669-0
01
1
1601-
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
1601-
335
PIN; ADJ,STAY LOCK
OD=10 L=48
1-09744-107-0
01
1
1601-
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
1-09985-183-0
01
1
1601-
287
288
288
279
310
150
64
199
33
199
178
175
287
192
303
303
173
286
442
286
264
442
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(A)
8-98010-759-2
02
1
1601-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98065-943-0
01
1
1601-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
(B)
8-98065-943-0
01
1
1601-
64
RUBBER; CUSHION
8-97113-340-0
04
1
1601-
150
BOLT; CAB MTG RR
M14X100
0-10956-400-0
02
1
1601-
173
MEMBER; CAB MTG RR
8-98151-943-0
01
1
1601-
175
BOLT; MEMBER TO FRAME
M12X35
0-20951-235-0
08
1
1601-
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
1601-
192
NUT; BRKT FIX
M12 FLANGE
0-91180-212-0
04
1
1601-
199
BRACKET; CAB RR MTG
(B)
8-98023-692-0
02
1
1601-
199
BRACKET; CAB RR MTG
(A)
8-98060-901-1
02
1
1601-
264
PANEL; BACK
1-53194-609-2
01
1
1601-
279
BOLT
M8X25 FLANGE
0-28650-825-0
01
1
1601-
286
BRACKET; LOW
1-53457-187-0
02
1
1601-
287
NUT
M8 FLANGE
0-91180-108-0
03
1
1601-
288
WASHER; PL
ID=8.4 OD=26
0-91614-808-0
03
1
1601-
303
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1601-
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
1601-
442
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
