Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶
4-60 — REAR SUSPENSION
(#176028) — 33 parça
◀

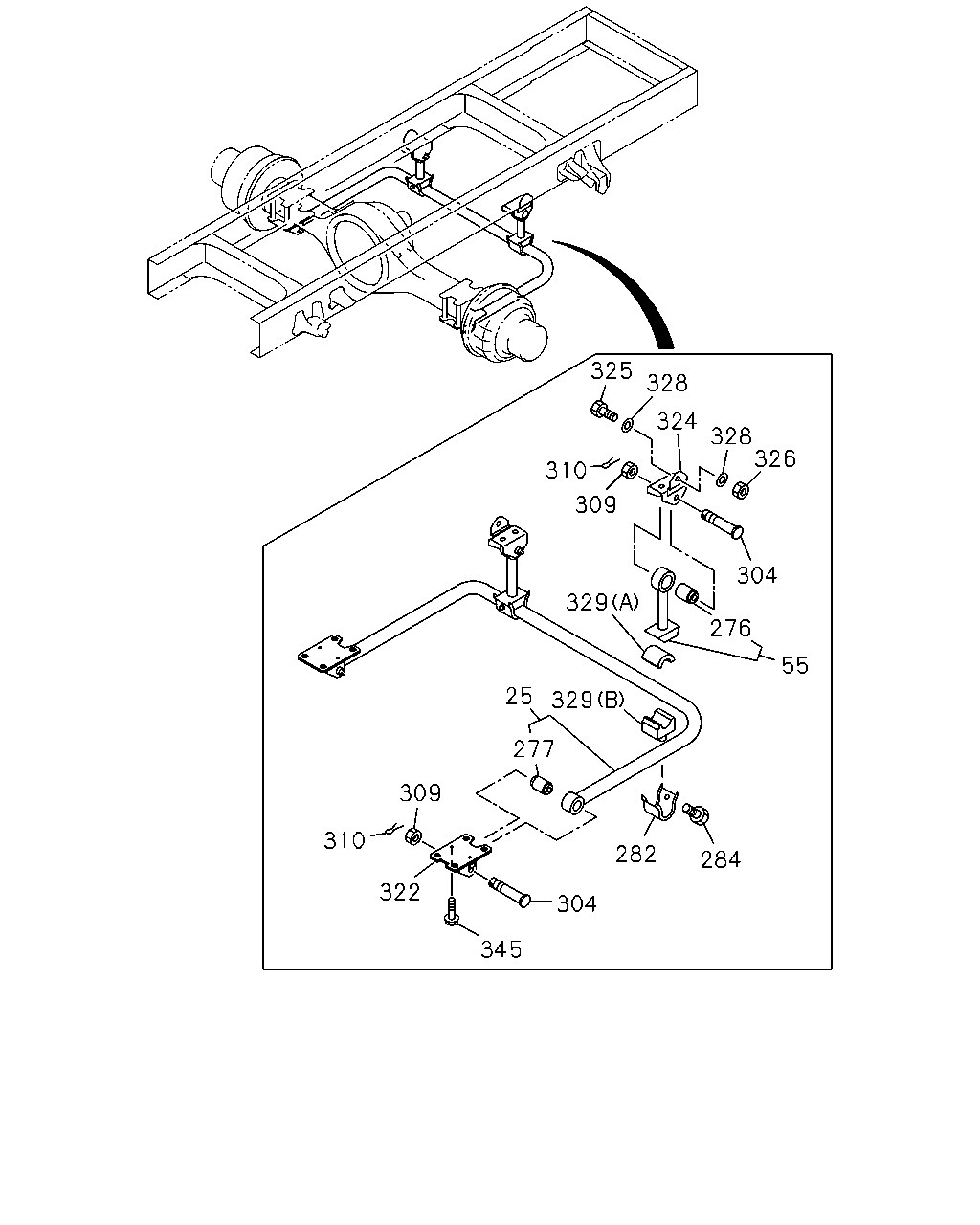

[460A] NO.2 (19 parça)
[460A] NO.1 (14 parça)
▶
325
328
324
328
326
304
276
55
310
309
329
329
25
277
309
310
322
345
304
282
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
BAR ASM; STAB,RR SUSP
1-51770-030-2
01
1
1601-
55
ROD; STAB
1-51770-035-1
02
1
1601-
276
BUSHING; STAB ROD
1-51779-019-0
02
1
1601-
277
BUSHING; STAB,RR UPR
1-51779-067-0
02
1
1601-
282
RETAINER; STAB BAR
1-51789-015-2
02
1
1601-
284
BOLT; RET TO RET
M10X25
8-94463-351-0
08
1
1601-
304
PIN; STAB ROD
1-51789-020-2
04
1
1601-
309
NUT; STAB ROD
M24
9-99116-424-0
04
1
1601-
310
PIN; SPLIT,STAB ROD
OD=4.6 L=45
0-81125-045-0
04
1
1601-
322
BRACKET; STAB BAR TO RR AXLE
1-51781-127-0
01
1
1601-
322
BRACKET; STAB BAR TO RR AXLE
1-51781-048-4
01
1
1601-
324
BRACKET; STAB BAR TO FRAME
1-51781-059-0
02
1
1601-
325
BOLT; BRKT TO FRAME
M14X40
0-20951-440-0
02
1
1601-
325
BOLT; BRKT TO FRAME
M14X45
9-92061-445-0
04
1
1601-
326
NUT; BRKT TO FRAME
M14
0-91110-514-0
06
1
1601-
328
WASHER; PL,BRKT
ID=15
8-98010-627-1
12
1
1601-
329
BUSHING; STAB ROD
(A)
1-51789-051-1
02
1
1601-
329
BUSHING; STAB ROD
(B)
1-51789-052-0
02
1
1601-
345
BOLT; BRKT
M10X16 FLANGE
0-28051-016-0
04
1
1601-

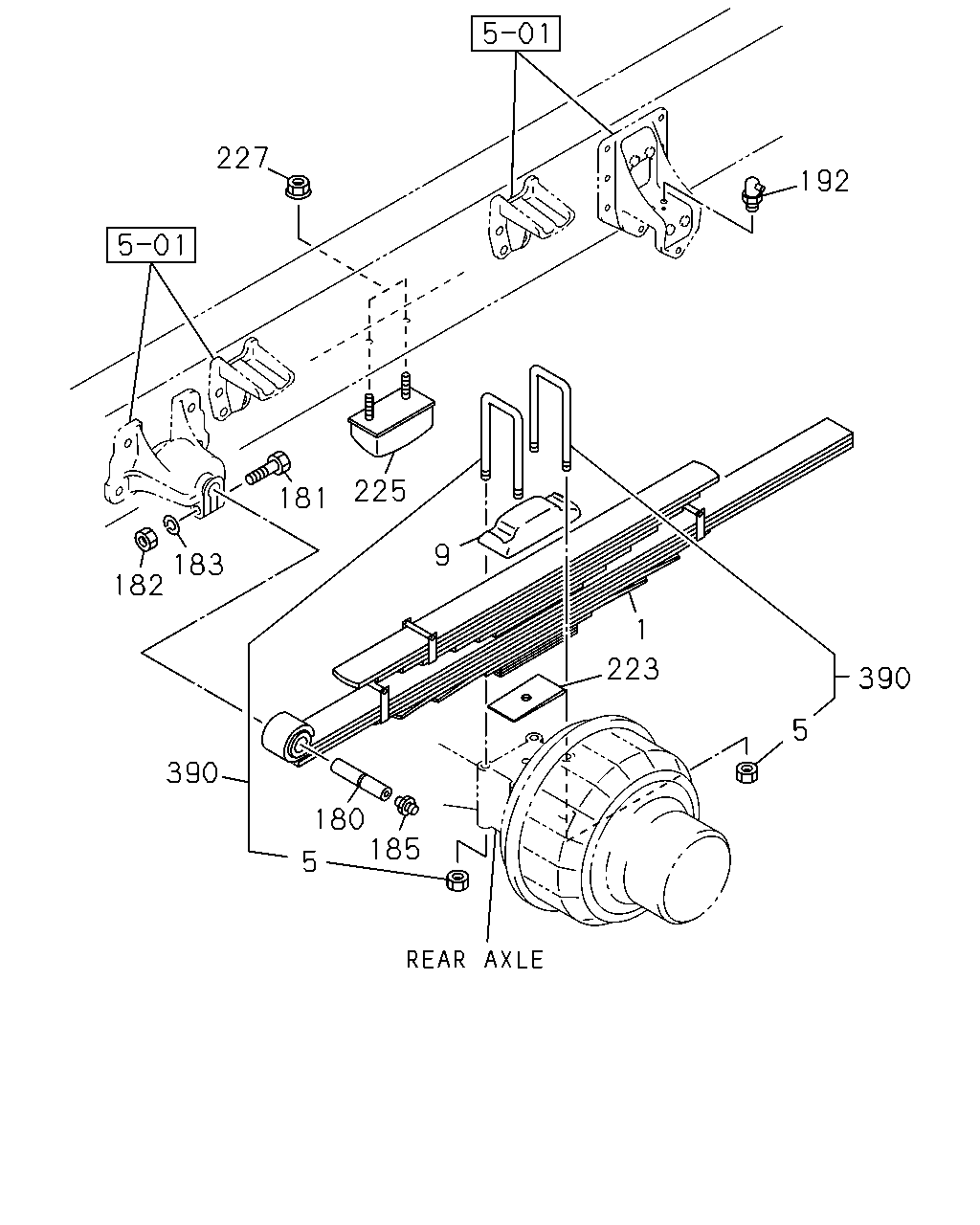

390
5
223
1
192
227
181
225
183
182
390
180
185
5
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98017-566-1
02
1
1601-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1601-
9
PAD; U BOLT,RR SPR
1-51372-030-0
02
1
1601-
180
PIN; RR SPR
1-51361-020-0
02
1
1601-
181
BOLT; SPR & SHACKLE
M14X80
0-10856-480-0
02
1
1601-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1601-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1601-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1601-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1601-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W)
1-51377-371-1
02
1
1601-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 6000MM(60W)
8-98220-148-0
02
1
1601-
225
RUBBER; CUSHION,RR SPR
1-53366-045-1
02
1
1601-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
1601-
390
U-BOLT SET; RR SPRING
L=490
1-87870-036-4
04
1
1601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
