Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#176026) — 33 parça
◀
[450A] FRONT STABILIZER SHAFT (4 parça)

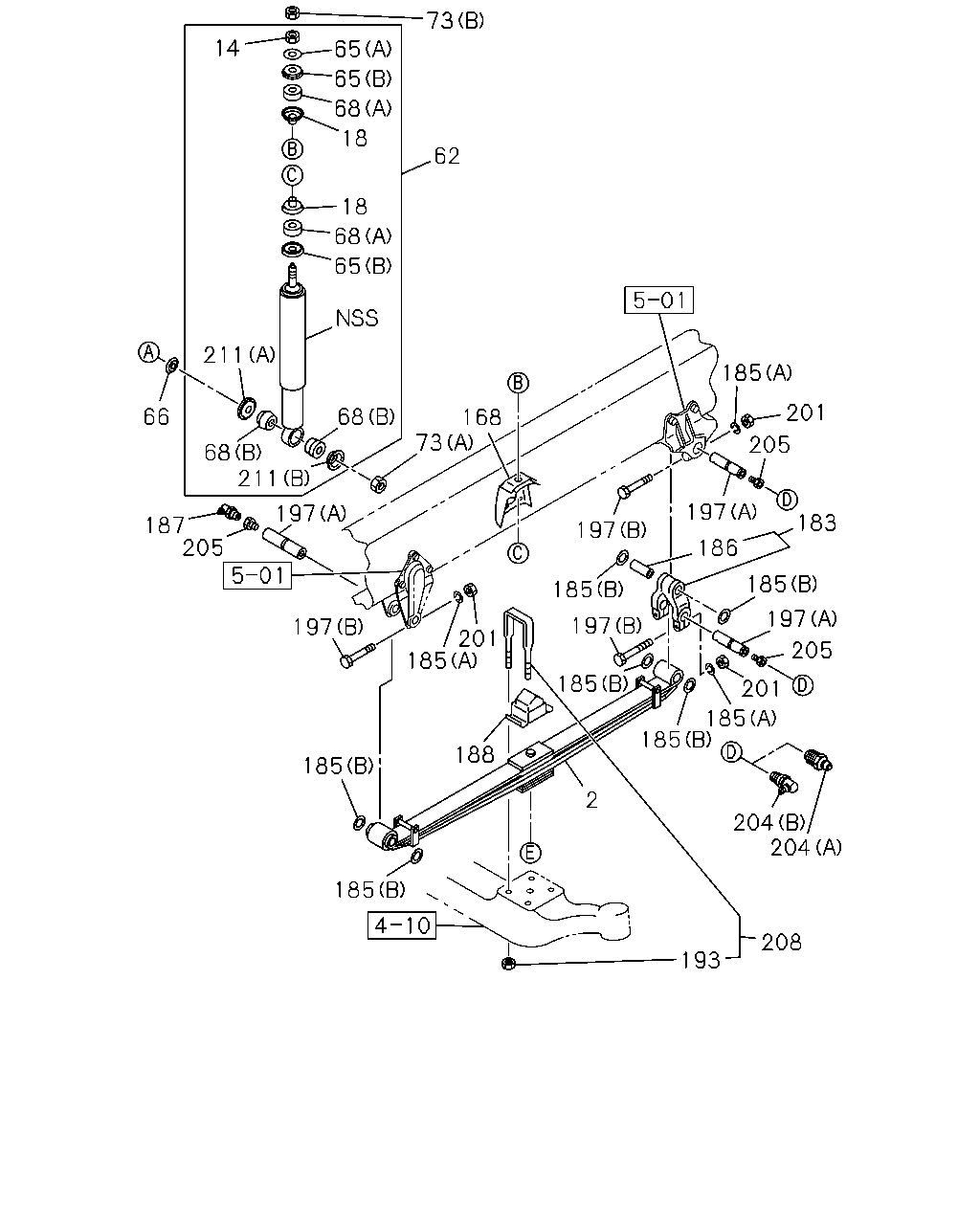

[450A] LEAF SPRING AND SHOCK ABSORBER (29 parça)
▶
138
140
377
377
137
137
377
140
377
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
8-98128-356-1
02
1
1601-
138
NUT; BRKT
M14
0-91110-514-0
06
1
1601-
140
BOLT; BRKT
M14X45
9-92061-445-0
06
1
1601-
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
12
1
1601-
14
65
73
65
62
68
18
18
68
211
66
211
68
187
205
197
197
73
168
197
185
197
185
185
185
185
188
2
185
204
204
208
185
205
197
201
185
183
197
186
205
201
185
193
201
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98069-483-0
01
1
1601-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98338-636-0
01
1
1601-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1601-
18
WASHER; CENTERING,S/ABS
ID=24
1-51631-067-0
04
1
1601-
62
ABSORBER ASM; SHOCK,FRT
8-98029-369-0
02
1
1601-
65
WASHER; S/ABS
(A) ID=16.5
1-09503-266-0
02
1
1601-
65
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
04
1
1601-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1601-
68
BUSHING; S/ABS
(A) ID=16 T=25
1-51631-069-0
04
1
1601-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1601-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1601-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1601-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1601-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1601-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1601-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1601-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1601-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1601-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-125-1
02
1
1601-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1601-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1601-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1601-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1601-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1601-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1601-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1601-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1601-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1601-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
