◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#176014) — 115 parça

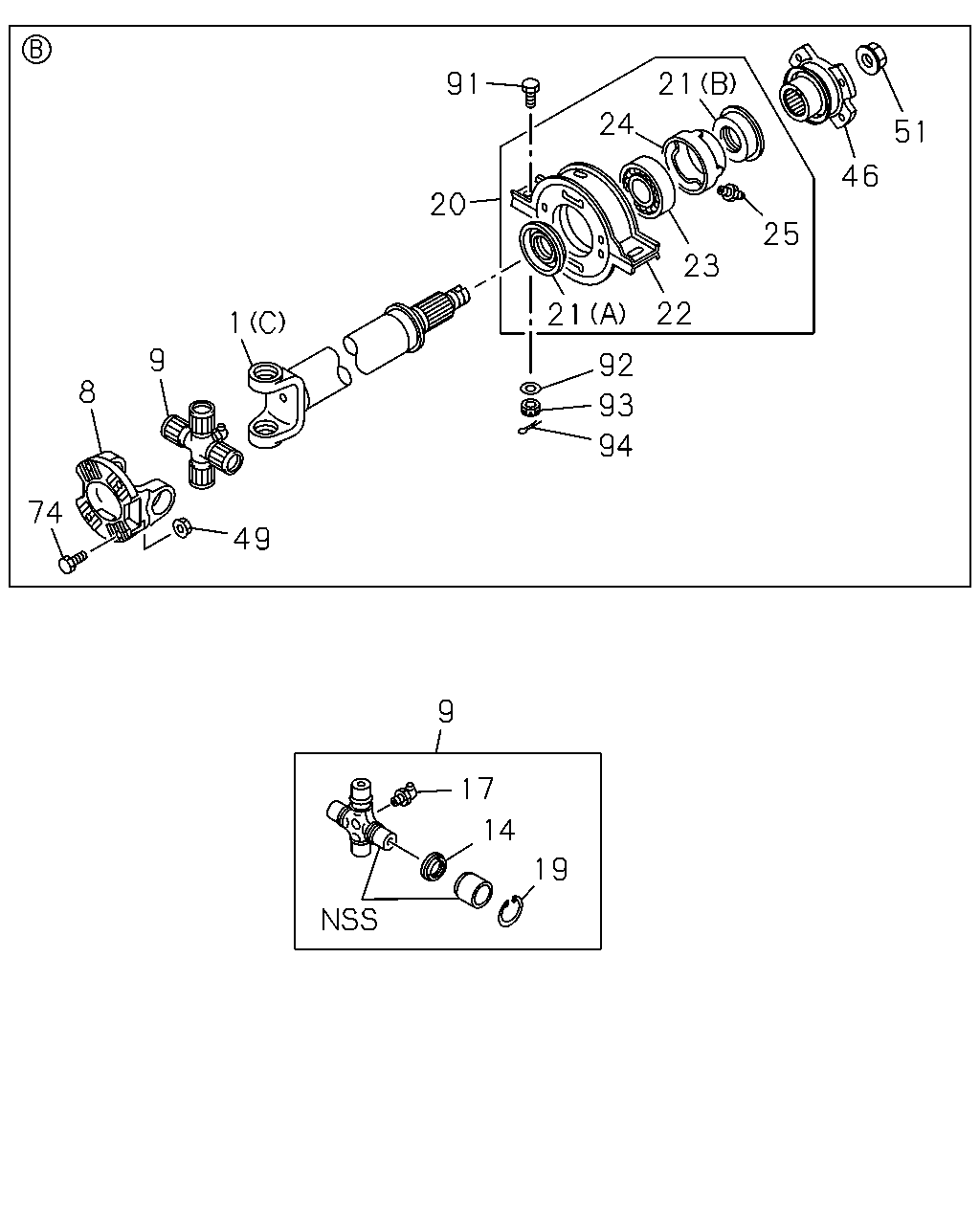

çizim 512761
74 8 9 1 49 20 91 92 93 94 9 17 14 19 21 22 23 25 21 24 46 51
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) 		8-98091-465-1 01 1 1601- ●
1 SHAFT; PROP
(A) 		1-37124-820-1 01 1 1601- ● ● ●
1 SHAFT; PROP
(B) 		8-98091-464-1 01 1 1601- ●
1 SHAFT; PROP
(C) 		8-98091-473-1 01 1 1601- ● ●
1 SHAFT; PROP
(B) 		8-98091-482-1 01 1 1601- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1601- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1601- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 1601- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1601- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1601- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1601- ● ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 04 1 1601- ● ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 04 1 1601- ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1601- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1601- ● ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1601- ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1601- ● ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1601- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1601- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1601- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1601- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1601- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1601- ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1601- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1601- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1601- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1601- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1601- ● ●
49 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1601- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1601- ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1601- ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1601- ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1601- ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 1601- ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 1601- ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1601- ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1601- ● ●

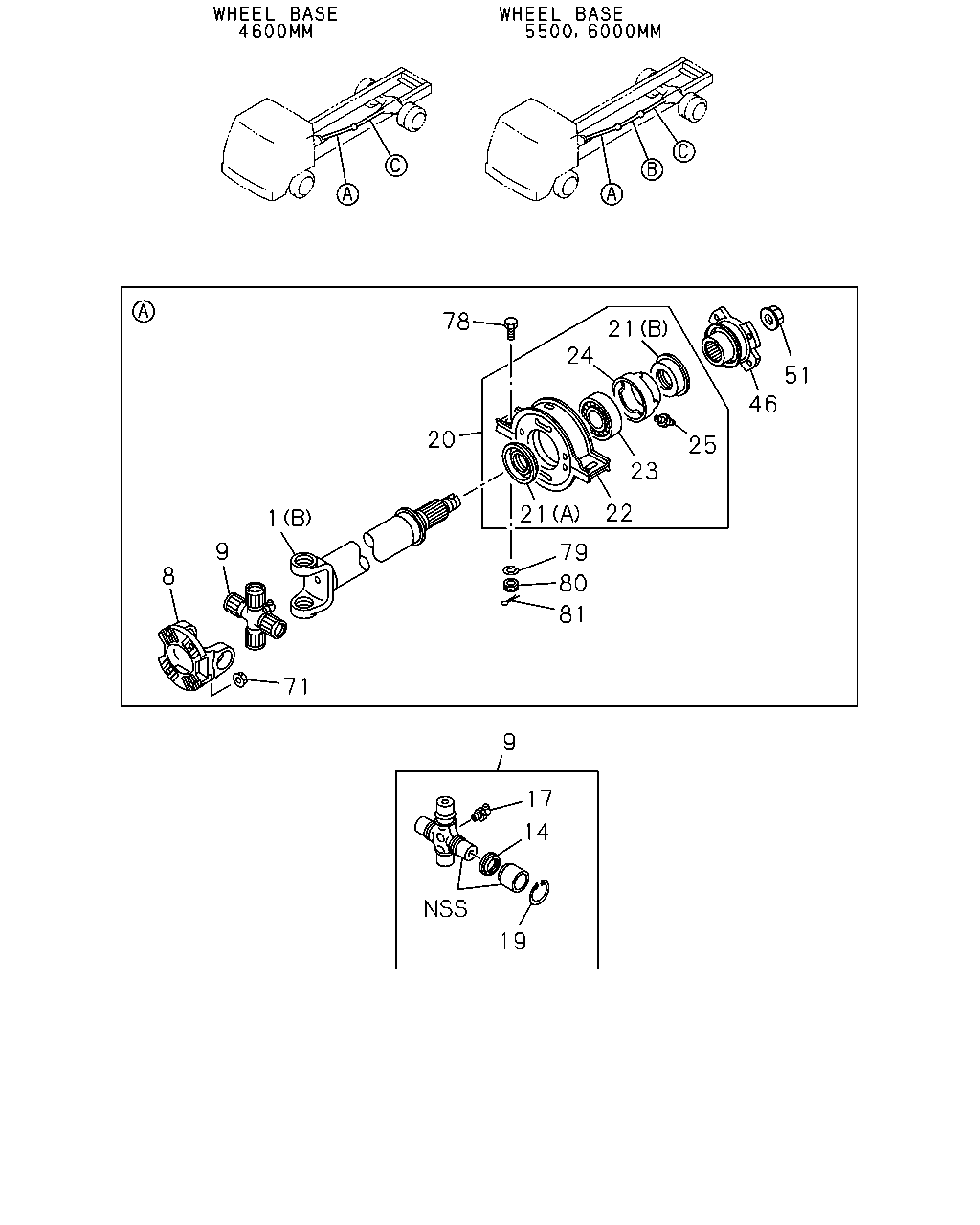

çizim 512766
78 20 1 9 8 71 79 80 81 21 22 23 25 46 51 21 24 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) 		8-98091-465-1 01 1 1601- ●
1 SHAFT; PROP
(A) 		1-37124-820-1 01 1 1601- ● ● ●
1 SHAFT; PROP
(B) 		8-98091-464-1 01 1 1601- ●
1 SHAFT; PROP
(C) 		8-98091-473-1 01 1 1601- ● ●
1 SHAFT; PROP
(B) 		8-98091-482-1 01 1 1601- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1601- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1601- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 1601- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1601- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1601- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1601- ● ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 04 1 1601- ● ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 04 1 1601- ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1601- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
ID=60 		1-37510-115-0 01 1 1601- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1601- ● ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-127-0 01 1 1601- ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1601- ● ● ●
21 SEAL; OIL,CENTER BRG
(B) 		1-09625-621-0 01 1 1601- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1601- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-048-2 01 1 1601- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1601- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-256-0 01 1 1601- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1601- ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-109-0 01 1 1601- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1601- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 1601- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1601- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-348-0 01 1 1601- ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1601- ● ● ●
51 NUT; FLANGE,SPLINED
M39 FLANGE 		1-09440-046-0 01 1 1601- ● ●
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 1601- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 1601- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 1601- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1601- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 1601- ● ● ●
çizim 513072
74 56 8 9 1 128 225 106 56 104 9 8 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
(B) 		8-98091-465-1 01 1 1601- ●
1 SHAFT; PROP
(A) 		1-37124-820-1 01 1 1601- ● ● ●
1 SHAFT; PROP
(B) 		8-98091-464-1 01 1 1601- ●
1 SHAFT; PROP
(C) 		8-98091-473-1 01 1 1601- ● ●
1 SHAFT; PROP
(B) 		8-98091-482-1 01 1 1601- ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1601- ● ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 01 1 1601- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-079-1 02 1 1601- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1601- ● ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 01 1 1601- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-110-0 02 1 1601- ● ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 04 1 1601- ● ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 04 1 1601- ● ●
14 COVER; DUST,SPIDER 1-37249-131-0 08 1 1601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1601- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1601- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 1601- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 08 1 1601- ● ● ●
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 1601- ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 08 1 1601- ● ● ●
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 1601- ● ●
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 1601- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1601- ● ● ●
128 SEAL; SLEEVE 1-37247-019-0 01 1 1601- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT 1-37241-124-0 01 1 1601- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
