Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#176002) — 61 parça
◀
[320A] AIR TANK SIDE NO.1 (3 parça)
[320A] FRAME SIDE (24 parça)
[320A] CAB SIDE (1 parça)
[320A] AIR TANK SIDE NO.2 (33 parça)
▶

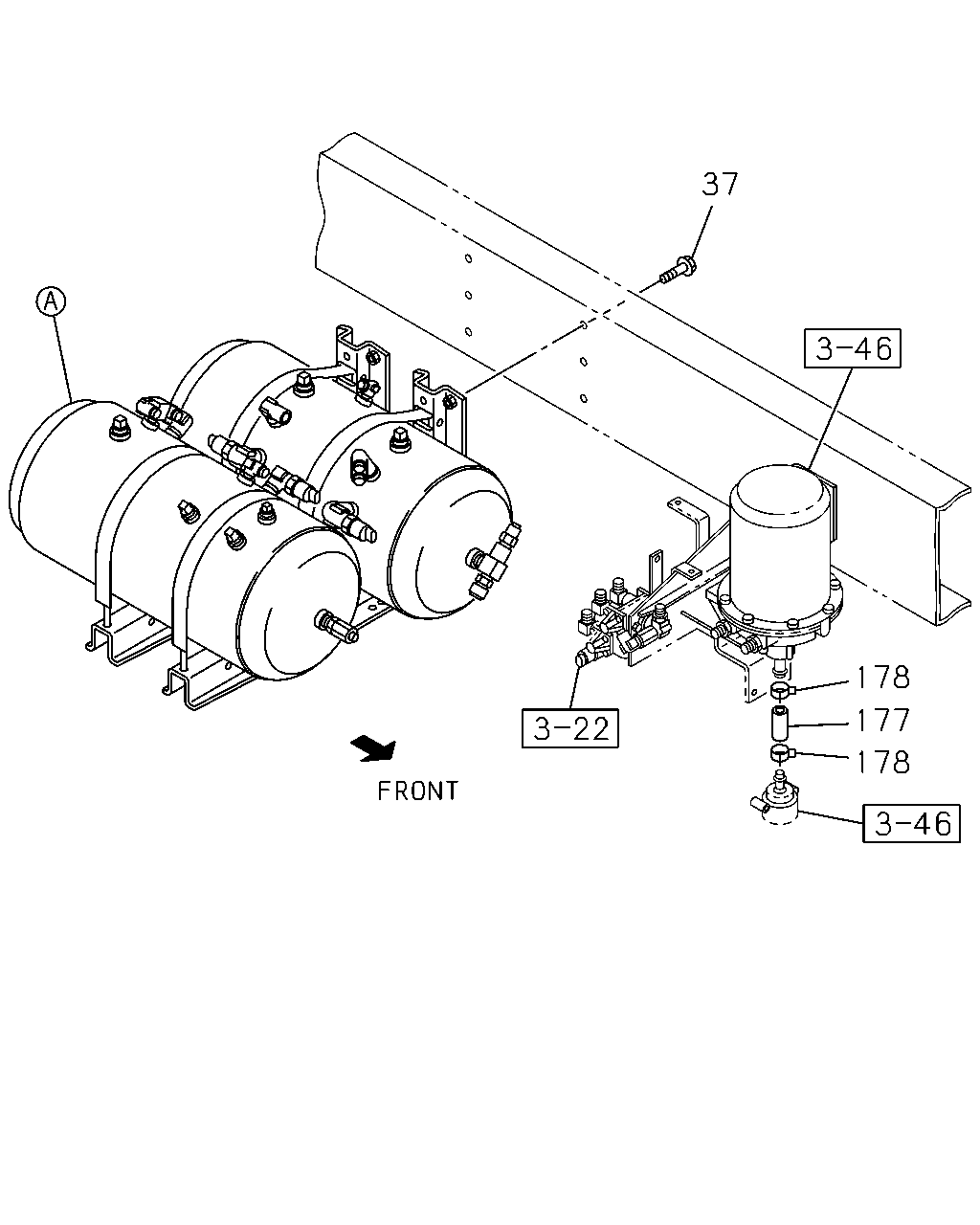

37
178
177
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
08
1
1601-
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
1601-
178
CLIP; HOSE
ID=21
8-94242-034-0
02
1
1601-

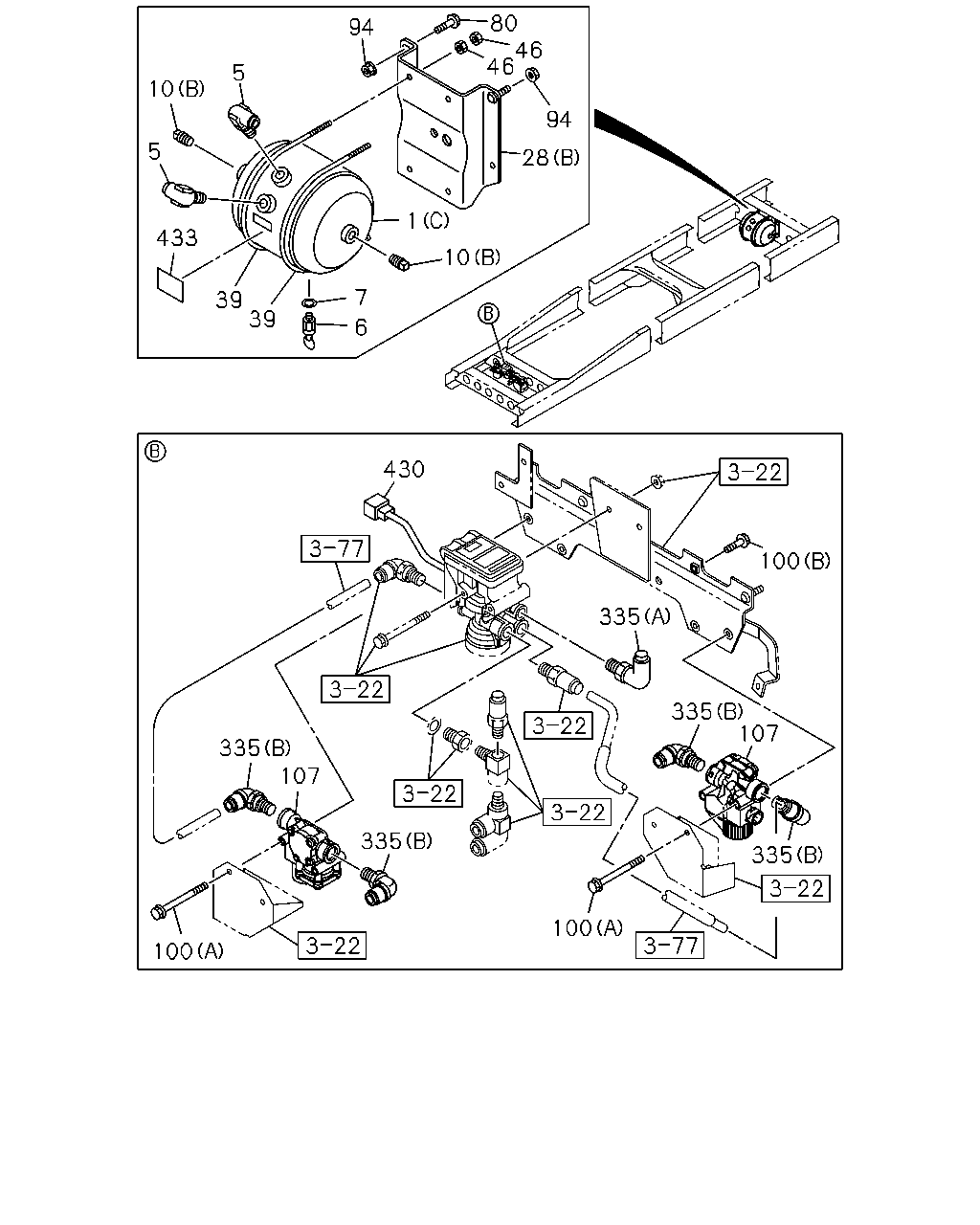

10
5
5
433
39
7
6
1
10
28
46
46
94
80
94
430
335
107
335
100
335
107
335
100
335
100
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A)
1-48370-181-1
01
1
1601-
1
TANK ASM; AIR
(C)
8-98081-870-1
01
1
1601-
1
TANK ASM; AIR
(B)
8-98184-783-0
01
1
1601-
5
UNION; AIR TANK
DIN8 & R3/8 ELBOW
1-09660-957-0
02
1
1601-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1601-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
05
1
1601-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1601-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
05
1
1601-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
02
1
1601-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
03
1
1601-
10
PLUG; AIR TANK
(A) PT3/4
9-09204-526-0
03
1
1601-
28
BRACKET; AIR TANK
(A)
1-48317-601-5
02
1
1601-
28
BRACKET; AIR TANK
(B)
8-98100-165-3
01
1
1601-
39
U-BOLT; AIR TANK
L=210
1-48317-458-1
02
1
1601-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1601-
80
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
03
1
1601-
94
NUT; BRKT FIX
M10 FLANGE
0-91180-210-0
04
1
1601-
100
BOLT; MODULATOR
(B) M8X25 FLANGE
0-28650-825-0
02
1
1601-
100
BOLT; MODULATOR
(A) M8X85
1-09044-074-0
04
1
1601-
107
MODULATOR; RR
8-98215-454-0
02
1
1601-
335
CONNECTOR; MODULATOR
(B) DIN12 & M22 ELBOW
1-09661-497-0
04
1
1601-
335
CONNECTOR; MODULATOR
(A) DIN8 & M16 ELBOW
1-09661-531-0
01
1
1601-
430
HARNESS
8-98305-273-1
01
1
1601-
433
PLATE; NAME
ACCESSORY
8-98121-998-0
01
1
1601-

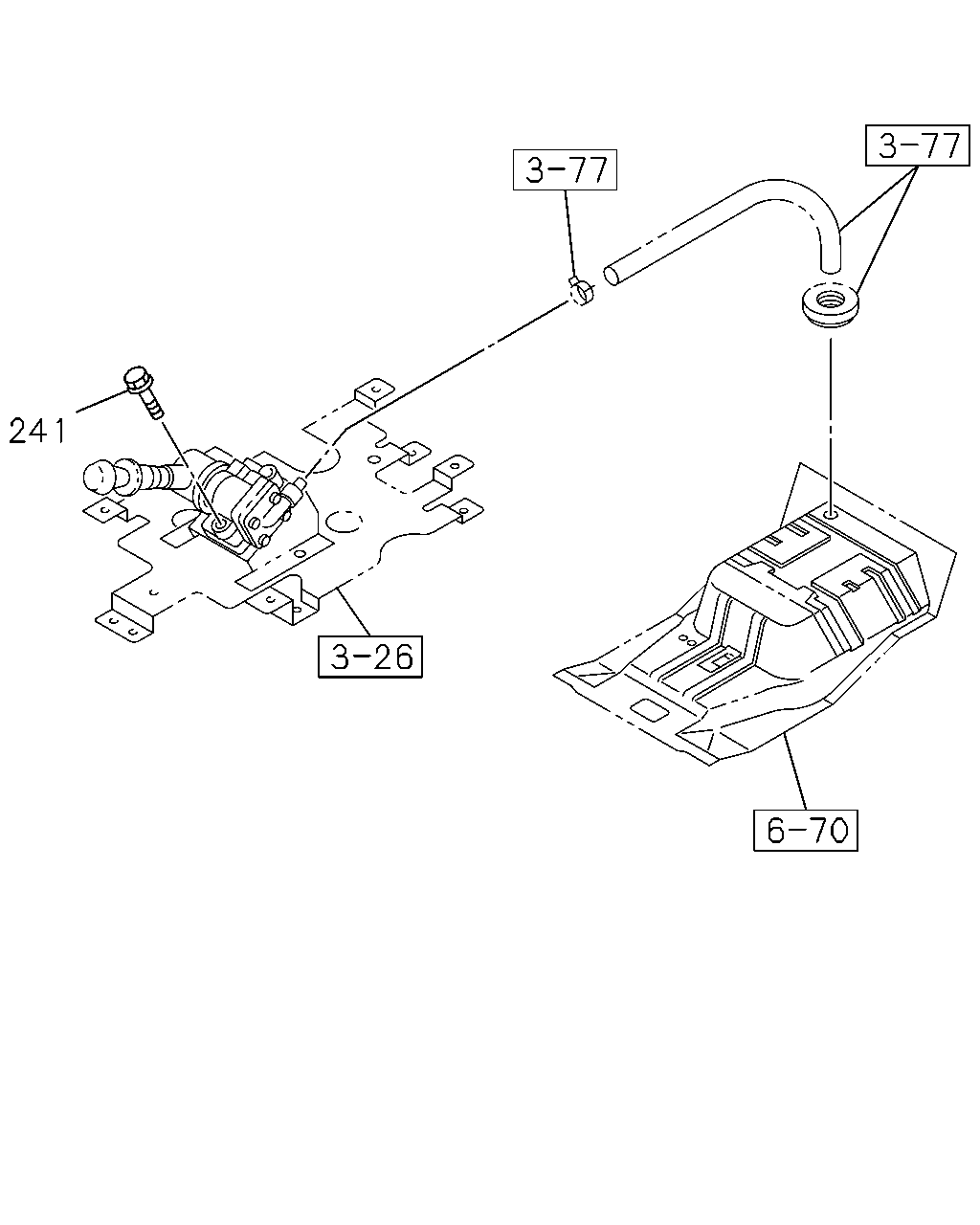

241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
M8X70 FLANGE
0-28050-870-0
02
1
1601-

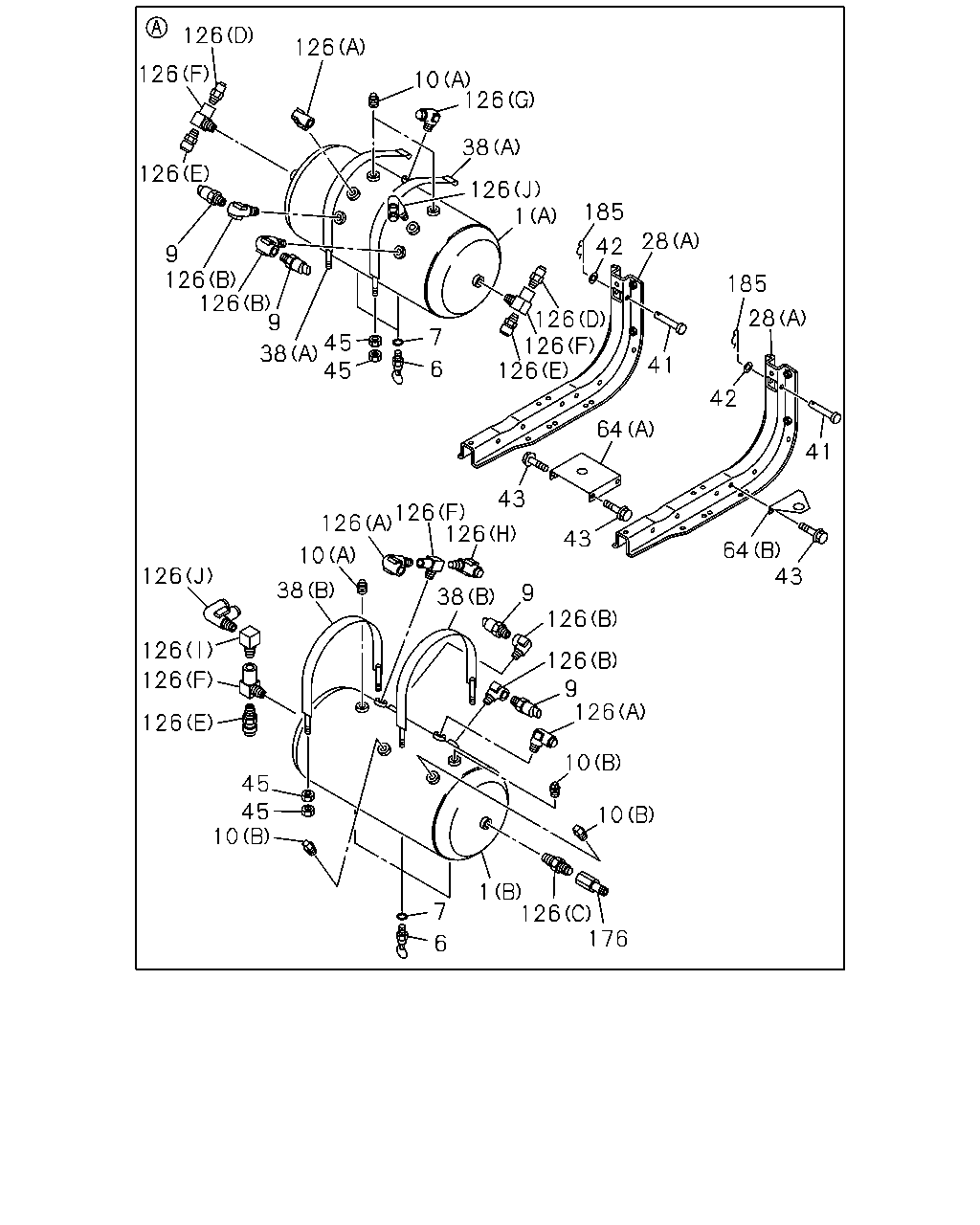

126
126
126
9
126
126
9
38
45
45
7
6
126
10
126
38
126
1
126
126
126
185
42
28
41
64
43
43
185
42
28
41
64
43
126
126
126
126
45
45
10
38
10
126
126
126
38
9
126
126
9
126
10
10
1
126
176
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
(A)
1-48370-181-1
01
1
1601-
1
TANK ASM; AIR
(C)
8-98081-870-1
01
1
1601-
1
TANK ASM; AIR
(B)
8-98184-783-0
01
1
1601-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
01
1
1601-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
05
1
1601-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
01
1
1601-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
05
1
1601-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
04
1
1601-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
02
1
1601-
10
PLUG; AIR TANK
(B) PT3/8
9-09204-517-0
03
1
1601-
10
PLUG; AIR TANK
(A) PT3/4
9-09204-526-0
03
1
1601-
28
BRACKET; AIR TANK
(A)
1-48317-601-5
02
1
1601-
28
BRACKET; AIR TANK
(B)
8-98100-165-3
01
1
1601-
38
BAND; AIR TANK
(A)
1-48317-108-2
02
1
1601-
38
BAND; AIR TANK
(B)
1-48317-109-2
02
1
1601-
41
PIN; BAND FIX
OD=10 L=60
0-82254-060-0
02
1
1601-
42
WASHER; PL
ID=10.5
0-91614-510-0
02
1
1601-
43
BOLT; STAY,AIR TANK,MAIN
M8X25 FLANGE
0-28650-825-0
06
1
1601-
45
NUT; AIR TANK,MAIN
M8
0-91110-508-0
12
1
1601-
64
STAY; AIR TANK,MAIN
(A)
1-48317-607-0
01
1
1601-
64
STAY; AIR TANK,MAIN
(B)
1-48317-691-0
01
1
1601-
126
CONNECTOR; ELBOW
(C) M22 & PT3/4 STRAIGHT
1-09650-275-1
01
1
1601-
126
CONNECTOR; ELBOW
(B) PT1/4 & PT1/4 2WAY
1-09660-693-0
04
1
1601-
126
CONNECTOR; ELBOW
(I) PT3/8 ELBOW
1-09660-696-0
01
1
1601-
126
CONNECTOR; ELBOW
(H) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1601-
126
CONNECTOR; ELBOW
(G) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1601-
126
CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1601-
126
CONNECTOR; ELBOW
(D) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1601-
126
CONNECTOR; ELBOW
(J) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
02
1
1601-
126
CONNECTOR; ELBOW
(E) R1/4 & M16 TEST CONNECTOR
1-47459-013-1
03
1
1601-
126
CONNECTOR; ELBOW
(F) R3/8 & RC3/8 & RC1/4 3WAY
8-98166-127-0
04
1
1601-
176
ADAPTER
DIN12 & M12 STRAIGHT
1-09660-878-0
01
1
1601-
185
PIN; SNAP
L=32.6
8-98062-280-0
02
1
1601-
