Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶
3-10 — BRAKE PEDAL AND CONTROL
(#176000) — 21 parça
◀

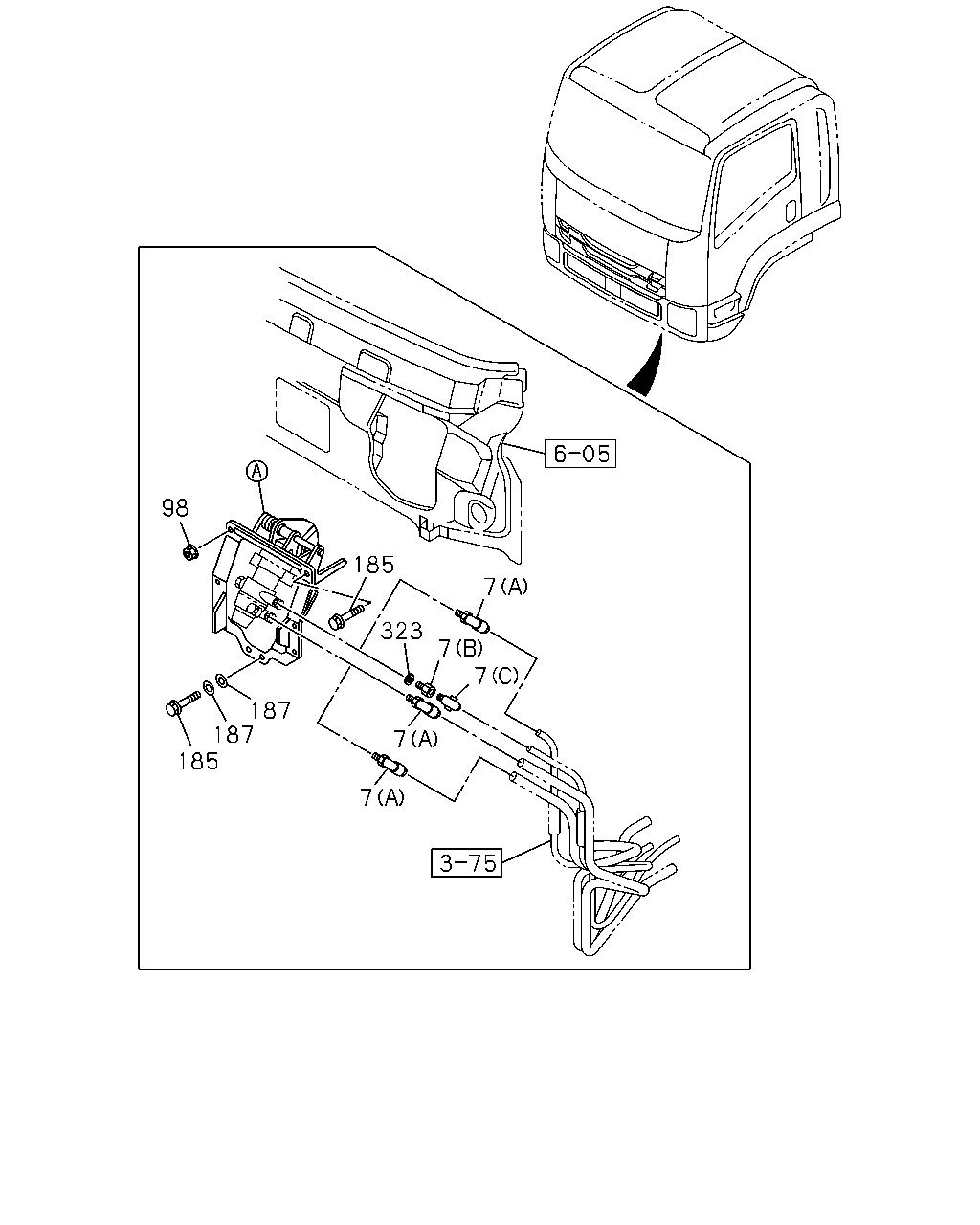

[310A] FIXING (7 parça)

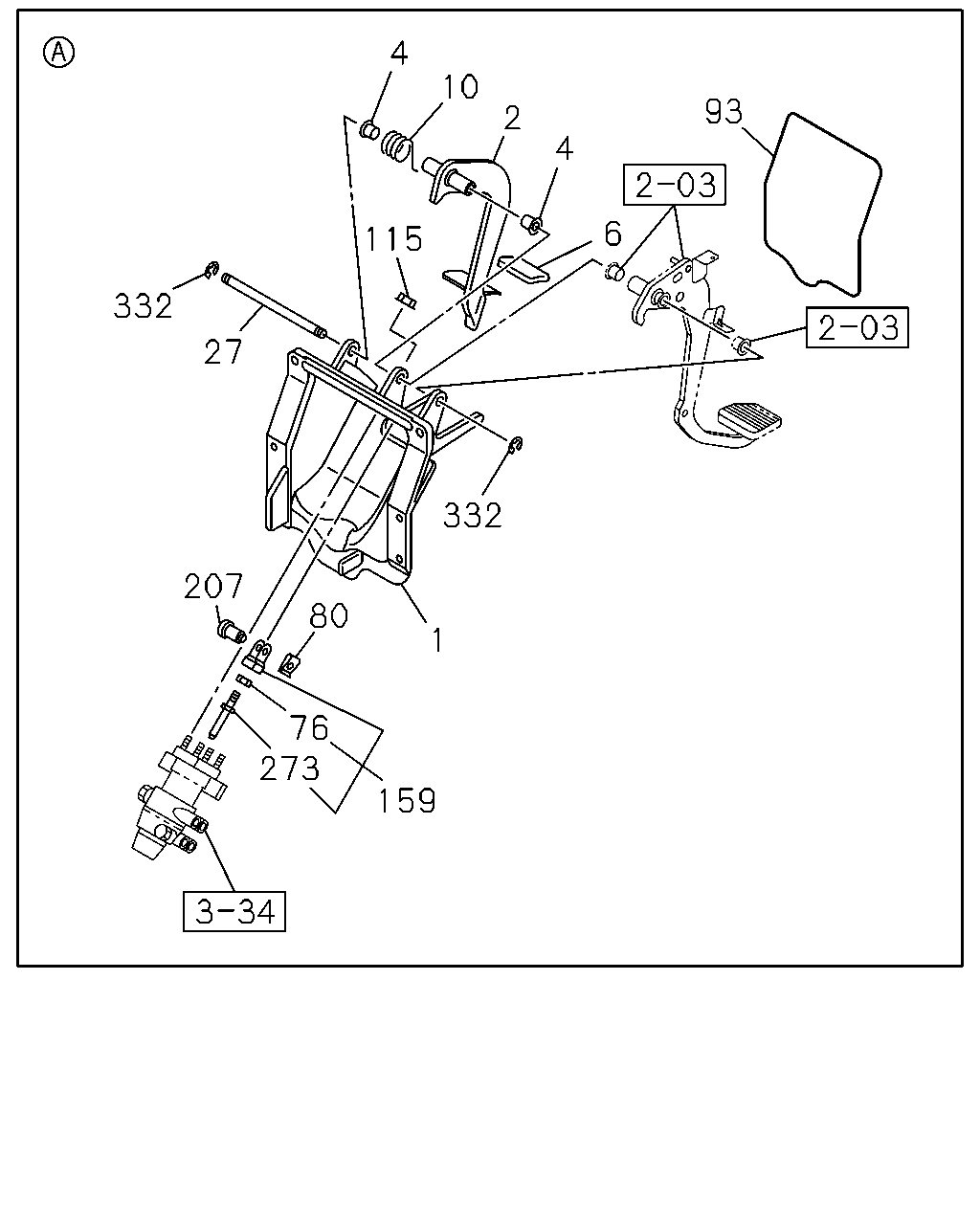

[310A] COMPONENT (14 parça)
▶
98
185
7
323
7
7
7
187
187
185
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CONNECTOR; BRK VALVE
(B) PT1/4
1-09654-396-0
01
1
1601-
7
CONNECTOR; BRK VALVE
(C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1601-
7
CONNECTOR; BRK VALVE
(A) DIN8 & M12 ELBOW
1-09661-561-0
03
1
1601-
98
NUT; BRKT
M8 FLANGE
0-91180-208-0
01
1
1601-
185
BOLT; BRKT
M8X25 HEXALOBULAR
8-98316-699-0
07
1
1601-
187
WASHER; PL,BRKT
ID=8.4 OD=26
8-98316-762-0
04
1
1601-
323
GASKET
ID=12.2
9-09571-412-0
01
1
1601-
93
4
2
10
4
115
332
27
207
332
80
76
273
159
1
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-98306-654-0
01
1
1601-
2
PEDAL; BRK
8-98284-506-0
01
1
1601-
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
1601-
6
COVER; BRK PEDAL
8-98056-865-0
01
1
1601-
10
SPRING; RETURN,BRK PEDAL
8-98057-232-1
01
1
1601-
27
SHAFT; BRK PEDAL
8-98057-231-0
01
1
1601-
76
NUT; PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
1601-
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
1601-
93
SEAL; BRK PEDAL
1-48199-534-0
01
1
1601-
115
NUT; BRK VLV BRKT
M8 FLANGE
0-91180-108-0
04
1
1601-
159
ROD ASM; PUSH,BRK
8-98221-429-1
01
1
1601-
207
PIN; JOINT,BRK PEDAL LINK
8-98147-657-0
01
1
1601-
273
ROD; PULL
8-98232-233-1
01
1
1601-
332
RING; SNAP
ID=12
0-91805-512-0
02
1
1601-
