Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

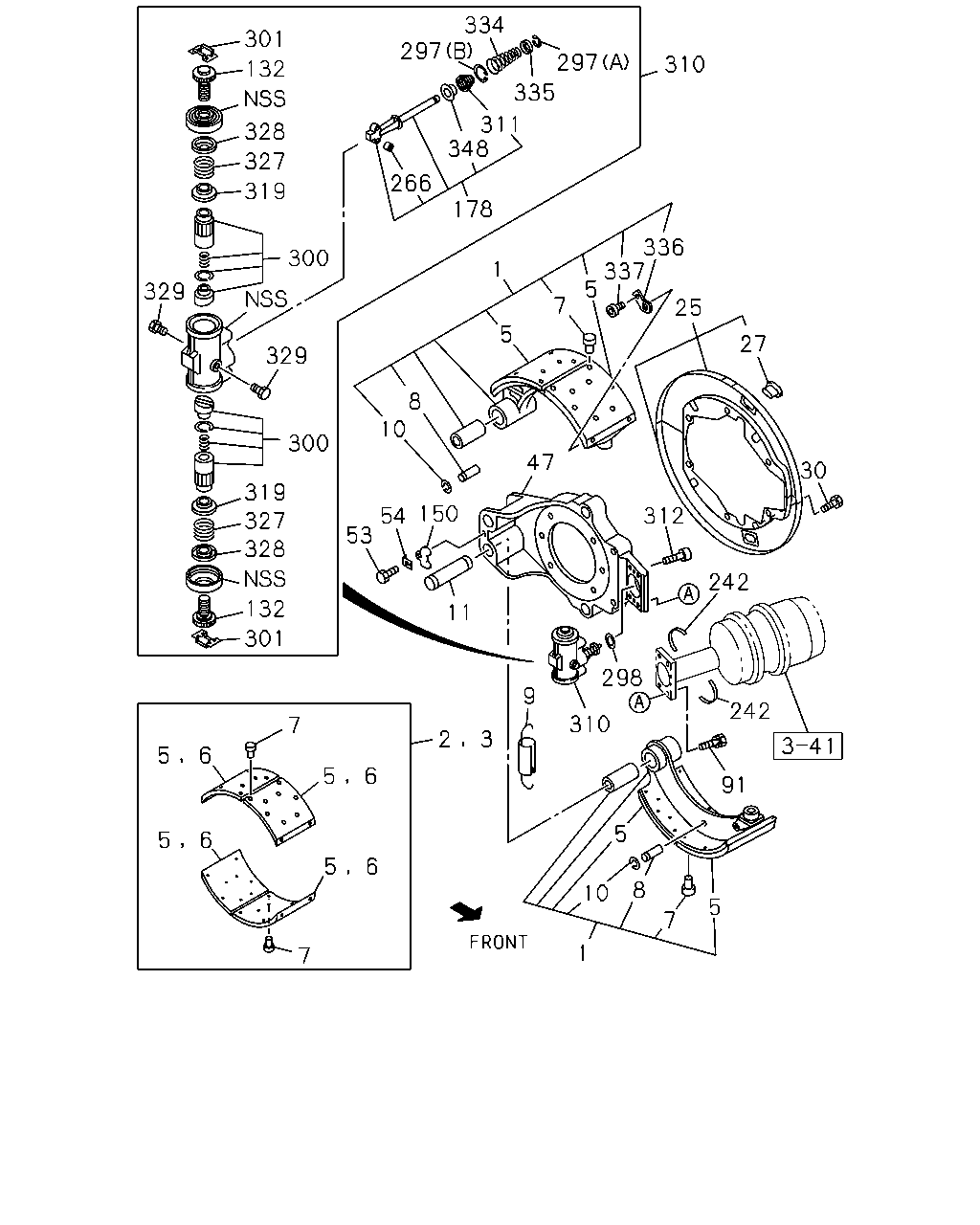

3-05 — REAR WHEEL BRAKE
(#175999) — 57 parça
◀
[305A] REPAIR KIT (13 parça)
[305A] COMPONENT (44 parça)
▶
346
301
328
319
329
329
319
327
328
301
347
301
301
297
348
311
297
334
335
327
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
297
RING; SNAP
(A)
1-47649-031-0
02
1
1601-
297
RING; SNAP
(B)
1-47649-034-1
02
1
1601-
301
CLIP; ANTI LOTATION
1-47621-017-0
04
1
1601-
311
BOOT; WEDGE
1-47649-042-0
02
1
1601-
319
RING; DRIVE
1-47629-200-0
04
1
1601-
327
SPRING; ADJ
1-47629-196-0
04
1
1601-
328
CAGE; SPRING
1-47629-192-0
04
1
1601-
329
SCREW; LOCATING
1-47619-149-1
04
1
1601-
334
SPRING; ROD
1-47649-041-0
02
1
1601-
335
RETAINER; SPRING
1-47649-020-0
02
1
1601-
346
REPAIR KIT; EXPANDER
1-85576-403-0
02
1
1601-
347
REPAIR KIT; BOOT,EXPANDER
1-85576-404-0
02
1
1601-
348
CAP; EXPANDER
1-47649-044-0
02
1
1601-
301
328
132
327
300
319
329
329
300
319
328
132
327
301
7
6
5
6
6
5
5
6
7
2
3
9
310
298
242
91
5
7
8
10
5
11
150
54
53
10
8
5
47
7
5
1
337
336
25
30
242
312
27
310
178
266
348
311
335
297
334
297
1
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING
1-47170-504-0
01
1
1601-
1
SHOE; BRK,RR
TRAILING
1-47170-505-0
01
1
1601-
1
SHOE; BRK,RR
LEADING
1-47170-506-0
01
1
1601-
1
SHOE; BRK,RR
TRAILING
1-47170-507-0
01
1
1601-
2
LINING SET; RR BRK,STANDARD
1-88310-773-0
02
1
1601-
3
LINING SET; RR BRK,OVER SIZE
1-88310-774-0
02
1
1601-
5
LINING; RR BRK SHOE,STANDARD
1-47126-091-0
08
1
1601-
6
LINING; RR BRK SHOE,OVER SIZE
1-47126-092-0
08
1
1601-
7
RIVET; LINING,RR BRK
L=15.5
1-09732-053-0
AR
1
1601-
8
PIN; RETURN SPRING,RR BRK SHOE
1-47119-175-0
04
1
1601-
9
SPRING; RETURN,BRK SHOE
1-09583-376-0
02
1
1601-
10
RING; SNAP,SPR PIN
ID=10
0-91805-510-0
04
1
1601-
11
PIN; ANCHOR,RR WHEEL BRK
L=138.5
1-47131-045-0
04
1
1601-
25
COVER SET; RR BRK DRUM
1-47151-806-0
01
1
1601-
25
COVER SET; RR BRK DRUM
1-47151-807-0
01
1
1601-
27
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
1601-
30
BOLT; DRUM COVER
M10X12
1-47159-187-0
12
1
1601-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
8-98091-254-1
01
1
1601-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
8-98091-255-1
01
1
1601-
53
BOLT; LOCK PLATE
M10X16
1-47139-173-0
02
1
1601-
54
WASHER; LK,ANCHOR PIN,RR BRK
1-47133-011-0
02
1
1601-
91
BOLT; CHAMBER
M10X45
1-47139-174-0
08
1
1601-
132
SCREW; ADJ,RR BRK
1-47623-035-2
04
1
1601-
150
PLATE; LK,ANCHOR PIN
1-47133-010-0
02
1
1601-
178
WEDGE; RR WHEEL CYL
1-47640-012-0
02
1
1601-
242
SEAL
1-47159-186-0
04
1
1601-
266
ROLLER; WEDGE
1-47643-007-0
04
1
1601-
297
RING; SNAP
(A)
1-47649-031-0
02
1
1601-
297
RING; SNAP
(B)
1-47649-034-1
02
1
1601-
298
GASKET
1-48259-231-0
02
1
1601-
300
SLEEVE
1-47629-247-1
04
1
1601-
301
CLIP; ANTI LOTATION
1-47621-017-0
04
1
1601-
310
EXPANDER
1-47601-087-0
02
1
1601-
311
BOOT; WEDGE
1-47649-042-0
02
1
1601-
312
BOLT; EXPANDER
M8X16 HEXALOBULAR SOCKET
1-47634-008-0
04
1
1601-
319
RING; DRIVE
1-47629-200-0
04
1
1601-
327
SPRING; ADJ
1-47629-196-0
04
1
1601-
328
CAGE; SPRING
1-47629-192-0
04
1
1601-
329
SCREW; LOCATING
1-47619-149-1
04
1
1601-
334
SPRING; ROD
1-47649-041-0
02
1
1601-
335
RETAINER; SPRING
1-47649-020-0
02
1
1601-
336
PLATE; PIVOT
1-47119-152-0
04
1
1601-
337
BOLT; PLATE
1-47119-153-0
04
1
1601-
348
CAP; EXPANDER
1-47649-044-0
02
1
1601-
