◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#175997) — 12 parça

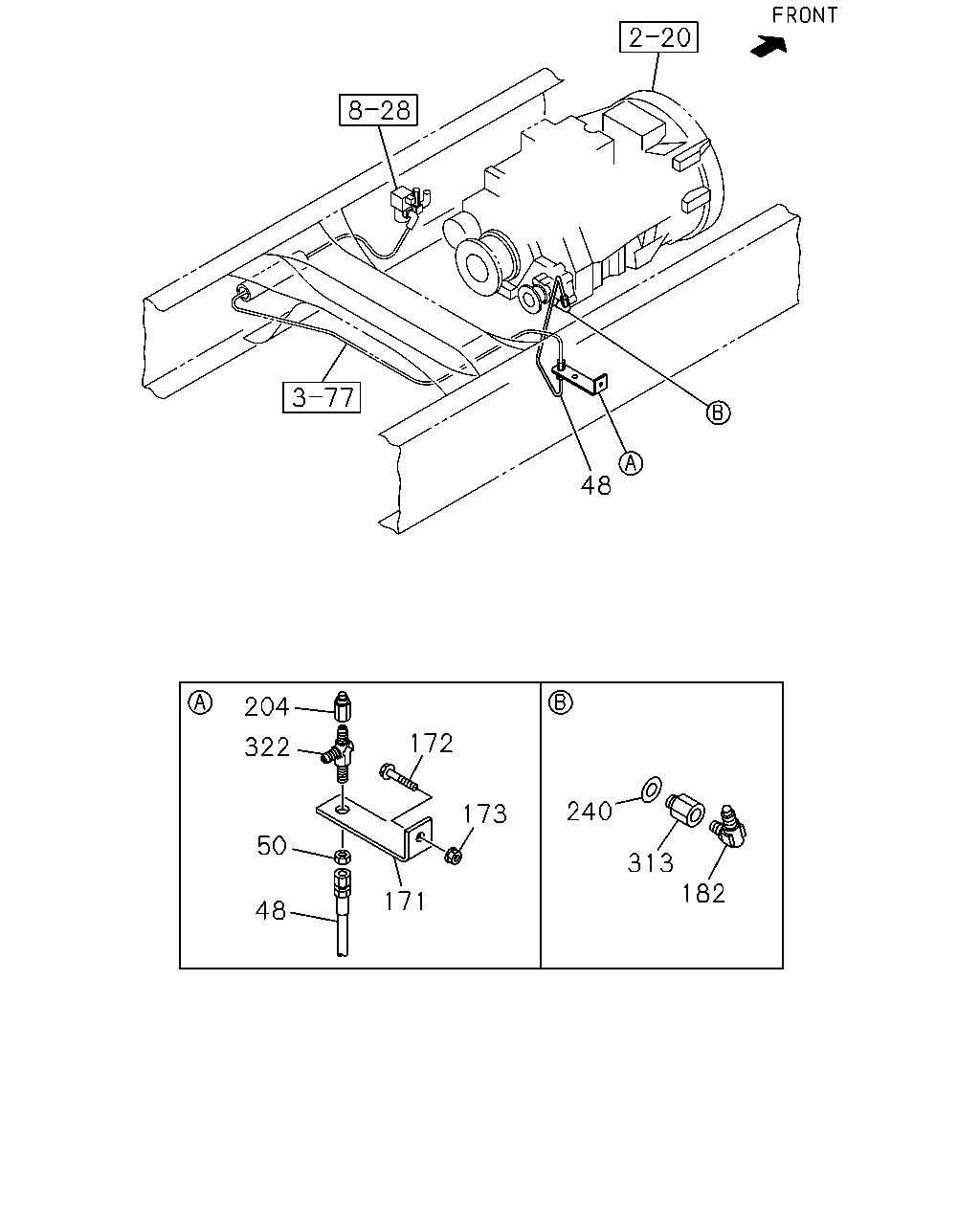

çizim 512627
48 204 322 50 48 172 173 171 240 313 182
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=320 		1-09363-625-0 01 1 1601-
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		0-91111-512-0 01 1 1601-
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) 		8-98225-544-0 01 1 1601-
172 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X30 FLANGE 		0-28650-830-0 01 1 1601-
173 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 1601-
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1601-
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1601-
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1601-
313 ADAPTER
PTO ZF TRANS RR(BDM) PT1/4 		1-09654-396-0 01 1 1601-
322 UNION
PTO ZF TRANS RR(BDM) M12 2WAY 		1-09654-059-2 01 1 1601-
çizim 513654
3 15 3
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1601-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 1601-
