Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

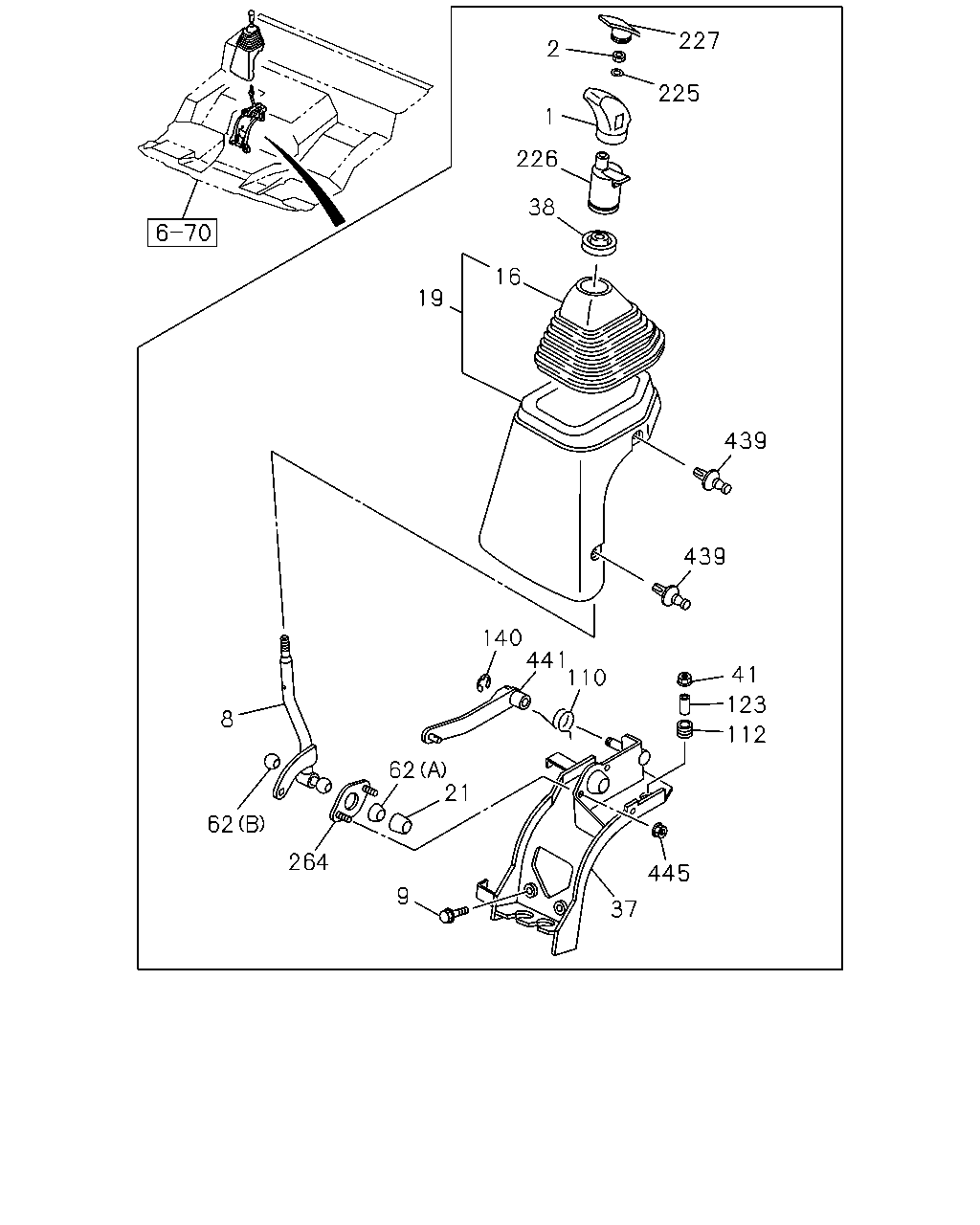

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#175992) — 23 parça
227
2
1
225
226
38
16
19
439
439
41
123
112
110
441
140
62
21
264
62
8
9
37
445
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-038-0
01
1
1601-
2
NUT; KNOB
M10 FLANGE
0-91180-210-0
01
1
1601-
8
LEVER; CHANGE
8-98093-454-0
01
1
1601-
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
1601-
16
BOOT; CHANGE LEVER
8-97893-962-1
01
1
1601-
19
COVER; CHANGE LEVER
GRAY
8-97411-671-1
01
1
1601-
21
SEAT; CHANGE LEVER
1-33619-429-0
01
1
1601-
37
BRACKET; CHANGE LEVER SUPPORT
8-98093-451-0
01
1
1601-
38
HOLDER; BOOT CHANGE LEVER
8-98070-460-1
01
1
1601-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
1601-
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
1601-
62
SEAT; BALL,CHANGE LEVER
(B)
8-97049-147-0
01
1
1601-
110
SPRING; RETURN,CHANGE LEVER
1-33619-586-0
01
1
1601-
112
RUBBER; CUSHION
1-33619-442-0
04
1
1601-
123
COLLAR; DIST,CHANGE LEVER
1-33619-443-0
04
1
1601-
140
RING; SNAP
ID=10
0-91805-510-0
01
1
1601-
225
WASHER; PL,KNOB
ID=10.5 OD=22 T=1.6
0-91610-610-0
01
1
1601-
226
VALVE; SELECTOR
1-33710-008-0
01
1
1601-
227
COVER; KNOB
8-98013-168-0
01
1
1601-
264
PLATE; COVER
1-33619-430-0
01
1
1601-
439
FASTENER; COVER
GRAY
8-97407-955-0
04
1
1601-
441
LEVER; SELECT
8-98071-283-0
01
1
1601-
445
NUT; PLATE
M6 FLANGE
0-91180-106-0
02
1
1601-
