◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#175991) — 140 parça

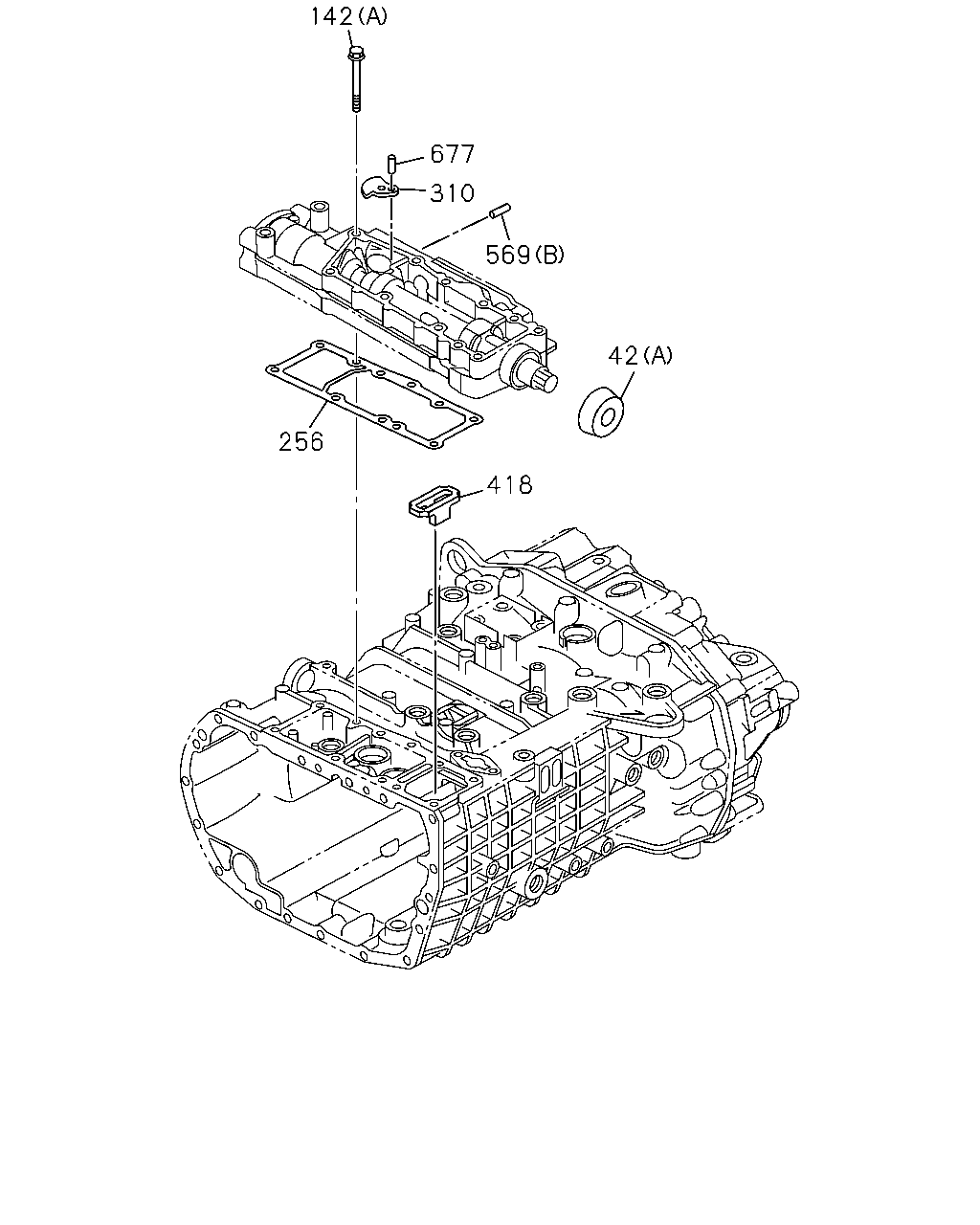

çizim 512585
142 677 310 569 42 418 256
BalonParca AdiParca NoAdetTipApplied Date
42 CAP; QUAD BOX
(A) 		1-33549-548-0 01 1 1601-
42 CAP; QUAD BOX
(B) 		1-33549-619-0 01 1 1601-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1601-
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1601-
256 GASKET; QUAD BOX TO TRANS CASE 1-33542-062-0 01 1 1601-
310 PLATE; LOCK,SHIFT LEVER 1-33549-453-0 01 1 1601-
418 PIECE; DIST,QUAD BOX 1-33549-454-0 01 1 1601-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1601-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1601-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1601-
677 PIN; PLATE 1-33549-452-0 01 1 1601-

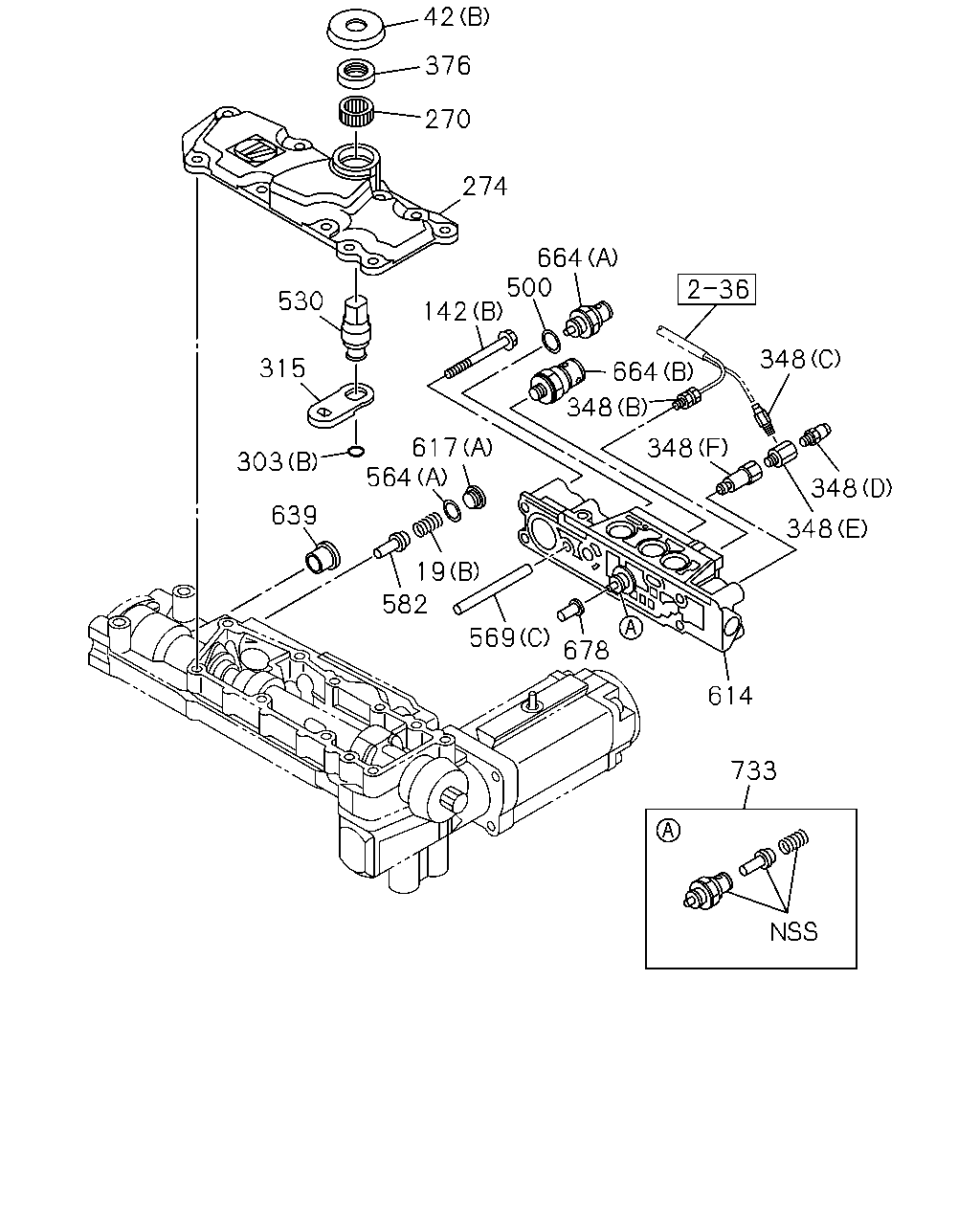

çizim 512781
42 376 270 274 530 315 303 639 617 564 19 582 569 678 614 733 348 348 348 348 348 664 500 664 142
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-089-0 01 1 1601-
19 SPRING; COIL COMP
(B) 		1-33539-090-0 01 1 1601-
42 CAP; QUAD BOX
(A) 		1-33549-548-0 01 1 1601-
42 CAP; QUAD BOX
(B) 		1-33549-619-0 01 1 1601-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1601-
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1601-
270 BEARING; NEEDLE,QUAD BOX 1-33549-459-0 01 1 1601-
274 COVER; SHAFT,QUAD BOX 1-33549-477-0 01 1 1601-
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 1601-
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 1601-
315 LEVER; SELECT 1-33549-458-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(A) PT1/4 		1-09654-396-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 1601-
376 SEAL; OIL 1-33549-462-0 01 1 1601-
500 GASKET; SW 1-33119-249-0 01 1 1601-
530 SHAFT; SELECT 1-33549-460-0 01 1 1601-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1601-
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 1601-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1601-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1601-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1601-
582 BOLT; SPRING GUIDE 1-33549-471-0 01 1 1601-
614 VALVE ASM 1-33549-549-0 01 1 1601-
617 PLUG
(A) 		1-33119-619-0 01 1 1601-
617 PLUG
(B) 		1-33539-109-0 01 1 1601-
639 CAP 1-33549-576-0 01 1 1601-
664 SWITCH
(A) 		1-33119-627-0 01 1 1601-
664 SWITCH
(B) 		1-33549-470-0 01 1 1601-
678 TAPPET 1-33549-466-0 01 1 1601-
733 REPAIR KIT 1-33549-617-0 01 1 1601-

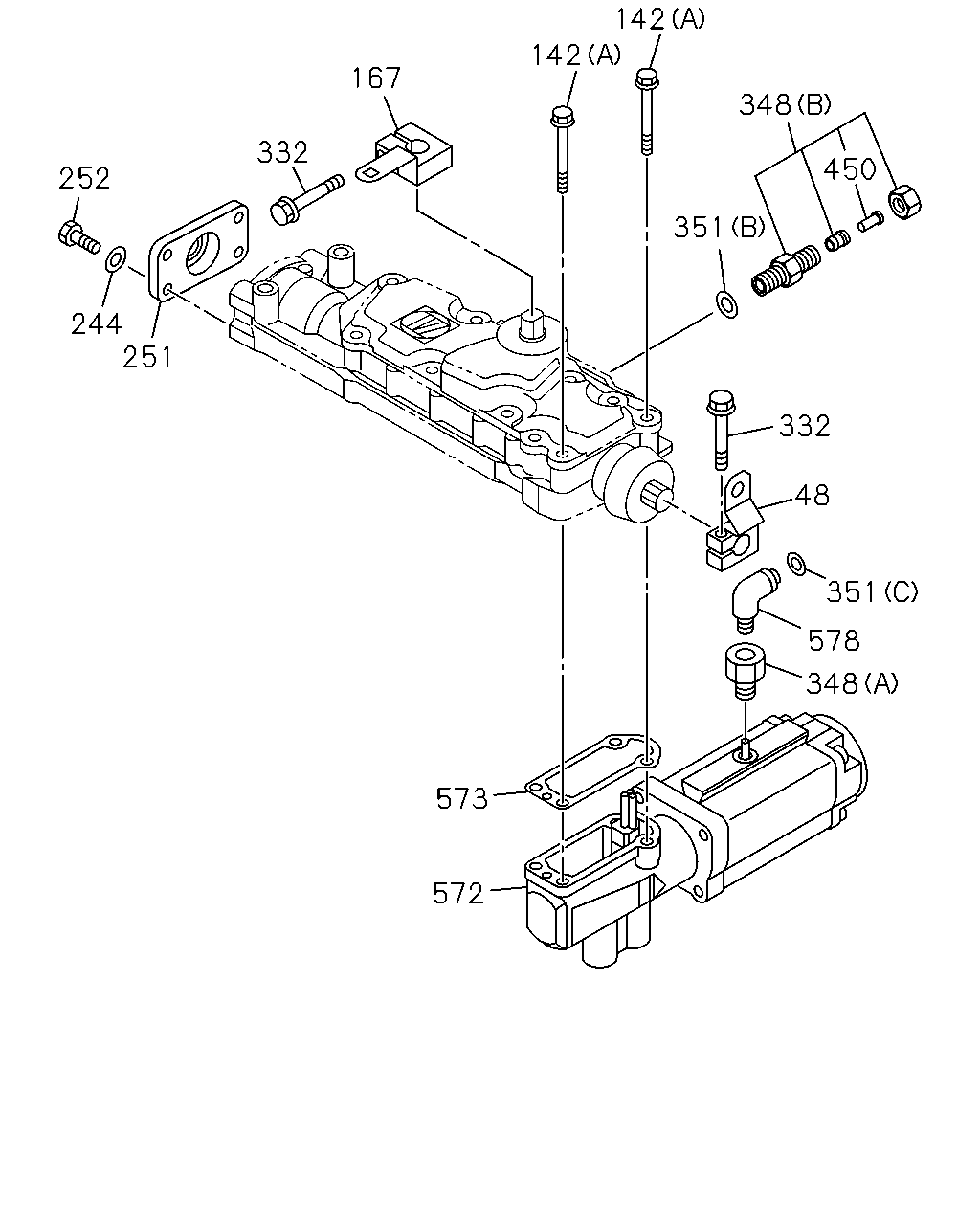

çizim 512785
142 142 167 332 252 244 351 348 332 450 48 351 578 348 573 572 251
BalonParca AdiParca NoAdetTipApplied Date
48 LEVER; 4TH,SHIFT 1-33651-827-1 01 1 1601-
142 BOLT; QUAD BOX
(A) M8X80 		1-33549-614-0 13 1 1601-
142 BOLT; QUAD BOX
(B) M8X70 		1-33549-616-0 05 1 1601-
167 LEVER; SELECT,EXTERNAL 1-33651-831-1 01 1 1601-
244 WASHER; LK,COVER 1-33549-583-0 04 1 1601-
251 COVER; SIDE 1-33549-590-0 01 1 1601-
252 BOLT; SIDE COVER
M8X20 		1-33549-591-0 04 1 1601-
332 BOLT; 4TH,SHIFT LEVER
M8X40 FLANGE 		0-28650-840-0 02 1 1601-
348 CONNECTOR; AIR HOSE
(A) PT1/4 		1-09654-396-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(B) 		1-09660-466-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(C) 		1-09661-174-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(D) 		1-09661-481-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(E) 		8-94338-417-0 01 1 1601-
348 CONNECTOR; AIR HOSE
(F) 		8-98068-125-0 01 1 1601-
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1601-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1601-
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 02 1 1601-
450 INSERT; SHIFT ARM
ID=1.4 OD=2.0 L=18 		1-09669-100-0 01 1 1601-
572 SERVO UNIT; GEAR SHIFT 1-33549-331-0 01 1 1601-
573 GASKET; SERVO UNIT 1-33549-332-0 01 1 1601-
578 CONNECTOR
DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 1601-

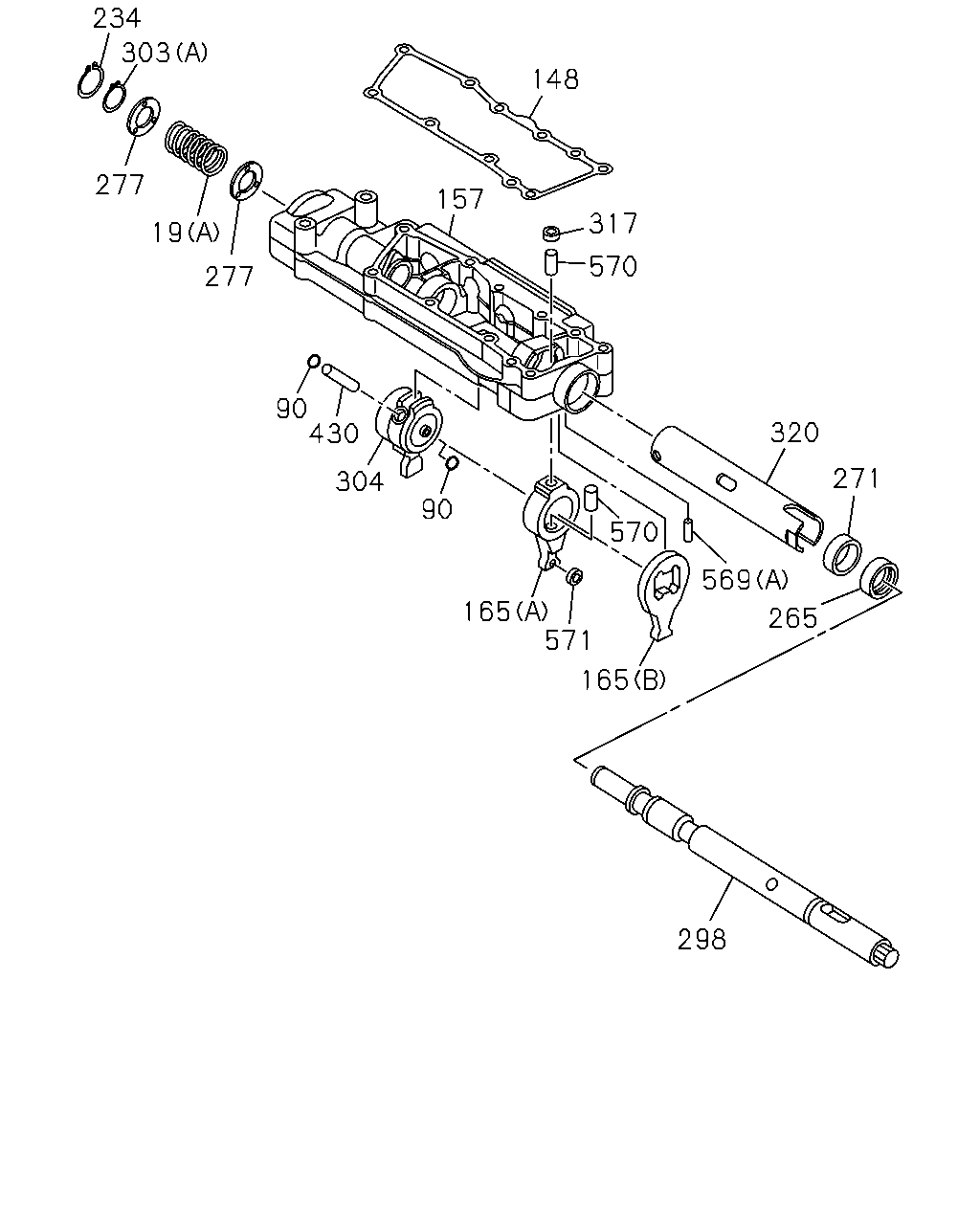

çizim 512786
234 277 303 19 277 148 157 317 570 90 430 304 90 165 571 165 570 320 569 271 265 298
BalonParca AdiParca NoAdetTipApplied Date
19 SPRING; COIL COMP
(A) 		1-33539-089-0 01 1 1601-
19 SPRING; COIL COMP
(B) 		1-33539-090-0 01 1 1601-
90 RING; SNAP,SHIFT ROD 1-33529-109-0 01 1 1601-
148 GASKET; QUAD BOX 1-33544-056-0 01 1 1601-
157 BOX; QUAD,TRANS 1-33549-445-0 01 1 1601-
165 LEVER; SHIFT
(B) 		1-33549-325-0 01 1 1601-
165 LEVER; SHIFT
(A) 		1-33549-450-0 01 1 1601-
234 RING; SNAP 1-44519-224-0 01 1 1601-
265 SEAL; OIL,SHIFT 1-33549-544-0 01 1 1601-
271 BUSHING; QUAD BOX 1-33549-318-0 01 1 1601-
277 PLATE; SPRING SEAT 1-33539-107-0 02 1 1601-
298 SHAFT; SHIFT LEVER 1-33522-204-0 01 1 1601-
303 RING; SNAP,SHAFT
(A) 		1-33539-040-0 01 1 1601-
303 RING; SNAP,SHAFT
(B) 		1-33549-461-0 01 1 1601-
304 BLOCK; SHIFT SHAFT 1-33549-448-0 01 1 1601-
317 BUSHING; LEVER 1-33549-322-0 01 1 1601-
320 SHAFT; LEVER 1-33549-447-0 01 1 1601-
430 PIN; SPR,SHIFT ROD 1-33549-449-0 01 1 1601-
569 PIN; QUADRANT BOX
(A) 		1-33529-106-0 01 1 1601-
569 PIN; QUADRANT BOX
(B) 		1-33549-452-0 01 1 1601-
569 PIN; QUADRANT BOX
(C) 		1-33549-468-0 01 1 1601-
570 PIN; SHIFT LEVER 1-33529-117-0 02 1 1601-
571 ROLLER; LEVER 1-33549-324-0 01 1 1601-

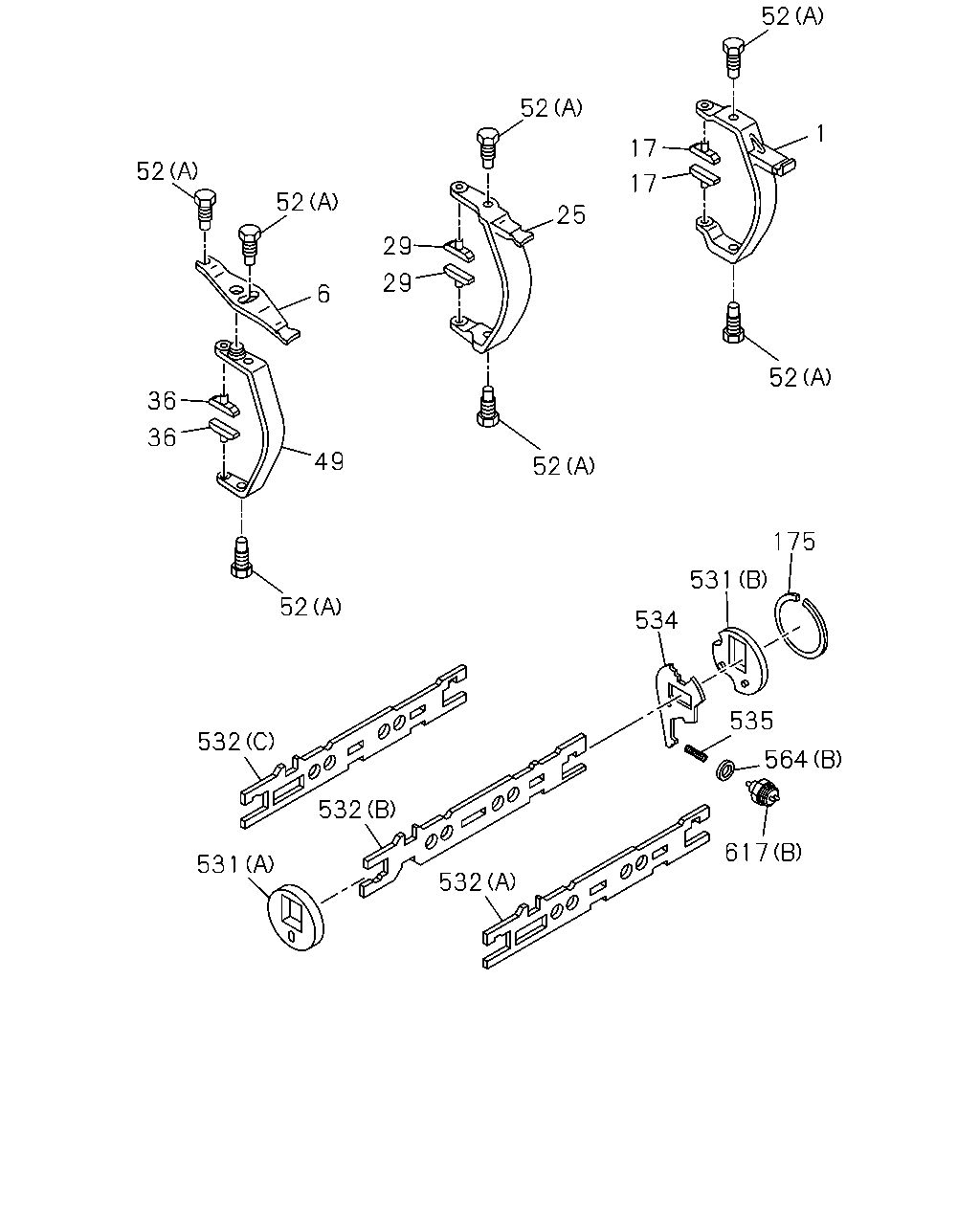

çizim 512787
52 1 17 17 25 52 29 29 6 52 52 36 49 36 52 532 531 532 532 617 564 535 534 175 531 52 52
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 1-33511-657-0 01 1 1601-
6 LEVER; RELAY 1-33511-658-0 01 1 1601-
17 BLOCK; SHIFT,1ST & REV 1-33519-172-0 02 1 1601-
25 ARM; SHIFT,2ND & 3RD 1-33511-642-0 01 1 1601-
29 BLOCK; SHIFT,2ND & 3RD 1-33519-081-0 02 1 1601-
36 BLOCK; SHIFT,4TH & 5TH 1-33519-170-0 02 1 1601-
49 ARM; SHIFT,4TH & 5TH 1-33511-640-0 01 1 1601-
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1601-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1601-
175 RING; STOPPER,SHIFT LEVER 1-33539-103-0 01 1 1601-
531 PLATE; BEARING
(A) 		1-33539-044-0 01 1 1601-
531 PLATE; BEARING
(B) 		1-33539-047-0 01 1 1601-
532 PLATE; SHIFT FORK
(A) 		1-33531-492-0 01 1 1601-
532 PLATE; SHIFT FORK
(B) 		1-33531-493-0 01 1 1601-
532 PLATE; SHIFT FORK
(C) 		1-33531-494-0 01 1 1601-
534 LEVER; LOCK,SHIFT PLATE 1-33539-087-0 01 1 1601-
535 SPRING; LEVER 1-33539-049-0 01 1 1601-
564 SEAL; RING
(B) 		1-33549-578-0 01 1 1601-
564 SEAL; RING
(A) T=2.0 		1-82449-010-0 01 1 1601-
617 PLUG
(A) 		1-33119-619-0 01 1 1601-
617 PLUG
(B) 		1-33539-109-0 01 1 1601-

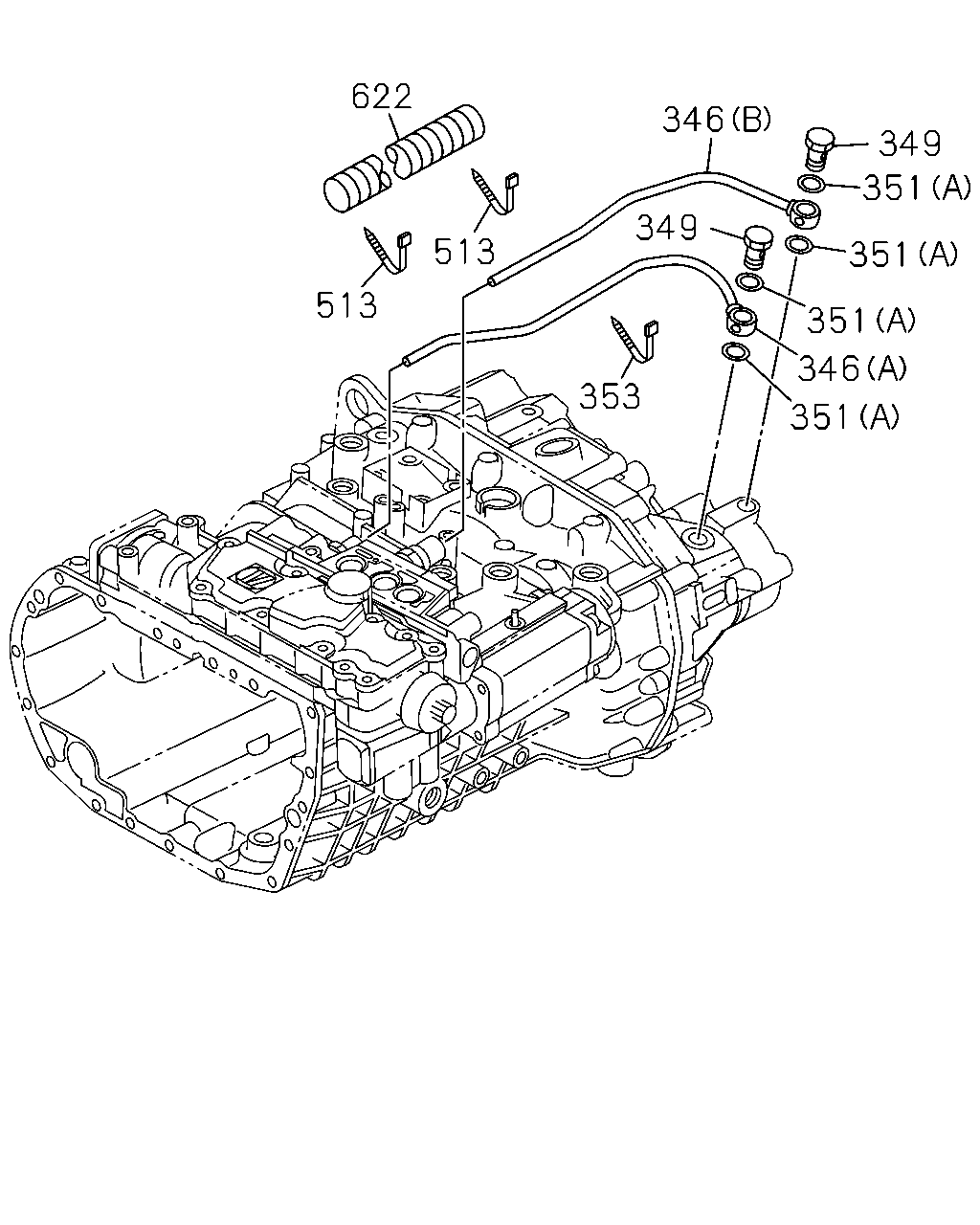

çizim 512791
622 513 513 346 349 349 351 351 351 346 351 353
BalonParca AdiParca NoAdetTipApplied Date
346 HOSE; AIR
(A) 		1-33549-473-0 01 1 1601-
346 HOSE; AIR
(B) 		1-33549-474-0 01 1 1601-
349 BOLT; EYE,AIR HOSE
M14 		1-33549-592-0 02 1 1601-
351 GASKET; CONNECTOR
(B) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1601-
351 GASKET; CONNECTOR
(A) 		1-33549-578-0 04 1 1601-
351 GASKET; CONNECTOR
(C) ID=12.2 		8-98251-344-0 02 1 1601-
353 CLIP; AIR HOSE 1-33549-530-0 02 1 1601-
513 CLIP; BAND
L=250 		5-09707-030-1 05 1 1601-
622 TUBE; CORRUGATE
L=100 ID=22 L=350 		1-83129-017-0 01 1 1601-

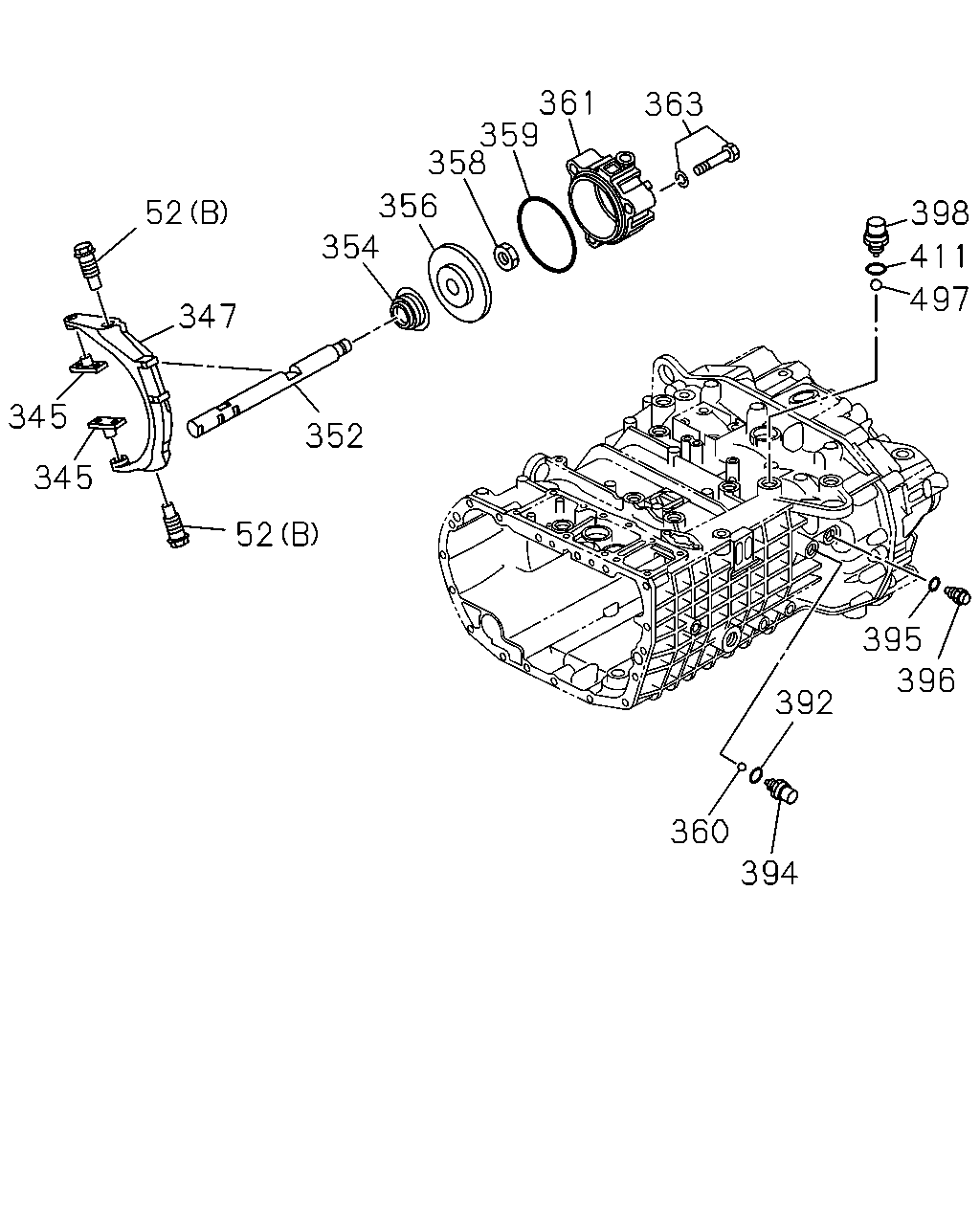

çizim 512795
52 347 354 356 358 359 361 363 345 345 52 352 398 411 497 395 396 392 360 394
BalonParca AdiParca NoAdetTipApplied Date
52 BOLT; SHIFT ARM
(A) 		1-33519-190-0 07 1 1601-
52 BOLT; SHIFT ARM
(B) 		1-33519-196-0 02 1 1601-
345 BLOCK; SHIFT,RANGE CHANGE 1-33519-095-0 02 1 1601-
347 ARM; SHIFT,RANGE CHANGE 1-33511-529-0 01 1 1601-
352 ROD; SHIFT,RANGE CHANGE 1-33531-497-0 01 1 1601-
354 SEAL; AIR CYL 1-33519-045-0 01 1 1601-
356 PISTON; AIR CYL 1-33519-197-0 01 1 1601-
358 NUT; SHIFT ROD 1-33519-188-0 01 1 1601-
359 GASKET; AIR CYL 1-33519-093-0 01 1 1601-
360 BALL; AIR CYL 1-33119-252-0 01 1 1601-
361 CYLINDER; AIR,SHIFT 1-33519-092-0 01 1 1601-
363 BOLT; AIR CYL
M10X70 		1-33119-616-0 03 1 1601-
392 GASKET; PLUG & SW 1-33119-249-0 01 1 1601-
394 SWITCH; RANGE CHANGE 1-33119-627-0 01 1 1601-
395 GASKET; PLUNGER 1-33549-497-0 01 1 1601-
396 PLUNGER; SHIFT ROD 1-33519-189-0 01 1 1601-
398 SWITCH; REV LAMP 1-38119-062-0 01 1 1601-
411 GASKET; REV LAMP SW 1-33119-249-0 01 1 1601-
497 BALL; SWITCH 1-33119-252-0 01 1 1601-

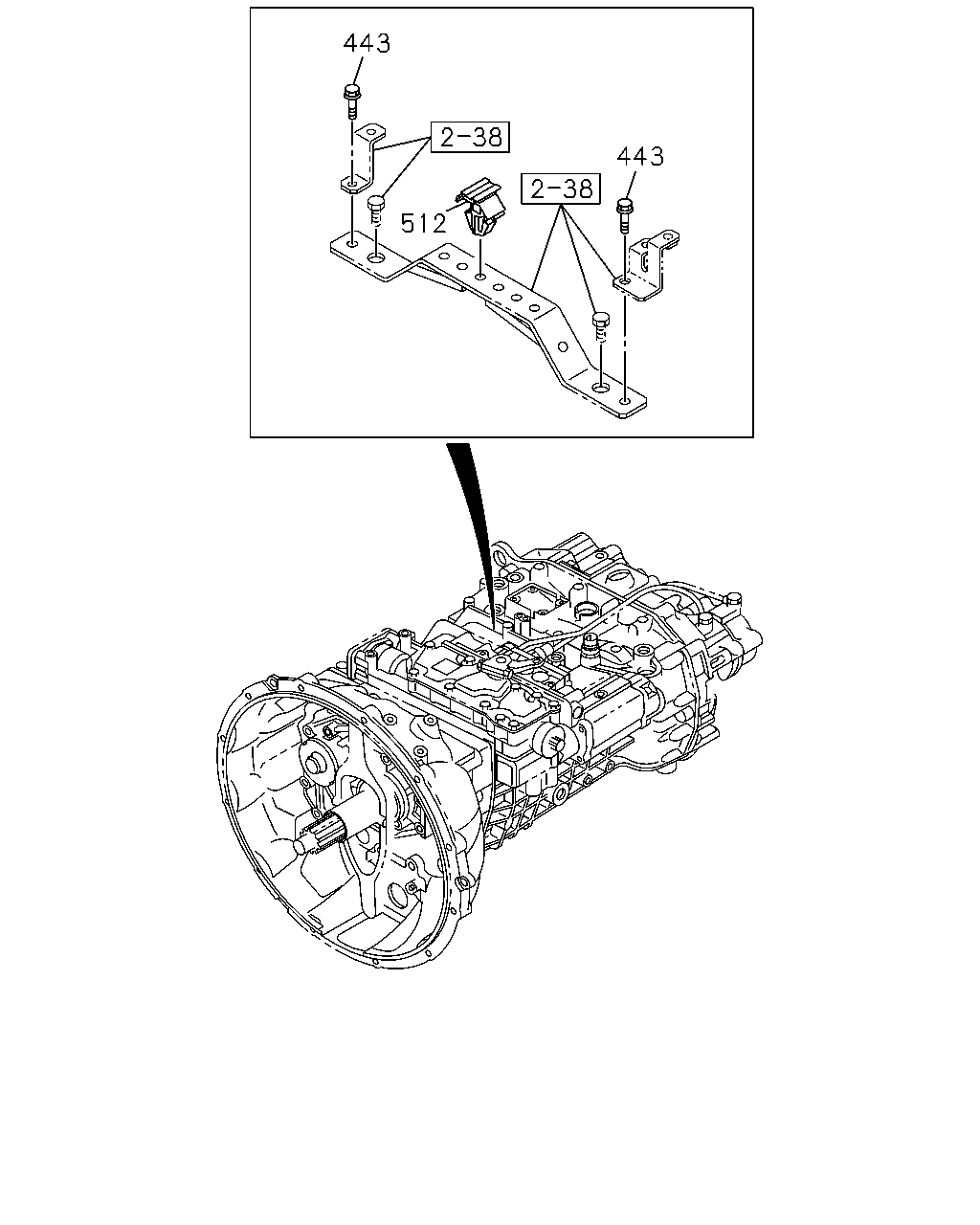

çizim 513164
443 443 512
BalonParca AdiParca NoAdetTipApplied Date
443 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1601-
512 CLIP; PIPE
OD=9 H=6 		1-09709-178-0 05 1 1601-
