◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#175988) — 81 parça

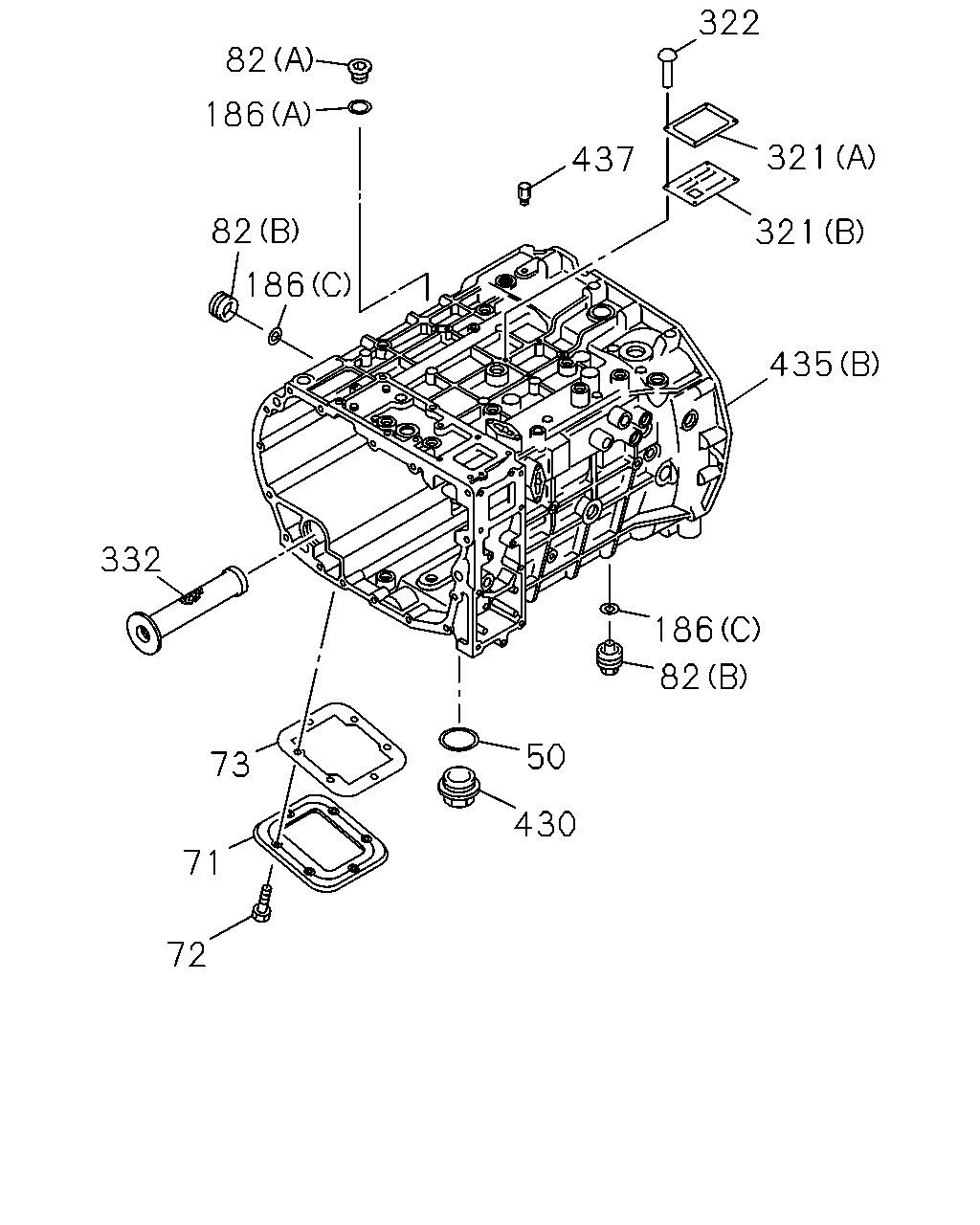

çizim 512767
82 186 82 186 437 322 321 321 435 186 82 50 430 73 332 71 72
BalonParca AdiParca NoAdetTipApplied Date
50 GASKET; DRAIN PLUG 1-33119-293-0 01 1 1601-
71 COVER; SIDE,TRANS CASE 1-33119-622-0 01 1 1601-
72 BOLT; SIDE COVER
M10X22 		1-33119-592-0 06 1 1601-
73 GASKET; SIDE COVER TO TRANS CASE 1-33119-237-0 01 1 1601-
82 PLUG; SCREW,CASE
(C) 		1-33119-618-0 02 1 1601-
82 PLUG; SCREW,CASE
(A) 		1-33119-619-0 01 1 1601-
82 PLUG; SCREW,CASE
(B) 		1-33119-620-0 02 1 1601-
186 RING; SEAL
(A) 		1-33119-249-0 01 1 1601-
186 RING; SEAL
(B) 		1-33119-286-0 02 1 1601-
186 RING; SEAL
(C) 		1-33119-435-0 02 1 1601-
321 PLATE; NAME
(A) 		1-33119-519-0 01 1 1601-
321 PLATE; NAME
(B) 		1-33119-520-0 01 1 1601-
322 RIVET; NAME PLATE 1-33119-617-0 04 1 1601-
332 FILTER; OIL 1-33119-437-0 01 1 1601-
430 PLUG; OIL DRAIN 1-33119-621-0 01 1 1601-
435 CASE; TRANS
(B) 		1-33111-371-0 01 1 1601-
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1601-
437 BREATHER; TRANS 1-36122-006-0 01 1 1601-

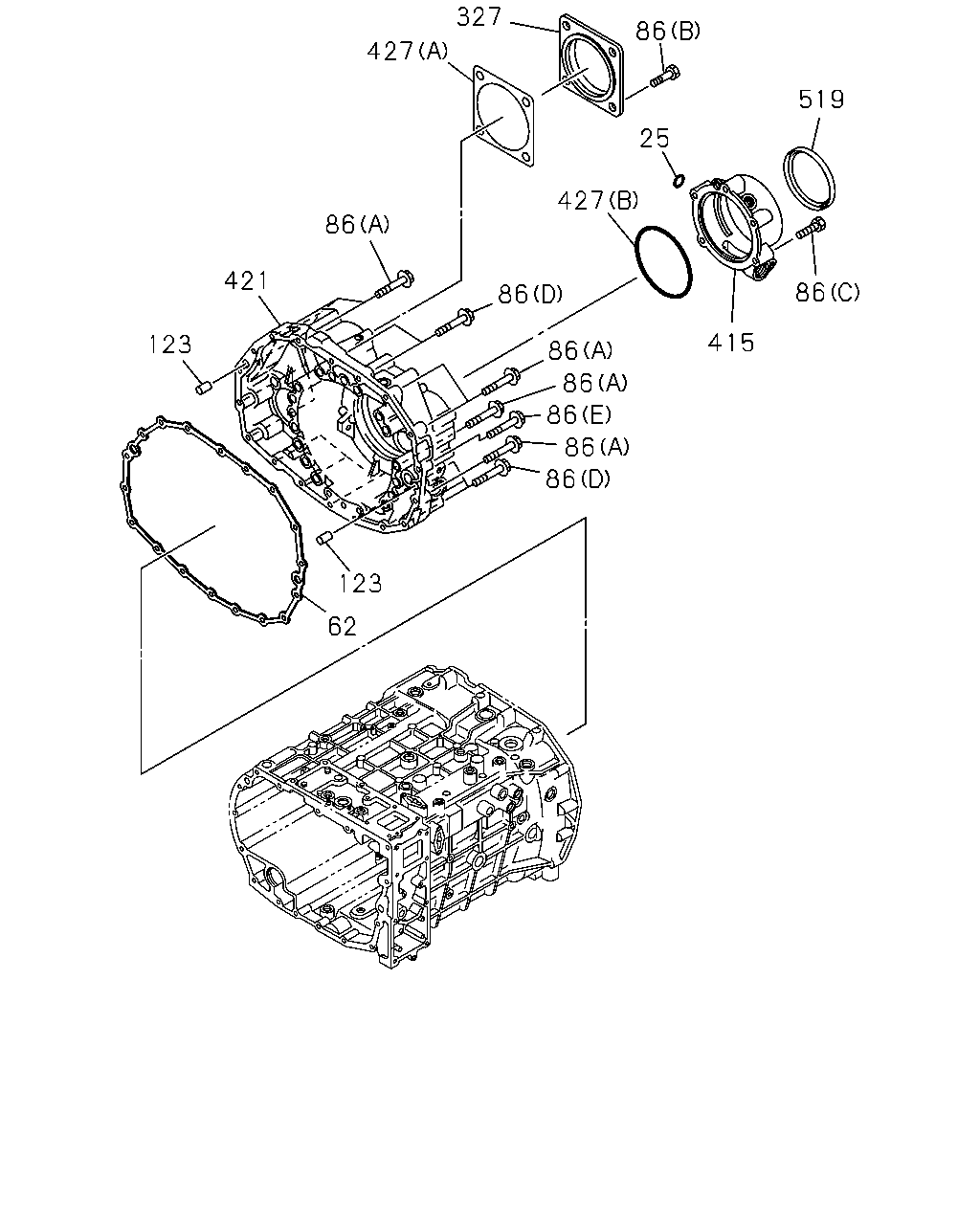

çizim 512770
421 86 427 327 86 25 519 427 86 86 86 86 86 86 123 62 123 86 415
BalonParca AdiParca NoAdetTipApplied Date
25 GASKET; COVER 1-33139-060-0 01 1 1601-
62 GASKET; RR COVER 1-33132-087-0 01 1 1601-
86 BOLT; RR COVER
(A) M10X70 		1-33119-616-0 12 1 1601-
86 BOLT; RR COVER
(D) M10X110 		1-33139-235-0 05 1 1601-
86 BOLT; RR COVER
(E) M10X50 		1-33139-236-0 01 1 1601-
86 BOLT; RR COVER
(C) M10X60 		1-33139-237-0 05 1 1601-
86 BOLT; RR COVER
EXC. PTO ZF TRANS RR(BDM) (B) M12X25 		1-33119-594-0 04 1 1601-
123 DOWEL; TRANS CASE 1-33119-292-0 04 1 1601-
327 COVER; RR,COUNTER
EXC. PTO ZF TRANS RR(BDM) 		1-33131-273-0 01 1 1601-
415 COVER; BRG 1-33131-269-0 01 1 1601-
421 COVER; RR,TRANS 1-33131-275-0 01 1 1601-
427 GASKET; RR COVER
(B) 		1-33132-088-0 01 1 1601-
427 GASKET; RR COVER
EXC. PTO ZF TRANS RR(BDM) (A) 		1-33132-054-0 01 1 1601-
519 GASKET; SHAFT 1-33139-059-0 01 1 1601-
çizim 512773
468 329 477 478 245 27 24 330 29 413 463 28 36 36 37 343 113 315 33 435 314 186 82 2 412
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 1-31111-183-0 01 1 1601-
24 COVER; CHECK HOLE,DUST 1-31119-059-0 01 1 1601-
27 BOLT; COVER TO CLU HSG 1-31119-058-0 04 1 1601-
28 COVER; FRT,TRANS CASE 1-33121-166-0 01 1 1601-
29 BOLT; FRT COVER
M8X30 		1-33549-581-0 06 1 1601-
33 SEAL; OIL,FRT COVER,T/M 1-33219-321-0 01 1 1601-
36 BEARING; NEEDLE,CLU HSG 1-09811-396-0 04 1 1601-
37 SEAL; DUST,CLU HSG 1-09625-002-0 02 1 1601-
82 PLUG; SCREW,CASE
(C) 		1-33119-618-0 02 1 1601-
82 PLUG; SCREW,CASE
(A) 		1-33119-619-0 01 1 1601-
82 PLUG; SCREW,CASE
(B) 		1-33119-620-0 02 1 1601-
113 GASKET; FRT COVER TO TRANS CASE 1-33122-024-0 01 1 1601-
186 RING; SEAL
(A) 		1-33119-249-0 01 1 1601-
186 RING; SEAL
(B) 		1-33119-286-0 02 1 1601-
186 RING; SEAL
(C) 		1-33119-435-0 02 1 1601-
245 PIPE; OIL 1-33119-517-0 01 1 1601-
314 GASKET; CASE 1-33112-052-0 01 1 1601-
315 BOLT; CASE
M10X70 		1-33119-616-0 17 1 1601-
329 PUMP ASM; OIL 1-34150-123-0 01 1 1601-
330 RING; RET 1-33129-005-0 01 1 1601-
343 BOLT; CLU HSG TO PLATE
M10X75 FLANGE 		8-94399-669-1 01 1 1601-
412 CAP; CLU HSG 1-31119-026-0 01 1 1601-
413 BALL; CLU HSG 1-31119-014-0 04 1 1601-
435 CASE; TRANS
(B) 		1-33111-371-0 01 1 1601-
435 CASE; TRANS
(A) 		1-33111-380-0 01 1 1601-
463 COVER; DUST,FRT COVER 1-33129-018-0 01 1 1601-
468 GASKET; OIL PUMP 1-34159-122-0 01 1 1601-
477 BOLT; OIL PUMP
M8X30 		1-33549-581-0 08 1 1601-
478 WASHER; LK,OIL PUMP 1-33549-583-0 08 1 1601-

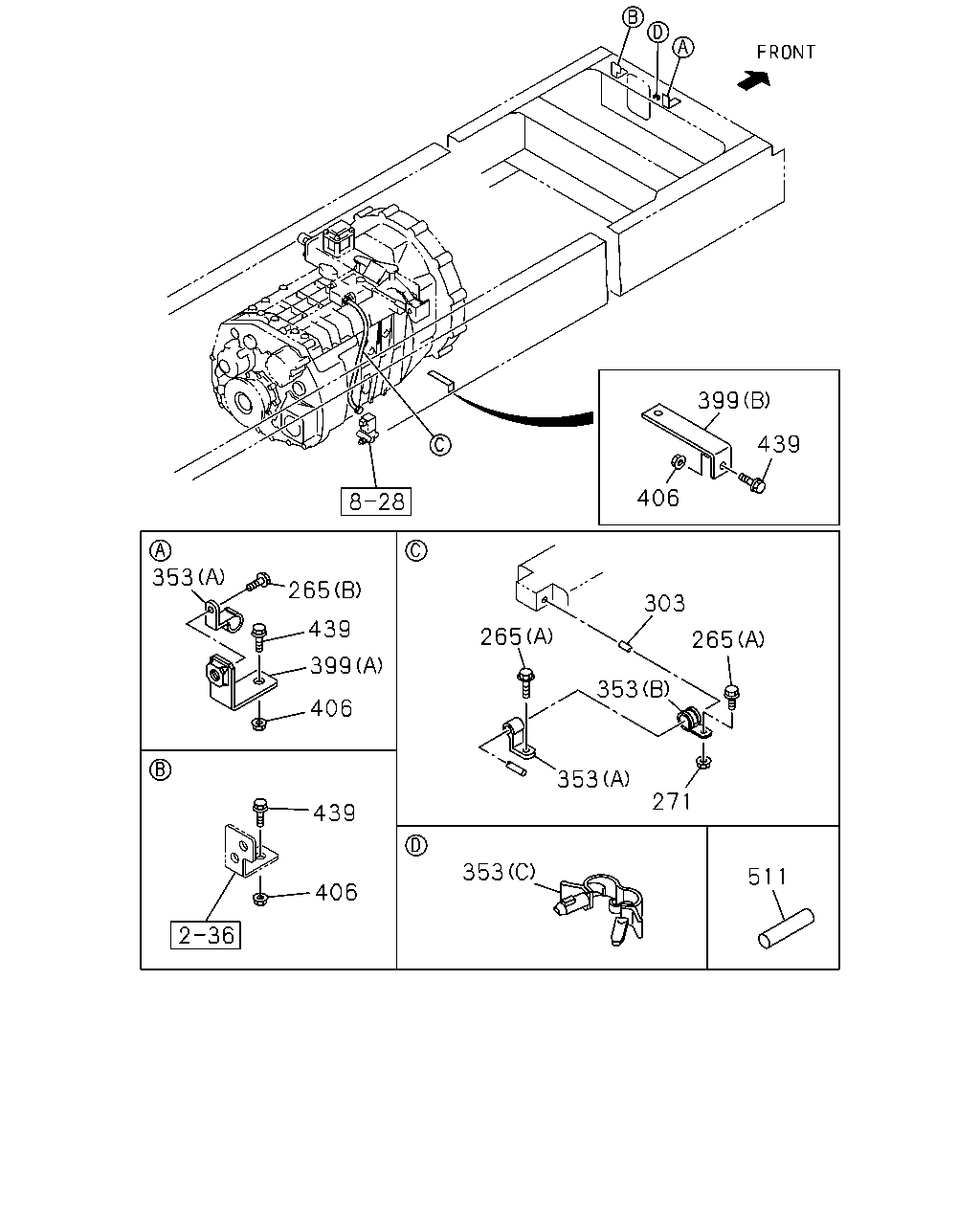

çizim 512774
399 439 406 353 265 439 399 406 439 406 265 303 353 265 353 271 511 353
BalonParca AdiParca NoAdetTipApplied Date
265 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1601-
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1601-
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1601-
265 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1601-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 03 1 1601-
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 01 1 1601-
353 CLIP; NYLON TUBE
(A) ID=11 L=20 		0-95235-035-0 03 1 1601-
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 01 1 1601-
353 CLIP; NYLON TUBE
(B) ID=18 L=28 		1-09701-067-0 02 1 1601-
353 CLIP; NYLON TUBE
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 1601-
399 BRACKET; CLIP
(B) 		1-47479-598-0 02 1 1601-
399 BRACKET; CLIP
(A) 		8-98085-674-0 01 1 1601-
406 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601-
406 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601-
439 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1601-
439 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1601-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 1601-
çizim 513591
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
PTO ZF TRANS RR(BDM) 		1-33044-084-1 01 1 1601-
1 TRANSMISSION ASM; MANUAL
EXC. PTO ZF TRANS RR(BDM) 		1-33043-933-1 01 1 1601-
