◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#175985) — 38 parça
çizim 513856
104 49 47 131 47
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09363-720-0 01 1 1601-
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09364-329-0 01 1 1601-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(B) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1601-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(A) L=232 		1-49124-795-0 01 1 1601-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=512 SERVICED BY L=550 		1-47428-753-0 01 1 1601-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=719 SERVICED BY L=730 		1-47428-758-0 01 1 1601-
131 PIPE; AIR,UNION TO FLEX HOSE
L=244 		8-98092-621-0 01 1 1601-

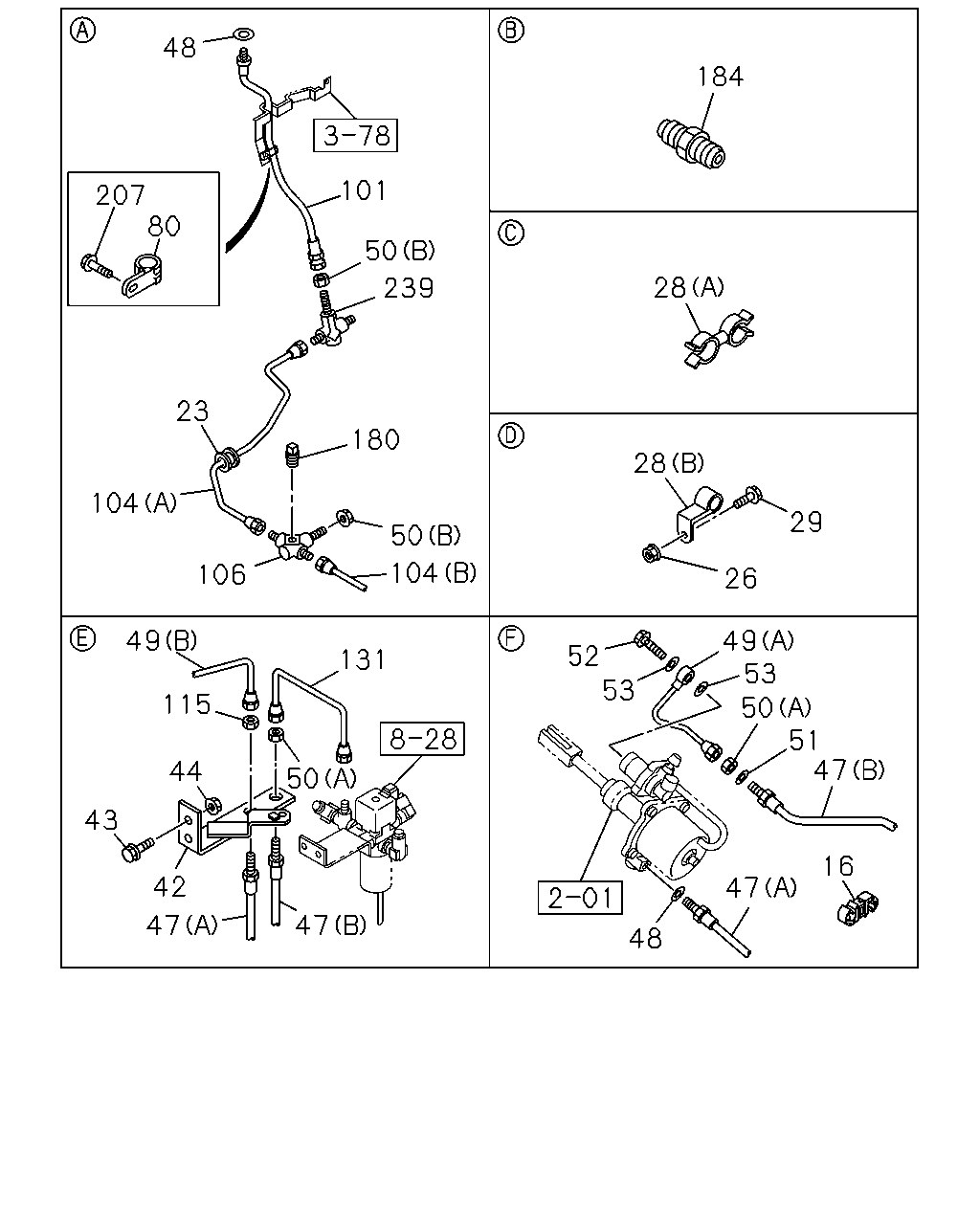

çizim 513953
48 207 23 104 49 131 115 44 43 42 47 47 50 106 80 101 50 180 239 50 184 28 28 29 26 52 53 49 53 50 51 47 104 47 48 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1601-
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1601-
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 04 1 1601-
28 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 04 1 1601-
28 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1601-
29 BOLT; CLIP,OIL PIPE
M8X30 FLANGE 		0-28650-830-0 04 1 1601-
42 BRACKET; FLEX HOSE,CLU CONT 8-98099-521-1 01 1 1601-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1601-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1601-
47 HOSE; FLEX,CLU CONT
(B) L=500 		1-09363-720-0 01 1 1601-
47 HOSE; FLEX,CLU CONT
(A) L=500 		1-09364-329-0 01 1 1601-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1601-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1601-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(B) L=2150 SERVICED BY L=2150 		1-47428-770-0 01 1 1601-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(A) L=232 		1-49124-795-0 01 1 1601-
50 NUT; UNION
(B) M12 		0-91111-512-0 02 1 1601-
50 NUT; UNION
(A) M12 		9-09840-280-0 02 1 1601-
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1601-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1601-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1601-
80 CLIP; HOSE
ID=18 L=28 		1-09701-067-0 01 1 1601-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 1601-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=512 SERVICED BY L=550 		1-47428-753-0 01 1 1601-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=719 SERVICED BY L=730 		1-47428-758-0 01 1 1601-
106 UNION; OIL PIPE
M12 & M14 & PT1/4 3WAY 		1-09656-286-2 01 1 1601-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1601-
131 PIPE; AIR,UNION TO FLEX HOSE
L=244 		8-98092-621-0 01 1 1601-
180 PLUG; PIPE
PT1/4 		9-99204-513-0 01 1 1601-
184 UNION; FLEX HOSE
M14 STRAIGHT 		0-92113-008-0 01 1 1601-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1601-
239 UNION; CLU HOSE
M12 & M14 2WAY 		1-09654-141-2 01 1 1601-
