1-41 — FUEL PIPING; CHASSIS (#175979) — 185 parça
çizim 512490
39 39 41 29 65 41 304 279 228 345 345
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1601-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1601-
29 HOSE; FUEL
(C) 		8-98307-108-0 01 1 1601-
29 HOSE; FUEL
(F) 		8-98307-375-0 01 1 1601-
29 HOSE; FUEL
(E) 		8-98307-395-0 01 1 1601-
29 HOSE; FUEL
(D) 		8-98307-471-0 01 1 1601-
29 HOSE; FUEL
WHEEL BASE 4600MM(46W) (G) L=580 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 5500MM(55W) (G) L=1350 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 6000MM(60W) (G) L=700 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 03 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		8-94238-572-0 02 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		8-94238-572-0 03 1 1601-
65 HOSE; FUEL,DELIVERY PIPE 8-98306-131-0 01 1 1601-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1601-
228 BOLT; BRKT,SEDIMENTER
(B) M10X60 FLANGE 		0-28051-060-0 02 1 1601-
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1601-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1601-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1601-
304 NUT; BRKT
WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 02 1 1601-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1601-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1601-
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) M10 FLANGE 		0-91180-210-0 01 1 1601-
304 NUT; BRKT
WHEEL BASE 5500MM(55W) (B) M10 FLANGE 		0-91180-210-0 03 1 1601-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1601-

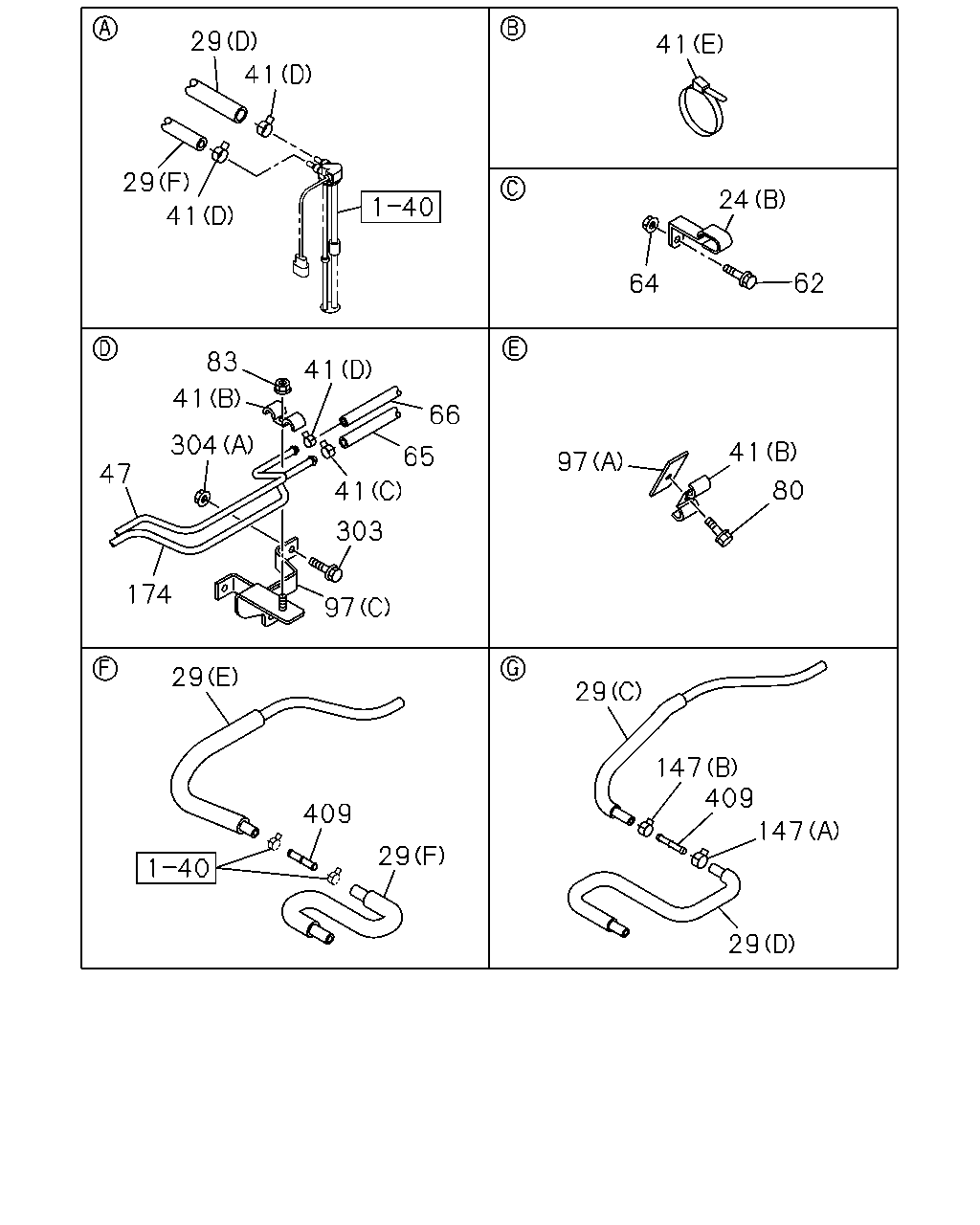

çizim 512546
29 41 29 41 41 24 62 64 97 41 80 29 147 409 147 29 29 409 29 83 41 66 65 41 41 304 47 174 97 303
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1601-
24 CLIP; FUEL HOSE
(B) ID=20 L=70 		1-09701-033-0 02 1 1601-
24 CLIP; FUEL HOSE
(C) ID=14.5 & 14.5 		1-09701-246-1 01 1 1601-
24 CLIP; FUEL HOSE
WHEEL BASE 5500MM(55W) (C) ID=14.5 & 14.5 		1-09701-246-1 03 1 1601-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1601-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1601-
29 HOSE; FUEL
(C) 		8-98307-108-0 01 1 1601-
29 HOSE; FUEL
(F) 		8-98307-375-0 01 1 1601-
29 HOSE; FUEL
(E) 		8-98307-395-0 01 1 1601-
29 HOSE; FUEL
(D) 		8-98307-471-0 01 1 1601-
29 HOSE; FUEL
WHEEL BASE 4600MM(46W) (G) L=580 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 5500MM(55W) (G) L=1350 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 6000MM(60W) (G) L=700 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 03 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		8-94238-572-0 02 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		8-94238-572-0 03 1 1601-
47 PIPE; FUEL,RETURN
L=699 		8-98286-297-0 01 1 1601-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1601-
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1601-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1601-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1601-
65 HOSE; FUEL,DELIVERY PIPE 8-98306-131-0 01 1 1601-
66 HOSE; FUEL,RETURN PIPE 8-98306-132-0 01 1 1601-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1601-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1601-
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1601-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1601-
97 BRACKET; CLIP
(C) 		8-98129-922-0 01 1 1601-
97 BRACKET; CLIP
(D) 		8-98153-352-0 02 1 1601-
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (E) 		8-98185-861-0 01 1 1601-
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (E) 		8-98185-861-0 03 1 1601-
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (F) 		8-98284-977-0 01 1 1601-
147 CLIP; FUEL PIPE TO HOSE
(B) ID=14 		8-97173-221-0 01 1 1601-
147 CLIP; FUEL PIPE TO HOSE
(A) ID=16 		8-98008-098-0 01 1 1601-
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1601-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1601-
303 BOLT; BRKT
WHEEL BASE 5500MM(55W) M8X30 FLANGE 		0-28650-830-0 02 1 1601-
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1601-
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) M10X35 FLANGE 		0-28651-035-0 01 1 1601-
303 BOLT; BRKT
WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28651-035-0 03 1 1601-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1601-
304 NUT; BRKT
WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 02 1 1601-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1601-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1601-
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) M10 FLANGE 		0-91180-210-0 01 1 1601-
304 NUT; BRKT
WHEEL BASE 5500MM(55W) (B) M10 FLANGE 		0-91180-210-0 03 1 1601-
409 JOINT; PIPE 8-97353-668-0 02 1 1601-
çizim 512556
41 95 304 64 24 62 97 303 41 24 303 97 304 303 97 24 304 29 41 313 629 639 628 627 41 29
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 02 1 1601-
24 CLIP; FUEL HOSE
(B) ID=20 L=70 		1-09701-033-0 02 1 1601-
24 CLIP; FUEL HOSE
(C) ID=14.5 & 14.5 		1-09701-246-1 01 1 1601-
24 CLIP; FUEL HOSE
WHEEL BASE 5500MM(55W) (C) ID=14.5 & 14.5 		1-09701-246-1 03 1 1601-
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1601-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1601-
29 HOSE; FUEL
(C) 		8-98307-108-0 01 1 1601-
29 HOSE; FUEL
(F) 		8-98307-375-0 01 1 1601-
29 HOSE; FUEL
(E) 		8-98307-395-0 01 1 1601-
29 HOSE; FUEL
(D) 		8-98307-471-0 01 1 1601-
29 HOSE; FUEL
WHEEL BASE 4600MM(46W) (G) L=580 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 5500MM(55W) (G) L=1350 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 6000MM(60W) (G) L=700 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 03 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		8-94238-572-0 02 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		8-94238-572-0 03 1 1601-
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 1601-
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1601-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1601-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1601-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1601-
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1601-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1601-
97 BRACKET; CLIP
(C) 		8-98129-922-0 01 1 1601-
97 BRACKET; CLIP
(D) 		8-98153-352-0 02 1 1601-
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (E) 		8-98185-861-0 01 1 1601-
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (E) 		8-98185-861-0 03 1 1601-
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (F) 		8-98284-977-0 01 1 1601-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1601-
303 BOLT; BRKT
WHEEL BASE 5500MM(55W) M8X30 FLANGE 		0-28650-830-0 02 1 1601-
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1601-
303 BOLT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) M10X35 FLANGE 		0-28651-035-0 01 1 1601-
303 BOLT; BRKT
WHEEL BASE 5500MM(55W) M10X35 FLANGE 		0-28651-035-0 03 1 1601-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1601-
304 NUT; BRKT
WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 02 1 1601-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1601-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1601-
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) M10 FLANGE 		0-91180-210-0 01 1 1601-
304 NUT; BRKT
WHEEL BASE 5500MM(55W) (B) M10 FLANGE 		0-91180-210-0 03 1 1601-
313 COOLER ASM; FUEL 8-98227-679-1 01 1 1601-
627 BOLT; FUEL CLR
M6X25 FLANGE 		0-28650-625-0 04 1 1601-
628 NUT; FUEL CLR
M6 FLANGE 		0-91180-106-0 04 1 1601-
629 BRACKET; FUEL CLR 8-98224-320-1 01 1 1601-
639 BOLT; BRKT,FUEL CLR
M10X35 FLANGE 		0-28651-035-0 04 1 1601-

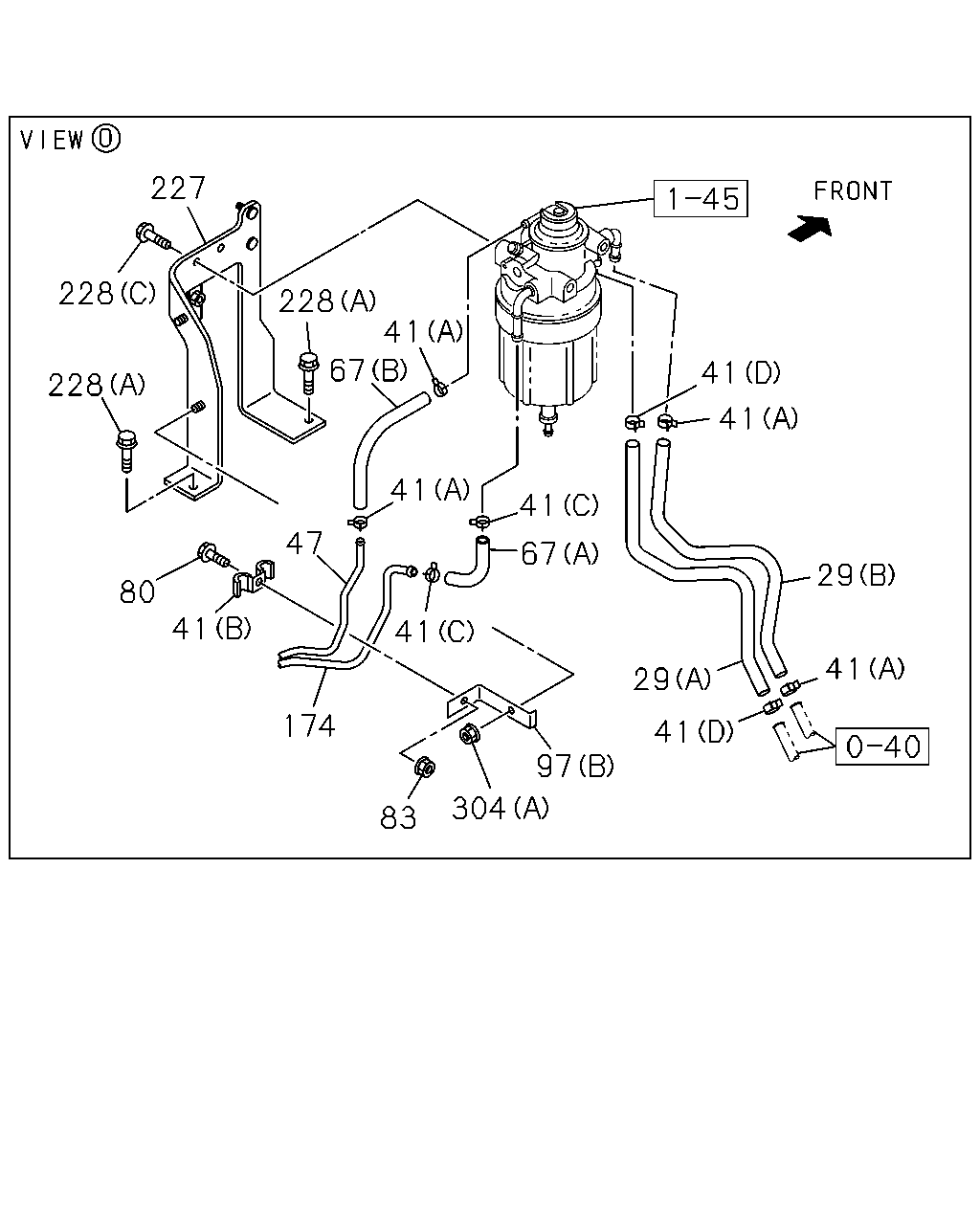

çizim 512559
227 228 228 80 47 41 174 83 304 29 97 41 41 29 41 41 41 41 67 41 67 228 41
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1601-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1601-
29 HOSE; FUEL
(C) 		8-98307-108-0 01 1 1601-
29 HOSE; FUEL
(F) 		8-98307-375-0 01 1 1601-
29 HOSE; FUEL
(E) 		8-98307-395-0 01 1 1601-
29 HOSE; FUEL
(D) 		8-98307-471-0 01 1 1601-
29 HOSE; FUEL
WHEEL BASE 4600MM(46W) (G) L=580 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 5500MM(55W) (G) L=1350 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 6000MM(60W) (G) L=700 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 03 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 03 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		8-94238-572-0 02 1 1601-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		8-94238-572-0 03 1 1601-
47 PIPE; FUEL,RETURN
L=699 		8-98286-297-0 01 1 1601-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 1601-
67 HOSE; FUEL,DELIVERY
(B) L=180 SERVICED BY L=3000 		0-01558-300-0 01 1 1601-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1601-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1601-
97 BRACKET; CLIP
(A) L=50 		1-47475-299-2 01 1 1601-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 1601-
97 BRACKET; CLIP
(C) 		8-98129-922-0 01 1 1601-
97 BRACKET; CLIP
(D) 		8-98153-352-0 02 1 1601-
97 BRACKET; CLIP
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (E) 		8-98185-861-0 01 1 1601-
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (E) 		8-98185-861-0 03 1 1601-
97 BRACKET; CLIP
WHEEL BASE 5500MM(55W) (F) 		8-98284-977-0 01 1 1601-
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1601-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 1601-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1601-
228 BOLT; BRKT,SEDIMENTER
(B) M10X60 FLANGE 		0-28051-060-0 02 1 1601-
228 BOLT; BRKT,SEDIMENTER
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1601-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1601-
304 NUT; BRKT
WHEEL BASE 5500MM(55W) (A) M8 FLANGE 		0-91180-108-0 02 1 1601-
304 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 1601-
304 NUT; BRKT
(B) M10 FLANGE 		0-91180-210-0 02 1 1601-
304 NUT; BRKT
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) M10 FLANGE 		0-91180-210-0 01 1 1601-
304 NUT; BRKT
WHEEL BASE 5500MM(55W) (B) M10 FLANGE 		0-91180-210-0 03 1 1601-

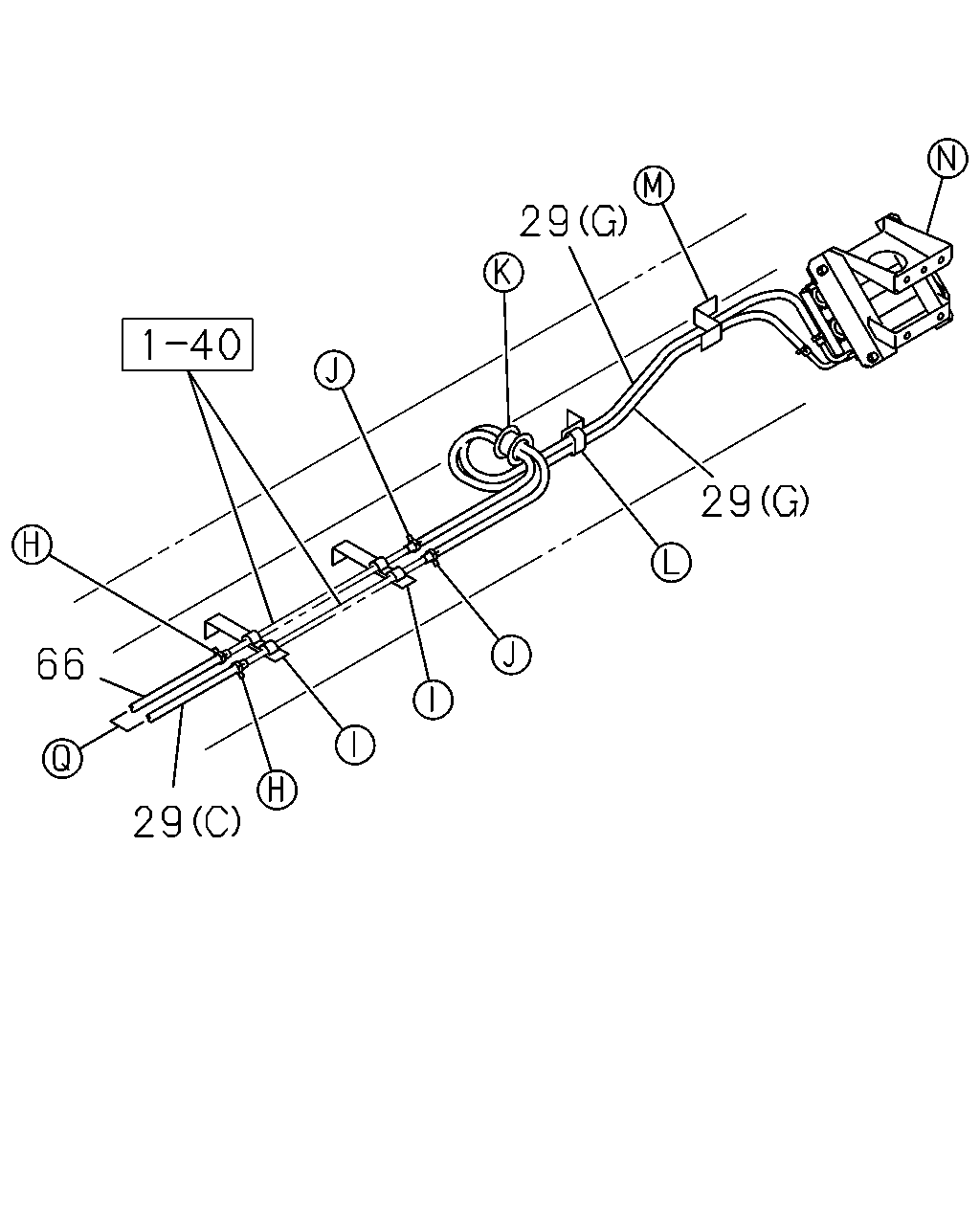

çizim 513485
29 66 29 29
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 1601-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 1601-
29 HOSE; FUEL
(C) 		8-98307-108-0 01 1 1601-
29 HOSE; FUEL
(F) 		8-98307-375-0 01 1 1601-
29 HOSE; FUEL
(E) 		8-98307-395-0 01 1 1601-
29 HOSE; FUEL
(D) 		8-98307-471-0 01 1 1601-
29 HOSE; FUEL
WHEEL BASE 4600MM(46W) (G) L=580 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 5500MM(55W) (G) L=1350 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
29 HOSE; FUEL
WHEEL BASE 6000MM(60W) (G) L=700 SERVICED BY L=3000 		0-01558-300-0 02 1 1601-
66 HOSE; FUEL,RETURN PIPE 8-98306-132-0 01 1 1601-

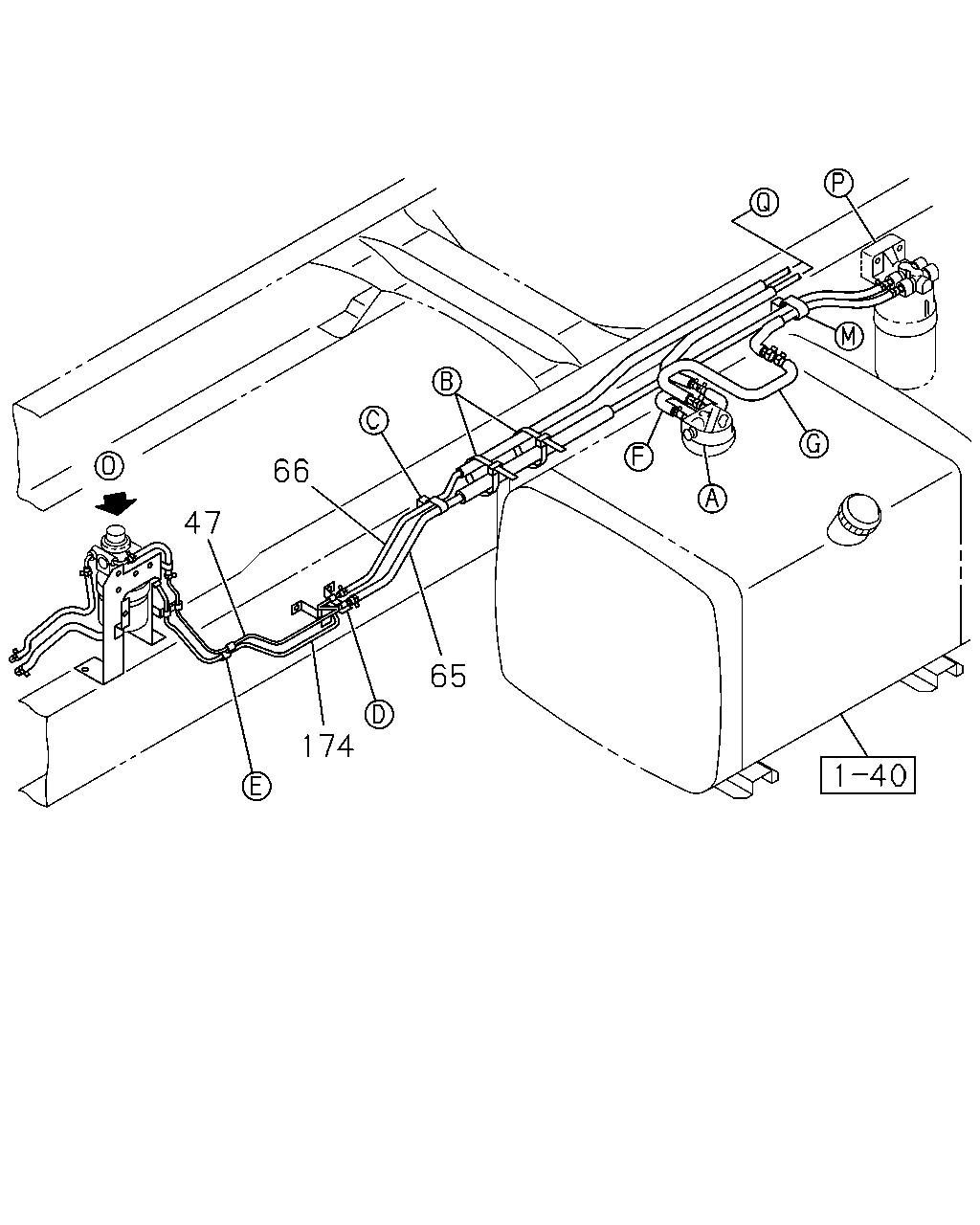

çizim 513736
66 47 174 65
BalonParca AdiParca NoAdetTipApplied Date
47 PIPE; FUEL,RETURN
L=699 		8-98286-297-0 01 1 1601-
65 HOSE; FUEL,DELIVERY PIPE 8-98306-131-0 01 1 1601-
66 HOSE; FUEL,RETURN PIPE 8-98306-132-0 01 1 1601-
174 PIPE; FUEL,FEED,FRT
L=685 		8-98129-920-0 01 1 1601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
