1-40 — FUEL TANK
(#175978) — 19 parça
◀

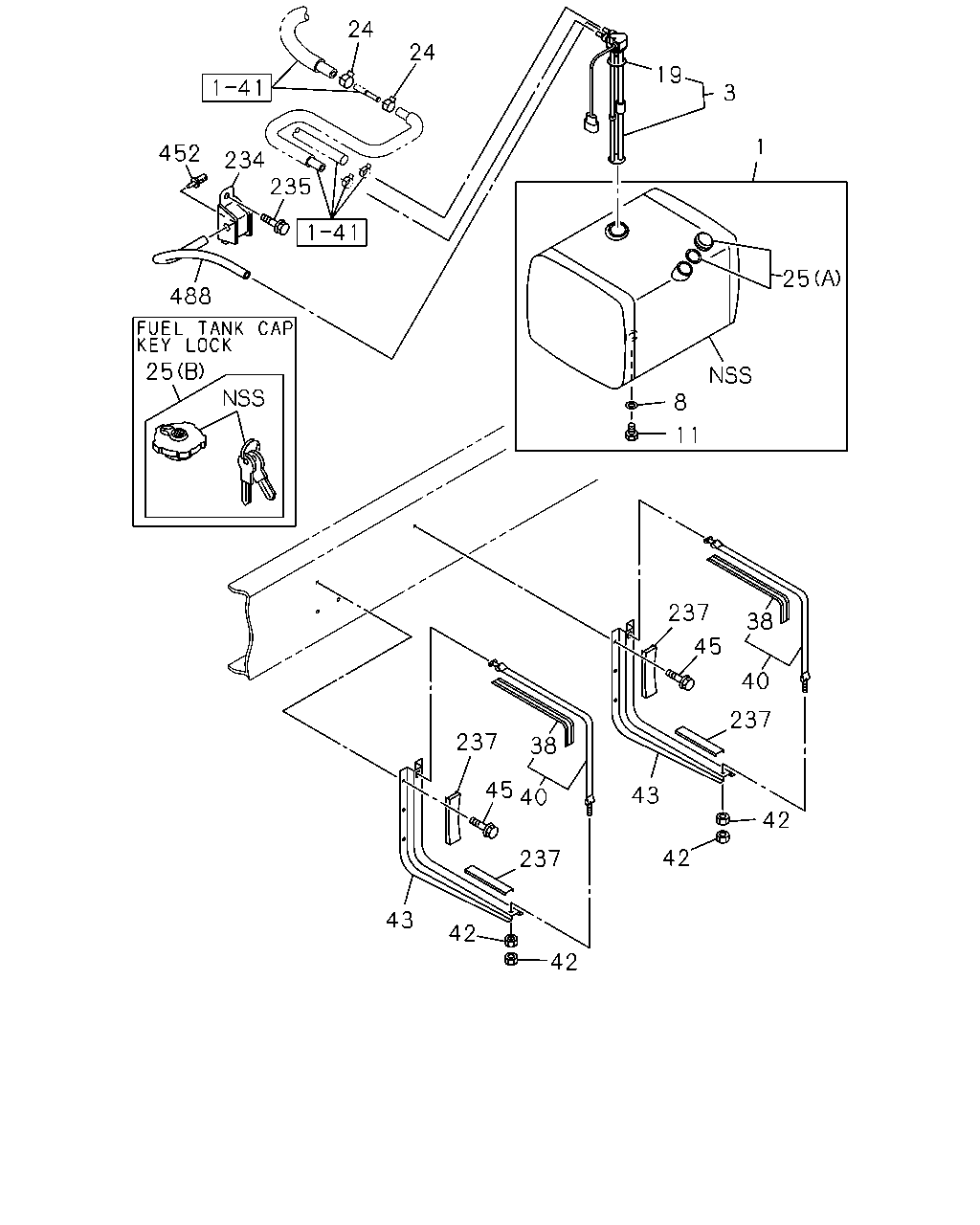

[140A] NO.1 (18 parça)
[140A] NO.2 (1 parça)
▶
24
24
452
234
235
488
25
43
42
42
237
40
45
237
38
43
42
42
237
40
45
237
38
11
8
25
1
3
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1050X680X625 400L
1-87412-050-4
01
1
1601-
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1601-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1601-
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1601-
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1601-
24
JOINT; BREATHER HOSE,SUB
ID=16
8-98008-098-0
02
1
1601-
25
CAP; FILLER,FUEL TANK
(A)
8-98182-306-0
01
1
1601-
25
CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (B)
8-98108-595-0
01
1
1601-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
1601-
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1601-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1601-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
1601-
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28051-240-0
12
1
1601-
234
BRACKET; BREATHER
8-98306-637-1
01
1
1601-
235
BOLT; BREATHER
M10X35 FLANGE
0-28651-035-0
01
1
1601-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
1601-
452
BREATHER; FUEL TANK
8-98092-398-0
01
1
1601-
488
HOSE; RUBBER
0-04250-390-0
01
1
1601-
455
455
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
455
PIPE; FUEL,RETURN
L=355
8-98286-482-0
02
1
1601-
