Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#175976) — 44 parça
◀

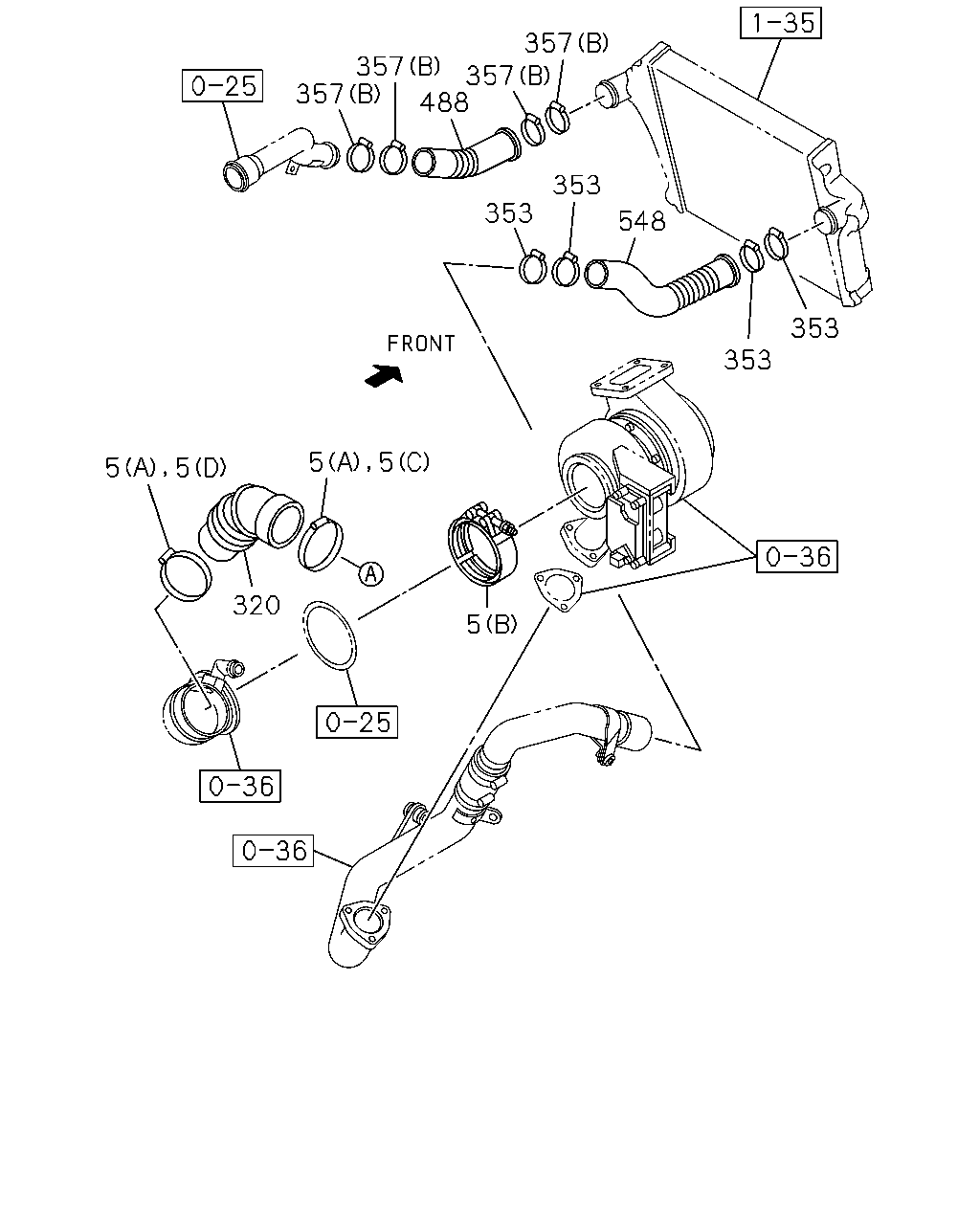

[131A] PIPING (13 parça)
[131A] FIXING;DUCT (31 parça)
▶
5
5
320
5
5
5
353
353
548
353
353
357
357
488
357
357
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
1601-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (C) ID=110-130
8-98133-359-0
01
1
1601-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (D) ID=100-120
8-98133-366-0
01
1
1601-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1601-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1601-
320
HOSE; CONN,ACL
8-98012-859-2
01
1
1601-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75
8-98133-349-0
04
1
1601-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79
1-09707-136-0
04
1
1601-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
02
1
1601-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75
8-98133-349-0
04
1
1601-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79
1-09707-136-0
04
1
1601-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
1601-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-044-0
01
1
1601-
49
56
56
49
245
58
48
424
159
225
357
357
543
379
210
296
174
209
543
316
71
450
560
26
49
252
242
58
61
242
58
56
56
49
58
242
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1601-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1601-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1601-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1601-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1601-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1601-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1601-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1601-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1601-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1601-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1601-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
1601-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
1601-
209
BRACKET; ACL
8-98021-995-1
01
1
1601-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1601-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1601-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1601-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1601-
242
BRACKET; AIR DUCT
(A)
8-98229-015-0
01
1
1601-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1601-
252
DUCT; AIR INT
8-98012-861-1
01
1
1601-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1601-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1601-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
02
1
1601-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75
8-98133-349-0
04
1
1601-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79
1-09707-136-0
04
1
1601-
379
HOSE; RUBBER
8-98077-469-0
01
1
1601-
424
PIPE; AIR,INL
8-98081-834-0
01
1
1601-
450
CLAMP; HOSE
9-09915-504-1
01
1
1601-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
1601-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1601-
