◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11725 - FVR LHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#175969) — 75 parça

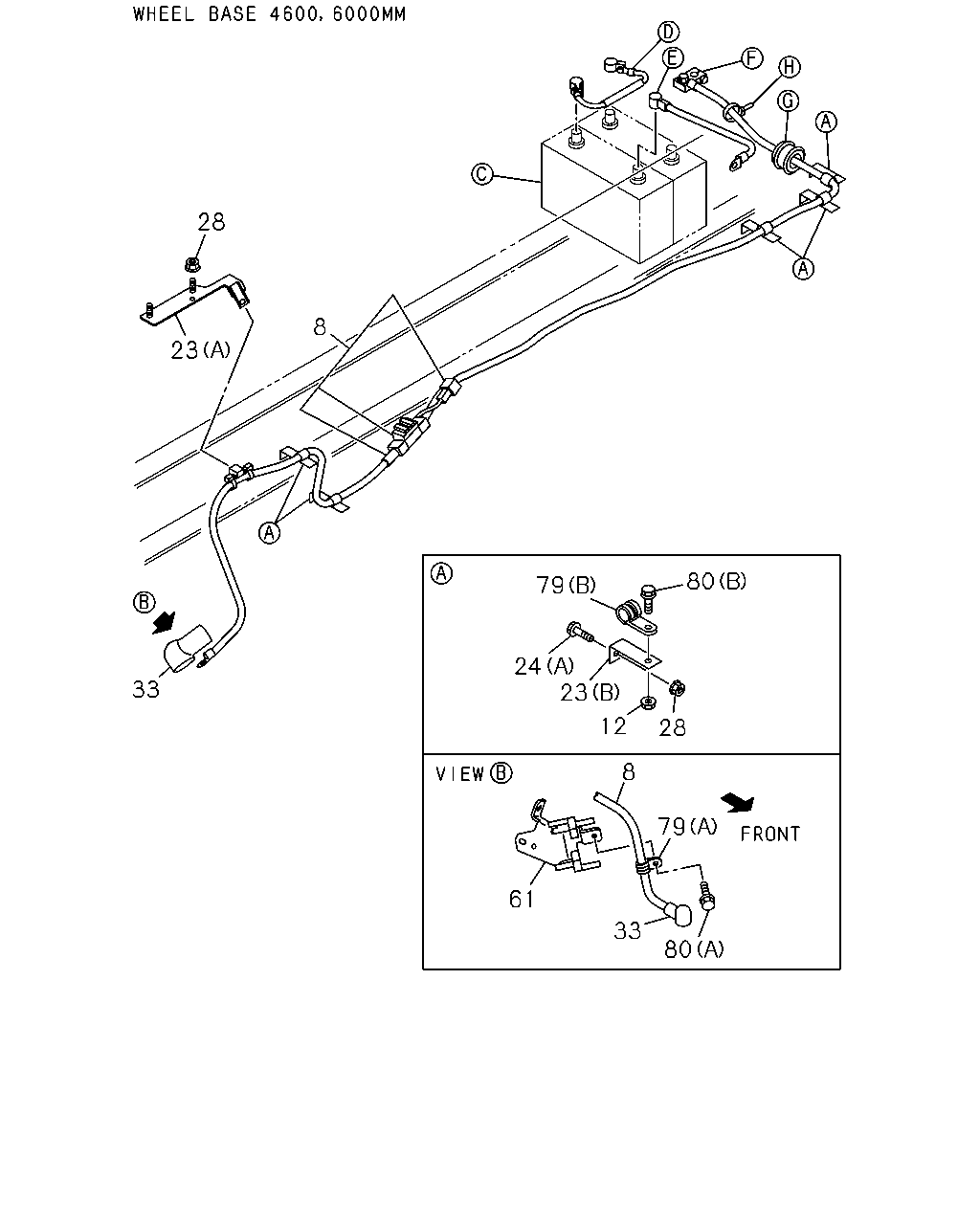

çizim 512390
28 23 8 33 61 8 80 79 24 23 12 28 79 33 80
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA> 		8-98306-495-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-496-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> 		8-98306-497-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-498-0 01 1 1601-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1601-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98201-025-0 01 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) L=95 		1-82699-085-0 03 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM(55W) (D) L=55 		1-47475-304-0 01 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM(55W) (C) L=65 		1-47479-064-1 01 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM(55W) (B) L=95 		1-82699-085-0 01 1 1601-
24 BOLT; BRKT TO FRAME
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1601-
24 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1601-
24 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1601-
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1601-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1601-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 1601-
33 CAP; INSULATOR 1-82699-431-0 01 1 1601-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1601-
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1601-
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 02 1 1601-
79 CLIP; BATTERY CABLE
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) ID=21 L=24 		8-98019-191-0 03 1 1601-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (D) ID=19 L=40 		0-95235-876-0 01 1 1601-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (C) ID=19 L=24 H=21 		1-09700-109-1 01 1 1601-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (B) ID=21 L=24 		8-98019-191-0 01 1 1601-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1601-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1601-

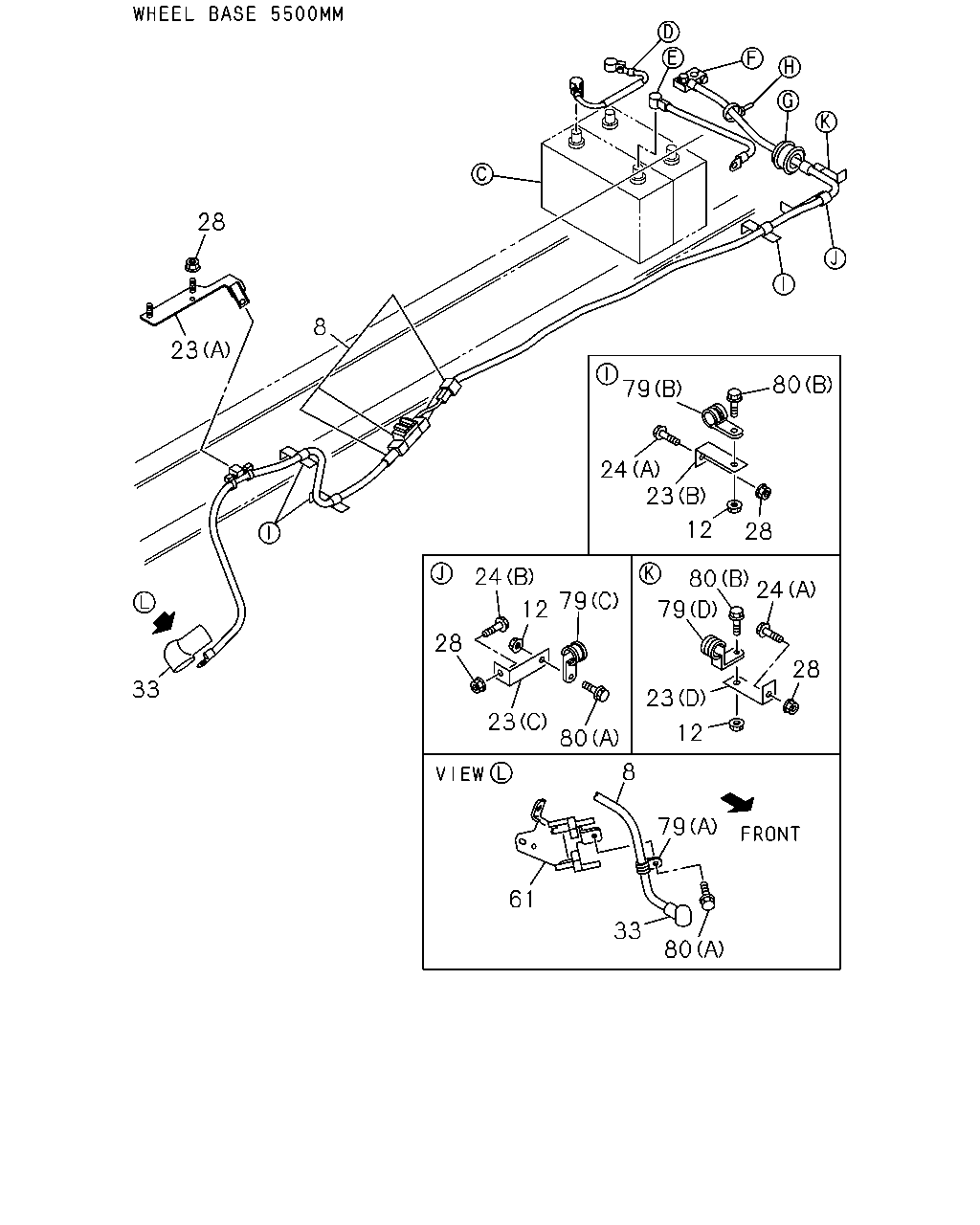

çizim 512406
79 80 33 61 8 23 79 12 24 28 12 80 28 23 24 79 8 28 23 33 24 79 12 80 23 28
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA> 		8-98306-495-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-496-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> 		8-98306-497-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-498-0 01 1 1601-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 1601-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 02 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98201-025-0 01 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) L=95 		1-82699-085-0 03 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM(55W) (D) L=55 		1-47475-304-0 01 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM(55W) (C) L=65 		1-47479-064-1 01 1 1601-
23 BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 5500MM(55W) (B) L=95 		1-82699-085-0 01 1 1601-
24 BOLT; BRKT TO FRAME
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (A) M8X30 FLANGE 		0-28650-830-0 03 1 1601-
24 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) (B) M8X25 FLANGE 		0-28650-825-0 01 1 1601-
24 BOLT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1601-
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1601-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 1601-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 05 1 1601-
33 CAP; INSULATOR 1-82699-431-0 01 1 1601-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 1601-
79 CLIP; BATTERY CABLE
(A) ID=15 L=28 		1-09701-216-0 01 1 1601-
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 02 1 1601-
79 CLIP; BATTERY CABLE
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) (B) ID=21 L=24 		8-98019-191-0 03 1 1601-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (D) ID=19 L=40 		0-95235-876-0 01 1 1601-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (C) ID=19 L=24 H=21 		1-09700-109-1 01 1 1601-
79 CLIP; BATTERY CABLE
WHEEL BASE 5500MM(55W) (B) ID=21 L=24 		8-98019-191-0 01 1 1601-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1601-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1601-

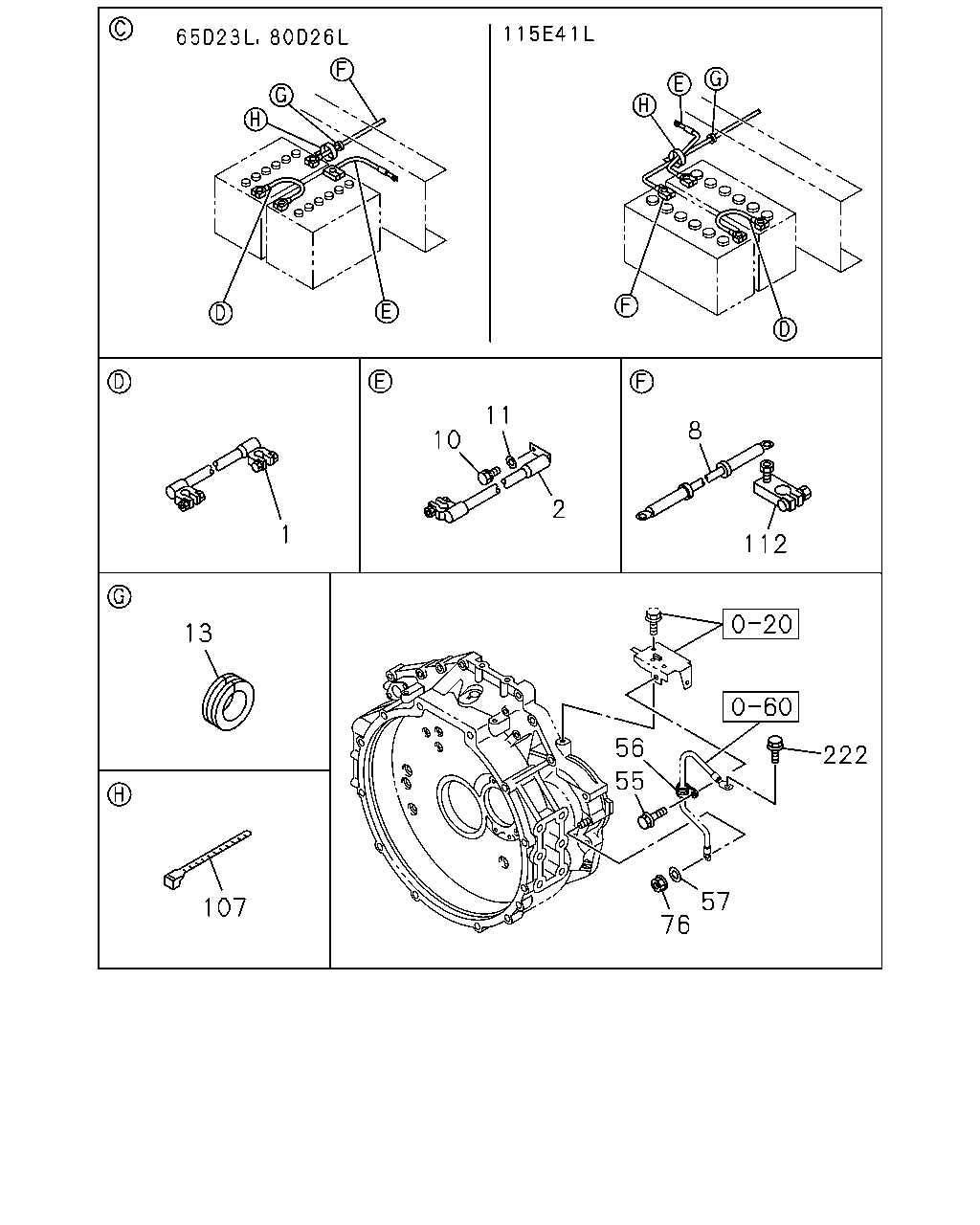

çizim 512409
57 222 56 55 76 112 8 2 11 10 1 13 107
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1601-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=440 		8-97615-309-1 01 1 1601-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280 		8-98035-647-1 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) BATTERY 115E41L<8MA> 		8-98306-495-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 4600MM(46W),WHEEL BASE 6000MM(60W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-496-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> 		8-98306-497-0 01 1 1601-
8 CABLE; BATTERY,STARTER
WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		8-98306-498-0 01 1 1601-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1601-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1601-
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1601-
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 1601-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 1601-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 1601-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 1601-
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 1601-
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1601-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 1601-
