Isuzu WW
▶
TRUCKS
▶
FVR
▶
11725 - FVR LHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#175956) — 43 parça
◀

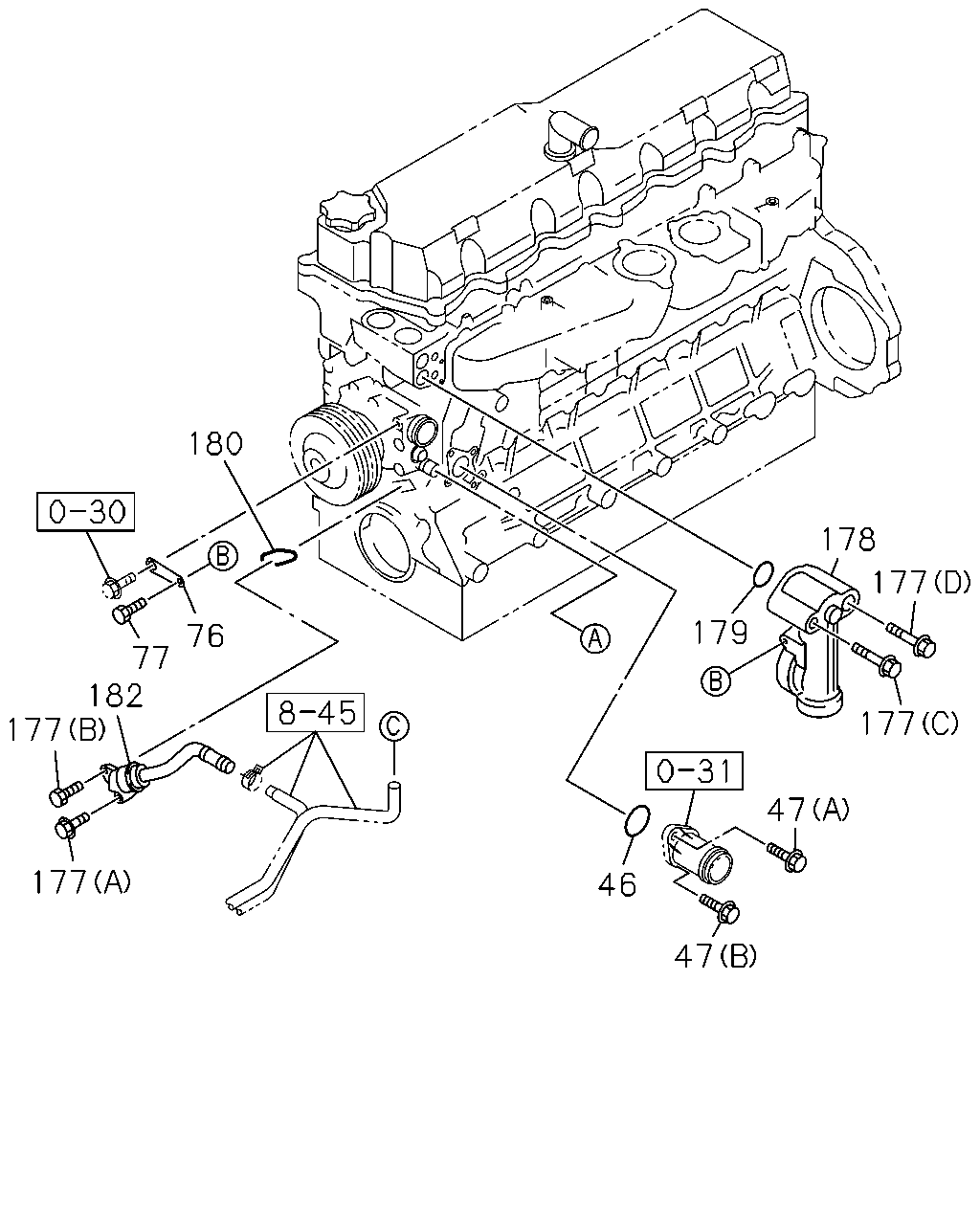

[032A] WATER DUCT (13 parça)

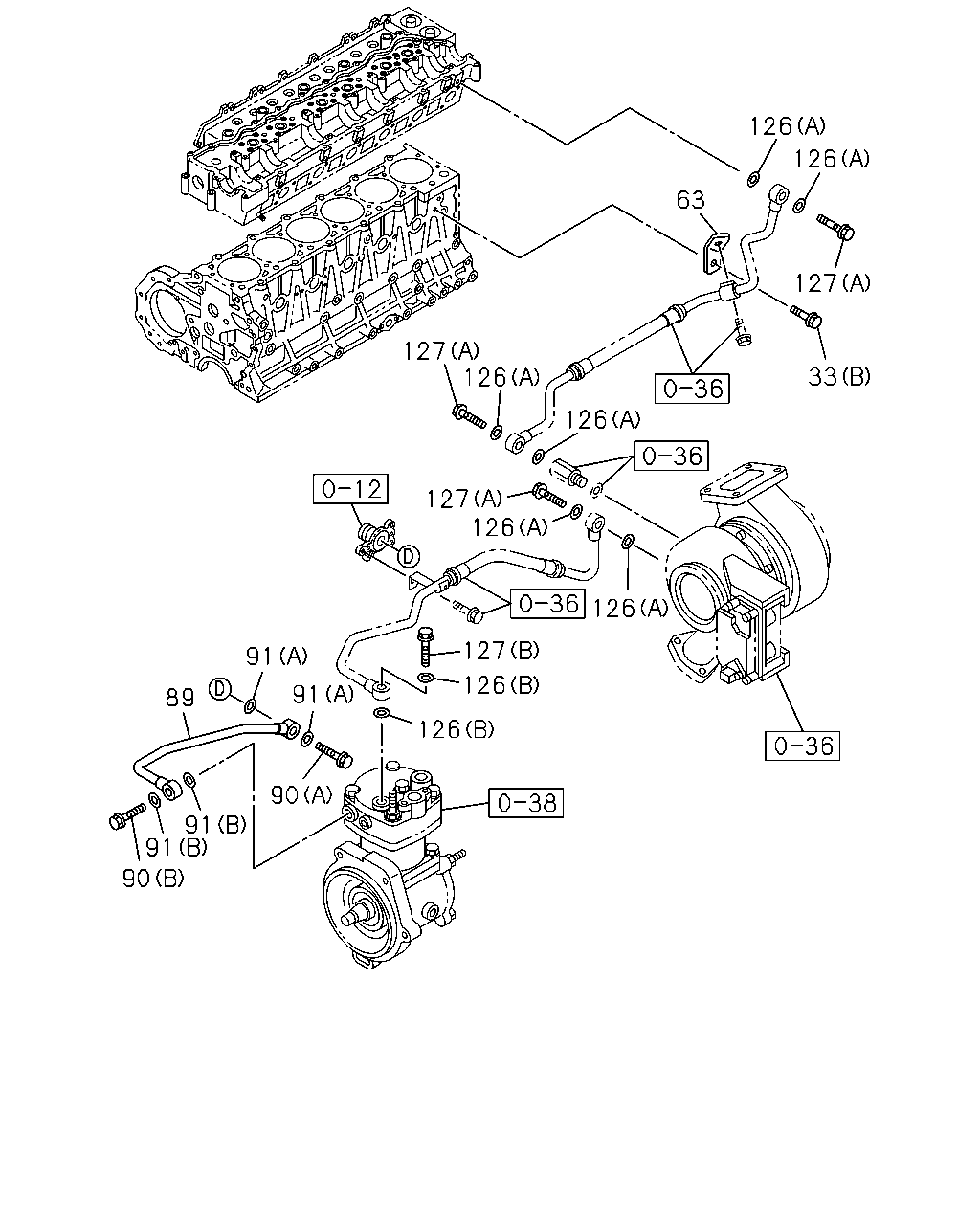

[032A] TURBOCHARGER AND AIR COMPRESSOR SIDE (12 parça)

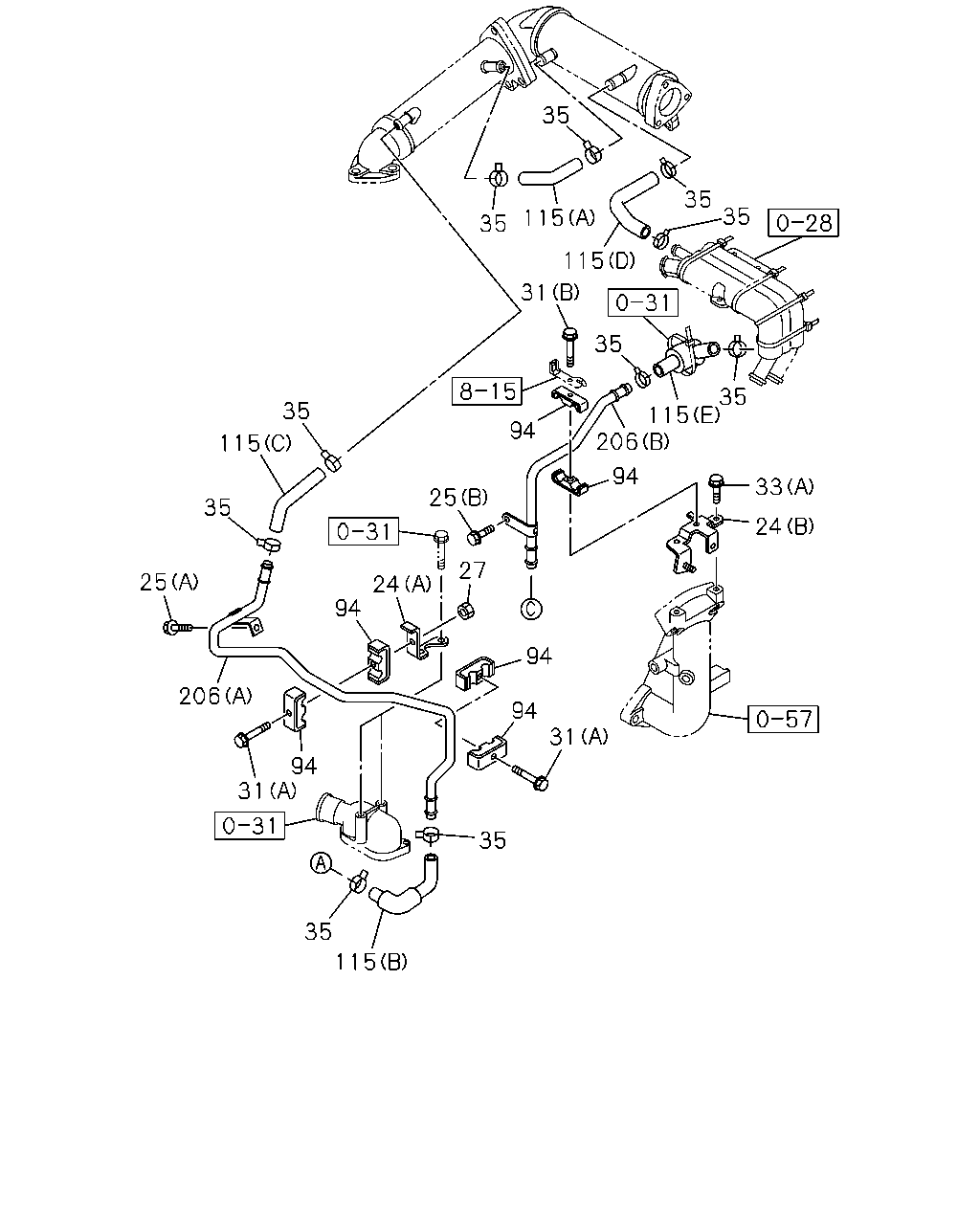

[032A] EGR COOLER SIDE (18 parça)
▶
180
76
77
182
177
177
46
47
47
177
177
178
179
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
1601-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE
0-28050-845-0
01
1
1601-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE
0-28650-825-0
01
1
1601-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
1601-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
1601-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28050-880-0
01
1
1601-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
1601-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
1601-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
1601-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
1601-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1601-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
1601-
182
DUCT; WATER,HTR
8-94394-348-5
01
1
1601-
126
63
126
127
33
127
126
126
127
126
126
127
126
126
91
89
90
91
91
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
1601-
33
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
03
1
1601-
63
BRACKET; WATER PIPE
8-98046-784-0
01
1
1601-
89
PIPE; WATER,AIR CMPR,IN
8-97610-086-0
01
1
1601-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
1601-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
1601-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
1601-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1601-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
02
1
1601-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
06
1
1601-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
03
1
1601-
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
1601-
35
35
115
35
115
35
25
206
31
94
35
115
35
31
94
94
24
94
25
94
94
206
115
27
24
33
35
35
35
31
115
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
(A)
8-98000-557-2
01
1
1601-
24
BRACKET; WATER PIPE
(B)
8-98051-626-1
01
1
1601-
25
BOLT; WATER PIPE
(A) M8X12 FLANGE
0-28050-812-0
01
1
1601-
25
BOLT; WATER PIPE
(B) M8X20 FLANGE
0-28650-820-0
01
1
1601-
27
NUT; PIPE FIX
M6 FLANGE
0-91180-106-0
01
1
1601-
31
BOLT; CLIP
(B) M6X45 FLANGE
0-28050-645-0
01
1
1601-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
02
1
1601-
33
BOLT; BRKT
(B) M8X16 FLANGE
0-28050-816-0
01
1
1601-
33
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
03
1
1601-
35
CLIP; RUBBER HOSE
ID=20
8-98127-648-0
10
1
1601-
94
CLIP; WATER PIPE
8-97605-129-1
06
1
1601-
115
HOSE; RUBBER
(B)
8-97606-735-1
01
1
1601-
115
HOSE; RUBBER
(A)
8-97606-749-0
01
1
1601-
115
HOSE; RUBBER
(C)
8-98043-192-0
01
1
1601-
115
HOSE; RUBBER
(D)
8-98229-220-0
01
1
1601-
115
HOSE; RUBBER
(E)
8-98308-213-0
01
1
1601-
206
PIPE; WATER,EGR COOLER
(A)
8-97604-928-2
01
1
1601-
206
PIPE; WATER,EGR COOLER
(B)
8-98229-124-0
01
1
1601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
