0-28 — VENTILATION SYSTEM (#175953) — 31 parça

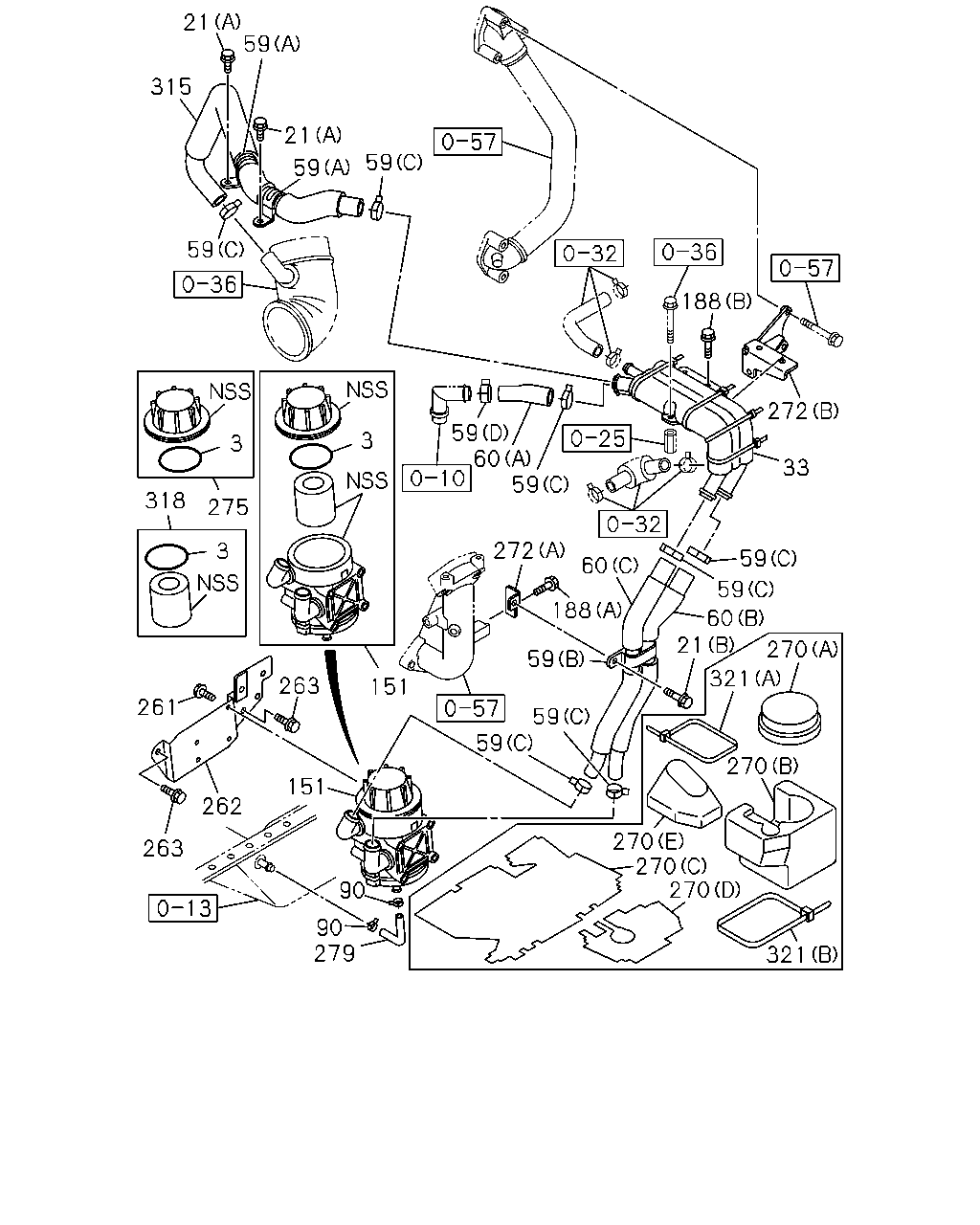

çizim 513286
21 59 315 21 59 59 59 188 272 33 59 60 59 3 3 318 275 3 272 60 59 59 60 188 270 321 21 59 59 270 59 151 263 261 263 262 151 90 270 270 270 321 90 279
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 1601-
21 BOLT; CLIP
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1601-
21 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1601-
33 PIPE; VENTILATOR 8-98229-122-1 01 1 1601-
59 CLIP; HOSE
(A) ID=31 H=30 L=35 		1-09700-994-0 02 1 1601-
59 CLIP; HOSE
(B) ID=30X2 L=28 		1-09701-266-0 01 1 1601-
59 CLIP; HOSE
(C) ID=28.5 		1-09707-150-0 07 1 1601-
59 CLIP; HOSE
(D) ID=31.2 		8-97237-146-0 01 1 1601-
60 HOSE; RUBBER,PCV
(A) 		8-98229-127-0 01 1 1601-
60 HOSE; RUBBER,PCV
(B) 		8-98229-128-0 01 1 1601-
60 HOSE; RUBBER,PCV
(C) 		8-98229-129-0 01 1 1601-
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 1601-
151 SEPARATOR; OIL,PCV 8-97602-262-2 01 1 1601-
188 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1601-
188 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 03 1 1601-
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 1601-
262 BRACKET; OIL SEPARETOR 8-97610-919-1 01 1 1601-
263 BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE 		0-28751-025-0 02 1 1601-
270 COVER; VENTILATOR
(A) 		8-98046-874-0 01 1 1601-
270 COVER; VENTILATOR
(B) 		8-98232-599-0 01 1 1601-
270 COVER; VENTILATOR
(C) 		8-98232-600-1 01 1 1601-
270 COVER; VENTILATOR
(D) 		8-98232-601-1 01 1 1601-
270 COVER; VENTILATOR
(E) 		8-98232-602-0 01 1 1601-
272 BRACKET; PIPE
(A) 		8-97607-396-1 01 1 1601-
272 BRACKET; PIPE
(B) 		8-98229-125-0 01 1 1601-
275 CAP; PCV 8-97606-319-0 01 1 1601-
279 HOSE; RUBBER,OIL DRAIN
L=160 		0-02709-160-0 01 1 1601-
315 HOSE; RUBBER 8-98308-212-0 01 1 1601-
318 ELEMENT KIT; PCV 8-97606-318-0 01 1 1601-
321 CLIP; HOSE,SEPARATOR
(A) L=300 		1-09707-001-1 01 1 1601-
321 CLIP; HOSE,SEPARATOR
(B) L=700 		1-09707-190-0 02 1 1601-
