◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#175940) — 34 parça
çizim 514952
17 13 9 1 19 20 29 29 22 21 23 115 126 189 193 208 230 237
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 1601- ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 1601-1601 ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=445 		8-98316-703-0 01 1 1602- ● ●
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1601- ● ●
17 HAMMER 9-85121-406-0 01 1 1601- ● ●
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 1601- ● ●
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 1601- ● ●
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 1601- ● ●
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 1601- ● ●
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 1601- ● ●
29 DRIVER; SCREW
(A) <+> L=205 		9-09595-022-0 01 1 1601- ● ●
29 DRIVER; SCREW
(A) <+> L=275 		9-09595-023-0 01 1 1601- ● ●
29 DRIVER; SCREW
(B) <-> L=205 		9-09595-126-0 01 1 1601- ● ●
29 DRIVER; SCREW
(B) <-> L=325 		9-09595-129-0 01 1 1601- ● ●
115 PLIER 8-98282-845-0 01 1 1601- ● ●
126 WRENCH; FRT HUB BRG NUT
B=98 L=435 		1-85113-027-0 01 1 1601- ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 1601- ● ●
193 JACK ASM
10TON 		8-97607-599-0 01 1 1601- ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1601- ● ●
230 PUMP; GREASE 1-85556-007-5 01 1 1601- ● ●
237 BAG; TOOL 8-97130-902-1 01 1 1601- ● ●
çizim 515036
12 141 163 163 144 151 169 163 336
BalonParca AdiParca NoAdetTipApplied Date A B
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1601- ● ●
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1601- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-011-0 01 1 1601- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 1601- ● ●
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 1601- ● ●
163 TOOL; SETTING
(C) L=150 		1-85221-163-0 01 1 1601- ● ●
163 TOOL; SETTING
(A) L=230 		1-85221-186-0 01 1 1601- ● ●
169 BRACKET; SPLINE YOKE 8-98215-521-0 01 1 1601- ● ●
336 BRACKET; OUTPUT SHAFT 1-85221-183-0 01 1 1601- ● ●

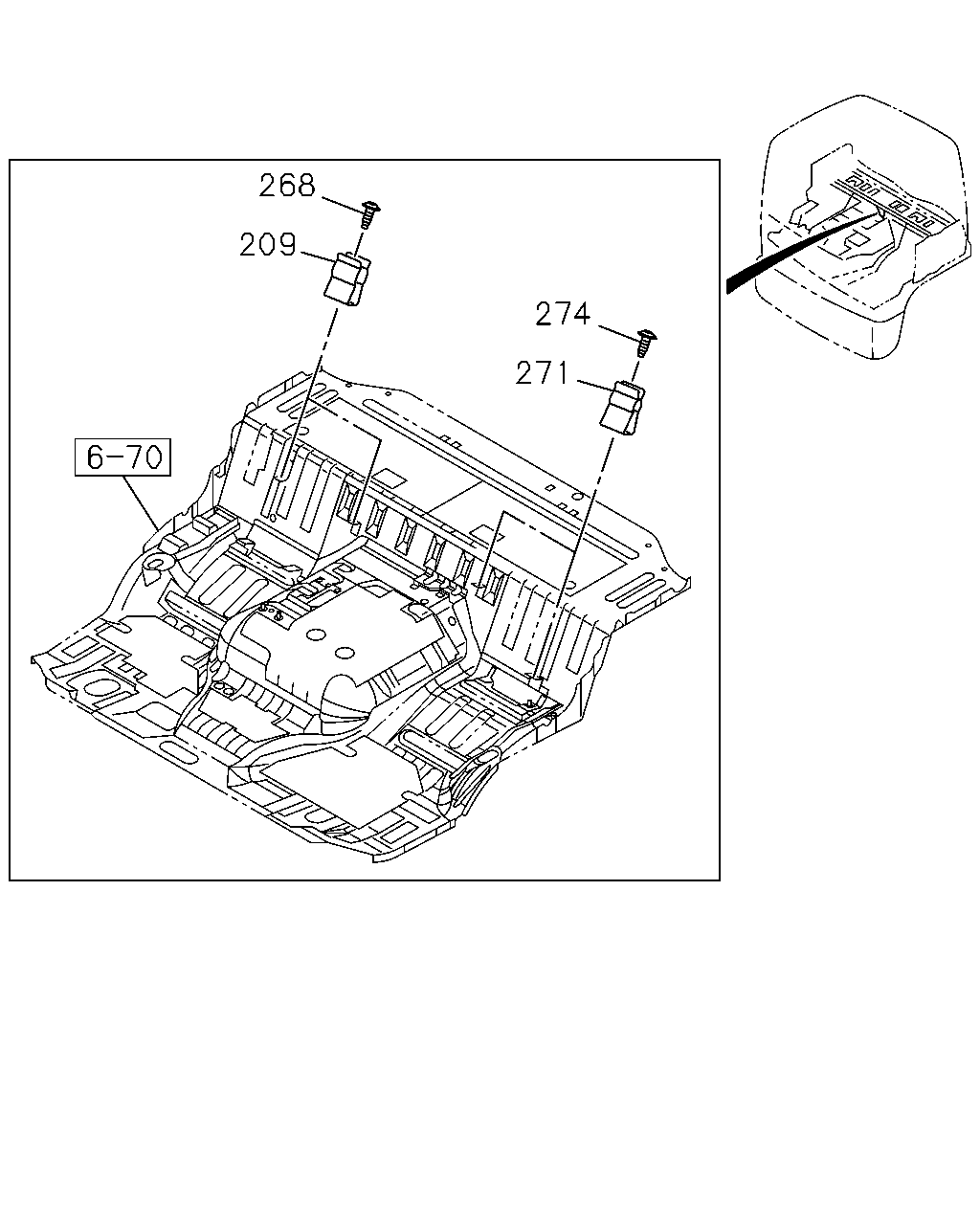

çizim 515137
268 209 274 271
BalonParca AdiParca NoAdetTipApplied Date A B
209 CLIP; JACK HANDLE 8-98053-799-0 02 1 1601- ● ●
268 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1601- ● ●
271 CLIP; TIRE HANGER 8-98053-800-0 02 1 1601- ● ●
274 SCREW; CLIP
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1601- ● ●
