8-90 — RADIO AND TV (#175939) — 14 parça

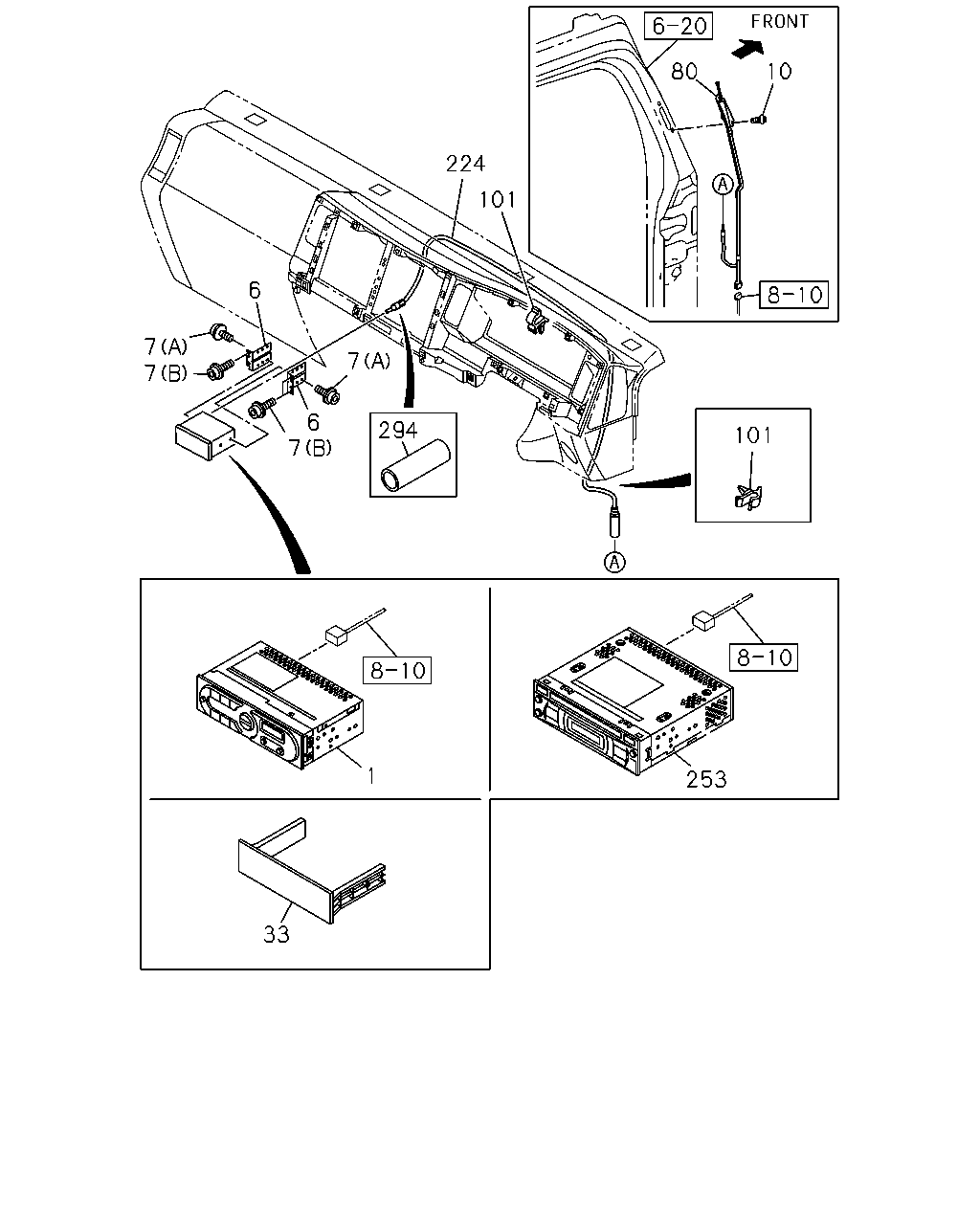

224 101 6 7 7 7 6 7 294 1 33 253 101 80 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIO RADIO AM/FM<U69>	8-98270-738-1	01	1	1601-	●	●
6	BRACKET; RADIO TO PANEL	8-97585-617-0	02	1	1601-	●	●
7	SCREW; RADIO (B) M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	1601-	●	●
7	SCREW; RADIO RADIO AM/FM W/CD,W/MP3<ULA>,RADIO AM/FM<U69> (A) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	04	1	1601-	●	●
10	SCREW; ANTENNA CABLE M5X11	1-09981-536-1	02	1	1601-	●	●
33	COVER; RADIO EXC. TACHOGRAPH 140KM/H<WC7> BLACK	8-97407-896-2	01	1	1601-	●	●
80	ANTENNA	8-98139-014-0	01	1	1601-	●	●
101	CLIP; FEEDER TO BRKT ID=4.8	8-94128-483-0	03	1	1601-	●	●
224	CABLE; EXT,FEEDER	8-98063-002-1	01	1	1601-	●	●
253	DECK ASM; RADIO & CD RADIO AM/FM W/CD,W/MP3<ULA>	8-98270-736-0	01	1	1601-	●	●
294	CAP; ANTENNA CABLE EXC. RADIO AM/FM W/CD,W/MP3<ULA>,RADIO AM/FM<U69>	8-98095-617-1	01	1	1601-	●	●

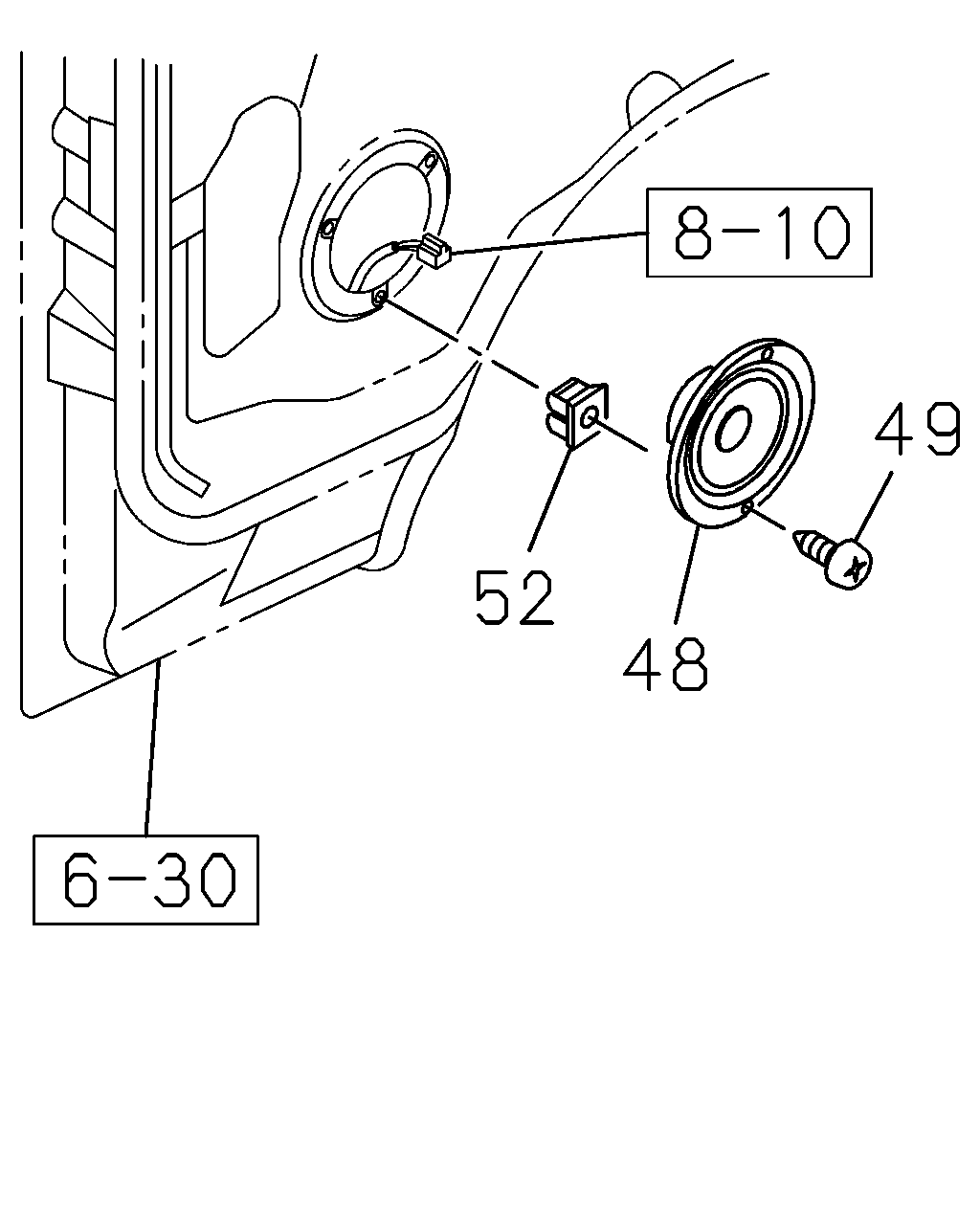

48 49 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	SPEAKER; AUDIO	8-97317-001-1	02	1	1601-	●	●
49	SCREW; SPEAKER M5X14 TAPPING W/TORQUES	8-98061-856-0	06	1	1601-	●	●
52	GROMMET; SCREW,SPEAKER D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1601-	●	●
