11722 - FSS AUST/NZ JNLT09
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-71 - COMPRESSOR; AIR CONDITIONING
▶

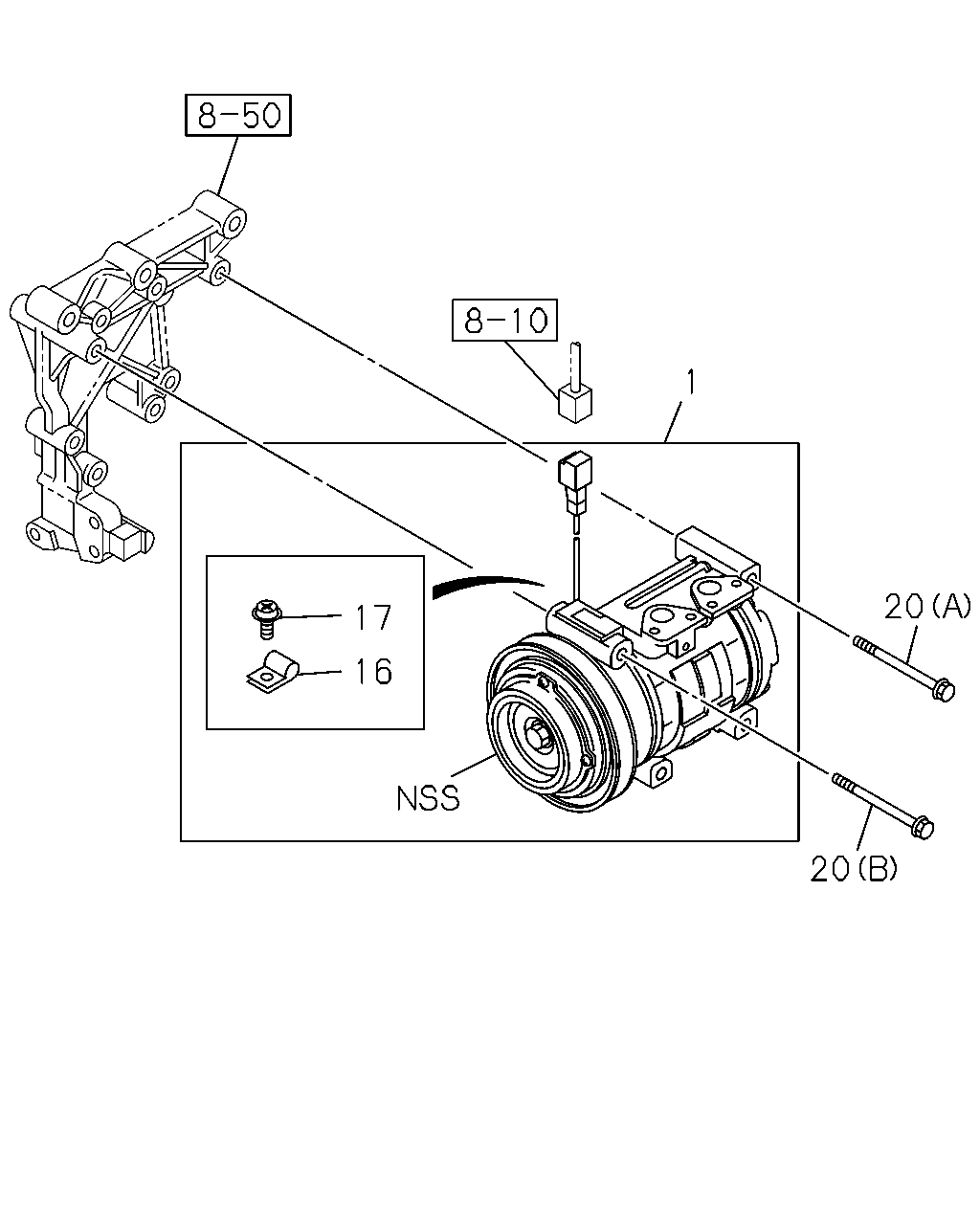

8-71 — COMPRESSOR; AIR CONDITIONING
(#175935) — 10 parça
Tümü
A - FCS5MS
B - FCS5WS
17
16
1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
1-83532-326-1
01
1
1601-
●
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60)
1-83532-326-1
01
1
1601-
●
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
1-83579-893-0
01
1
1601-
●
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
1601-
●
17
SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
5-81129-130-0
02
1
1601-
●
17
SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
02
1
1601-
●
20
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X75 FLANGE
1-09044-073-0
03
1
1601-
●
20
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X75 FLANGE
1-09044-073-0
03
1
1601-
●
20
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X75 FLANGE
8-98157-975-0
01
1
1601-
●
20
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X75 FLANGE
8-98157-975-0
01
1
1601-
●
