◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#175931) — 14 parça

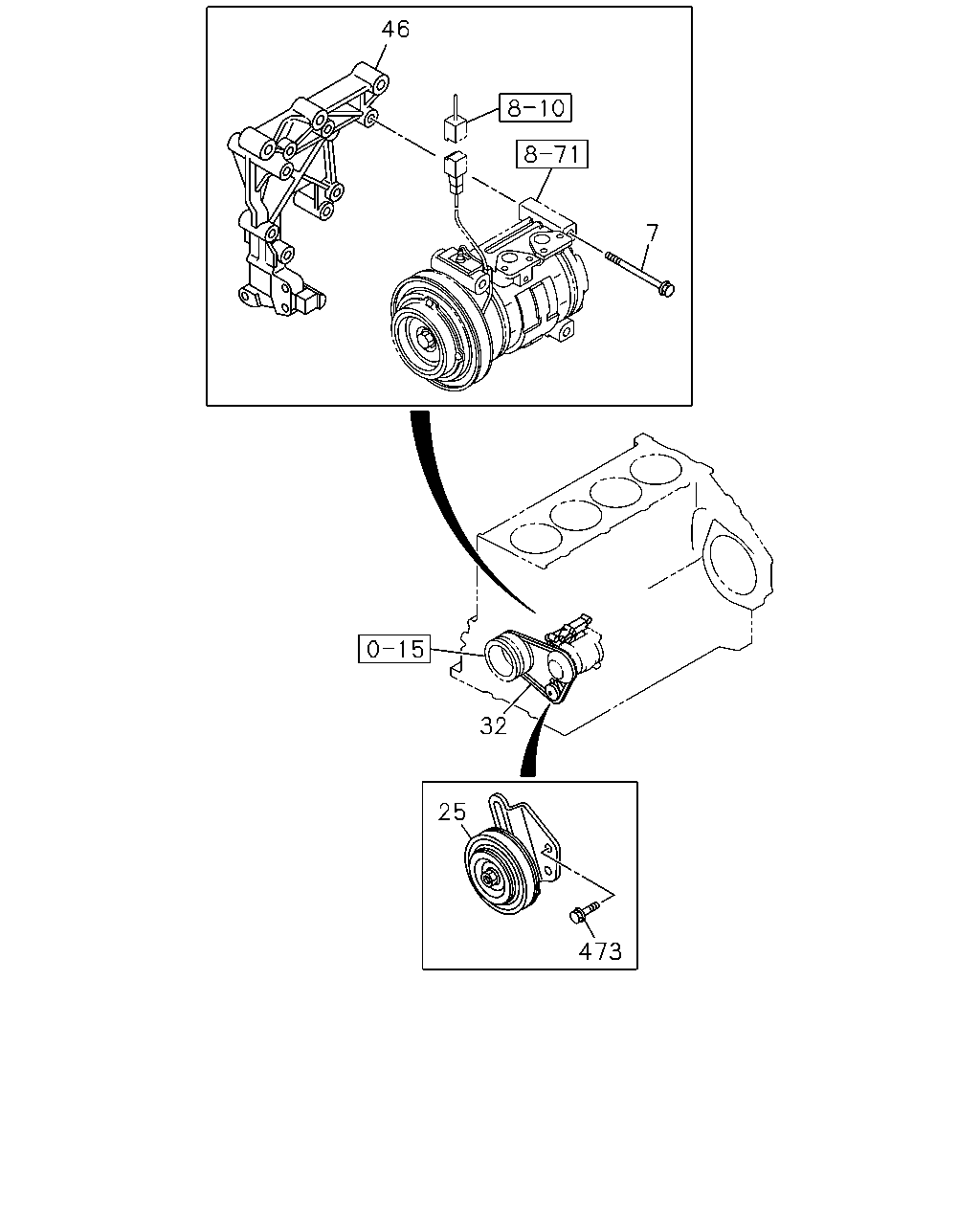

çizim 514083
46 7 32 25 473
BalonParca AdiParca NoAdetTipApplied Date A B
7 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X80 FLANGE 		0-28151-080-0 04 1 1601- ●
7 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M10X80 FLANGE 		0-28151-080-0 04 1 1601- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98083-026-1 01 1 1601- ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98083-026-1 01 1 1601- ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1054 		8-98083-671-0 01 1 1601- ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1054 		8-98083-671-0 01 1 1601- ●
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98194-091-0 01 1 1601- ●
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98194-091-0 01 1 1601- ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X16 FLANGE 		0-28050-816-0 03 1 1601- ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE 		0-28050-816-0 03 1 1601- ●
çizim 514134
378 378
BalonParca AdiParca NoAdetTipApplied Date A B
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-846-0 01 1 1601- ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98204-846-0 01 1 1601- ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-428-0 01 1 1601- ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-428-0 01 1 1601- ●
