Isuzu WW
▶
TRUCKS
▶
FSS
▶
11722 - FSS AUST/NZ JNLT09
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#175928) — 56 parça
Tümü
A - FCS5MS
B - FCS5WS
◀
[828A] RELAY; FRAME HARNESS (1 parça)
[828A] RELAY; CAB HARNESS (2 parça)
[828A] FRONT SIDE NO.1 (7 parça)
[828A] BUZZER AND RELAY; POWER CAB TILT UNIT (6 parça)
[828A] FRONT SIDE NO.2 (9 parça)
[828A] VALVE; PTO (9 parça)
[828A] VALVE; TRANSFER,LOW TO HIGH (12 parça)
[828A] FRONT SIDE NO.3 (6 parça)
[828A] FRAME SIDE (4 parça)
▶

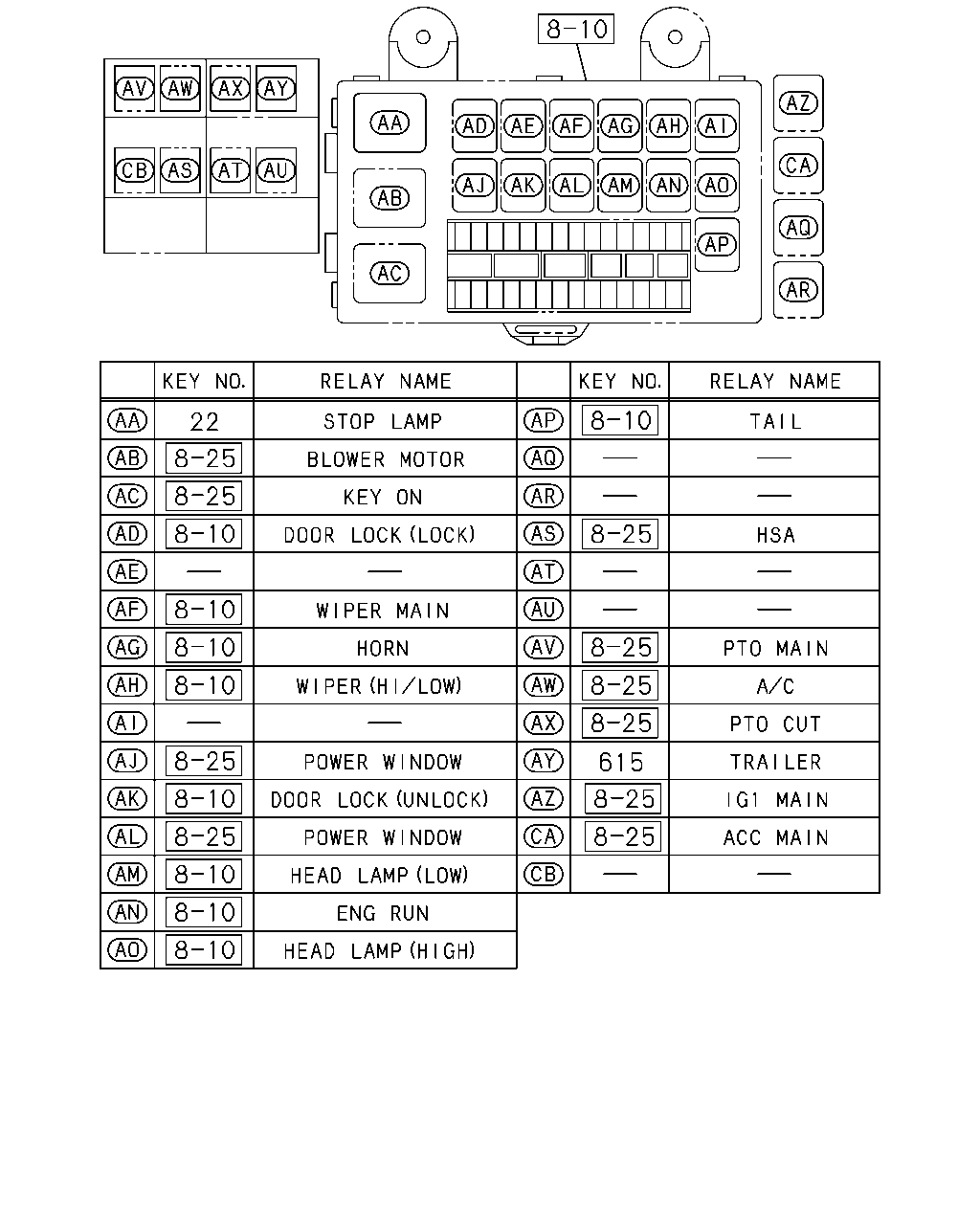

531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1601-
●
●
22
615
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1601-
●
●
615
RELAY; TRAILER
24V 10A PANASONIC
8-97173-035-1
01
1
1601-
●
●

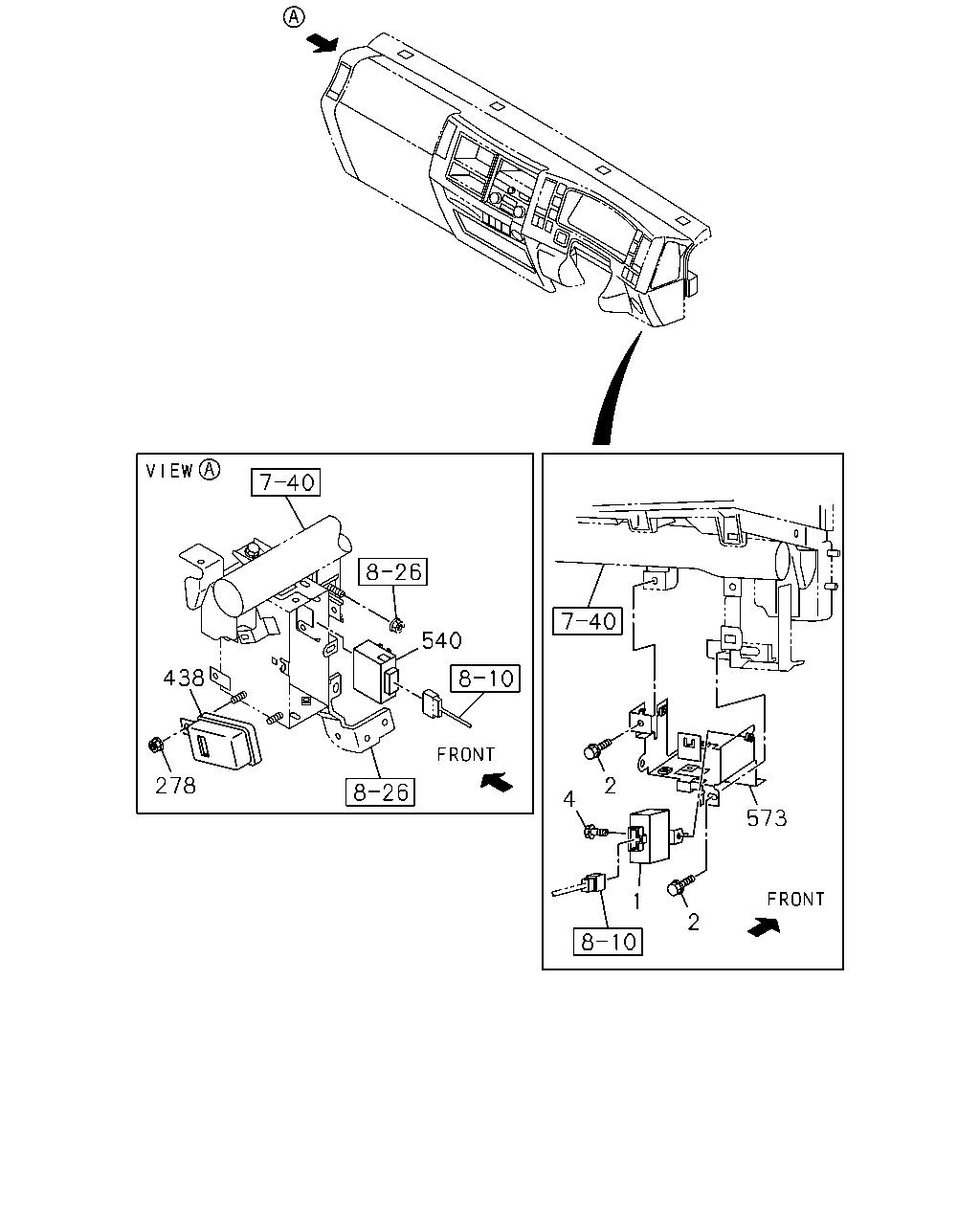

438
278
540
4
2
1
573
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
UNIT; FLASHER
8-98025-533-1
01
1
1601-
●
●
2
BOLT; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
02
1
1601-
●
●
4
SCREW; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
01
1
1601-
●
●
278
NUT; CONT UNIT
M6 FLANGE
0-91180-106-0
01
1
1601-
●
●
438
UNIT; SPD CONTROL
1-82550-271-0
01
1
1601-
●
●
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1601-
●
●
573
BRACKET; FLASHER UNIT
8-97609-984-5
01
1
1601-
●
●

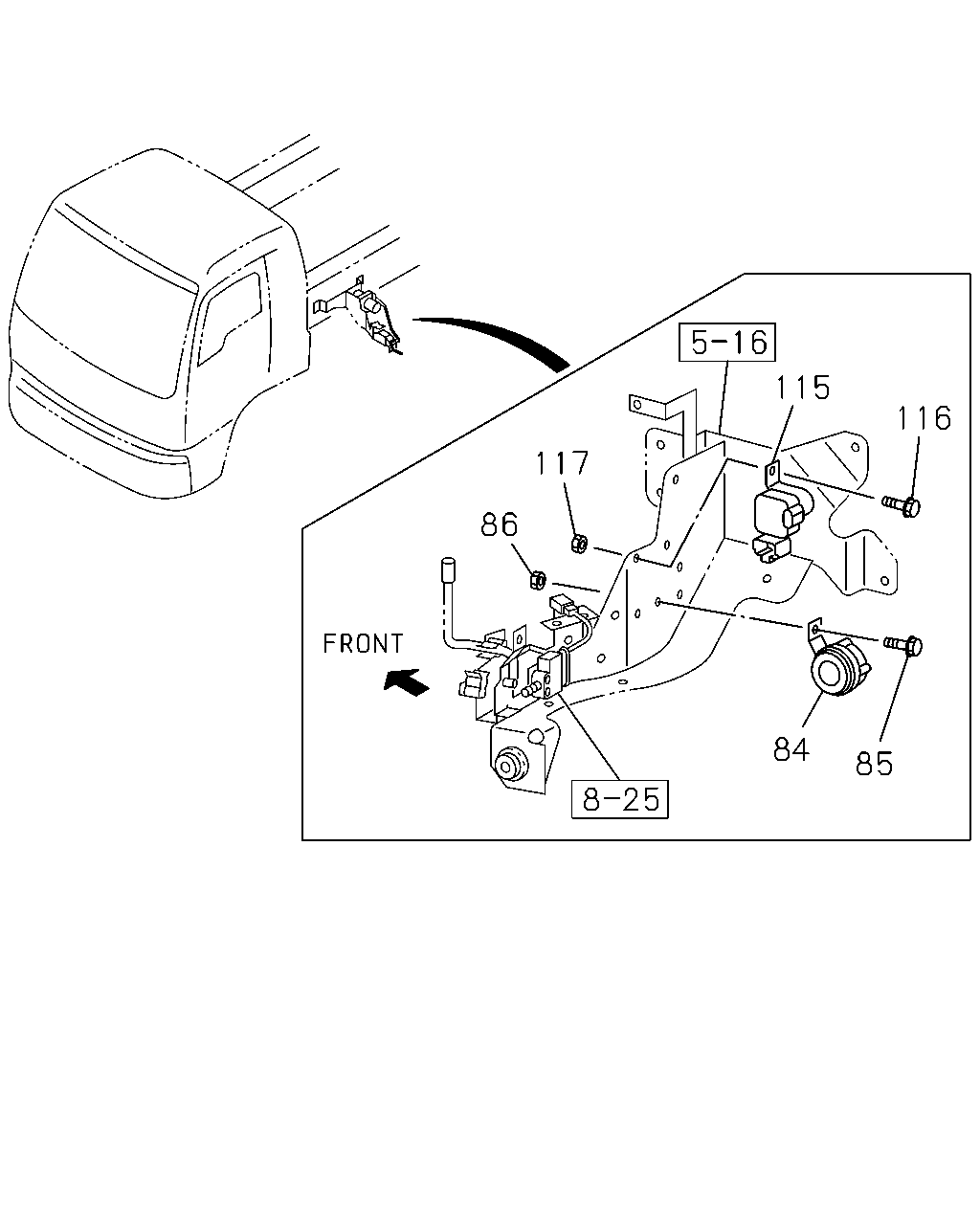

86
117
115
116
85
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1601-
●
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1601-
●
86
NUT; BUZZER
M8 FLANGE
0-91180-108-0
01
1
1601-
●
115
RELAY; POWER CAB TILT UNIT
24V NIKKO
8-98005-631-1
01
1
1601-
●
116
BOLT; RELAY FIX
M8X20 FLANGE
0-28650-820-0
02
1
1601-
●
117
NUT; RELAY FIX
M8 FLANGE
0-91180-108-0
02
1
1601-
●

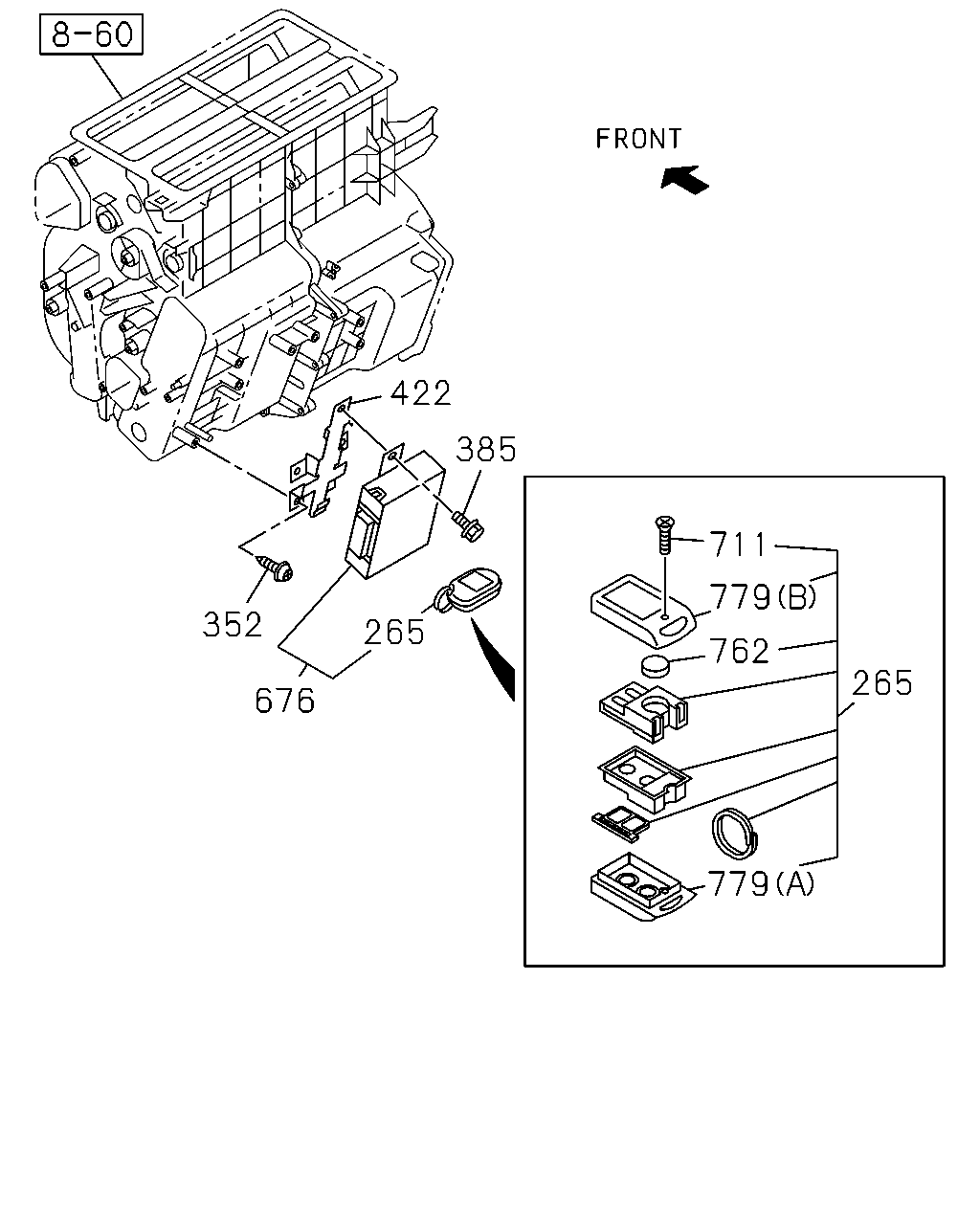

422
352
676
385
265
711
762
265
779
779
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
265
TRANSMITTER ASM; AUTO DOOR LOCK
8-98218-236-0
02
1
1601-
●
●
352
SCREW; BRKT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1601-
●
●
385
BOLT; CONT UNIT
M6X12 W/LK&PL WASHER
0-52000-612-0
01
1
1601-
●
●
422
BRACKET; CONT UNIT
8-98055-281-1
01
1
1601-
●
●
676
CONTROL UNIT; KEYLESS ENTRY
8-98218-231-0
01
1
1601-
●
●
711
SCREW; TRANSMITTER
M2X5
8-98218-239-0
02
1
1601-
●
●
762
BATTERY
8-98078-061-0
02
1
1601-
●
●
779
COVER; TRANSMITTER
(A)
8-98218-240-0
02
1
1601-
●
●
779
COVER; TRANSMITTER
(B)
8-98218-243-0
02
1
1601-
●
●
34
34
34
33
36
35
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82563-871-2
01
1
1601-
●
●
34
CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 ELBOW
1-09650-430-0
04
1
1601-
●
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1601-
●
●
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1601-
●
●
34
CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 ELBOW
1-09650-430-0
03
1
1601-
●
34
CONNECTOR; MAG VLV,INL PORT
(C) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1601-
●
35
BRACKET; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-98034-702-0
01
1
1601-
●
●
36
BOLT; MAG VLV,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE
0-28650-820-0
02
1
1601-
●
●
39
BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE
0-28651-030-0
02
1
1601-
●
●
284
714
714
284
602
34
714
34
210
34
285
34
261
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 ELBOW
1-09650-430-0
04
1
1601-
●
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
1601-
●
●
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
1601-
●
●
34
CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 ELBOW
1-09650-430-0
03
1
1601-
●
34
CONNECTOR; MAG VLV,INL PORT
(C) M12X2 & PT1/4 3WAY
1-09656-230-1
01
1
1601-
●
210
WASHER; PL,BRKT
1-82569-266-0
04
1
1601-
●
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1601-
●
●
284
BOLT; MAG VLV
(A) M6X50 FLANGE
0-28050-650-0
02
1
1601-
●
●
284
BOLT; MAG VLV
(B) M8X25 FLANGE
0-28650-825-0
03
1
1601-
●
●
285
NUT; MAG VLV
M6 FLANGE
0-91180-106-0
02
1
1601-
●
●
602
GASKET; MAG VLV
ID=16.8
9-09565-117-0
02
1
1601-
●
●
714
VALVE; MAG,TRANS,LOW TO HIGH
1-82563-871-2
03
1
1601-
●
●

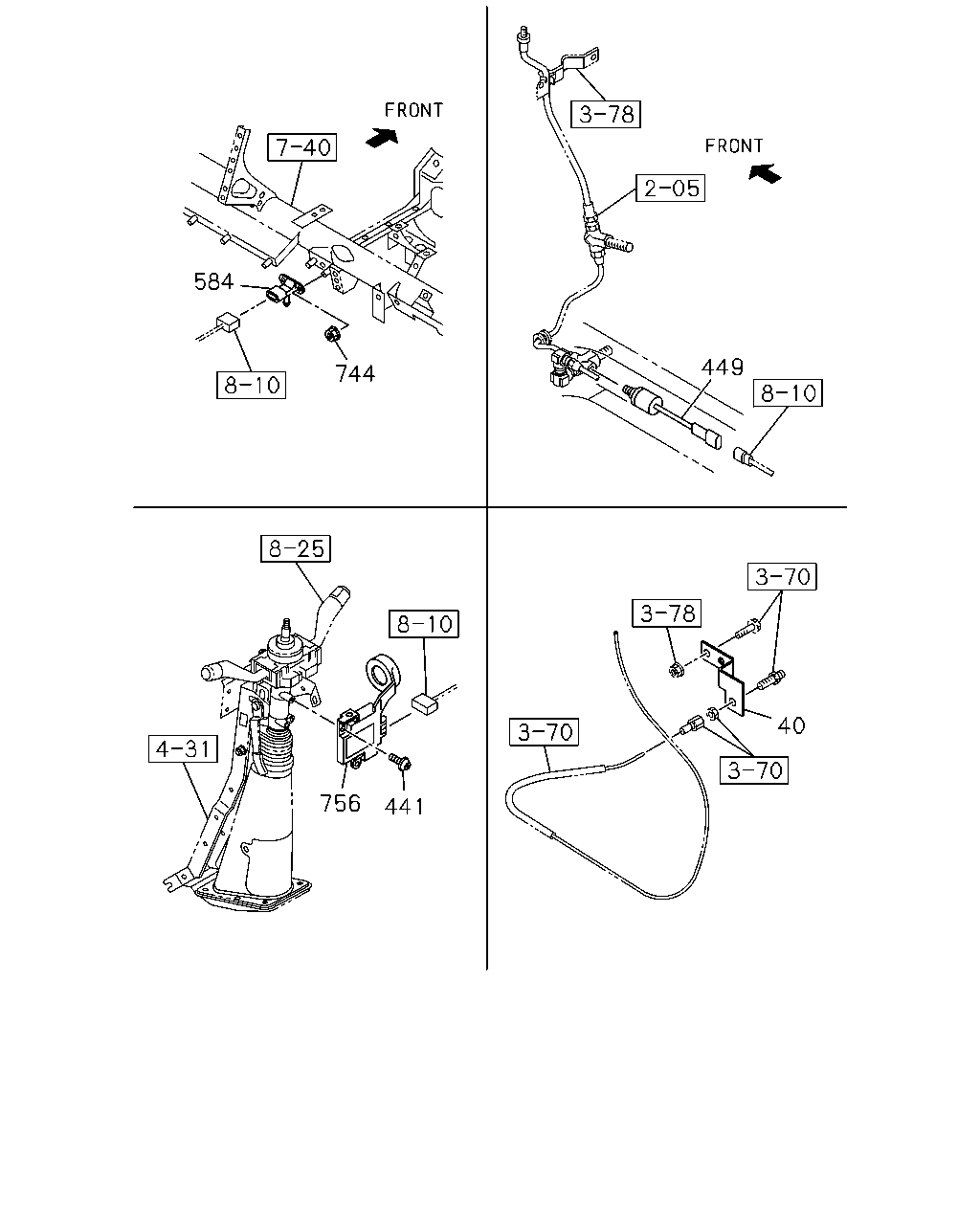

584
744
449
756
441
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
40
BRACKET; MAG VLV
8-98122-875-0
01
1
1601-
●
●
441
SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET
8-98063-767-0
02
1
1601-
●
●
449
SWITCH; OIL PRESS,CLUTCH
1-82410-143-1
01
1
1601-
●
●
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1601-
●
●
744
NUT; SENSOR
M6 FLANGE
0-91180-106-0
02
1
1601-
●
●
756
CONTROL UNIT; IMMOBILIZER
8-98158-127-0
01
1
1601-
●
●

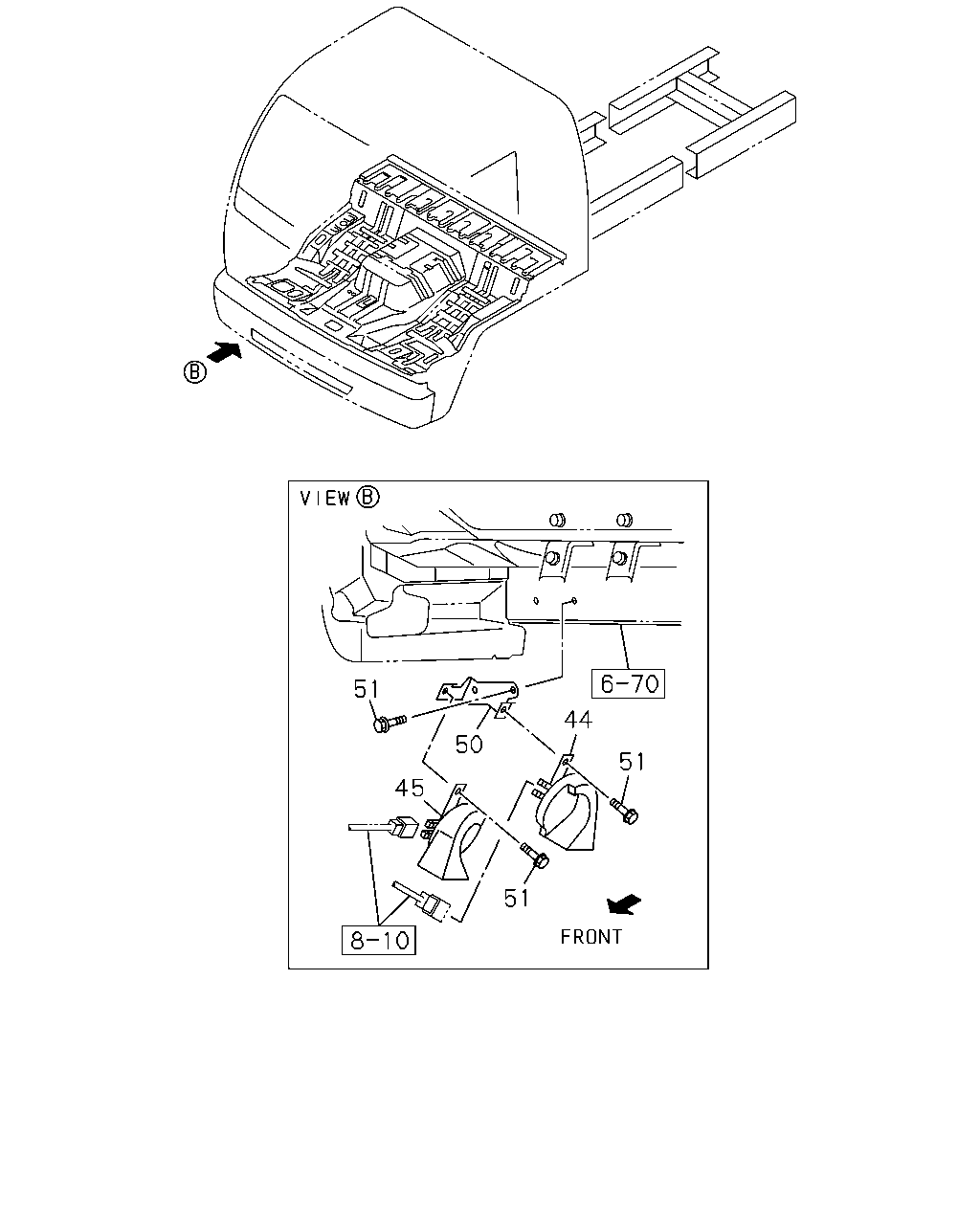

51
50
45
51
51
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
44
HORN; HIGH NOTE
8-97611-677-2
01
1
1601-
●
●
45
HORN; LOW NOTE
8-97611-676-2
01
1
1601-
●
●
50
BRACKET; HORN
8-97613-300-2
01
1
1601-
●
●
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
04
1
1601-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
