◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#175926) — 61 parça

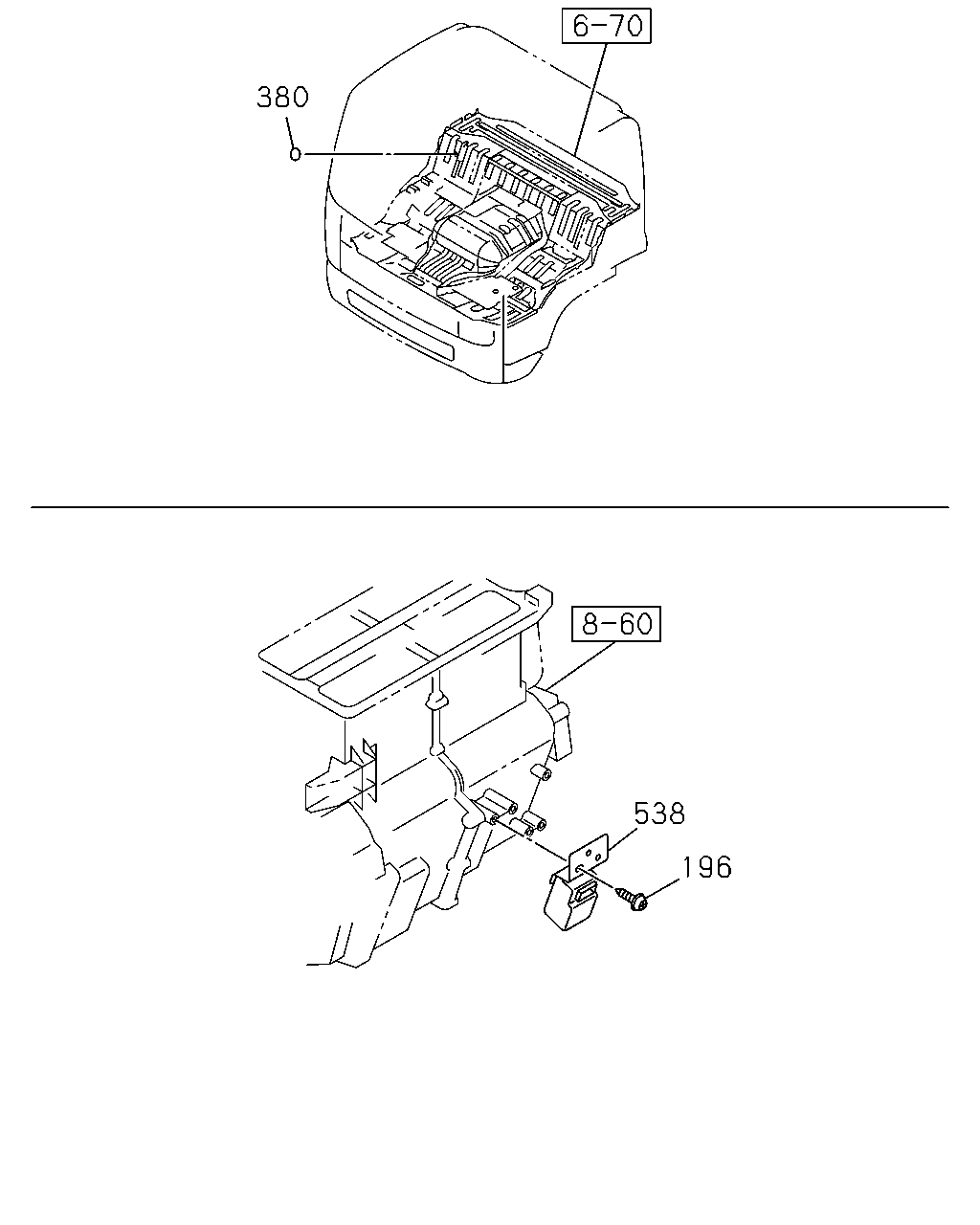

çizim 514063
380 538 196
BalonParca AdiParca NoAdetTipApplied Date A B
196 BOLT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1601- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1601- ●
538 CONTROLLER; LEVEL 8-98330-611-0 01 1 1601- ● ●

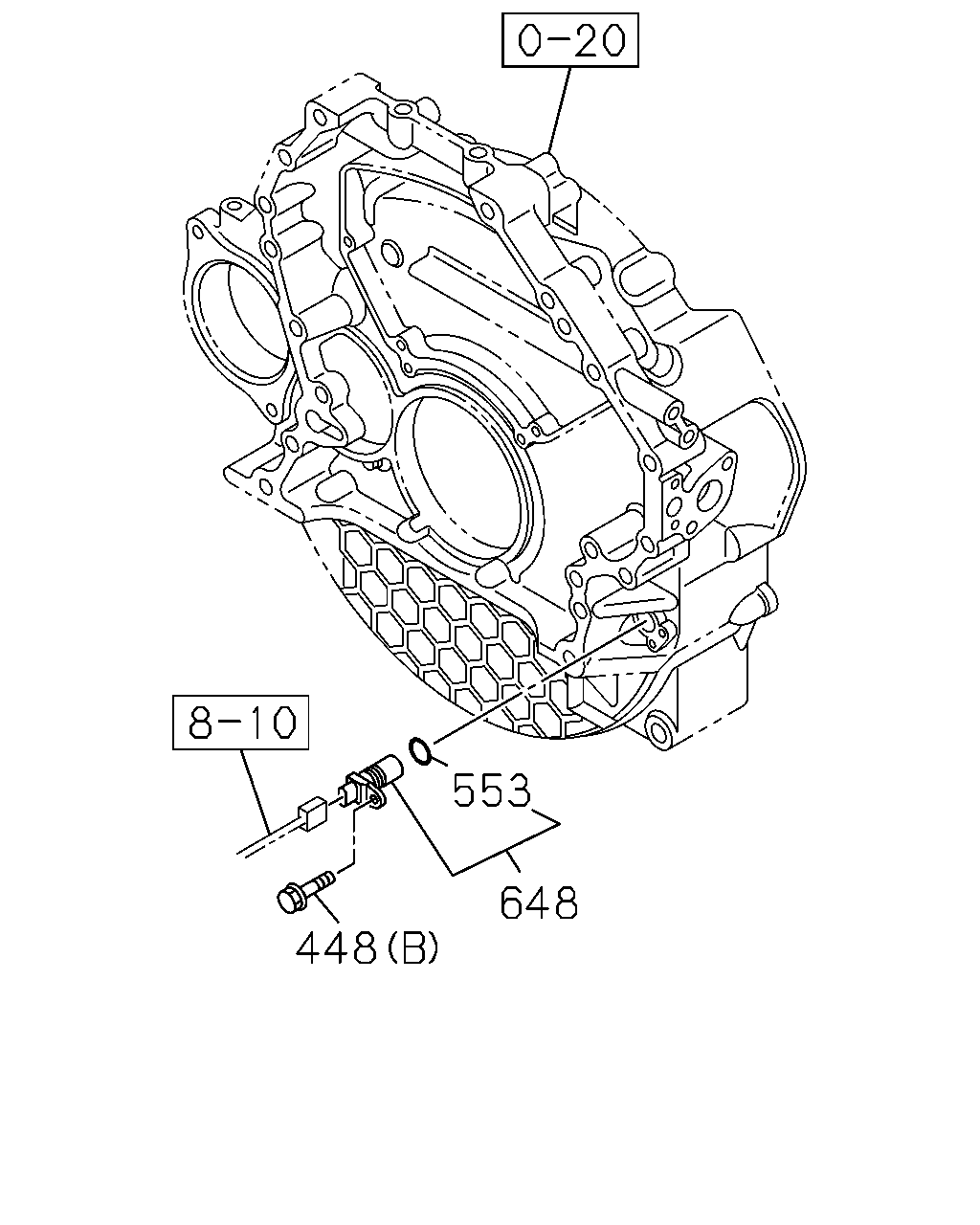

çizim 514068
553 648 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1601- ● ●
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1601- ● ●
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1601- ● ●
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1601- ● ●

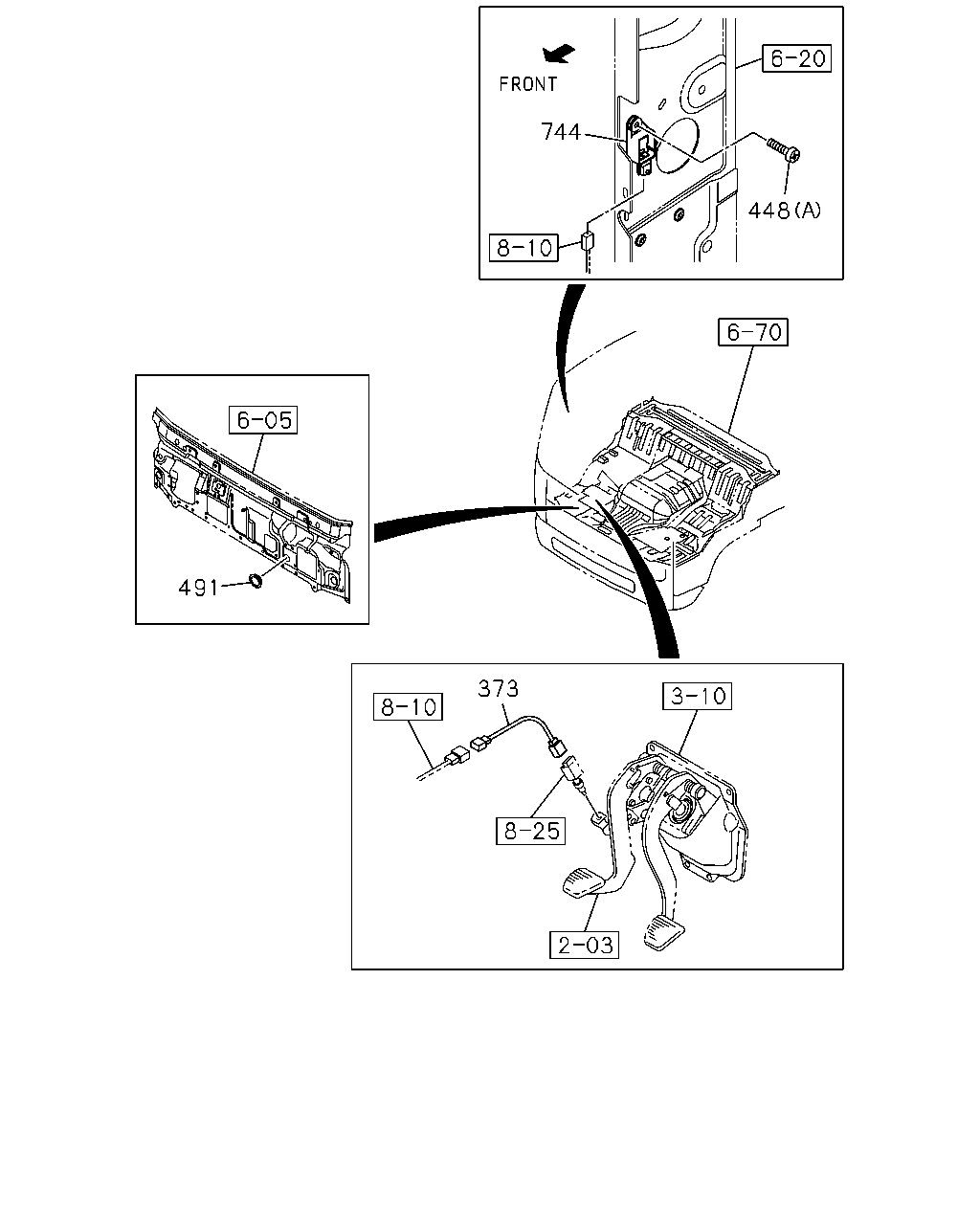

çizim 514156
744 448 491 373
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH 8-98053-829-3 01 1 1601- ● ●
448 BOLT; SENSOR
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1601- ● ●
448 BOLT; SENSOR
(A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1601- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1601- ● ●
744 SENSOR; AIR BAG 8-98190-212-0 01 1 1601- ● ●

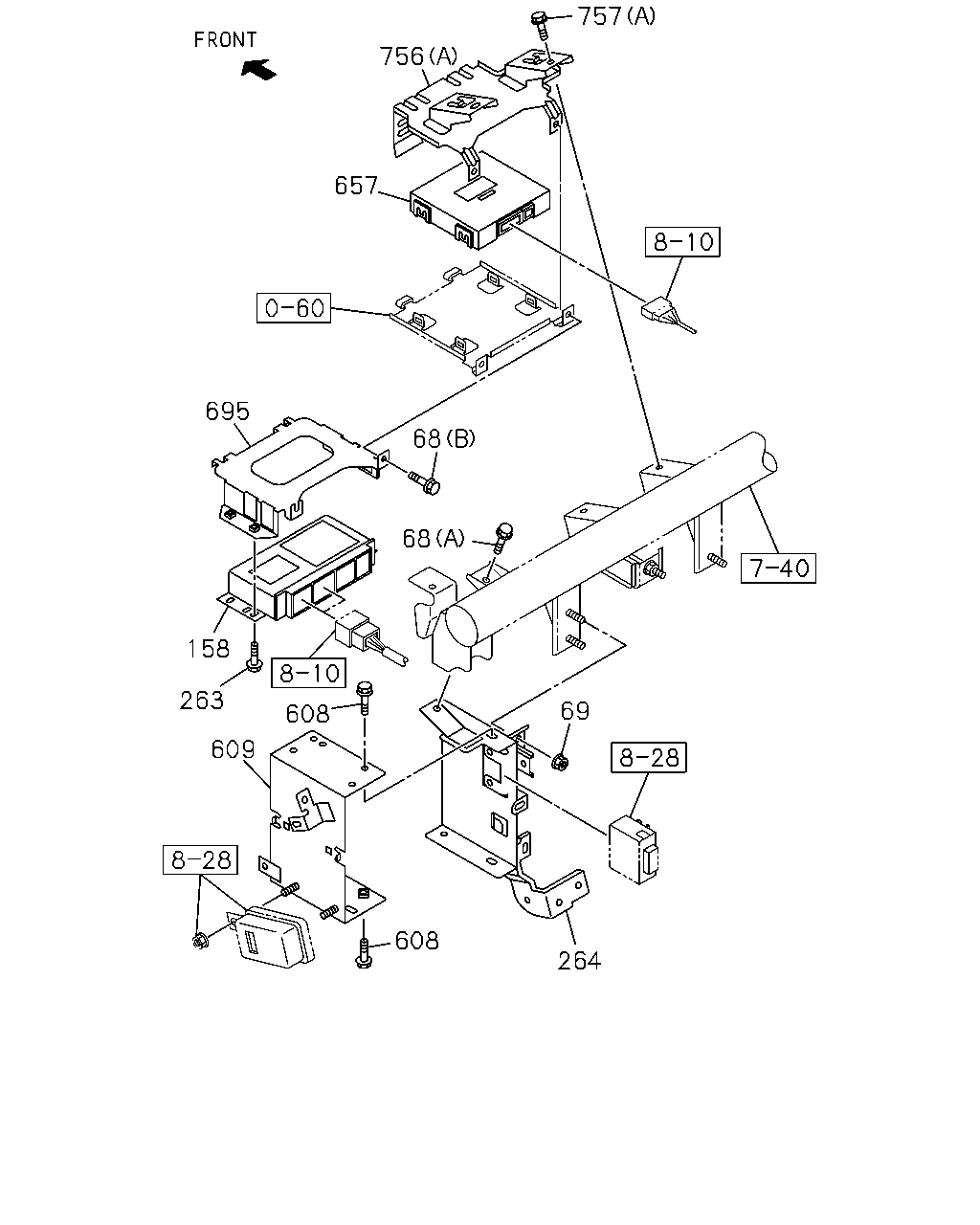

çizim 514956
757 756 657 695 68 68 158 263 69 609 608 264 608
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1601- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
158 CONTROLLER; ABS 8-98320-686-0 01 1 1601- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1601- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1601- ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1601- ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 1601- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1601- ● ●
657 CONTROL UNIT; MIMAMORI 8-98312-616-1 01 1 1601- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(C) 		8-98252-076-1 01 1 1601- ● ●
757 BOLT; BRKT,BCM
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1601- ● ●
757 BOLT; BRKT,BCM
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1601- ● ●

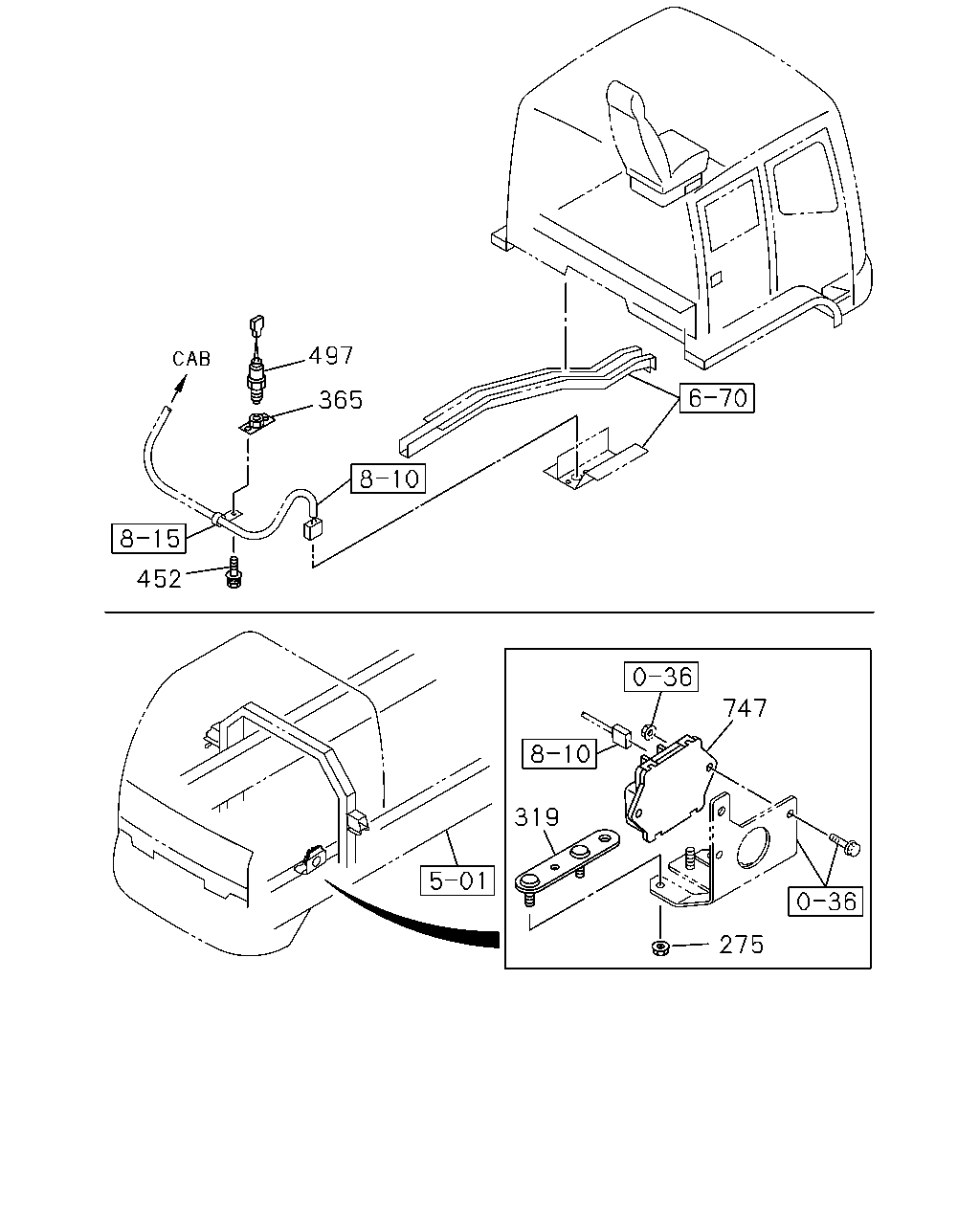

çizim 515107
497 365 452 319 747 275
BalonParca AdiParca NoAdetTipApplied Date A B
275 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1601- ● ●
319 PLATE; LK 8-98151-544-2 01 1 1601- ● ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 1601- ●
452 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1601- ●
497 SWITCH; CAB TILT
STAMP NC 		1-82380-125-1 01 1 1601- ●
747 CONTROL UNIT; TURBOCHARGER 8-98316-478-0 01 1 1601- ● ●

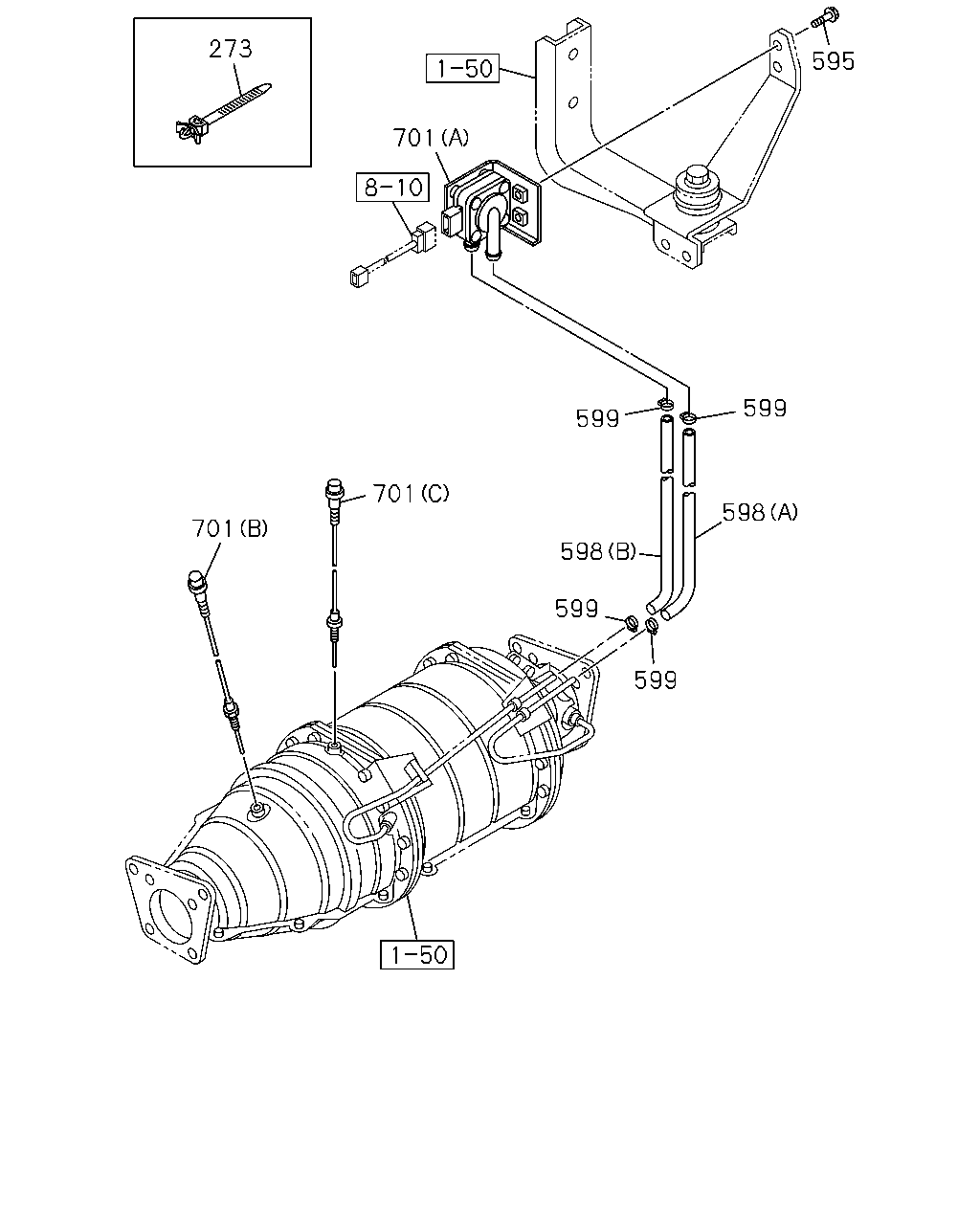

çizim 515122
273 701 595 701 701 599 599 598 598 599 599
BalonParca AdiParca NoAdetTipApplied Date A B
273 CLIP; HARNESS
L=112 		8-94232-618-0 02 1 1601- ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 1601- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98309-677-0 01 1 1601- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98309-679-0 01 1 1601- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 1601- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 1601- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 1601- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 1601- ● ●

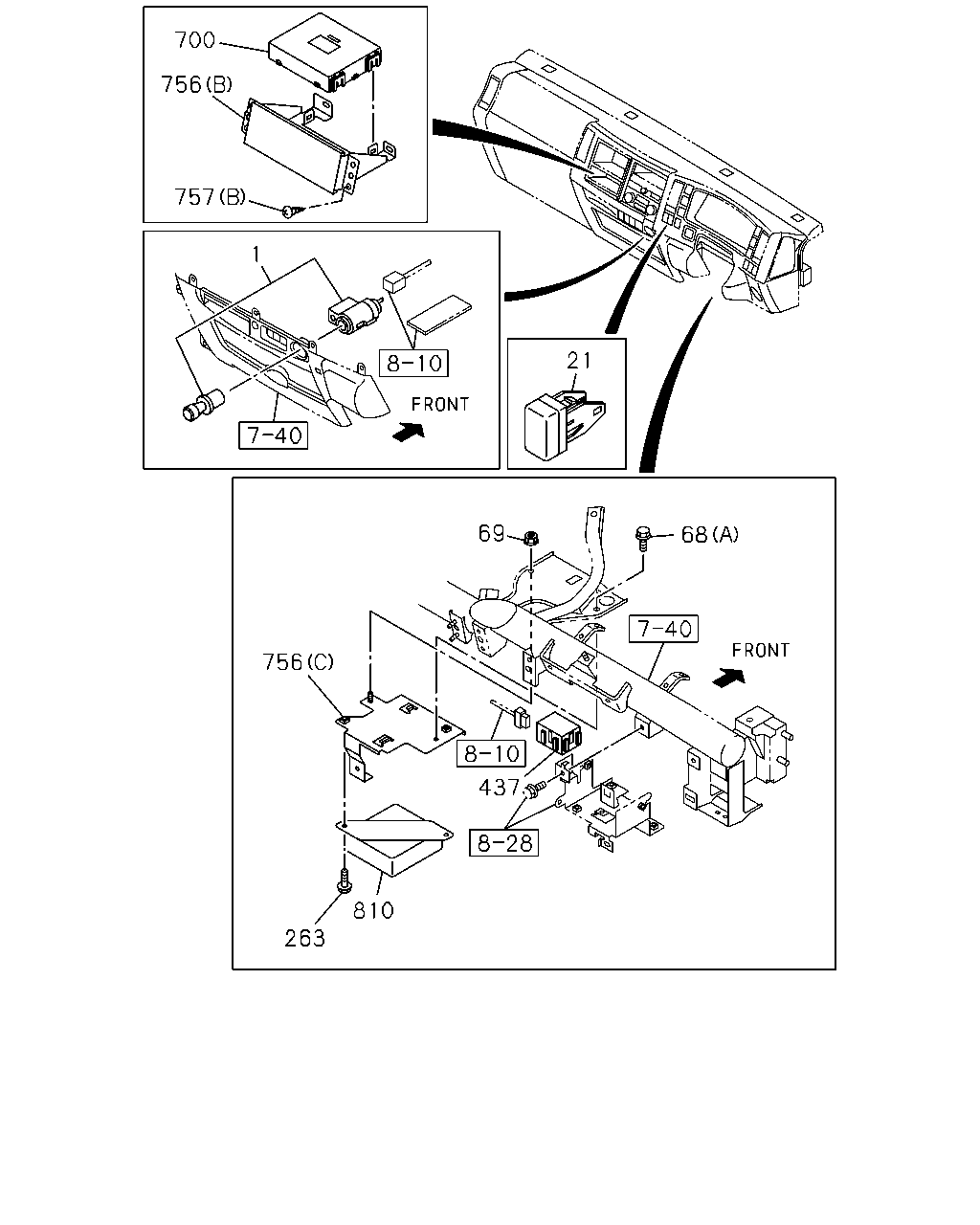

çizim 515178
700 757 756 21 69 756 68 810 263 437 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX> 		8-98142-962-0 01 1 1601- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1601- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1601- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1601- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1601- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 1601- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 1601- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1601- ● ●
700 CONTROL UNIT; CAN CONVERTER 8-98219-812-1 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98203-991-0 01 1 1601- ● ●
756 BRACKET; ECU,BCM
(C) 		8-98252-076-1 01 1 1601- ● ●
757 BOLT; BRKT,BCM
(A) M6X16 FLANGE 		0-28650-616-0 02 1 1601- ● ●
757 BOLT; BRKT,BCM
(B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1601- ● ●
810 CONTROL UNIT; ISS 8-98322-712-0 01 1 1601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
