8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#175925) — 81 parça

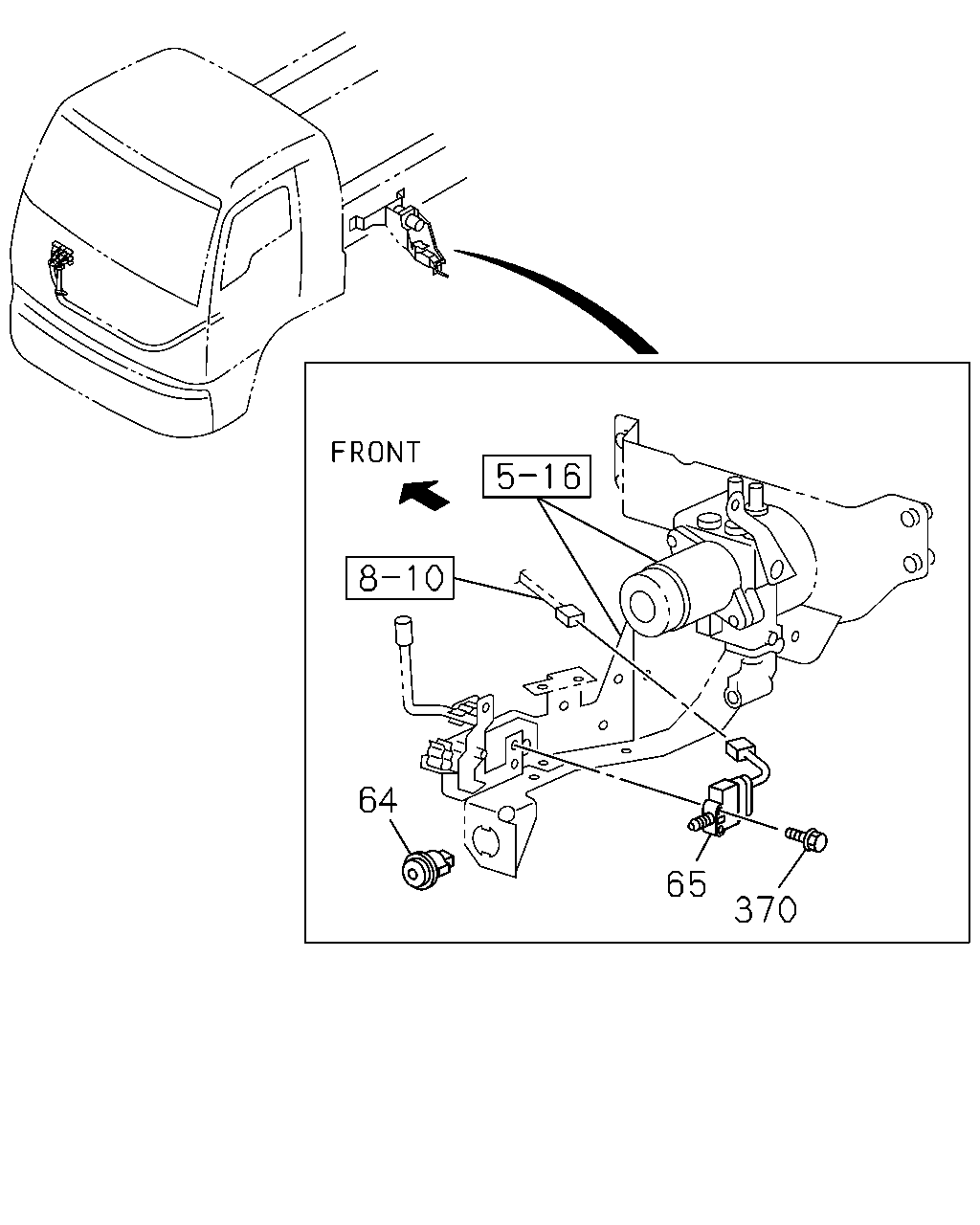

çizim 514057
64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 1601- ●
65 SWITCH; CAB TILT LK
STAMP NO 		1-82380-172-1 01 1 1601- ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 1601- ●
çizim 514159
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1601- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1601- ●

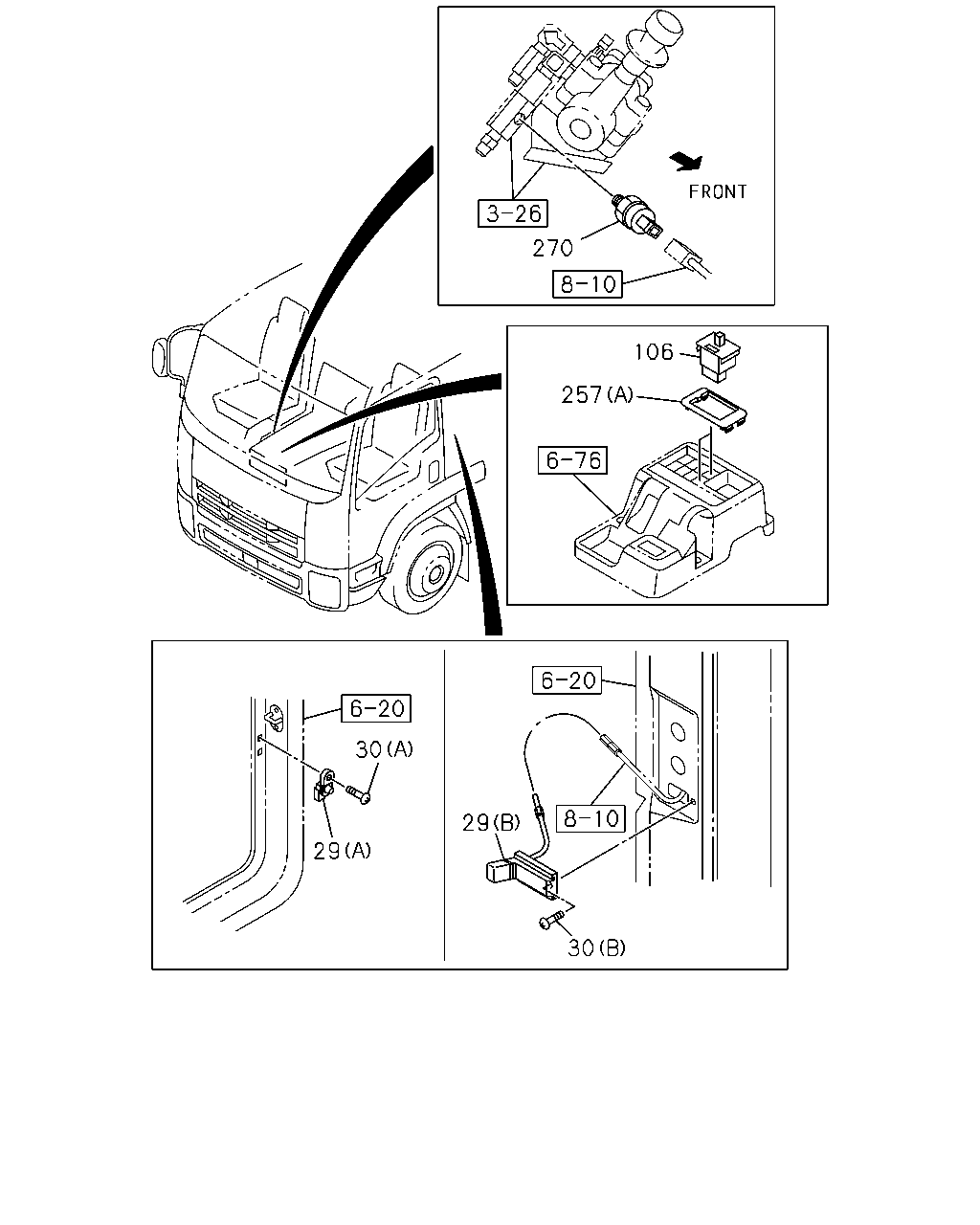

çizim 514944
270 106 257 30 29 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 02 1 1601- ●
29 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 02 1 1601- ●
29 SWITCH; DOOR
(B) REAR 		8-98054-195-0 02 1 1601- ●
30 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 1601- ●
30 SCREW; DOOR SW
(B) M5X11 		1-09981-536-1 04 1 1601- ●
106 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82350-223-0 02 1 1601- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1601- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1601- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1601- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1601- ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1601- ● ●
270 SWITCH; PRESS,WHEEL PARKING
STAMP 2.0 		8-98010-856-2 01 1 1601- ● ●

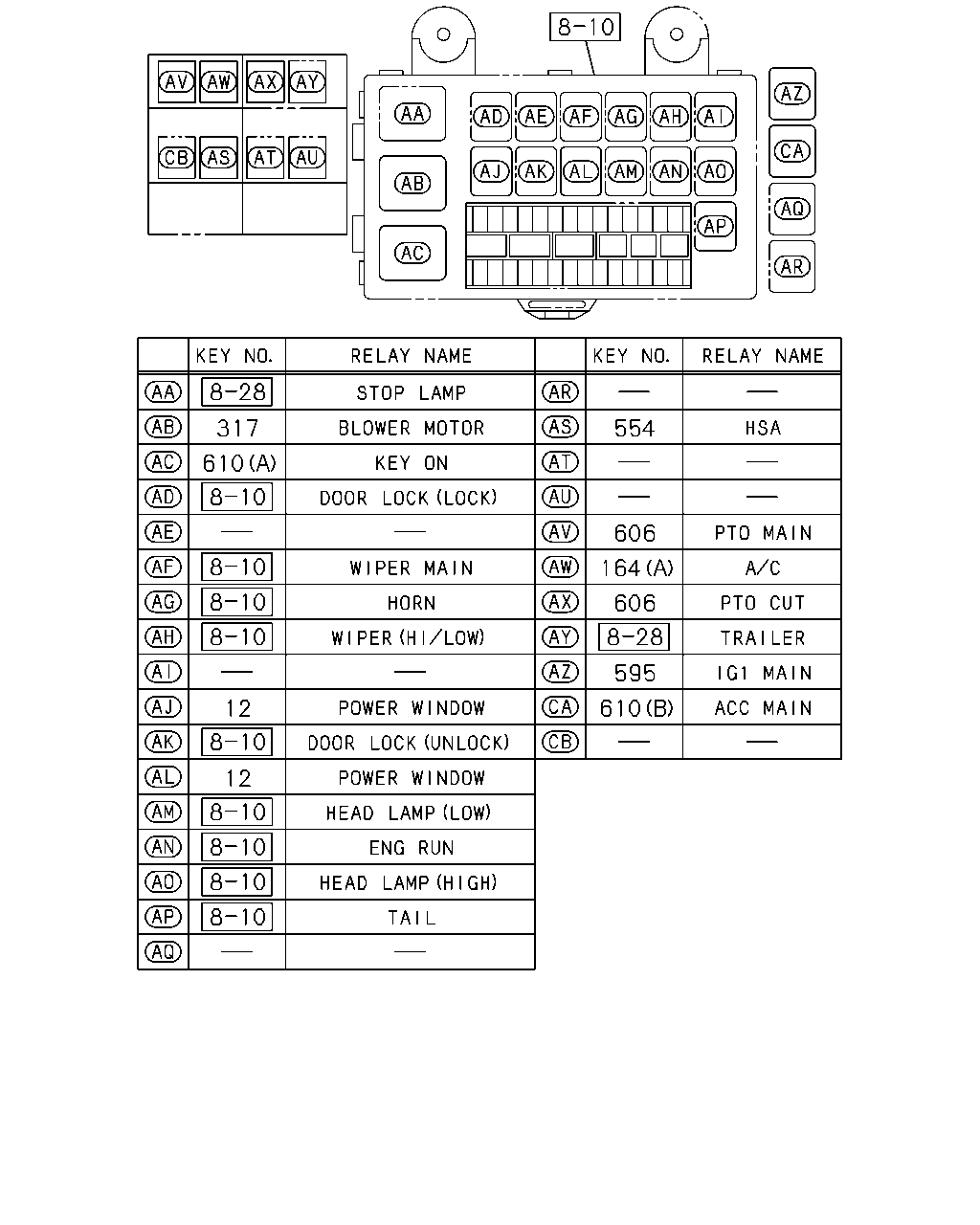

çizim 515017
610 606 554 317 12 12 595 606 164 610
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ● ●
12 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1601- ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1601- ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1601- ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1601- ●
554 RELAY; HSA
24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ● ●
595 RELAY; IGNITION
24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ● ●
606 RELAY; PTO MAIN
TRANSMISSION SIDE PTO WO/LEVER(SH5) 24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ● ●
610 RELAY; KEY ON
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 1601- ● ●
610 RELAY; KEY ON
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1601- ● ●

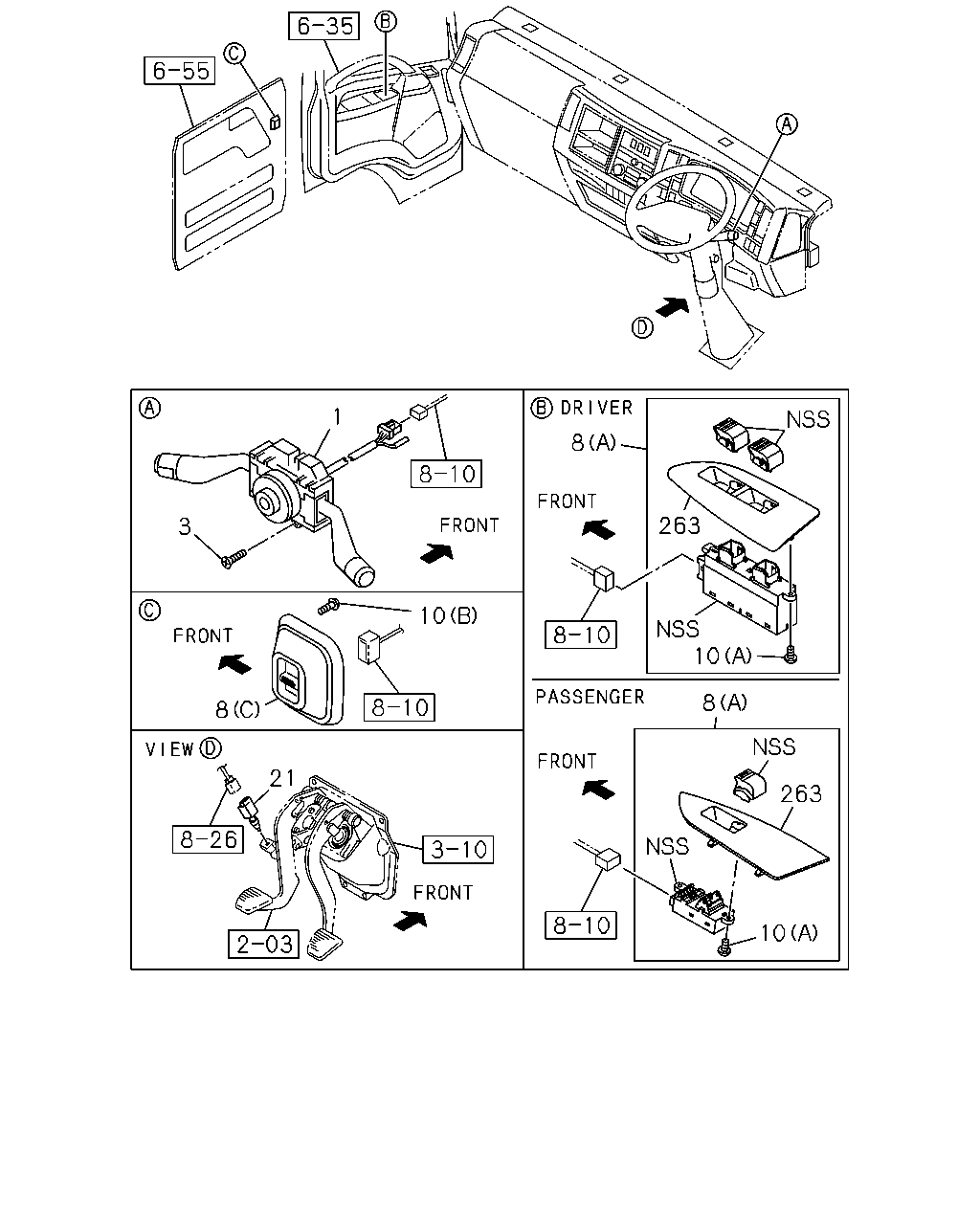

çizim 515101
1 3 8 10 21 8 263 10 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AUTO CRUISE<K30> 		8-98243-692-0 01 1 1601- ● ●
1 SWITCH; COMB
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1601- ● ●
3 SCREW; COMB SW
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1601- ● ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER 		8-98298-750-0 01 1 1601- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER 		8-98298-750-0 01 1 1601- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER 		8-98316-415-0 01 1 1601- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER 		8-98316-415-0 01 1 1601- ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER 		8-98298-754-0 01 1 1601- ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER 		8-98316-423-0 01 1 1601- ● ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-97387-035-0 02 1 1601- ●
8 SWITCH; POWER WINDOW
(D) 		8-98113-578-1 01 1 1601- ●
8 SWITCH; POWER WINDOW
(B) 		8-98128-755-2 01 1 1601- ●
10 SCREW; POWER WINDOW SW
(A) 		8-98153-865-0 03 1 1601- ● ●
10 SCREW; POWER WINDOW SW
(B) M4X14 TAPPING 		0-74360-414-0 04 1 1601- ●
21 SWITCH; CLU
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-94337-761-0 01 1 1601- ● ●
21 SWITCH; CLU
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97358-248-0 01 1 1601- ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 1601- ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 1601- ● ●

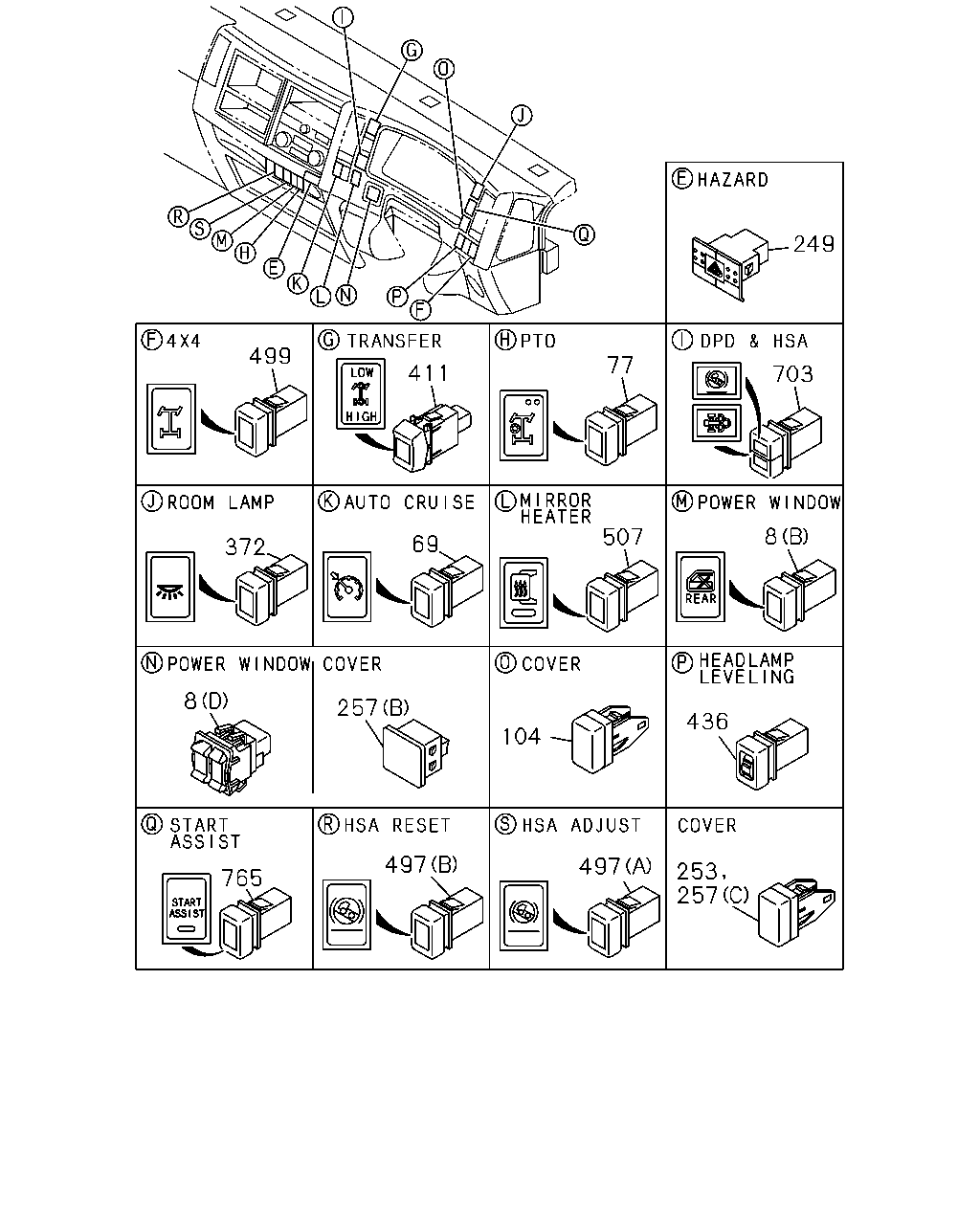

çizim 515195
499 372 8 765 497 257 69 411 77 507 104 497 253 257 436 8 703 249
BalonParca AdiParca NoAdetTipApplied Date A B
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) DRIVER 		8-98298-750-0 01 1 1601- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) DRIVER 		8-98298-750-0 01 1 1601- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY),DELUXE CAB(W14) (A) PASSENGER 		8-98316-415-0 01 1 1601- ●
8 SWITCH; POWER WINDOW
STANDARD CAB(SAY) (A) PASSENGER 		8-98316-415-0 01 1 1601- ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) DRIVER 		8-98298-754-0 01 1 1601- ● ●
8 SWITCH; POWER WINDOW
CUSTOM PACKAGE(YM8) (A) PASSENGER 		8-98316-423-0 01 1 1601- ● ●
8 SWITCH; POWER WINDOW
(C) REAR 		8-97387-035-0 02 1 1601- ●
8 SWITCH; POWER WINDOW
(D) 		8-98113-578-1 01 1 1601- ●
8 SWITCH; POWER WINDOW
(B) 		8-98128-755-2 01 1 1601- ●
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 1601- ● ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-97615-488-2 01 1 1601- ● ●
104 COVER; SW HOLE,FOG LAMP 8-98025-954-1 01 1 1601- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 1601- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1601- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 1601- ● ●
253 COVER; SW HOLE 8-98025-954-1 01 1 1601- ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1601- ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1601- ● ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1601- ● ●
257 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		8-98025-954-1 01 1 1601- ● ●
257 COVER; HOLE,SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		8-97619-254-1 02 1 1601- ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 1601- ● ●
411 SWITCH; TRANSFER 8-97613-967-1 01 1 1601- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 1601- ● ●
497 SWITCH; HSA
(B) 		8-98119-946-0 01 1 1601- ● ●
497 SWITCH; HSA
(A) 		8-98119-947-1 01 1 1601- ● ●
499 SWITCH; 4X4 8-97386-914-3 01 1 1601- ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 1601- ● ●
703 SWITCH; DPD & HSA 8-98011-346-2 01 1 1601- ● ●
765 SWITCH; START ASSIST
START ASSIST 		8-98209-667-1 01 1 1601- ● ●
