8-15 — FIXING PARTS; WIRING HARNESS (#175922) — 122 parça

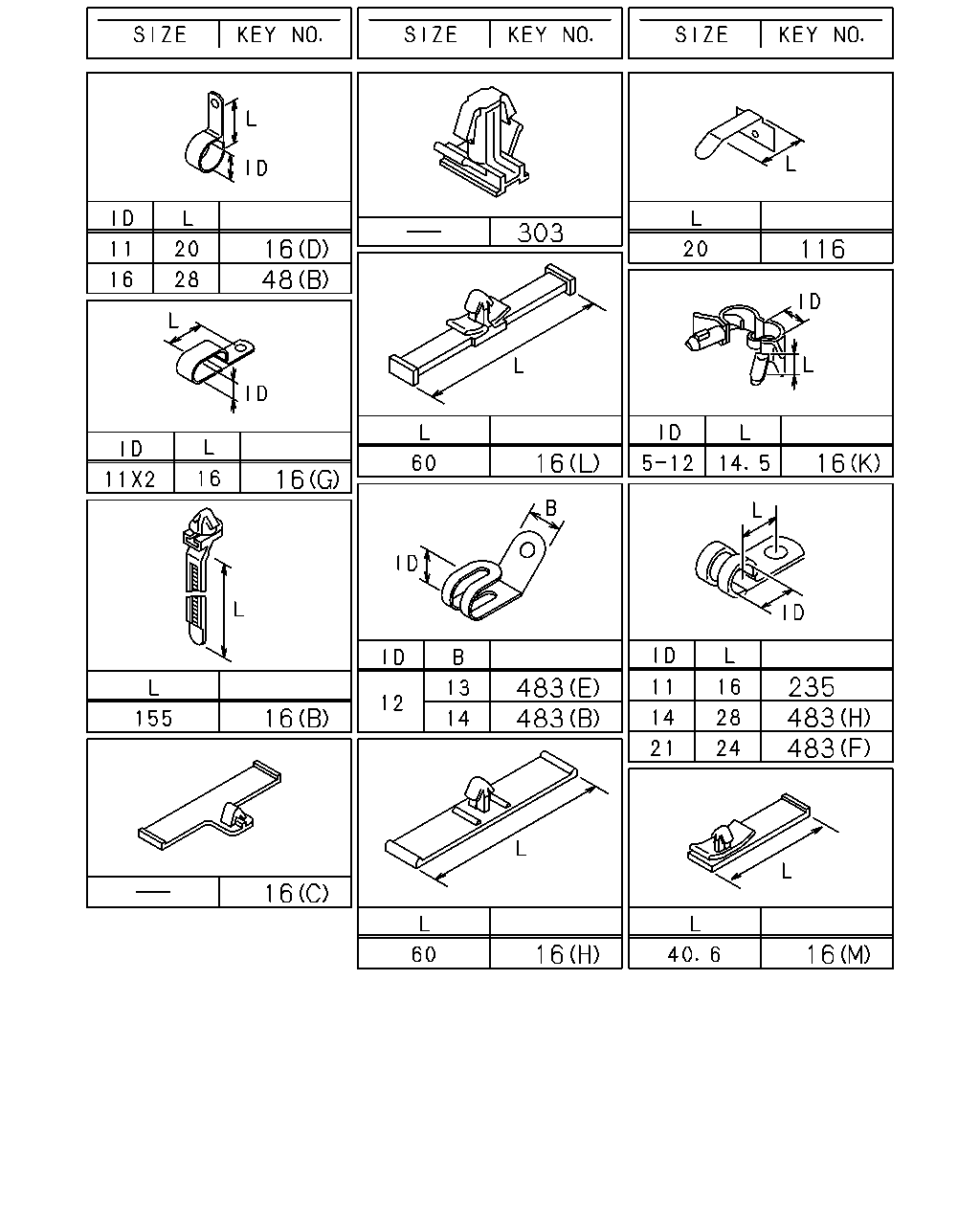

çizim 514024
16 48 16 16 16 303 16 483 483 16 116 16 235 483 483 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=10 & 15 		1-09709-279-1 04 1 1601- ●
16 CLIP; HARNESS
(J) ID=12 & 15 		1-09709-281-1 01 1 1601- ●
16 CLIP; HARNESS
(I) ID=10 & 15 		1-09709-279-1 03 1 1601- ●
16 CLIP; HARNESS
(J) ID=12 & 15 		1-09709-281-1 02 1 1601- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 1601- ● ●
16 CLIP; HARNESS
(G) ID=11X2 L=16 		0-95325-025-0 01 1 1601- ● ●
16 CLIP; HARNESS
(E) ID=19 L=24 H=21 		1-09700-109-1 01 1 1601- ● ●
16 CLIP; HARNESS
(F) ID=32 L=35 		1-09701-244-0 01 1 1601- ● ●
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 04 1 1601- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1601- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1601- ● ●
16 CLIP; HARNESS
(M) L=40.6 		8-97229-357-0 02 1 1601- ● ●
16 CLIP; HARNESS
(M) L=40.6 		8-97229-357-0 02 1 1601- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1601- ● ●
16 CLIP; HARNESS
(L) L=60 		8-94449-165-0 02 1 1601- ●
16 CLIP; HARNESS
(H) L=60 		8-97063-335-0 02 1 1601- ●
48 CLIP; FRAME HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1601- ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 01 1 1601- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 01 1 1601- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1601- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1601- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=11 L=16 		0-95235-025-0 01 1 1601- ● ●
303 CLIP; HARNESS POWER TILT RELAY
OD=8.95 H=6.25 		8-97375-754-0 01 1 1601- ●
483 CLIP; ENG HARNESS
(G) ID=16 L=20 		1-09701-120-1 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(C) ID=9.8X2 		8-97309-944-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(D) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(H) ID=14 L=28 		8-98135-163-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (F) ID=21 L=24 		8-98019-191-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=15 H=30 L=22 		8-98163-916-0 01 1 1601- ● ●

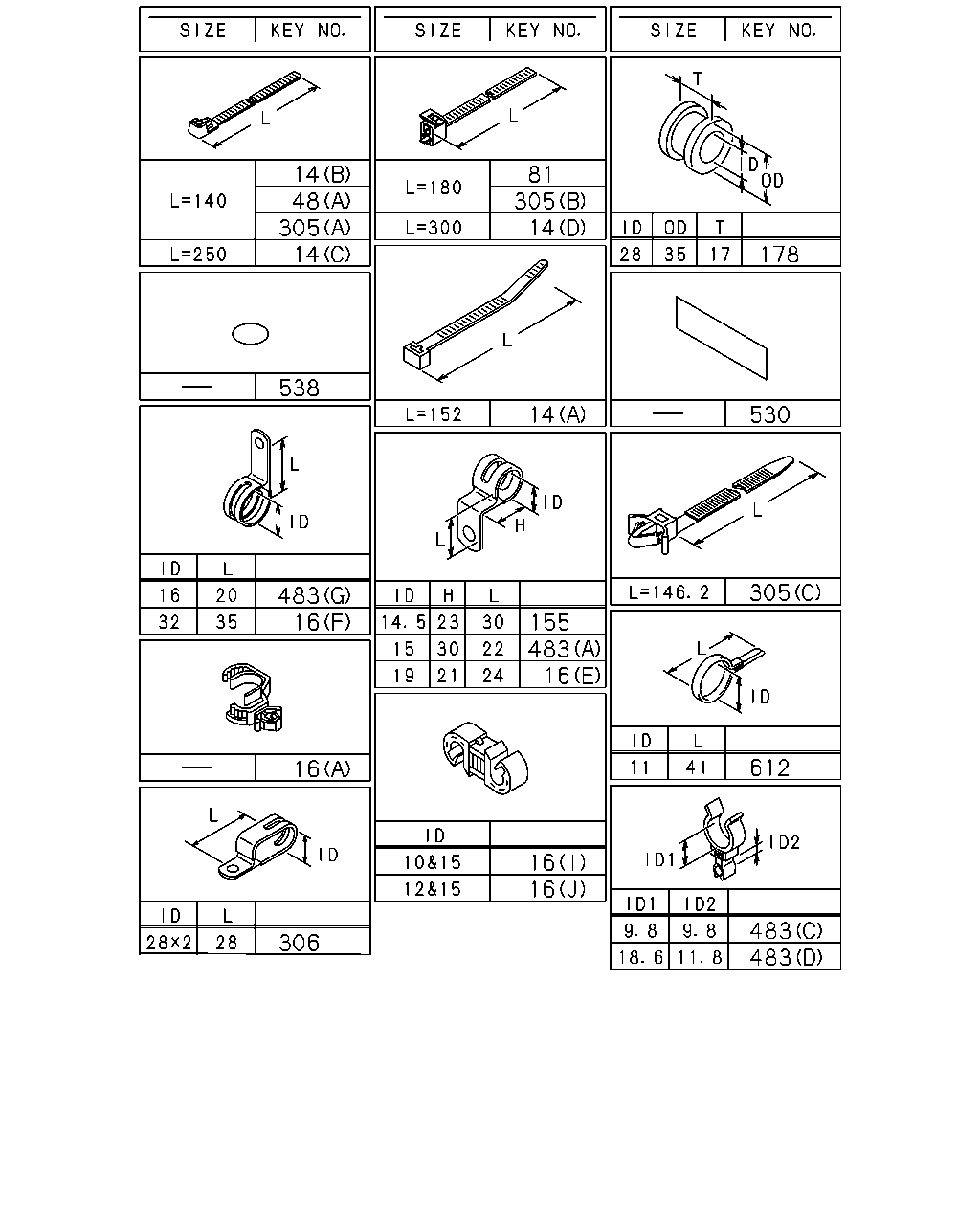

çizim 514877
14 305 48 14 538 483 16 16 306 16 16 16 483 483 612 483 305 155 14 530 178 14 305 81
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(D) L=300 		1-09707-001-1 01 1 1601- ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 05 1 1601- ● ●
14 CLIP; BAND,HARNESS
(A) L=152 		8-98132-426-0 07 1 1601- ● ●
14 CLIP; BAND,HARNESS
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 05 1 1601- ● ●
14 CLIP; BAND,HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=140 		5-09707-031-1 04 1 1601- ● ●
16 CLIP; HARNESS
(I) ID=10 & 15 		1-09709-279-1 04 1 1601- ●
16 CLIP; HARNESS
(J) ID=12 & 15 		1-09709-281-1 01 1 1601- ●
16 CLIP; HARNESS
(I) ID=10 & 15 		1-09709-279-1 03 1 1601- ●
16 CLIP; HARNESS
(J) ID=12 & 15 		1-09709-281-1 02 1 1601- ●
16 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 02 1 1601- ● ●
16 CLIP; HARNESS
(G) ID=11X2 L=16 		0-95325-025-0 01 1 1601- ● ●
16 CLIP; HARNESS
(E) ID=19 L=24 H=21 		1-09700-109-1 01 1 1601- ● ●
16 CLIP; HARNESS
(F) ID=32 L=35 		1-09701-244-0 01 1 1601- ● ●
16 CLIP; HARNESS
(K) ID=5-12 L=14.5 		1-09987-221-0 04 1 1601- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1601- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1601- ● ●
16 CLIP; HARNESS
(M) L=40.6 		8-97229-357-0 02 1 1601- ● ●
16 CLIP; HARNESS
(M) L=40.6 		8-97229-357-0 02 1 1601- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1601- ● ●
16 CLIP; HARNESS
(L) L=60 		8-94449-165-0 02 1 1601- ●
16 CLIP; HARNESS
(H) L=60 		8-97063-335-0 02 1 1601- ●
48 CLIP; FRAME HARNESS
(B) ID=16 L=28 		0-95235-556-0 02 1 1601- ●
48 CLIP; FRAME HARNESS
(A) L=140 		5-09707-031-1 01 1 1601- ●
81 CLIP; HARNESS
L=180 		1-09707-162-1 01 1 1601- ● ●
155 CLIP; STARTER EARTH CABLE
ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1601- ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1601- ● ●
178 GROMMET; HARNESS
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1601- ●
305 CLIP; ENG HARNESS
(B) L=180 		1-09707-162-1 01 1 1601- ● ●
305 CLIP; ENG HARNESS
(A) L=140 		5-09707-031-1 01 1 1601- ● ●
305 CLIP; ENG HARNESS
(C) L=146.2 		8-98052-677-0 02 1 1601- ● ●
306 CLIP; HARNESS,ELEC GOV
ID=28X2 L=28 		1-09701-302-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(G) ID=16 L=20 		1-09701-120-1 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(E) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(B) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(C) ID=9.8X2 		8-97309-944-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(D) ID=11.8 & ID=18.6 		8-97333-094-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
(H) ID=14 L=28 		8-98135-163-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (F) ID=21 L=24 		8-98019-191-0 01 1 1601- ● ●
483 CLIP; ENG HARNESS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=15 H=30 L=22 		8-98163-916-0 01 1 1601- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1601- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1601- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1601- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1601- ● ●
612 CLIP; HARNESS DPD
ID=11 L=41 		1-09700-403-0 02 1 1601- ●

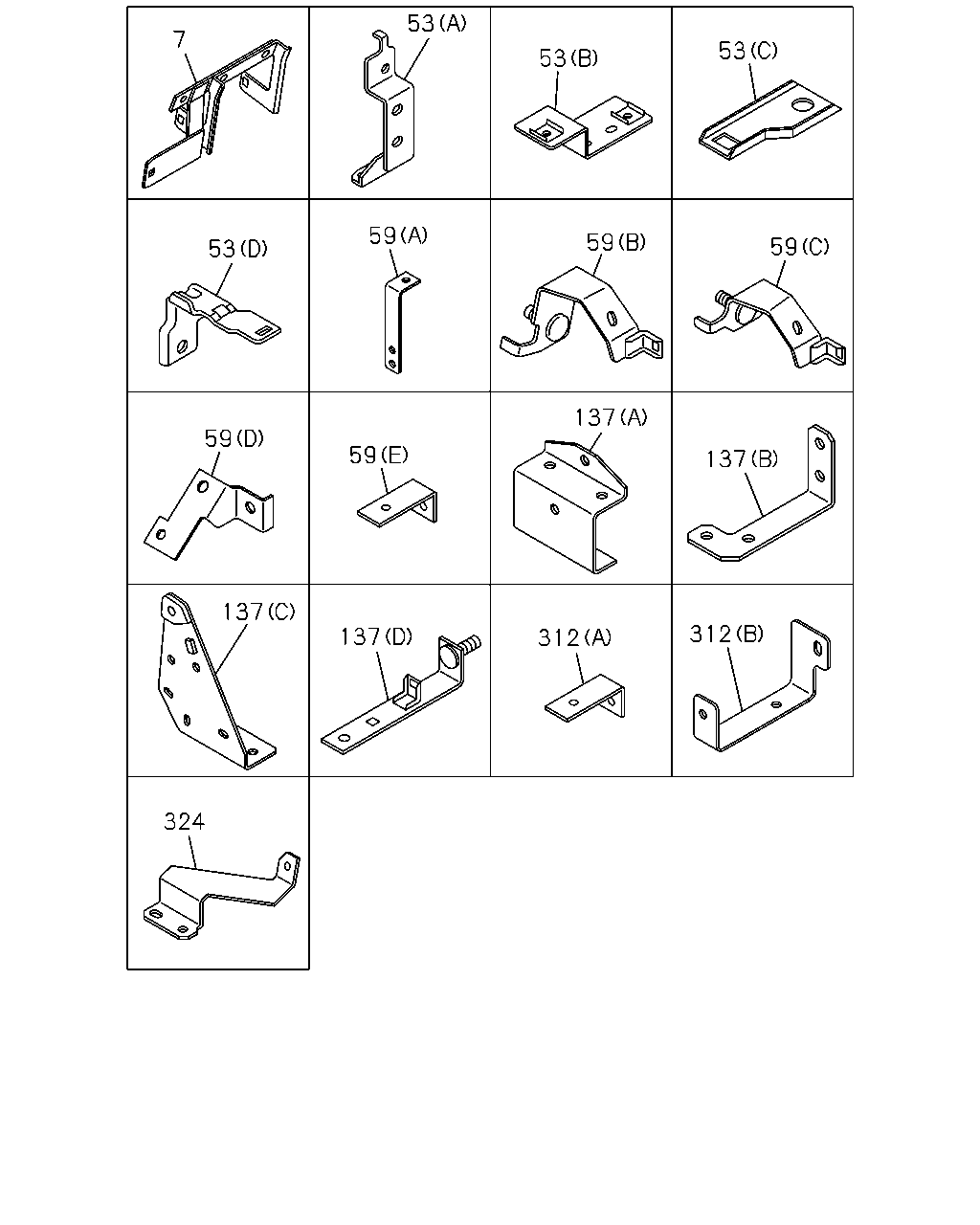

çizim 514910
7 53 59 137 324 137 59 59 53 53 59 137 312 312 137 59 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1601- ● ●
53 BRACKET; HARNESS
(C) 		1-82698-569-0 01 1 1601- ●
53 BRACKET; HARNESS
(A) 		8-98236-571-0 01 1 1601- ●
53 BRACKET; HARNESS
(D) 		8-98052-458-0 01 1 1601- ● ●
53 BRACKET; HARNESS
(B) 		8-98244-721-0 01 1 1601- ● ●
53 BRACKET; HARNESS
(A) 		8-98049-871-0 01 1 1601- ●
59 BRACKET; FRAME HARNESS
(A) L=120 		1-82699-465-0 02 1 1601- ●
59 BRACKET; FRAME HARNESS
(B) 		8-98180-878-0 01 1 1601- ●
59 BRACKET; FRAME HARNESS
(C) 		8-98178-451-0 01 1 1601- ●
59 BRACKET; FRAME HARNESS
(D) 		8-98309-154-0 01 1 1601- ● ●
59 BRACKET; FRAME HARNESS
(E) L=75 		1-47478-323-0 01 1 1601- ●
137 BRACKET; HARNESS CLAMP
(A) 		8-97609-797-1 02 1 1601- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-98244-722-0 01 1 1601- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-98276-769-0 01 1 1601- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-98315-893-0 01 1 1601- ● ●
312 BRACKET; CLIP HARNESS
(B) 		8-98268-411-0 01 1 1601- ●
312 BRACKET; CLIP HARNESS
(A) L=55 		1-47475-304-0 01 1 1601- ●
324 BRACKET; CLIP 8-98209-752-0 01 1 1601- ● ●
çizim 515120
139 139 38 139 377 38 386 38 242 139 38 242 139 313 524 139 219 525 294 552 47 184
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 1601- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1601- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 01 1 1601- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1601- ● ●
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1601- ● ●
139 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1601- ● ●
139 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 02 1 1601- ● ●
139 BOLT; BRKT
(F) M8X20 FLANGE 		0-28050-820-0 02 1 1601- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1601- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1601- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1601- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1601- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1601- ●
242 BOLT; BRKT,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1601- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1601- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 04 1 1601- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
313 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1601- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1601- ● ●
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1601- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1601- ● ●
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
552 NUT; BRKT,HARNESS
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
