Sayfa 4-20 - Isuzu EPC

4-20 — REAR AXLE CASE AND SHAFT (#1759) — 203 parça

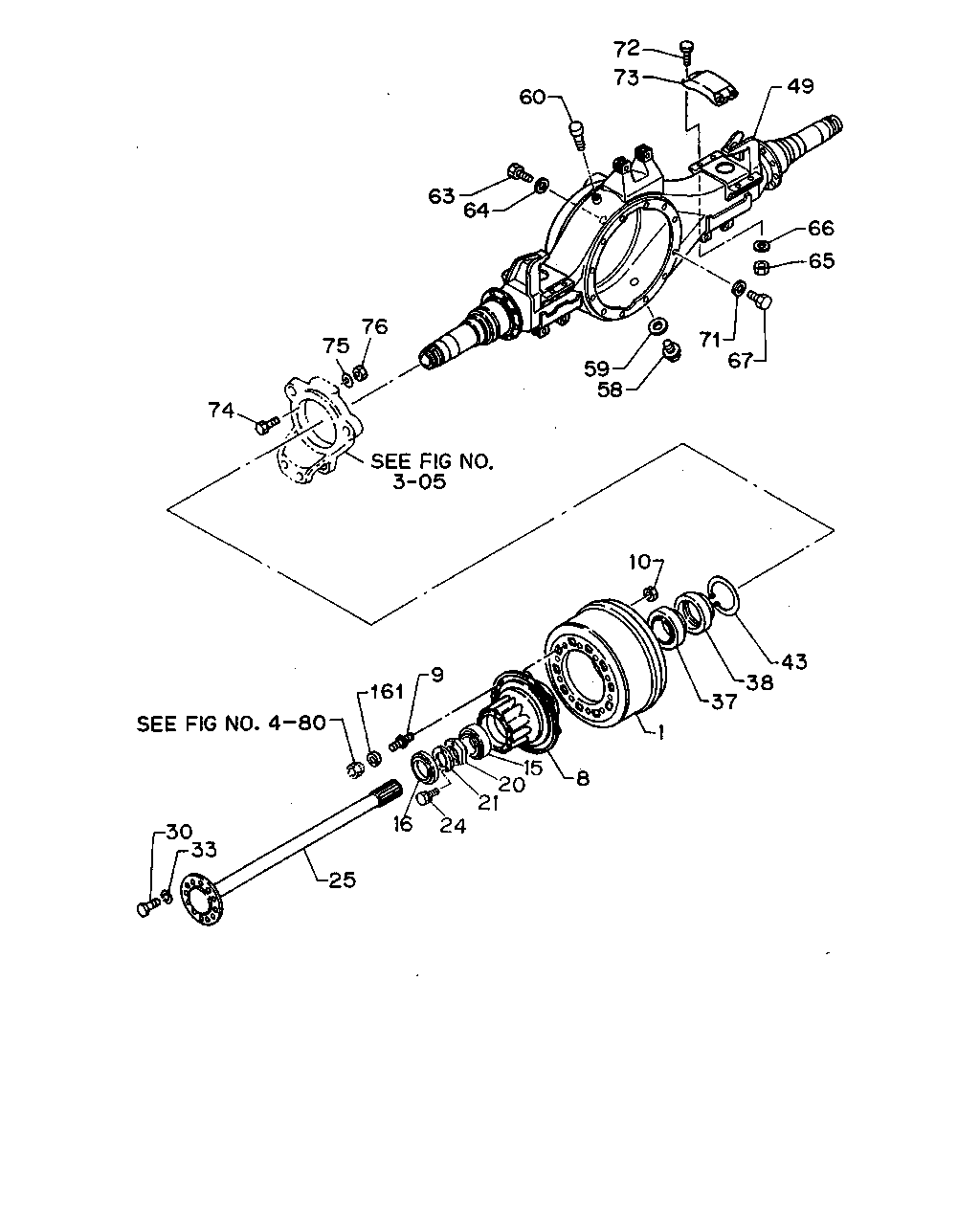

72 49 73 117 71 67 66 65 59 58 117 64 63 60 49 76 75 74 9 10 161 25 16 24 15 20 21 1 8 37 38 43 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-220-3	04	1	9002-9306	●
1	DRUM; BRK,RR EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-3	04	1	9002-9306		●
1	DRUM; BRK,RR EXC. REAR AXLE RT260<C2B>	1-42315-220-4	04	1	9307-	●
1	DRUM; BRK,RR	1-42315-220-4	04	1	9307-		●
1	DRUM; BRK,RR REAR AXLE RT260<C2B>	1-42315-194-4	04	1	9307-	●
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-3	04	1	9002-9306		●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-038-6	04	1	9002-	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-033-4	04	1	9002-9306	●
8	HUB; RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-033-4	04	1	9002-9306		●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B>	1-42311-033-4	04	1	9307-	●
8	HUB; RR AXLE	1-42311-033-4	04	1	9307-		●
8	HUB; RR AXLE REAR AXLE RT260<C2B> H=237.5	1-42311-032-4	04	1	9307-9508	●
8	HUB; RR AXLE REAR AXLE RT260<C2B>	1-42311-100-0	04	1	9509-	●
8	HUB; RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> H=237.5	1-42311-032-4	04	1	9002-9306		●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9002-9306	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X55.8,M22X53.5 RH THREAD	1-42337-035-0	40	1	9307-9311	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9312-	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111		●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-9306	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-9306		●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9307-	●
9	PIN; WHEEL,RR AXLE M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9307-		●
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	16	1	9307-	●
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	16	1	9307-	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	16	1	9002-9306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	16	1	9002-9306		●
10	NUT; WHEEL PIN,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22	1-09400-071-0	40	1	9002-9111	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	40	1	9112-9306	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9112-9306		●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22	1-09400-037-0	40	1	9002-9111	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-037-0	40	1	9002-9111		●
10	NUT; WHEEL PIN,RR AXLE REAR AXLE RT260<C2B> M22	9-09110-522-0	32	1	9307-	●
10	NUT; WHEEL PIN,RR AXLE EXC. REAR AXLE RT260<C2B> M22	1-09400-071-0	40	1	9307-	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	40	1	9307-		●
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	32	1	9002-9306		●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	04	1	9002-	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	04	1	9002-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	04	1	9002-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	04	1	9002-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	9002-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	9002-	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	9-01910-616-0	12	1	9002-9005	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	12	1	9006-	●	●
25	SHAFT; AXLE,RR L=976	1-42171-339-0	02	1	9002-9307	●	●
25	SHAFT; AXLE,RR L=976	1-42171-356-0	02	1	9308-	●	●
25	SHAFT; AXLE,RR L=1106	1-42171-340-0	02	1	9002-9307	●	●
25	SHAFT; AXLE,RR L=1106	1-42171-357-0	02	1	9308-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	40	1	9002-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-614-0	40	1	9002-9408	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	40	1	9409-	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	04	1	9002-	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	04	1	9002-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	9002-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	9002-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	9002-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. REAR AXLE RT260<C2B> FORWARD REAR	1-42150-695-2	01	1	9307-	●
49	CASE; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,POWER CHAMBER BRAKE UPPERWARD<C1T>,REAR AXLE RT260<C2B> REARWARD REAR	1-42150-806-1	01	1	9307-	●
49	CASE; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> FORWARD REAR	1-42150-696-1	01	1	9307-	●
49	CASE; RR AXLE FORWARD REAR	1-42150-696-1	01	1	9307-		●
49	CASE; RR AXLE NYLON TUBE AIR PIPING<Z29> FORWARD REAR	1-42150-360-5	01	1	9002-9306	●
49	CASE; RR AXLE EXC. NYLON TUBE AIR PIPING<Z29> FORWARD REAR	1-42150-456-3	01	1	9002-9306	●
49	CASE; RR AXLE FORWARD REAR	1-42150-456-3	01	1	9002-9306		●
49	CASE; RR AXLE POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. REAR AXLE RT260<C2B> REARWARD REAR	1-42150-698-1	01	1	9307-	●
49	CASE; RR AXLE REARWARD REAR	1-42150-698-1	01	1	9307-		●
49	CASE; RR AXLE REAR AXLE RT260<C2B> FORWARD REAR	1-42150-660-1	01	1	9307-	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> REARWARD REAR	1-42150-662-1	01	1	9307-9407	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> REARWARD REAR	1-42160-071-0	01	1	9408-	●
49	CASE; RR AXLE TAIL PIPE SINGLE HORIZONTAL<NC2> REARWARD REAR	1-42150-372-3	01	1	9002-9306	●
49	CASE; RR AXLE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> REARWARD REAR	1-42150-379-4	01	1	9002-9306	●
49	CASE; RR AXLE REARWARD REAR	1-42150-379-4	01	1	9002-9306		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	02	1	9002-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	02	1	9002-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	9002-9306	●
60	BREATHER; RR AXLE CASE EXC. DESERT ZONE PACKAGE(W01)	1-09893-003-0	02	1	9002-9306		●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	9307-	●
60	BREATHER; RR AXLE CASE EXC. DESERT ZONE PACKAGE(W01)	1-09893-011-1	02	1	9307-		●
60	BREATHER; RR AXLE CASE DESERT ZONE PACKAGE(W01)	9-36122-015-1	02	1	9002-		●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	02	1	9002-9307	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	02	1	9308-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	02	1	9002-9307	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	02	1	9308-	●	●
65	NUT M14	9-99110-514-0	16	1	9002-	●	●
66	WASHER; LK ID=14.2	9-09150-514-0	16	1	9002-9401	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	16	1	9402-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91056-670-0	08	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	08	1	9004-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	06	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	06	1	9004-9306	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9307-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	08	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9004-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-516-0	24	1	9002-9003	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	24	1	9004-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	9002-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	9002-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	28	1	9002-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-614-0	32	1	9002-9401	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	32	1	9402-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	32	1	9002-	●	●
117	STOPPER; LEAF SPRING REARWARD REAR	1-42126-074-6	02	1	9002-9306	●	●
161	RING; SPRING,REAR WHEEL EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9002-	●	●

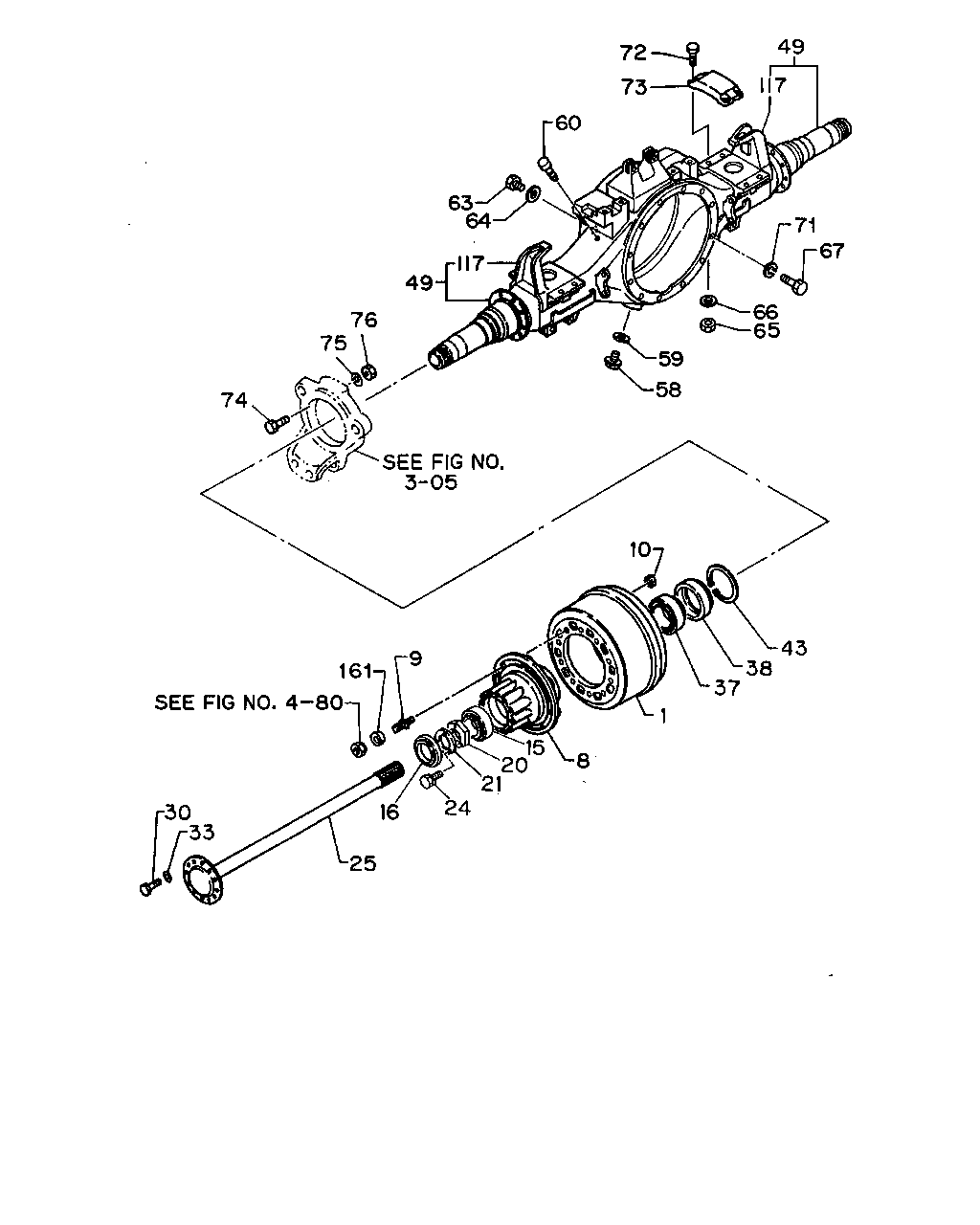

72 49 73 63 60 64 66 65 67 71 59 58 76 75 74 10 37 38 43 1 8 15 20 21 24 16 9 161 25 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRUM; BRK,RR	1-42315-220-3	04	1	9002-9306	●
1	DRUM; BRK,RR EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-220-3	04	1	9002-9306		●
1	DRUM; BRK,RR EXC. REAR AXLE RT260<C2B>	1-42315-220-4	04	1	9307-	●
1	DRUM; BRK,RR	1-42315-220-4	04	1	9307-		●
1	DRUM; BRK,RR REAR AXLE RT260<C2B>	1-42315-194-4	04	1	9307-	●
1	DRUM; BRK,RR DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42315-194-3	04	1	9002-9306		●
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-038-6	04	1	9002-	●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-42311-033-4	04	1	9002-9306	●
8	HUB; RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42311-033-4	04	1	9002-9306		●
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B>	1-42311-033-4	04	1	9307-	●
8	HUB; RR AXLE	1-42311-033-4	04	1	9307-		●
8	HUB; RR AXLE REAR AXLE RT260<C2B> H=237.5	1-42311-032-4	04	1	9307-9508	●
8	HUB; RR AXLE REAR AXLE RT260<C2B>	1-42311-100-0	04	1	9509-	●
8	HUB; RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> H=237.5	1-42311-032-4	04	1	9002-9306		●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9002-9306	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X55.8,M22X53.5 RH THREAD	1-42337-035-0	40	1	9307-9311	●
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X59.8,M22X53.5 RH THREAD	1-42337-012-0	40	1	9312-	●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X49.5 RH THREAD	1-42331-041-0	40	1	9002-9111		●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-9306	●
9	PIN; WHEEL,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9112-9306		●
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9307-	●
9	PIN; WHEEL,RR AXLE M22X51.5,M22X53.5 RH THREAD	1-42331-136-0	40	1	9307-		●
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	16	1	9307-	●
9	PIN; WHEEL,RR AXLE REAR AXLE RT260<C2B> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	16	1	9307-	●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-0	16	1	9002-9306		●
9	PIN; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M20X34.5,M22X51.5 RH THREAD	1-42331-110-0	16	1	9002-9306		●
10	NUT; WHEEL PIN,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22	1-09400-071-0	40	1	9002-9111	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	40	1	9112-9306	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-071-0	40	1	9112-9306		●
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22	1-09400-037-0	40	1	9002-9111	●
10	NUT; WHEEL PIN,RR AXLE EXC. DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	1-09400-037-0	40	1	9002-9111		●
10	NUT; WHEEL PIN,RR AXLE REAR AXLE RT260<C2B> M22	9-09110-522-0	32	1	9307-	●
10	NUT; WHEEL PIN,RR AXLE EXC. REAR AXLE RT260<C2B> M22	1-09400-071-0	40	1	9307-	●
10	NUT; WHEEL PIN,RR AXLE M22	1-09400-071-0	40	1	9307-		●
10	NUT; WHEEL PIN,RR AXLE DISC WHEEL 8STUD 7.50VX20 165-13<Q62> M22	9-09110-522-0	32	1	9002-9306		●
15	BEARING; HUB OUTER,RR AXLE NSK	1-09812-079-0	04	1	9002-	●	●
15	BEARING; HUB OUTER,RR AXLE NACHI	1-09812-166-0	04	1	9002-	●	●
16	SEAL; OIL,RR HUB,OUTER NOK	1-09625-226-1	04	1	9002-	●	●
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	04	1	9002-	●	●
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	9002-	●	●
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	9002-	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	9-01910-616-0	12	1	9002-9005	●	●
24	BOLT; LK WASHER M6X16 W/LK WASHER	0-50040-616-0	12	1	9006-	●	●
25	SHAFT; AXLE,RR L=976	1-42171-339-0	02	1	9002-9307	●	●
25	SHAFT; AXLE,RR L=976	1-42171-356-0	02	1	9308-	●	●
25	SHAFT; AXLE,RR L=1106	1-42171-340-0	02	1	9002-9307	●	●
25	SHAFT; AXLE,RR L=1106	1-42171-357-0	02	1	9308-	●	●
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09020-095-1	40	1	9002-	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-614-0	40	1	9002-9408	●	●
33	WASHER; AXLE SHAFT ID=14.2	9-09150-814-0	40	1	9409-	●	●
37	BEARING; HUB INNER,RR AXLE NSK	1-09812-077-0	04	1	9002-	●	●
37	BEARING; HUB INNER,RR AXLE NACHI	1-09812-165-0	04	1	9002-	●	●
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	9002-	●	●
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	9002-	●	●
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	9002-	●	●
49	CASE; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> EXC. REAR AXLE RT260<C2B> FORWARD REAR	1-42150-695-2	01	1	9307-	●
49	CASE; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,POWER CHAMBER BRAKE UPPERWARD<C1T>,REAR AXLE RT260<C2B> REARWARD REAR	1-42150-806-1	01	1	9307-	●
49	CASE; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,REAR AXLE RT260<C2B> FORWARD REAR	1-42150-696-1	01	1	9307-	●
49	CASE; RR AXLE FORWARD REAR	1-42150-696-1	01	1	9307-		●
49	CASE; RR AXLE NYLON TUBE AIR PIPING<Z29> FORWARD REAR	1-42150-360-5	01	1	9002-9306	●
49	CASE; RR AXLE EXC. NYLON TUBE AIR PIPING<Z29> FORWARD REAR	1-42150-456-3	01	1	9002-9306	●
49	CASE; RR AXLE FORWARD REAR	1-42150-456-3	01	1	9002-9306		●
49	CASE; RR AXLE POWER CHAMBER BRAKE UPPERWARD<C1T> EXC. REAR AXLE RT260<C2B> REARWARD REAR	1-42150-698-1	01	1	9307-	●
49	CASE; RR AXLE REARWARD REAR	1-42150-698-1	01	1	9307-		●
49	CASE; RR AXLE REAR AXLE RT260<C2B> FORWARD REAR	1-42150-660-1	01	1	9307-	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> REARWARD REAR	1-42150-662-1	01	1	9307-9407	●
49	CASE; RR AXLE REAR AXLE RT260<C2B> REARWARD REAR	1-42160-071-0	01	1	9408-	●
49	CASE; RR AXLE TAIL PIPE SINGLE HORIZONTAL<NC2> REARWARD REAR	1-42150-372-3	01	1	9002-9306	●
49	CASE; RR AXLE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> REARWARD REAR	1-42150-379-4	01	1	9002-9306	●
49	CASE; RR AXLE REARWARD REAR	1-42150-379-4	01	1	9002-9306		●
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	02	1	9002-	●	●
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	02	1	9002-	●	●
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	9002-9306	●
60	BREATHER; RR AXLE CASE EXC. DESERT ZONE PACKAGE(W01)	1-09893-003-0	02	1	9002-9306		●
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	9307-	●
60	BREATHER; RR AXLE CASE EXC. DESERT ZONE PACKAGE(W01)	1-09893-011-1	02	1	9307-		●
60	BREATHER; RR AXLE CASE DESERT ZONE PACKAGE(W01)	9-36122-015-1	02	1	9002-		●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-021-0	02	1	9002-9307	●	●
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	02	1	9308-	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=24.5 OD=32.5	9-09920-392-0	02	1	9002-9307	●	●
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	02	1	9308-	●	●
65	NUT M14	9-99110-514-0	16	1	9002-	●	●
66	WASHER; LK ID=14.2	9-09150-514-0	16	1	9002-9401	●	●
66	WASHER; LK ID=14.2	9-09150-814-0	16	1	9402-	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91056-670-0	08	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X70	9-91066-670-0	08	1	9004-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	06	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	06	1	9004-9306	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	07	1	9307-	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92051-640-0	08	1	9002-9003	●	●
67	BOLT; FINAL DRIVE SETTING M16X40	9-92061-640-0	08	1	9004-	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-516-0	24	1	9002-9003	●	●
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	9-09150-816-0	24	1	9004-	●	●
72	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	9002-	●	●
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	9002-	●	●
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	28	1	9002-	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-614-0	32	1	9002-9401	●	●
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	9-09150-814-0	32	1	9402-	●	●
76	NUT; RR BRK ASM SETTING M14	9-99110-514-0	32	1	9002-	●	●
161	RING; SPRING,REAR WHEEL EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,DISC WHEEL 8STUD 7.50VX20 165-13<Q62>	1-42339-025-1	40	1	9002-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
