◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#175899) — 29 parça

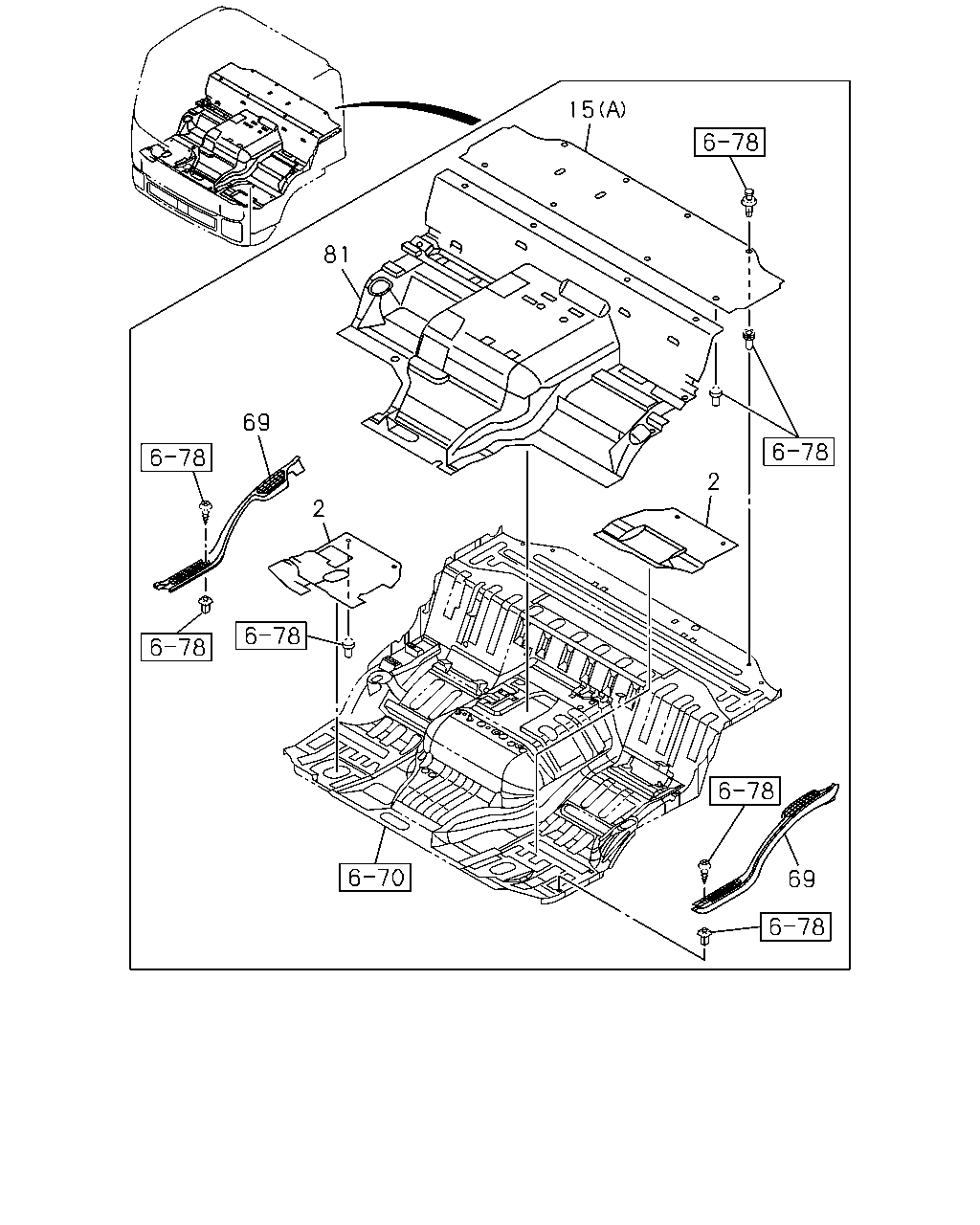

çizim 513365
81 15 2 2 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 1601- ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 1601- ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1601- ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1601- ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> (A) DARK GRAY 		8-97418-950-0 01 1 1601- ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> (A) GRAY 		8-97407-403-1 01 1 1601- ●
15 MAT; FLOOR REAR
(B) GRAY 		8-97411-891-1 01 1 1601- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97466-383-0 01 1 1601- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97466-384-0 01 1 1601- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-413-1 01 1 1601- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 1601- ● ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-791-3 01 1 1601- ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> GRAY 		8-97407-409-2 01 1 1601- ●

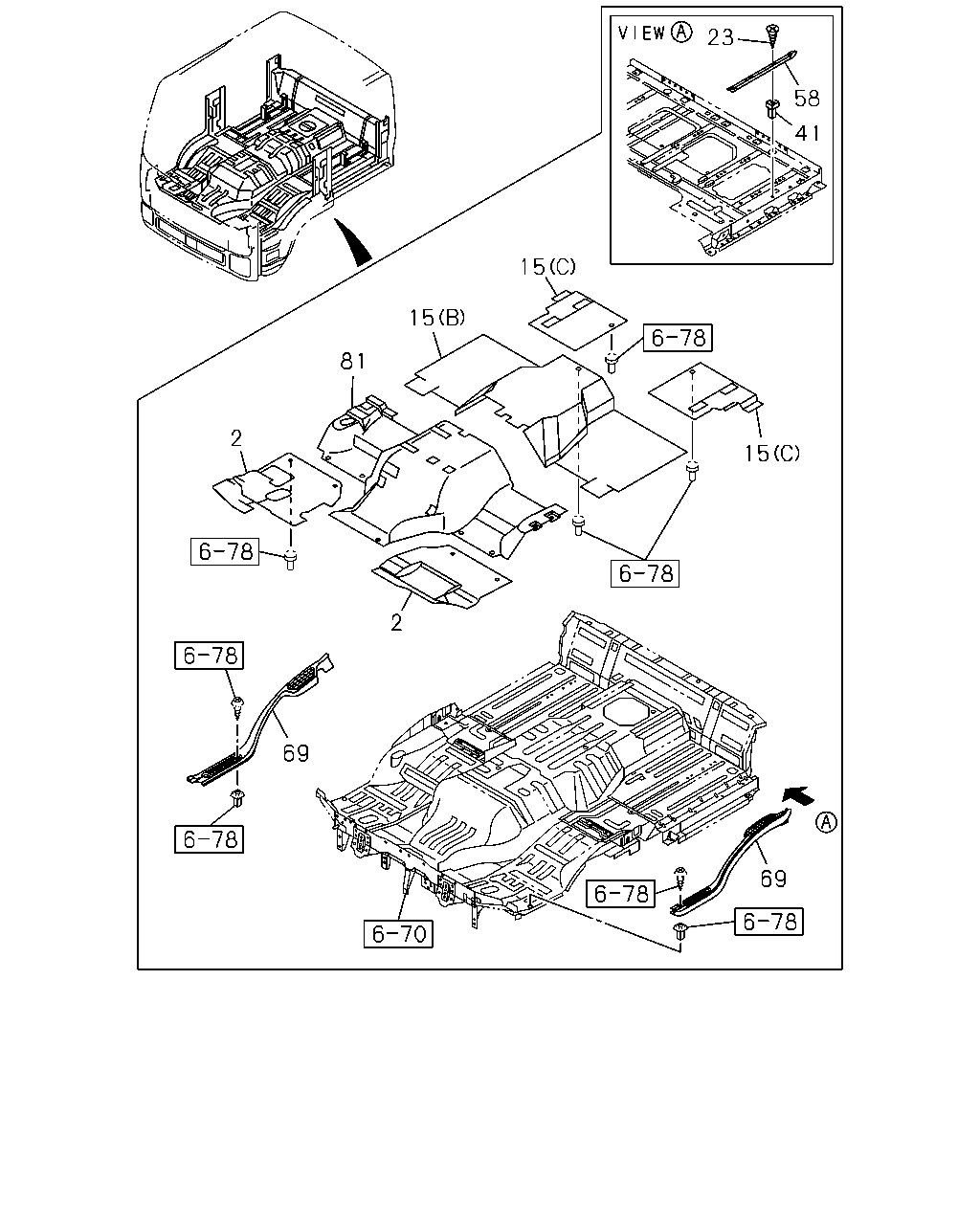

çizim 514462
2 81 15 15 69 2 15 69 23 58 41
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 1601- ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 1601- ●
2 MAT; FLOOR
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1601- ●
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1601- ●
15 MAT; FLOOR REAR
FLOOR COVER VAR.2<EFK> (A) DARK GRAY 		8-97418-950-0 01 1 1601- ●
15 MAT; FLOOR REAR
FLOOR COVER<6WX> (A) GRAY 		8-97407-403-1 01 1 1601- ●
15 MAT; FLOOR REAR
(B) GRAY 		8-97411-891-1 01 1 1601- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97466-383-0 01 1 1601- ●
15 MAT; FLOOR REAR
(C) GRAY 		8-97466-384-0 01 1 1601- ●
23 SCREW; SILL PLATE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1601- ●
41 GROMMET; SCREW,SILL PLATE
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 1601- ●
58 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 1601- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-413-1 01 1 1601- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97407-412-1 01 1 1601- ● ●
81 MAT; FLOOR,CENTER
FLOOR COVER VAR.2<EFK>,FLOOR COVER<6WX> GRAY 		8-97411-791-3 01 1 1601- ●
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> GRAY 		8-97407-409-2 01 1 1601- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
