6-70 — FLOOR PANEL (#175898) — 182 parça

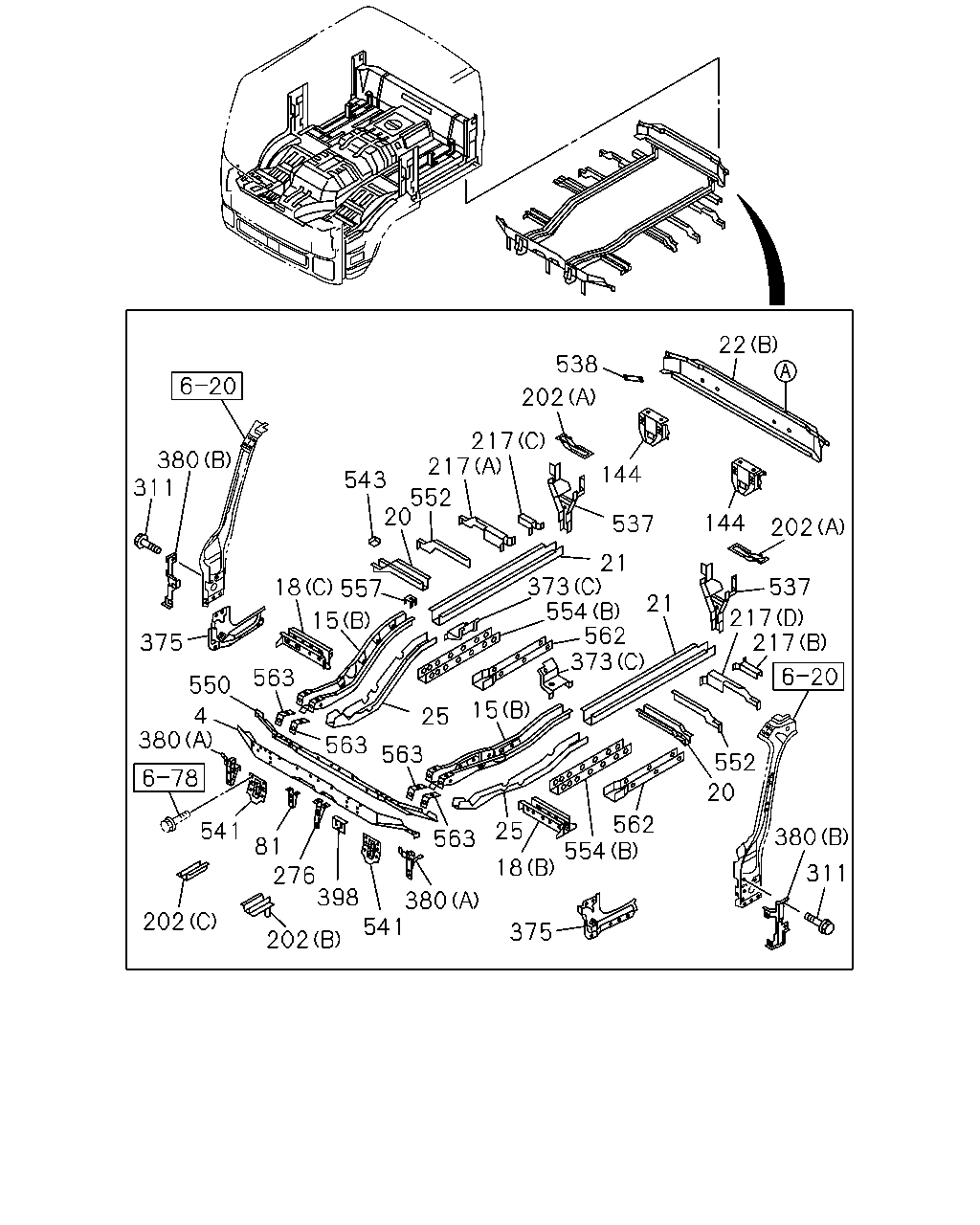

çizim 513228
538 202 217 217 543 380 311 375 550 18 380 563 541 202 81 276 202 398 541 563 380 563 563 4 25 15 557 20 552 144 57 21 373 554 562 373 15 25 18 375 554 562 552 20 380 311 217 217 21 144 202 537 22
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1601- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1601- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1601- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1601- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1601- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1601- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1601- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 1601- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-164-1 01 1 1601- ●
20 FRAME; FLOOR SIDE,REAR 8-98057-167-1 01 1 1601- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 1601- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 1601- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 1601- ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 1601- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 1601- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 1601- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1601- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1601- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1601- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1601- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-426-0 02 1 1601- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 1601- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 1601- ●
217 PANEL; SEAT STAND
(C) 		8-97410-945-1 01 1 1601- ●
217 PANEL; SEAT STAND
(B) 		8-97410-956-1 01 1 1601- ●
217 PANEL; SEAT STAND
(A) 		8-98057-178-1 01 1 1601- ●
217 PANEL; SEAT STAND
(D) 		8-98057-196-1 01 1 1601- ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1601- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1601- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1601- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1601- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1601- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1601- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1601- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1601- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1601- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1601- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1601- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1601- ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1601- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1601- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1601- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1601- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1601- ● ●
543 GUSSET; RR PILLAR,LWR 8-98024-396-0 01 1 1601- ●
543 GUSSET; RR PILLAR,LWR 8-98035-734-0 01 1 1601- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1601- ● ●
552 PANEL; STEP RR 8-98057-170-0 01 1 1601- ●
552 PANEL; STEP RR 8-98057-171-0 01 1 1601- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1601- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1601- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1601- ●
557 PATCH; SEAT 8-98074-333-0 01 1 1601- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 1601- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1601- ● ●

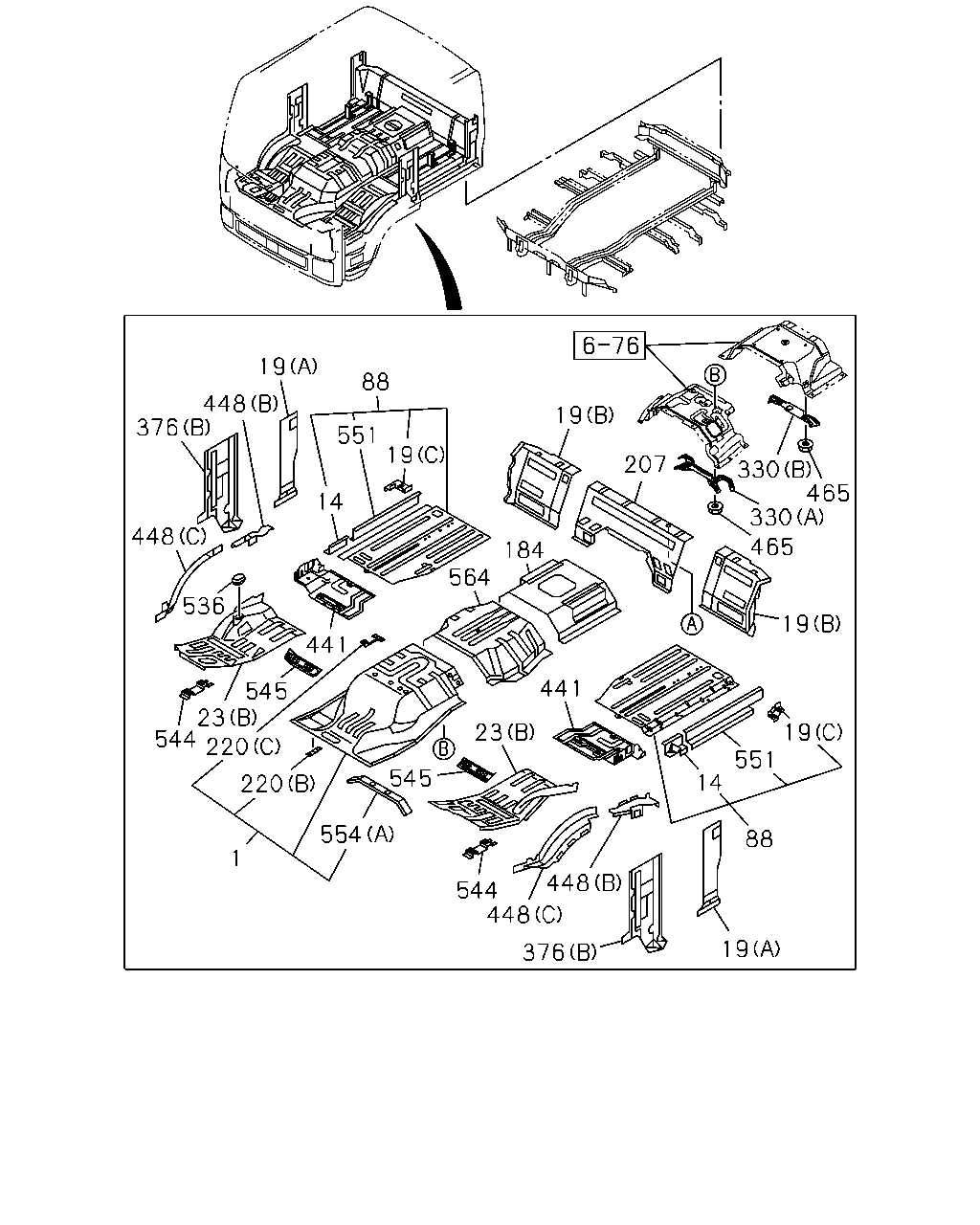

çizim 513281
19 88 448 376 448 536 551 19 14 564 441 545 23 544 220 220 554 544 448 376 19 19 207 330 330 465 19 19 551 88 448 441 23 14 545 1 184 465
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 8-97410-865-7 01 1 1601- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 1601- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 1601- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 1601- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 1601- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 1601- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 1601- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-841-1 01 1 1601- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98084-842-1 01 1 1601- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 1601- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 1601- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 1601- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 1601- ●
88 BOARD ASM; FLOOR 8-97615-912-2 01 1 1601- ●
88 BOARD ASM; FLOOR 8-97615-913-3 01 1 1601- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 1601- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 1601- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1601- ●
220 PATCH
(B) 		8-97589-603-3 01 1 1601- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1601- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1601- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1601- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1601- ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1601- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 1601- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 1601- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98058-016-2 01 1 1601- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-98074-232-1 01 1 1601- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1601- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1601- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1601- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1601- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1601- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1601- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1601- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1601- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1601- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1601- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1601- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1601- ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 1601- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 1601- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1601- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1601- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1601- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 1601- ●

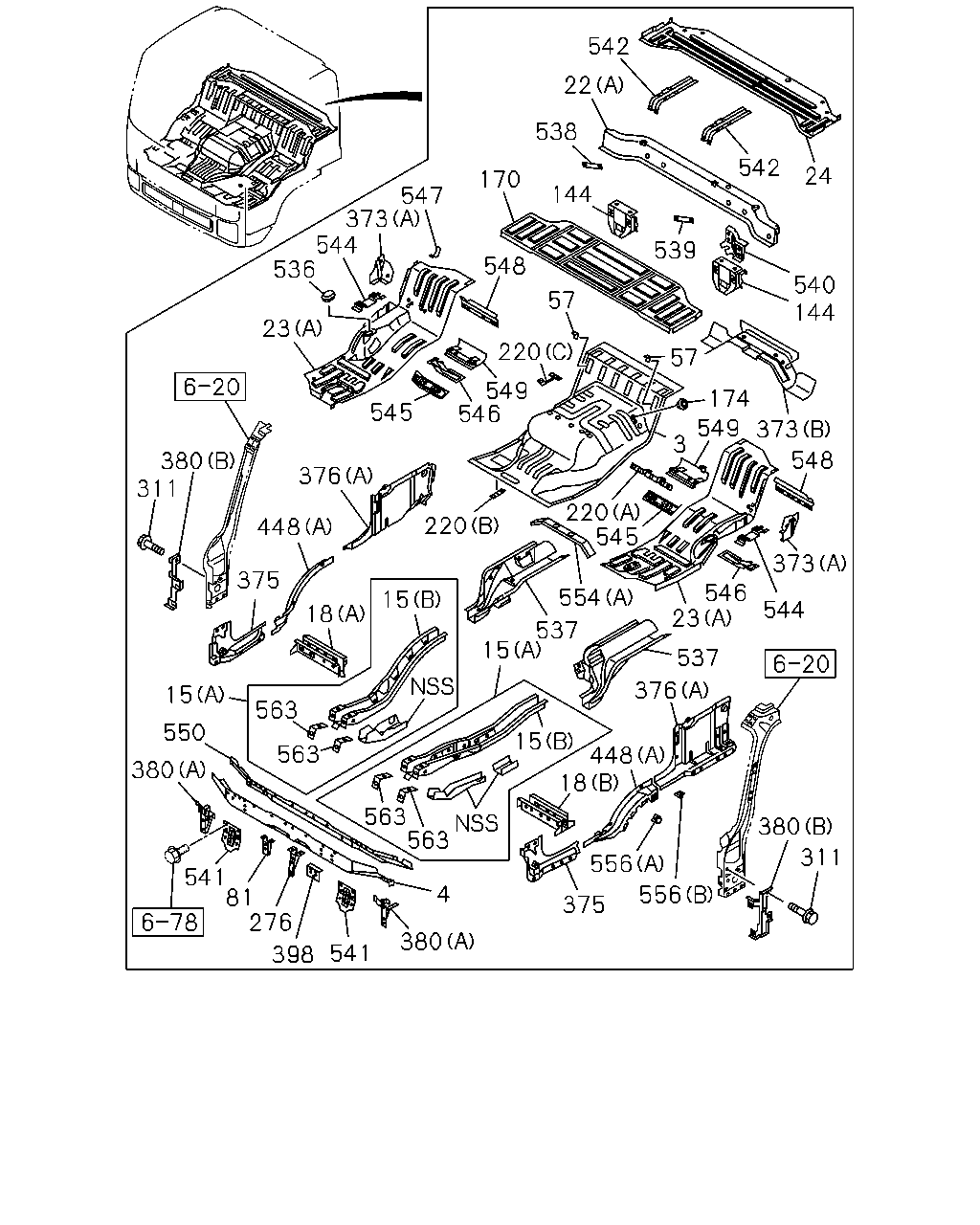

çizim 513828
542 542 24 22 538 144 539 540 170 547 548 57 373 220 174 545 549 549 373 373 546 544 23 537 376 546 220 220 376 536 23 380 311 448 18 375 15 57 3 380 554 537 15 15 550 380 563 563 563 563 4 380 541 398 276 541 375 556 556 448 15 144 311 544 18 548 81 545
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG 8-98081-357-4 01 1 1601- ●
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 1601- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1601- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1601- ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1601- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1601- ● ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-397-5 01 1 1601- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-420-4 01 1 1601- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-539-2 01 1 1601- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-430-5 01 1 1601- ●
22 FRAME; FLOOR REAR
(B) 		8-97410-959-1 01 1 1601- ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-690-1 01 1 1601- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-882-4 01 1 1601- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-751-0 01 1 1601- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-371-7 01 1 1601- ●
24 PANEL; BED PAN 8-97584-377-6 01 1 1601- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1601- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1601- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1601- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1601- ● ●
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 1601- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1601- ●
220 PATCH
(A) 		8-97588-840-4 01 1 1601- ●
220 PATCH
(B) 		8-97589-603-3 01 1 1601- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 1601- ● ●
276 BRACKET; RAD GRILLE 8-98253-712-0 01 1 1601- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1601- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1601- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1601- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1601- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 1601- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 1601- ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 1601- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 1601- ● ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 1601- ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1601- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 1601- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 1601- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1601- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1601- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1601- ● ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 1601- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 1601- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 1601- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 1601- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 1601- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 1601- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1601- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1601- ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1601- ●
537 SUPPORT ASM; MTG RR 8-97410-940-1 01 1 1601- ●
537 SUPPORT ASM; MTG RR 8-97410-951-1 01 1 1601- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1601- ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97613-311-0 01 1 1601- ●
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1601- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1601- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1601- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1601- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1601- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1601- ● ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1601- ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1601- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 1601- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1601- ●
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 1601- ●
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 1601- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1601- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1601- ●
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 1601- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 1601- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 1601- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 1601- ●
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1601- ●
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1601- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1601- ● ●
