◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#175885) — 140 parça

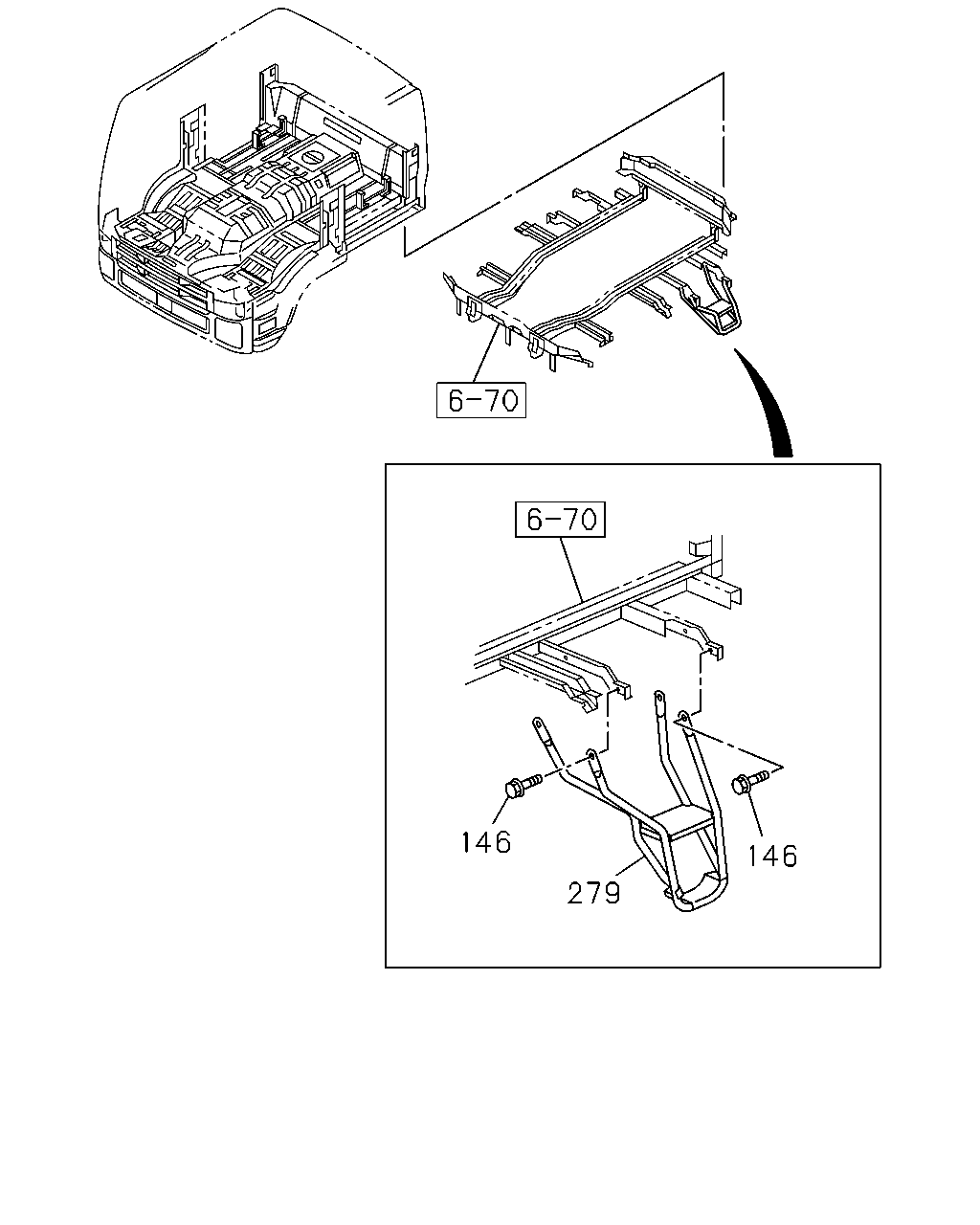

çizim 513733
146 279 146
BalonParca AdiParca NoAdetTipApplied Date A B
146 BOLT; STEP BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 1601- ●
279 BOARD; STEP 1ST 8-98058-394-3 01 1 1601- ●
279 BOARD; STEP 1ST 8-98058-389-3 01 1 1601- ●

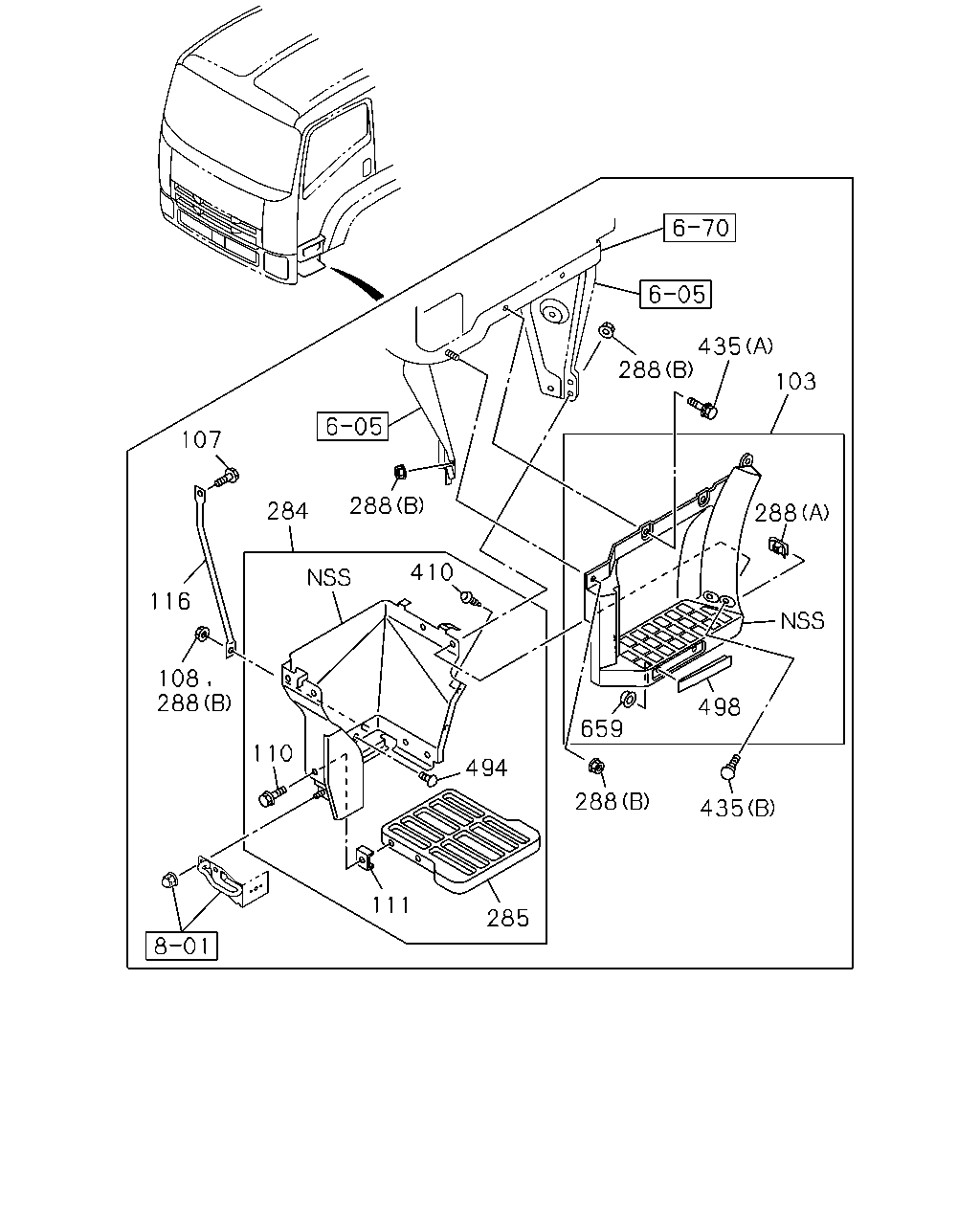

çizim 514573
107 284 288 410 494 285 288 435 498 288 103 288 435 116 108 288 110 111 659
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP 8-98058-319-2 01 1 1601- ● ●
103 PLATE; STEP 8-98058-318-2 01 1 1601- ● ●
107 BOLT; SIDE STEP
M8X20 FLANGE 		0-28650-820-0 02 1 1601- ● ●
108 NUT; SIDE STEP
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
110 BOLT; 1ST STEP PLATE
M8X16 FLANGE 		0-28050-816-0 10 1 1601- ● ●
111 COVER; 1ST STEP 1-71998-153-0 10 1 1601- ● ●
116 STAY; 1ST STEP,FRT 8-98057-382-0 01 1 1601- ● ●
116 STAY; 1ST STEP,FRT 8-98057-381-0 01 1 1601- ● ●
284 STEP ASM; 1ST 8-98057-377-1 01 1 1601- ● ●
284 STEP ASM; 1ST 8-98057-376-1 01 1 1601- ● ●
285 PLATE; STEP,1ST STEP 1-71998-312-2 02 1 1601- ● ●
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1601- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1601- ● ●
410 CLIP; COVER,STEP PLATE
OD=12 L=14.8 		8-94279-921-0 06 1 1601- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1601- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1601- ● ●
494 STUD; BRKT 8-94389-701-0 02 1 1601- ● ●
498 REFLECTOR 8-98092-734-0 01 1 1601- ● ●
498 REFLECTOR 8-98092-733-0 01 1 1601- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1601- ● ●

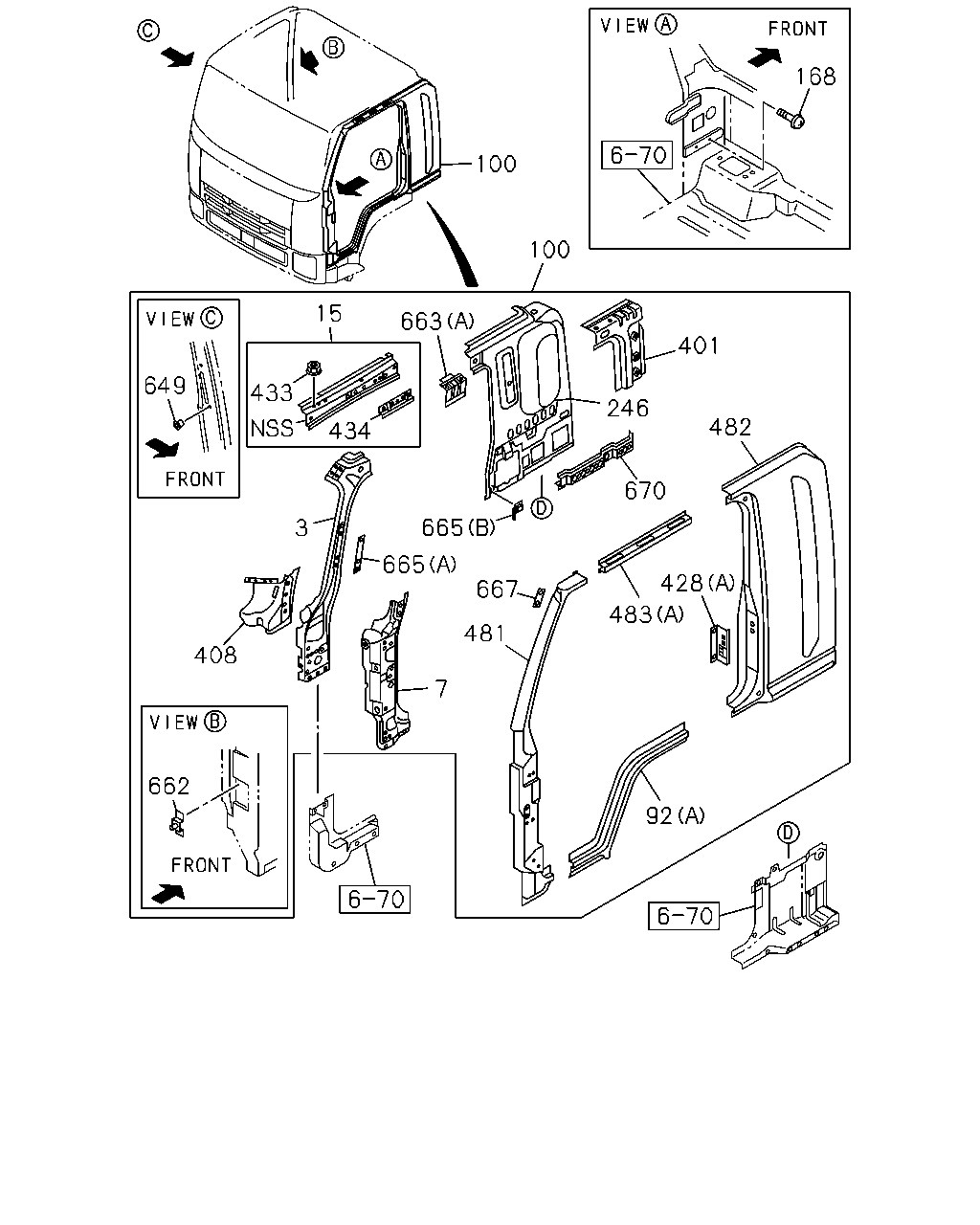

çizim 514675
649 662 408 3 433 434 15 663 100 100 665 665 7 667 481 168 401 246 482 670 483 428 92
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1601- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1601- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1601- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1601- ● ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1601- ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1601- ●
15 PANEL; CANT RAIL SIDE 8-97583-740-1 01 1 1601- ●
15 PANEL; CANT RAIL SIDE 8-97583-739-1 01 1 1601- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1601- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1601- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1601- ●
100 PANEL ASM; BODY SIDE 8-97586-063-5 01 1 1601- ●
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-97586-079-7 01 1 1601- ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-071-6 01 1 1601- ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1601- ● ●
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1601- ●
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1601- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1601- ●
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1601- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1601- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1601- ● ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 1601- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1601- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1601- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1601- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1601- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1601- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1601- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1601- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1601- ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 1601- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 1601- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1601- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1601- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 1601- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1601- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1601- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1601- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1601- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1601- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1601- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1601- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1601- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1601- ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1601- ● ●
670 STIFFENER; PANEL,SIDE 8-98015-044-1 02 1 1601- ●

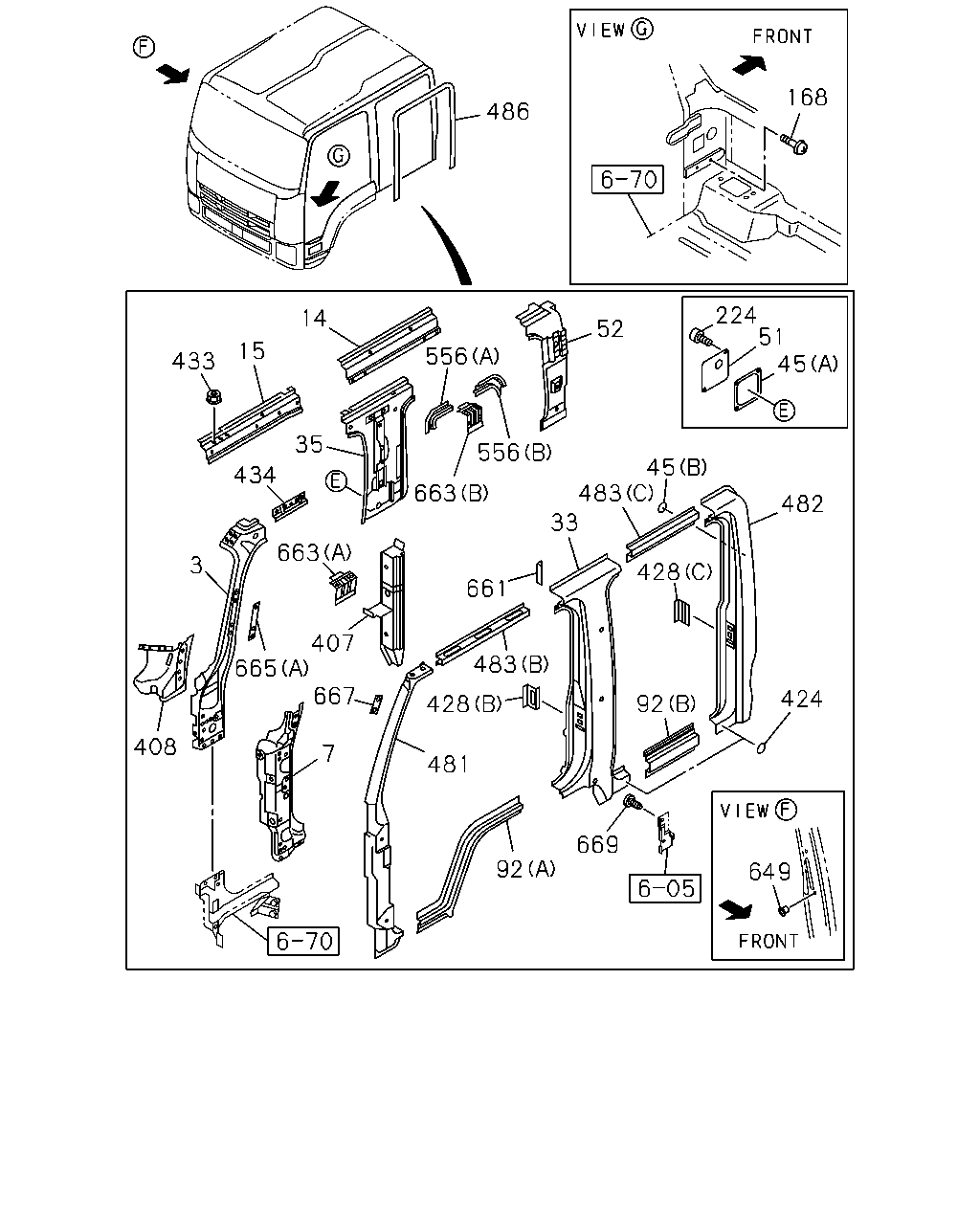

çizim 515216
486 168 224 45 51 52 45 482 483 556 556 663 33 661 483 428 481 92 669 92 424 428 7 433 434 3 665 663 35 15 14 649 408 407 667
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1601- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1601- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1601- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1601- ● ●
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 02 1 1601- ●
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1601- ●
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1601- ●
15 PANEL; CANT RAIL SIDE 8-97583-740-1 01 1 1601- ●
15 PANEL; CANT RAIL SIDE 8-97583-739-1 01 1 1601- ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-091-0 01 1 1601- ●
33 PANEL; CENTER PILLAR,OUTER 8-98069-090-0 01 1 1601- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-456-2 01 1 1601- ●
35 PANEL; CENTER PILLAR,INNER 8-98080-457-2 01 1 1601- ●
45 SEAL; B-C POST
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) (B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1601- ●
45 SEAL; B-C POST
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) (B) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1601- ●
45 SEAL; B-C POST
(A) 		8-97853-731-2 02 1 1601- ●
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1601- ●
52 PANEL; D-POST UPR 8-98306-388-0 01 1 1601- ●
52 PANEL; D-POST UPR 8-98306-387-0 01 1 1601- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1601- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1601- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1601- ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1601- ● ●
224 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1601- ●
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1601- ●
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1601- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1601- ● ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1601- ● ●
424 SEAL; CLOSING
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLORFIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1601- ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-261-4 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(A) 		8-97585-260-4 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-446-1 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-549-0 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(C) 		8-97851-445-1 01 1 1601- ●
428 REINFORCEMENT; DOOR STRIKER
(B) 		8-98014-548-0 01 1 1601- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1601- ● ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1601- ● ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1601- ● ●
481 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1601- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-915-0 01 1 1601- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-714-1 01 1 1601- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1601- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1601- ●
482 PANEL; SIDE RR PILLAR 8-98097-238-0 01 1 1601- ●
482 PANEL; SIDE RR PILLAR 8-98097-237-0 01 1 1601- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1601- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1601- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 1601- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1601- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1601- ●
486 SEAL; BODY SIDE 8-98245-050-0 02 1 1601- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1601- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1601- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1601- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1601- ●
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1601- ● ●
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1601- ●
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1601- ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1601- ● ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1601- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1601- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 02 1 1601- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1601- ● ●
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1601- ● ●
669 STUD; FENDER
M6X12 		8-98013-112-0 02 1 1601- ●
