◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#175881) — 28 parça

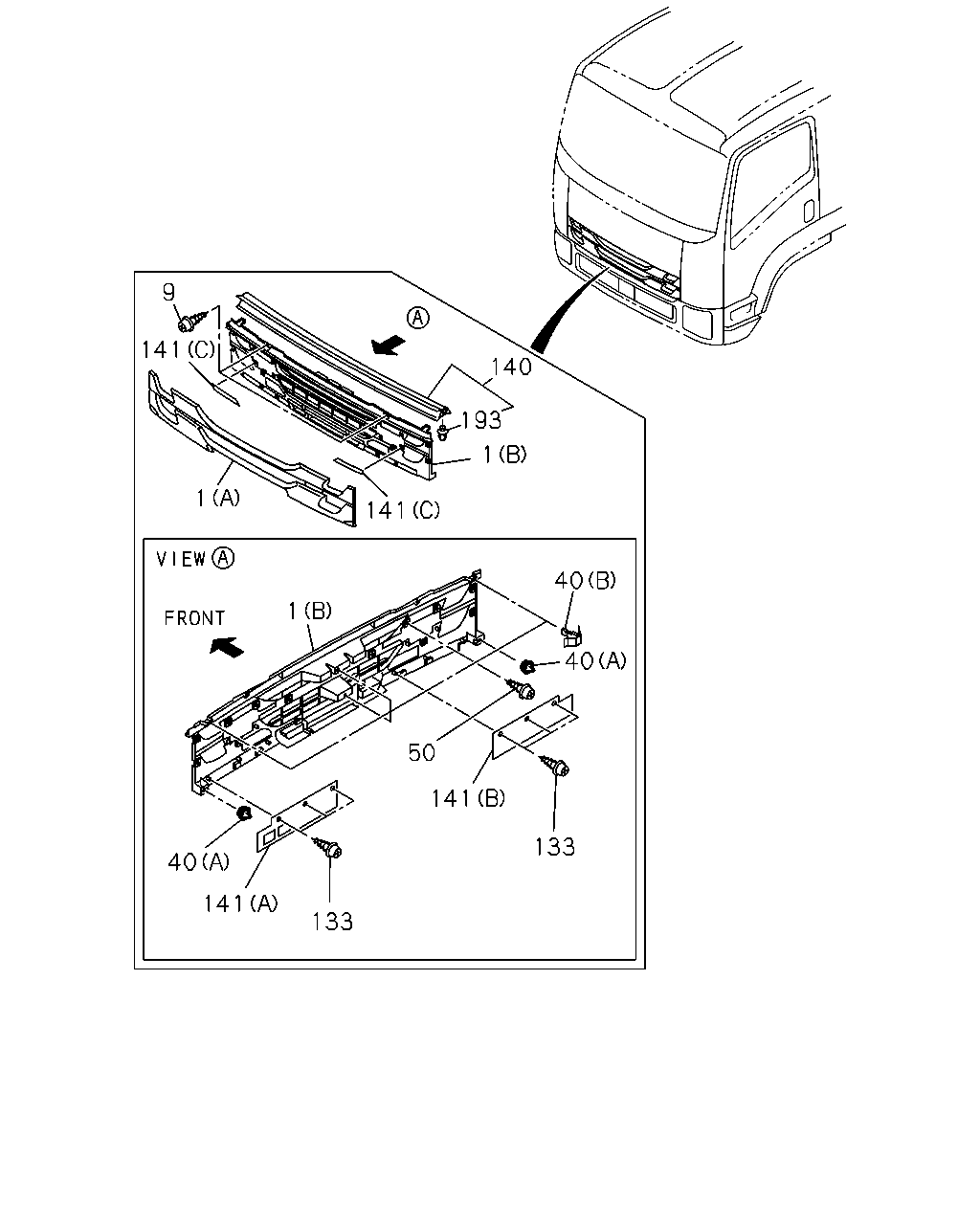

çizim 514211
140 193 141 40 40 141 133 50 1 1 141 9 40 141 133 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
(B) BLACK 		8-98250-843-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) (A) GRAY 		8-97429-649-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) (A) WHITE 		8-97429-659-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) (A) RED 		8-97429-653-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) (A) BLUE 		8-97429-641-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) (A) RED 		8-97429-654-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) (A) RED 		8-97429-651-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) (A) YELLOW 		8-97429-665-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) (A) GREEN 		8-97429-644-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) (A) ORANGE 		8-97429-658-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) (A) BLUE 		8-97429-670-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) (A) WHITE 		8-97429-662-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) (A) BLUE 		8-97429-638-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) (A) BEIGE 		8-97429-669-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) (A) BLUE 		8-97429-642-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) (A) YELLOW 		8-97429-667-1 01 1 1601- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) (A) DARK GREEN 		8-97429-648-1 01 1 1601- ● ●
9 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 1601- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1601- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 1601- ● ●
50 BOLT; GRILLE
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 15 1 1601- ● ●
133 SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 1601- ● ●
140 SEAL; RAD GRILLE 8-98060-339-0 01 1 1601- ● ●
141 COVER; RAD GRILLE
(B) 		8-98041-012-1 01 1 1601- ● ●
141 COVER; RAD GRILLE
(A) 		8-98060-783-0 01 1 1601- ● ●
141 COVER; RAD GRILLE
(C) 		8-98250-849-1 01 1 1601- ● ●
141 COVER; RAD GRILLE
(C) 		8-98250-850-1 01 1 1601- ● ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 1601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
