Isuzu WW
▶
TRUCKS
▶
FSS
▶
11722 - FSS AUST/NZ JNLT09
▶
5 - Frame, Cab Mounting
▶

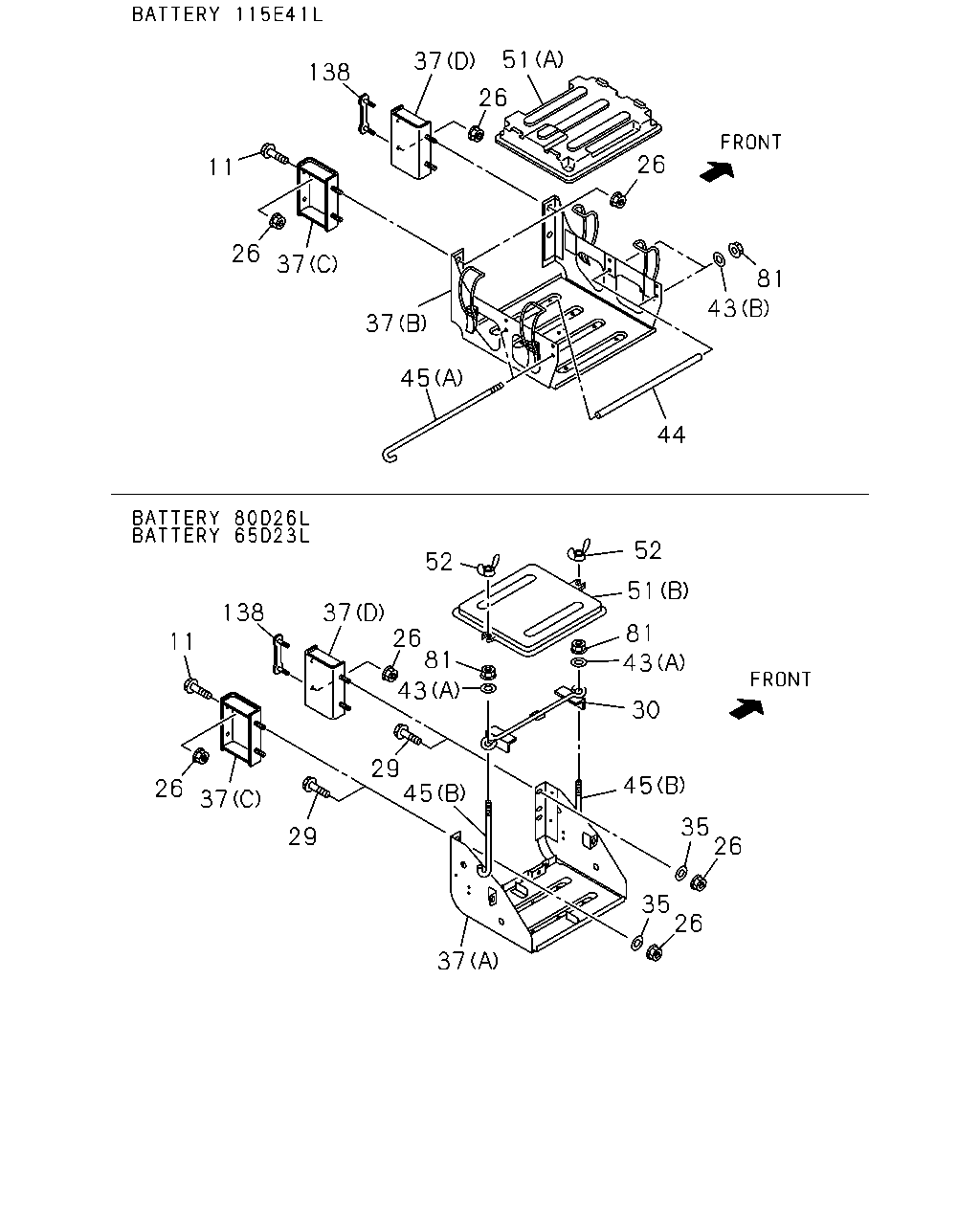

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#175878) — 27 parça
Tümü
A - FCS5MS
B - FCS5WS
26
35
37
26
35
45
30
43
81
51
52
45
29
43
81
26
52
37
138
11
26
37
29
45
44
43
81
37
37
26
11
138
37
51
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
02
1
1601-
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1601-
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1601-
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1601-
●
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1601-
●
30
PLATE; BATTERY
5-53615-004-1
01
1
1601-
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1601-
●
35
WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22
0-91614-610-0
04
1
1601-
●
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
1601-
●
37
BRACKET; BATTERY
(C)
8-98162-291-0
01
1
1601-
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1601-
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1601-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1601-
●
●
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1601-
●
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1601-
●
43
WASHER; PL,CLAMP
(A) ID=8.4 OD=22
0-91614-708-0
02
1
1601-
●
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1601-
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1601-
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1601-
●
45
ROD; TENSION,BATTERY
(B) L=120
9-53616-615-0
02
1
1601-
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1601-
●
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1601-
●
51
COVER; BATTERY
(B)
8-97120-747-0
01
1
1601-
●
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1601-
●
52
NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
1601-
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1601-
●
●
138
STUD
8-98255-710-0
01
1
1601-
●
