◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#175873) — 44 parça

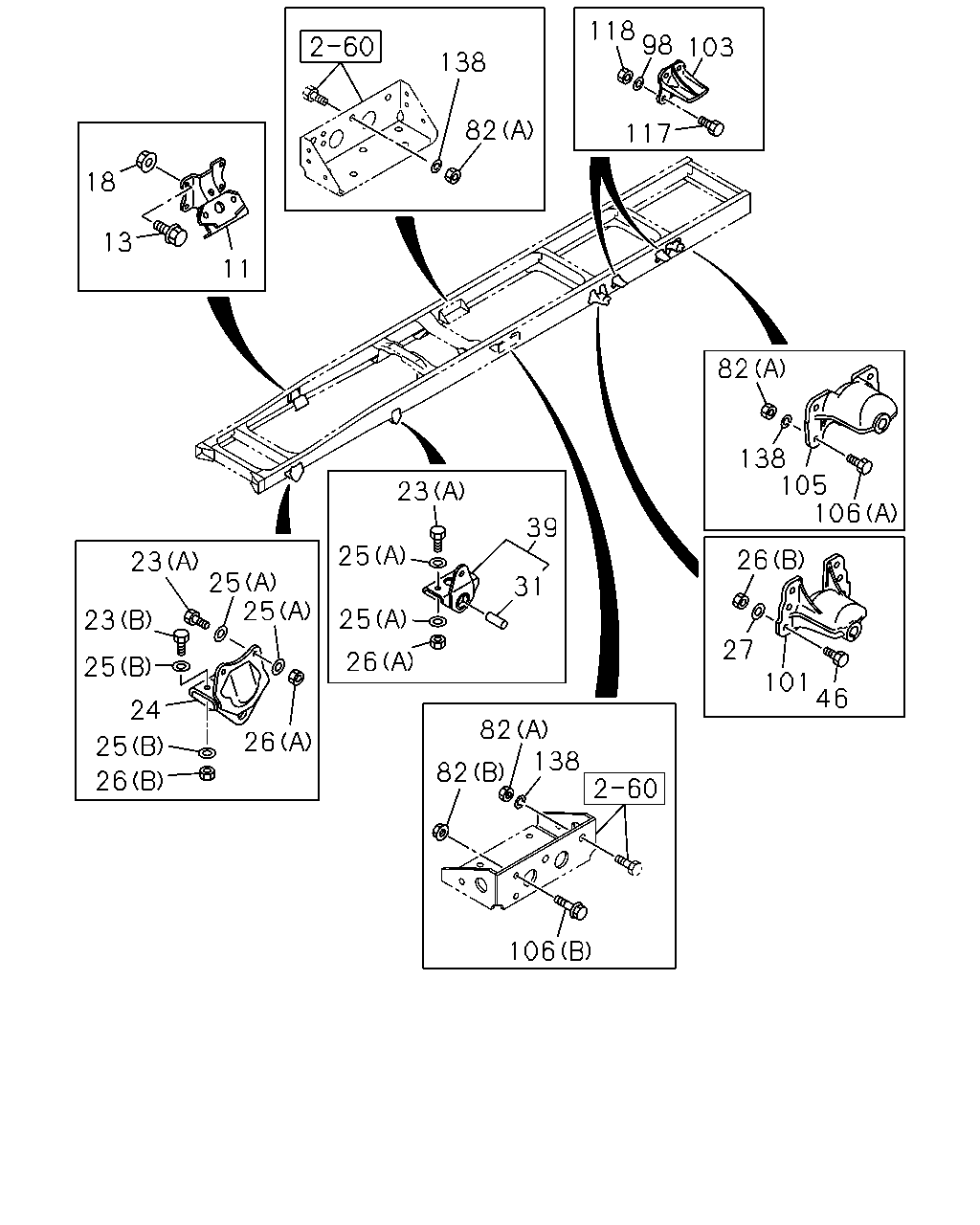

çizim 513659
138 82 18 13 11 117 118 98 103 82 138 105 106 26 27 101 46 31 39 23 25 25 23 23 25 24 25 26 25 26 25 26 82 82 138 106
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG 8-97639-363-0 02 1 1601- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1601- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1601- ● ●
23 BOLT; BRKT,SPR
(A) M12X35 		0-20951-235-0 10 1 1601- ● ●
23 BOLT; BRKT,SPR
(B) M14X40 		0-20951-440-0 04 1 1601- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-258-0 02 1 1601- ● ●
25 WASHER; PL,BRKT
(A) ID=12.2 		8-98010-397-0 20 1 1601- ● ●
25 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 08 1 1601- ● ●
26 NUT; BRKT,SPR
(A) M12 		0-91110-512-0 10 1 1601- ● ●
26 NUT; BRKT,SPR
(B) M14 		0-91110-514-0 16 1 1601- ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-814-0 12 1 1601- ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 1601- ● ●
39 BRACKET; FRT SPR,RR 1-53352-185-1 02 1 1601- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20851-450-0 12 1 1601- ● ●
82 NUT; BRKT
(A) M14 		0-91110-514-0 21 1 1601- ● ●
82 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 01 1 1601- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1601- ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 1601- ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 1601- ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 1601- ● ●
106 BOLT; BRKT
(A) M14X50 		0-20851-450-0 10 1 1601- ● ●
106 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1601- ● ●
117 BOLT; STOPPER
M14X50 		0-20851-450-0 16 1 1601- ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1601- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 21 1 1601- ● ●

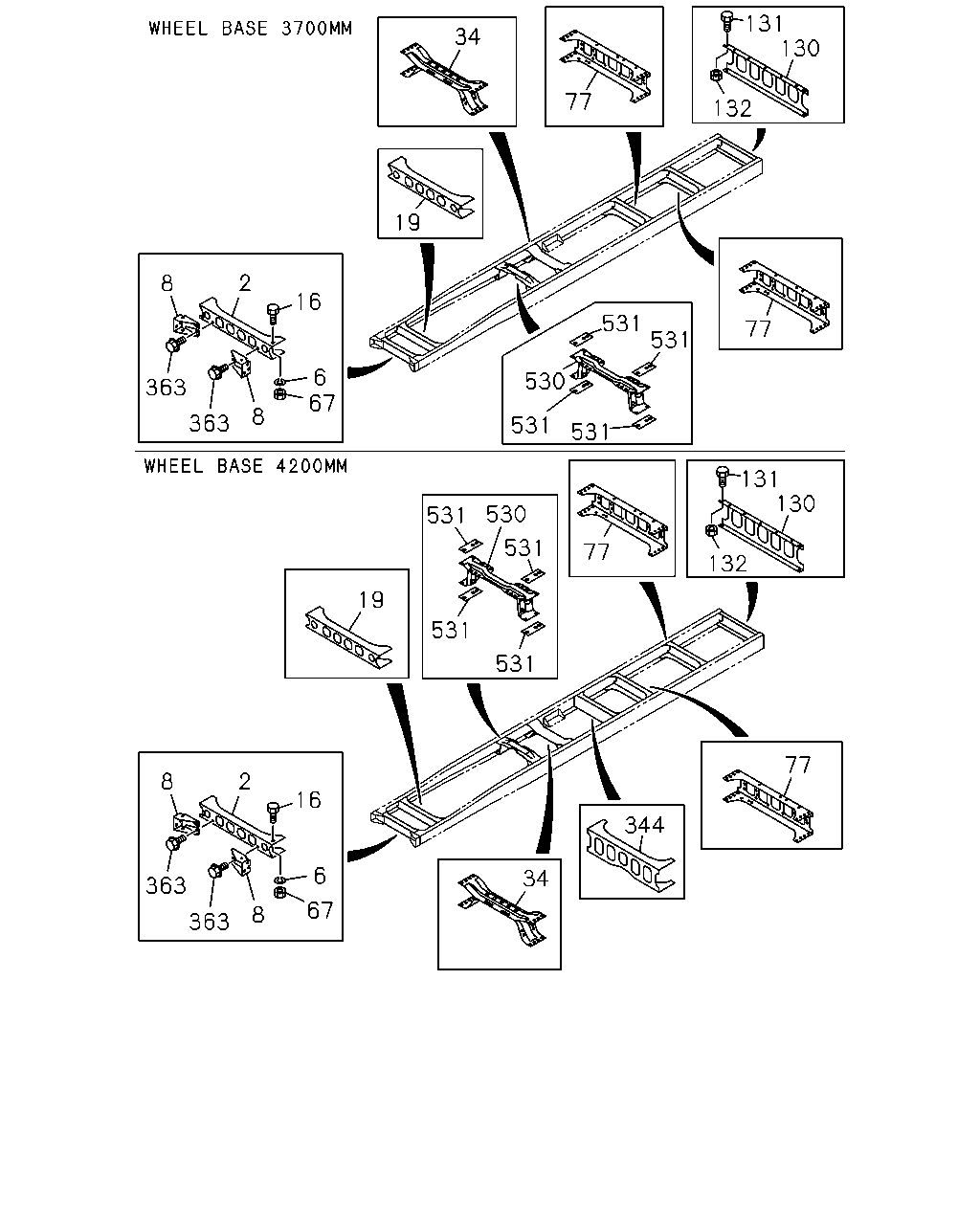

çizim 513769
34 77 131 130 132 77 531 531 530 531 531 77 131 130 132 531 530 531 531 531 19 2 16 6 67 8 363 363 8 344 77 34 16 6 67 8 2 363 363 8 19
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-98290-051-0 01 1 1601- ● ●
6 WASHER; LK,1ST C/MBR
ID=12.2 		0-91510-512-0 02 1 1601- ● ●
8 GUSSET; 1ST C/MBR 8-98063-122-3 01 1 1601- ● ●
8 GUSSET; 1ST C/MBR 8-98063-123-2 01 1 1601- ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M12X30 		0-20851-230-0 02 1 1601- ● ●
19 MEMBER; CROSS,2ND 8-98170-246-2 01 1 1601- ● ●
34 MEMBER; CROSS,3RD 8-97609-500-2 01 1 1601- ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 1601- ● ●
77 MEMBER; CROSS,TRUNNION RR 8-97610-935-1 02 1 1601- ● ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 1601- ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 1601- ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 1601- ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 1601- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 1601- ● ●
530 MEMBER; CROSS,T/M
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97615-671-2 01 1 1601- ● ●
530 MEMBER; CROSS,T/M
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97609-809-3 01 1 1601- ● ●
531 SPACER; C/MBR,T/M
POWER TAKE OFF-FLYWHEEL(6SZ) UPPER 		8-97609-819-2 02 1 1601- ● ●
531 SPACER; C/MBR,T/M
POWER TAKE OFF-FLYWHEEL(6SZ) LOWER 		8-97616-463-2 02 1 1601- ● ●
531 SPACER; C/MBR,T/M
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) UPPER,LOWER 		8-97609-819-2 04 1 1601- ● ●
