◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#175872) — 11 parça

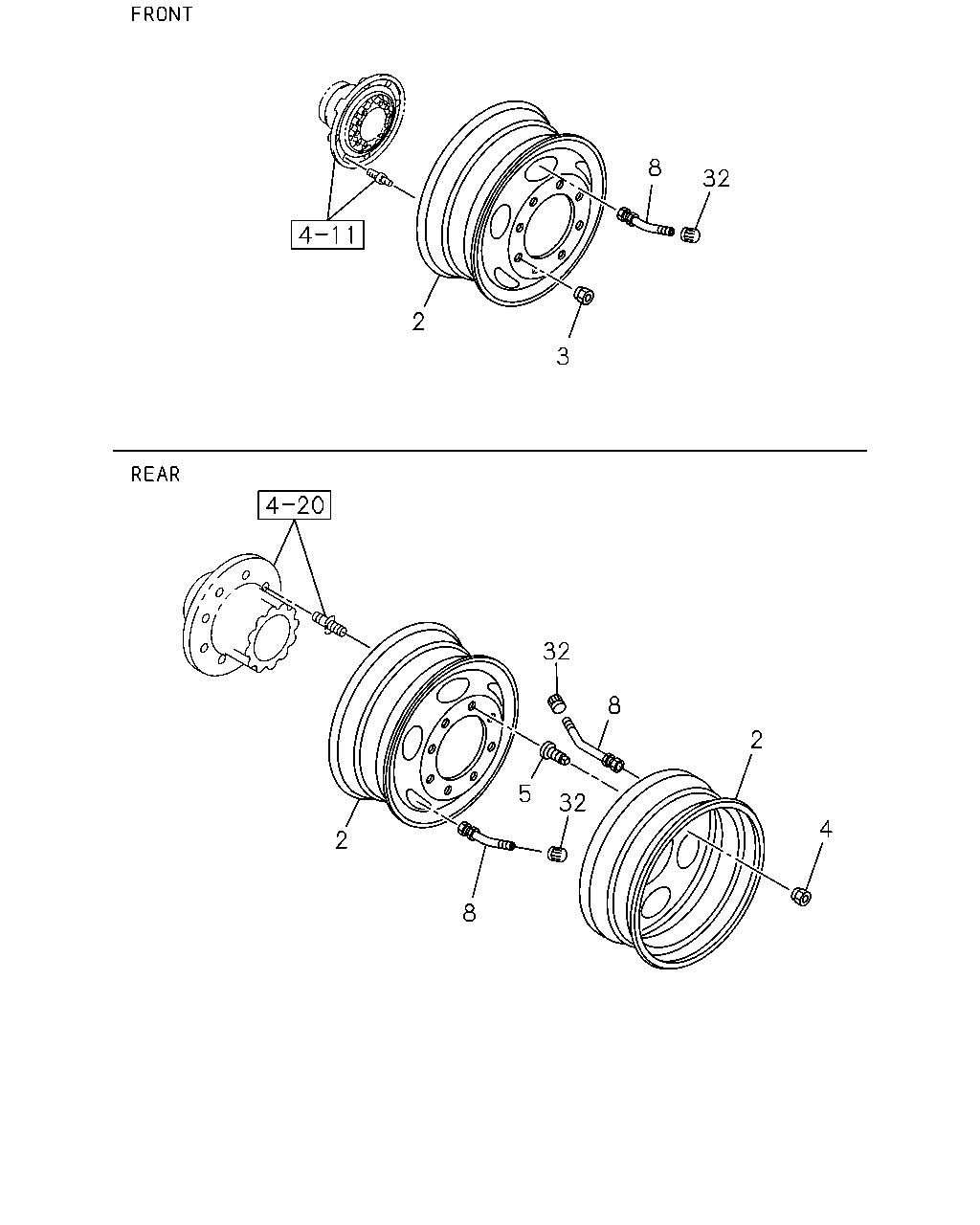

çizim 514309
8 3 32 2 32 8 2 4 8 5 32 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 WHEEL; DISC
FRONT,REAR 		1-42350-408-0 06 1 1601- ● ●
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42350-408-0 01 1 1601- ● ●
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 1601- ● ●
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 1601- ● ●
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 1601- ● ●
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 1601- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 1601- ● ●
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 1601- ● ●
8 VALVE; TIRE
FRONT,REAR 		1-42370-020-3 06 1 1601- ● ●
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-020-3 01 1 1601- ● ●
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 1601- ● ●
