◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#175870) — 18 parça

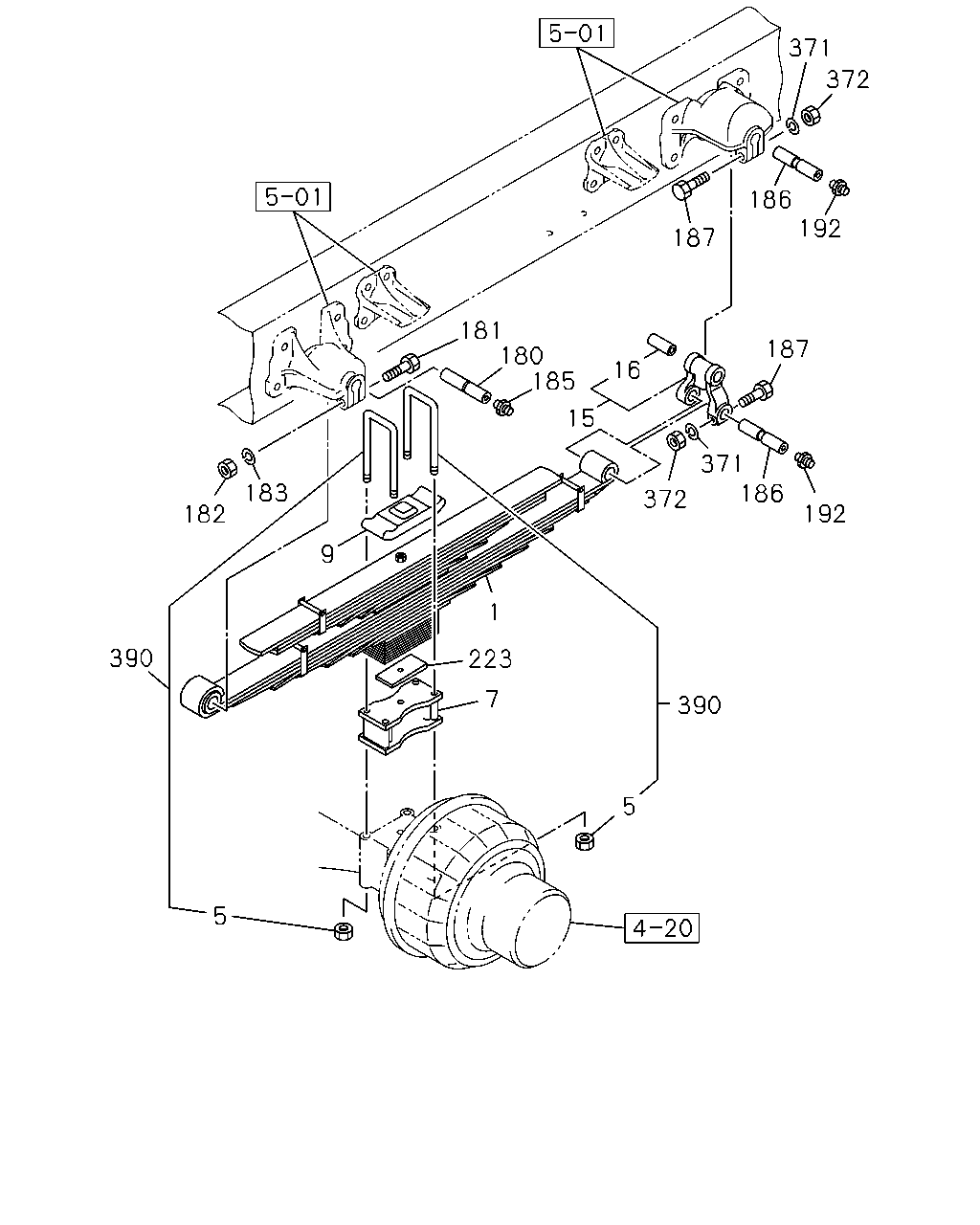

çizim 514357
371 372 186 192 187 187 192 186 371 372 181 180 185 16 15 9 223 7 390 5 183 182 390 5 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98050-306-0 02 1 1601- ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1601- ● ●
7 SEAT; SPR,LWR 8-98339-369-0 02 1 1601- ● ●
9 PAD; U BOLT,RR SPR 1-51372-059-0 02 1 1601- ● ●
15 SHACKLE; RR SPR 1-51362-038-2 02 1 1601- ● ●
16 BUSHING; SHACKLE,RR SPR
ID=25 		8-98082-176-0 02 1 1601- ● ●
180 PIN; RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 02 1 1601- ● ●
181 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 02 1 1601- ● ●
182 NUT; PIN,RR SPR
M12 		0-91110-512-0 02 1 1601- ● ●
183 WASHER; LK,PIN,RR SPR
ID=12.2 		0-91510-612-0 02 1 1601- ● ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT 		0-90301-410-0 02 1 1601- ● ●
186 PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8 		1-51361-016-0 04 1 1601- ● ●
187 BOLT; SPR & SHACKLE
M12X70 		0-10961-270-0 04 1 1601- ● ●
192 NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT 		0-90301-410-0 04 1 1601- ● ●
223 SPACER; U BOLT,RR SPR 8-98063-307-0 02 1 1601- ● ●
371 WASHER; LK,SHACKLE
ID=12.2 		0-91510-612-0 04 1 1601- ● ●
372 NUT; SHACKLE
M12 		0-91110-512-0 04 1 1601- ● ●
390 U-BOLT SET; RR SPRING
L=555 		1-87870-487-0 04 1 1601- ● ●
