◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#175859) — 30 parça

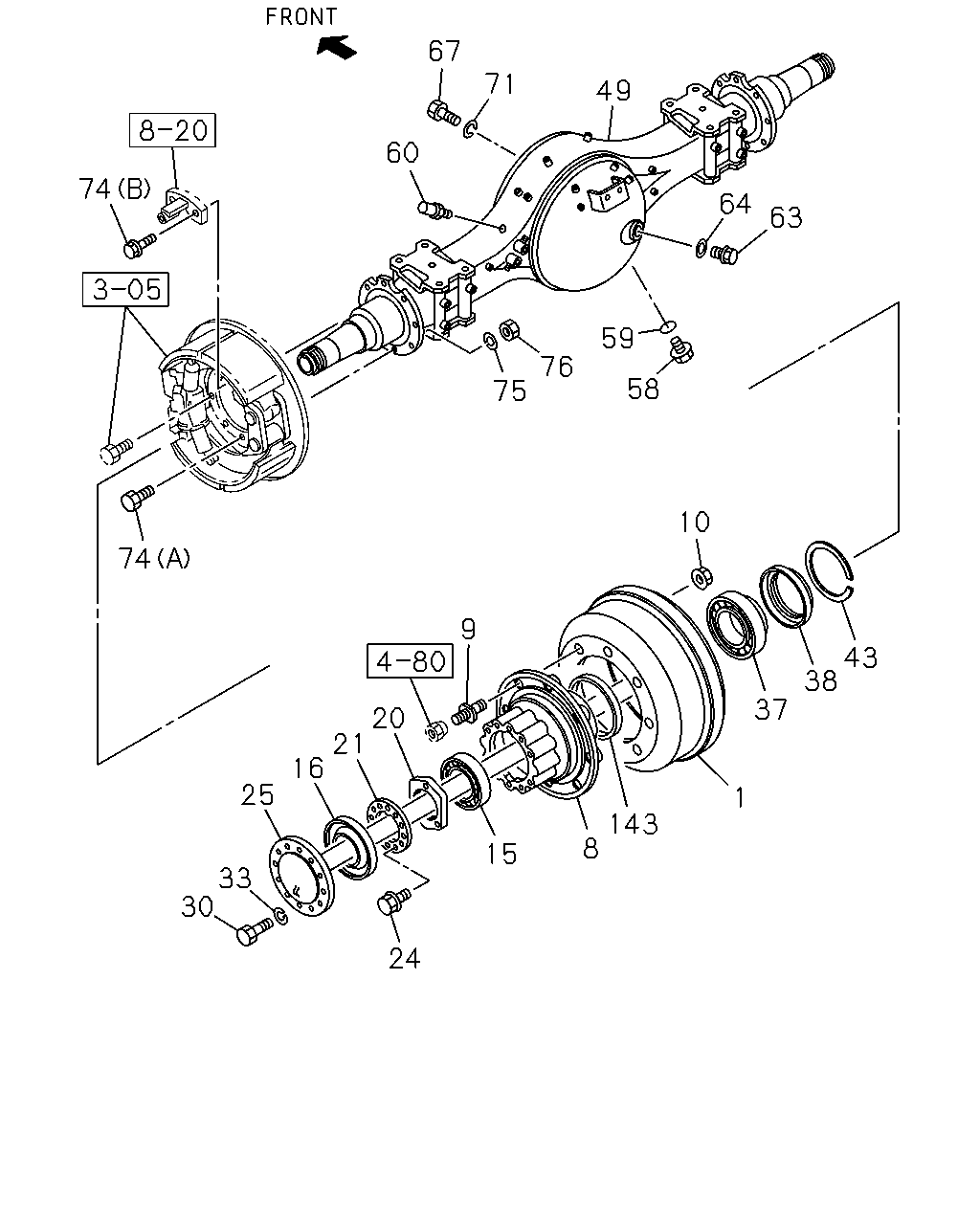

çizim 514867
67 60 71 49 64 63 59 58 76 75 10 37 43 38 1 143 8 15 9 20 21 16 25 24 33 30 74 74
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR 1-42315-355-0 02 1 1601- ● ●
8 HUB; RR AXLE 8-97379-877-1 02 1 1601- ● ●
9 PIN; WHEEL,RR AXLE
M20X34.5,M22X51.5 RH THREAD 		1-42331-110-2 08 1 1601- ● ●
9 PIN; WHEEL,RR AXLE
M20X34.5 LH THREAD,M22X51.5 RH THREAD 		1-42332-110-2 08 1 1601- ● ●
10 NUT; WHEEL PIN,RR AXLE
M22 FLANGE 		1-09440-065-0 16 1 1601- ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-222-0 02 1 1601- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-331-1 02 1 1601- ● ●
20 NUT; BRG,RR HUB
M64 		9-09843-721-2 02 1 1601- ● ●
21 WASHER; LK,BRG NUT
ID=64 		9-09854-122-0 02 1 1601- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 1601- ● ●
25 SHAFT; AXLE,RR
L=945 		8-97380-684-0 02 1 1601- ● ●
30 BOLT; HUB TO AXLE SHAFT
M12X45 		9-09804-239-1 20 1 1601- ● ●
33 WASHER; AXLE SHAFT
ID=12.2 		0-91510-812-0 20 1 1601- ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-221-0 02 1 1601- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-569-0 02 1 1601- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE 9-09950-201-0 02 1 1601- ● ●
49 CASE; RR AXLE 8-98232-732-0 01 1 1601- ● ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1601- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1601- ● ●
60 BREATHER; RR AXLE CASE 9-36122-015-1 01 1 1601- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1601- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1601- ● ●
67 BOLT; FINAL DRIVE SETTING
M12X60 		0-10956-260-0 04 1 1601- ● ●
67 BOLT; FINAL DRIVE SETTING
M12X35 		0-20951-235-0 08 1 1601- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=12.2 		0-91510-812-0 12 1 1601- ● ●
74 BOLT; RR BRK ASM SETTING
(A) M14X50 		1-09040-066-0 10 1 1601- ● ●
74 BOLT; RR BRK ASM SETTING
(B) M14X80 		9-92621-480-0 04 1 1601- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 1601- ● ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 1601- ● ●
143 RING; EXCITER 1-42319-152-1 02 1 1601- ● ●
