Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#175850) — 84 parça

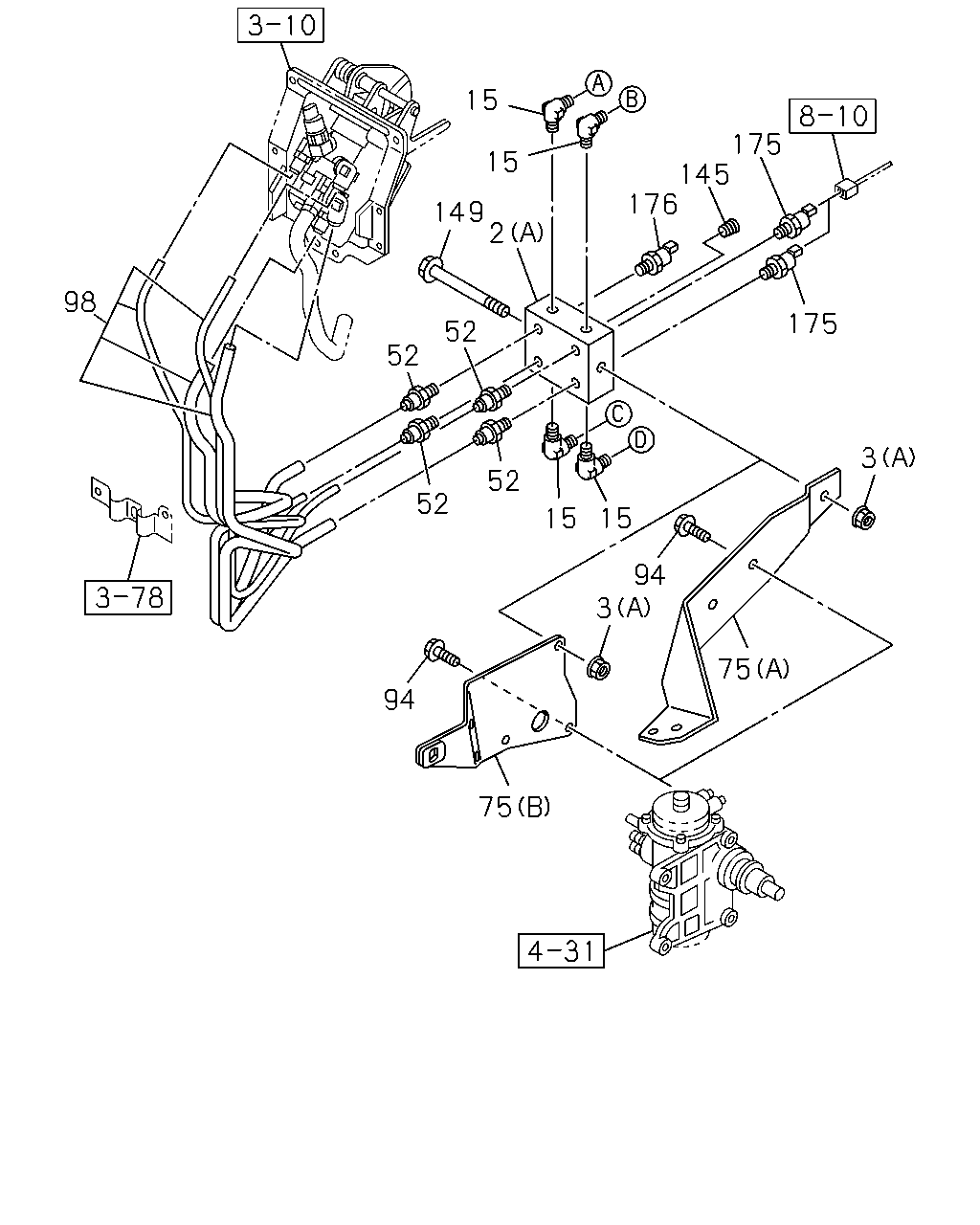

175 145 176 175 3 15 15 52 52 52 52 149 15 15 94 75 3 94 75 98 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1601-	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1601-	●
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1601-	●	●
2	UNION; AIR PIPE (D) M16 L=74	0-92123-310-0	01	1	1601-		●
2	UNION; AIR PIPE (C) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1601-		●
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	1601-	●	●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
3	NUT; PIPE UNION (C) M12	0-91111-512-0	01	1	1601-		●
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW	0-92134-310-0	04	1	1601-	●	●
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1601-	●	●
75	BRACKET; UNION (A)	8-98257-652-0	01	1	1601-	●
75	BRACKET; UNION (B)	8-98066-785-0	01	1	1601-		●
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1601-	●	●
98	TUBE; NYLON	8-98079-175-0	01	1	1601-	●
98	TUBE; NYLON	8-98079-179-0	01	1	1601-		●
145	PLUG PT1/4	9-99204-513-0	01	1	1601-	●	●
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	1601-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1601-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1601-	●	●

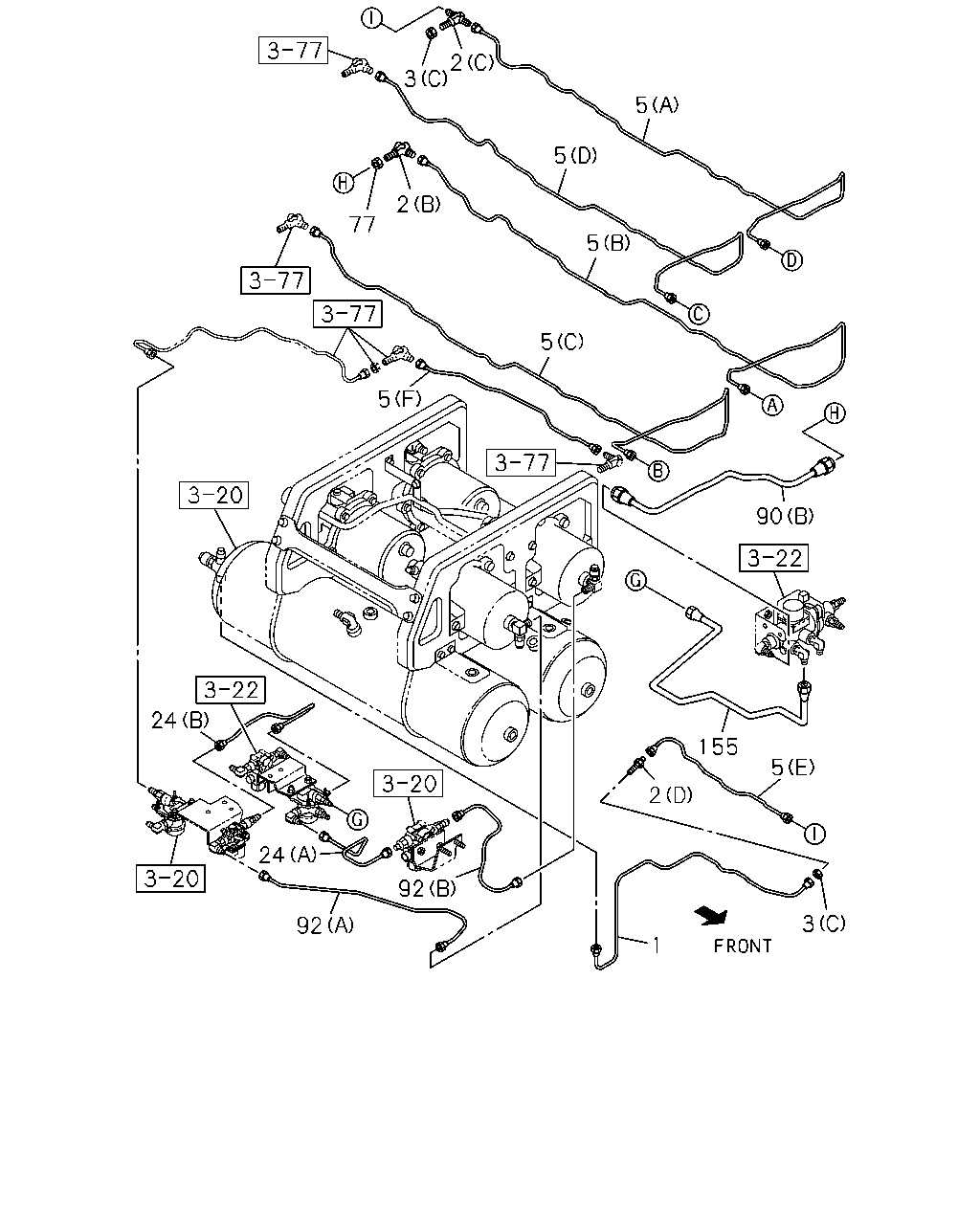

5 5 5 5 90 155 92 24 92 24 77 1 2 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION L=1335 SERVICED BY L=1400	1-47428-878-0	01	1	1601-	●
1	PIPE; AIR,AIR TANK TO UNION L=1378 SERVICED BY L=1400	1-47428-878-0	01	1	1601-		●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1601-	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1601-	●
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1601-	●	●
2	UNION; AIR PIPE (D) M16 L=74	0-92123-310-0	01	1	1601-		●
2	UNION; AIR PIPE (C) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1601-		●
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	1601-	●	●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
3	NUT; PIPE UNION (C) M12	0-91111-512-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (A) L=2801 SERVICED BY L=2900	1-47428-885-0	01	1	1601-	●
5	PIPE; AIR,UNION TO UNION (C) L=2585 SERVICED BY L=2600	1-47428-884-0	01	1	1601-	●
5	PIPE; AIR,UNION TO UNION (B) L=2973 SERVICED BY L=3300	1-47428-886-0	01	1	1601-	●
5	PIPE; AIR,UNION TO UNION (D) L=2908 SERVICED BY L=3300	1-47428-886-0	01	1	1601-	●
5	PIPE; AIR,UNION TO UNION (A) L=2668	8-98316-787-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (E) L=638	8-98316-788-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (C) L=2947	8-98316-789-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (B) L=2551	8-98316-791-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (F)	8-98316-793-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (D) L=2307	8-98316-794-0	01	1	1601-		●
24	PIPE; AIR,RELAY VLV TO UNION (A) L=392	8-98230-357-0	01	1	1601-	●	●
24	PIPE; AIR,RELAY VLV TO UNION (B) L=300	8-98236-977-0	01	1	1601-	●	●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1601-	●	●
90	PIPE; AIR,UNION TO HSA VLV (B) L=740 SERVICED BY L=800	1-47428-872-0	01	1	1601-	●
90	PIPE; AIR,UNION TO HSA VLV (A) L=1544	8-98333-835-0	01	1	1601-	●	●
90	PIPE; AIR,UNION TO HSA VLV (B)	8-98316-778-0	01	1	1601-		●
92	PIPE; AIR,HSA VLV TO AIR MASTER (A) L=735 SERVICED BY L=800	1-47428-872-0	01	1	1601-	●	●
92	PIPE; AIR,HSA VLV TO AIR MASTER (B) L=458	8-98230-351-0	01	1	1601-	●	●
155	PIPE; AIR,HSA VLV TO RELAY VLV L=663 SERVICED BY L=700	1-47428-870-0	01	1	1601-	●
155	PIPE; AIR,HSA VLV TO RELAY VLV	8-98316-782-0	01	1	1601-		●

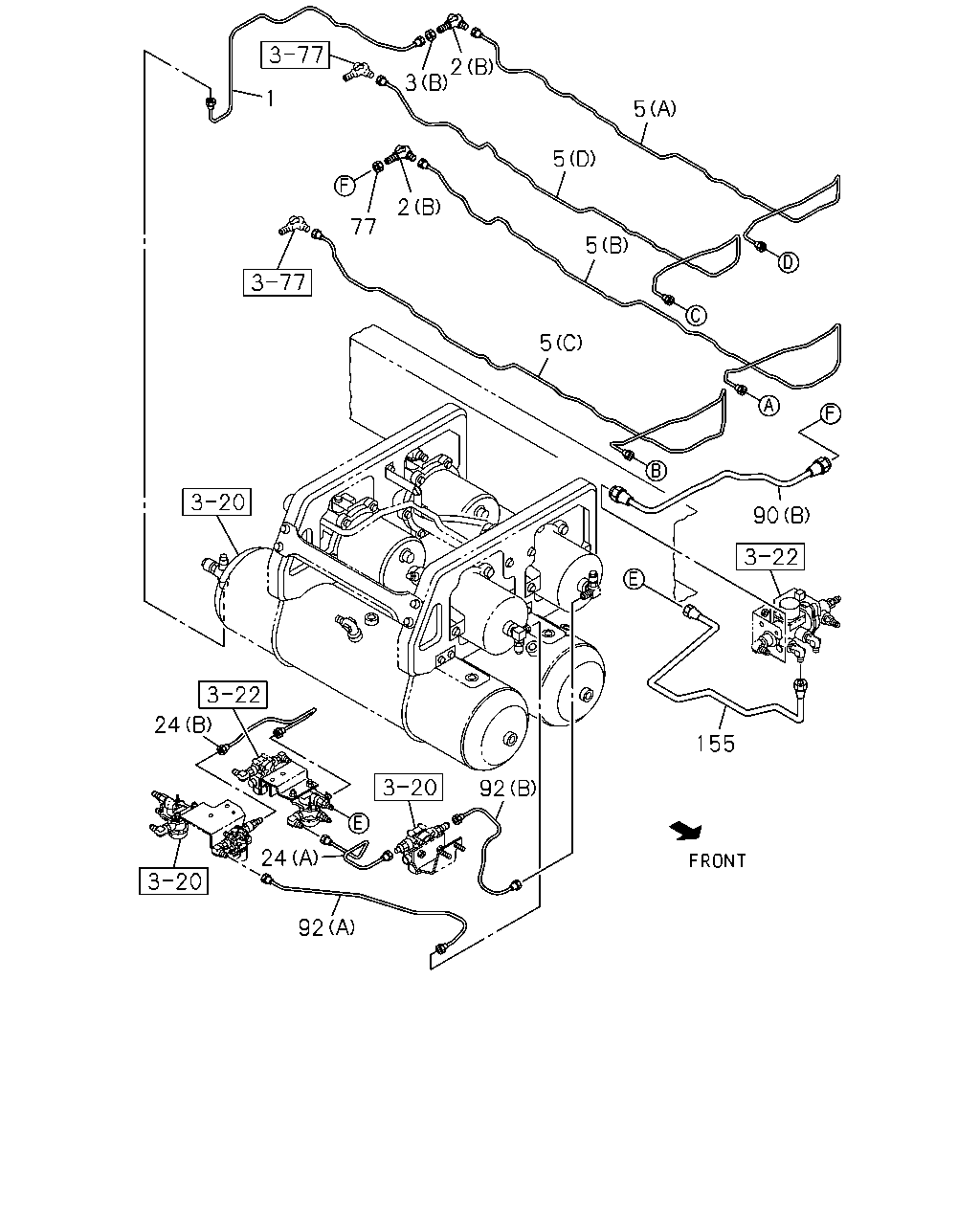

1 3 2 5 5 5 5 2 77 5 24 24 92 92 2 155 5 1 3 1 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; AIR,AIR TANK TO UNION L=1335 SERVICED BY L=1400	1-47428-878-0	01	1	1601-	●
1	PIPE; AIR,AIR TANK TO UNION L=1378 SERVICED BY L=1400	1-47428-878-0	01	1	1601-		●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1601-	●	●
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1601-	●
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1601-	●	●
2	UNION; AIR PIPE (D) M16 L=74	0-92123-310-0	01	1	1601-		●
2	UNION; AIR PIPE (C) M16X2 2WAY ELBOW	1-09654-148-1	01	1	1601-		●
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	1601-	●	●
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	1601-	●	●
3	NUT; PIPE UNION (C) M12	0-91111-512-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (A) L=2801 SERVICED BY L=2900	1-47428-885-0	01	1	1601-	●
5	PIPE; AIR,UNION TO UNION (C) L=2585 SERVICED BY L=2600	1-47428-884-0	01	1	1601-	●
5	PIPE; AIR,UNION TO UNION (B) L=2973 SERVICED BY L=3300	1-47428-886-0	01	1	1601-	●
5	PIPE; AIR,UNION TO UNION (D) L=2908 SERVICED BY L=3300	1-47428-886-0	01	1	1601-	●
5	PIPE; AIR,UNION TO UNION (A) L=2668	8-98316-787-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (E) L=638	8-98316-788-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (C) L=2947	8-98316-789-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (B) L=2551	8-98316-791-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (F)	8-98316-793-0	01	1	1601-		●
5	PIPE; AIR,UNION TO UNION (D) L=2307	8-98316-794-0	01	1	1601-		●
24	PIPE; AIR,RELAY VLV TO UNION (A) L=392	8-98230-357-0	01	1	1601-	●	●
24	PIPE; AIR,RELAY VLV TO UNION (B) L=300	8-98236-977-0	01	1	1601-	●	●
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1601-	●	●
90	PIPE; AIR,UNION TO HSA VLV (B) L=740 SERVICED BY L=800	1-47428-872-0	01	1	1601-	●
90	PIPE; AIR,UNION TO HSA VLV (A) L=1544	8-98333-835-0	01	1	1601-	●	●
90	PIPE; AIR,UNION TO HSA VLV (B)	8-98316-778-0	01	1	1601-		●
92	PIPE; AIR,HSA VLV TO AIR MASTER (A) L=735 SERVICED BY L=800	1-47428-872-0	01	1	1601-	●	●
92	PIPE; AIR,HSA VLV TO AIR MASTER (B) L=458	8-98230-351-0	01	1	1601-	●	●
155	PIPE; AIR,HSA VLV TO RELAY VLV L=663 SERVICED BY L=700	1-47428-870-0	01	1	1601-	●
155	PIPE; AIR,HSA VLV TO RELAY VLV	8-98316-782-0	01	1	1601-		●

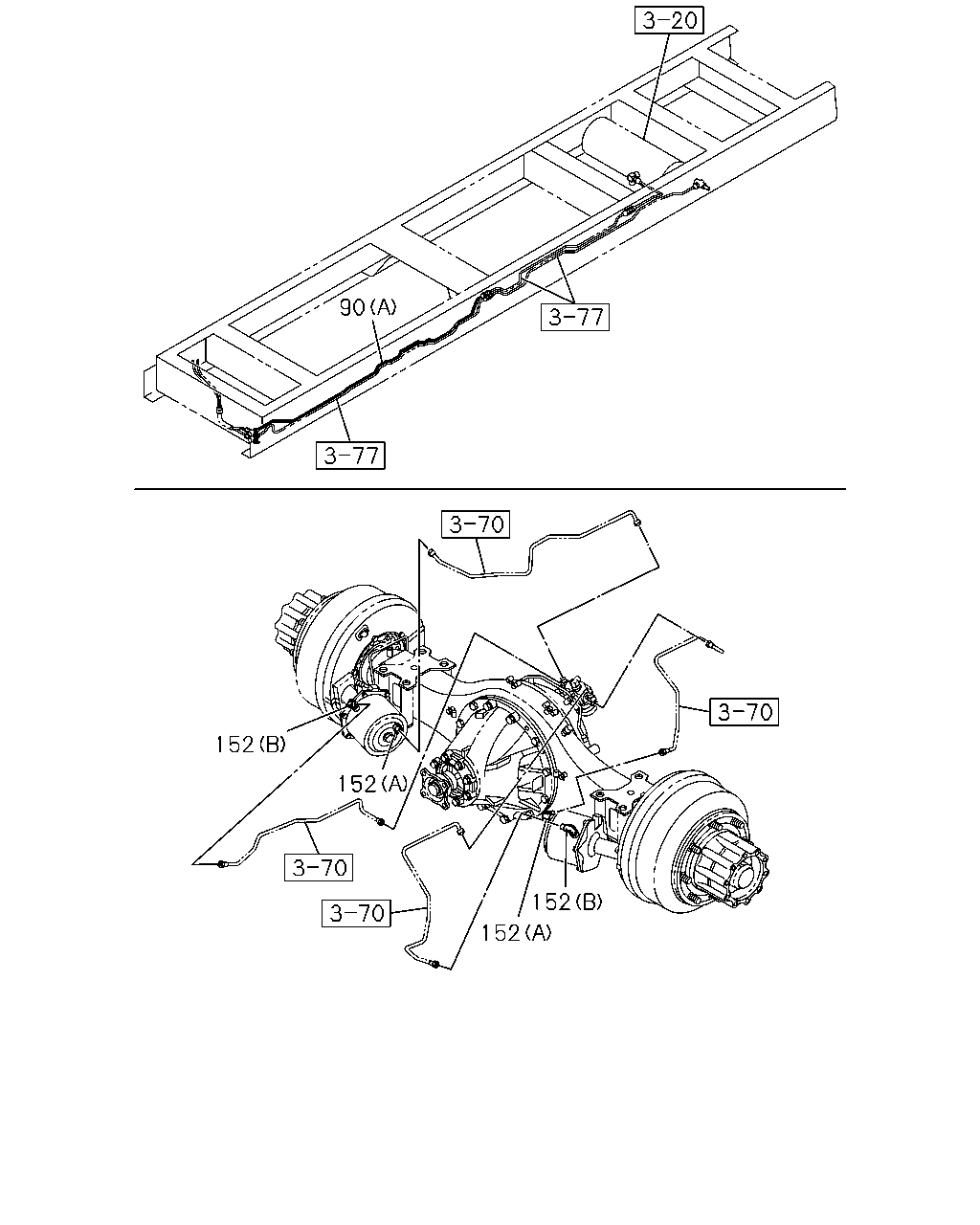

152 152 152 90 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	PIPE; AIR,UNION TO HSA VLV (B) L=740 SERVICED BY L=800	1-47428-872-0	01	1	1601-	●
90	PIPE; AIR,UNION TO HSA VLV (A) L=1544	8-98333-835-0	01	1	1601-	●	●
90	PIPE; AIR,UNION TO HSA VLV (B)	8-98316-778-0	01	1	1601-		●
152	CONNECTOR; POWER CHAMBER (A) M14 & PT1/4 ELBOW	1-09650-432-0	02	1	1601-	●	●
152	CONNECTOR; POWER CHAMBER (B) M14 & PT3/8 ELBOW	1-09650-437-0	02	1	1601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
