3-70 — BRAKE PIPING; AIR,AIR MASTER (#175849) — 103 parça

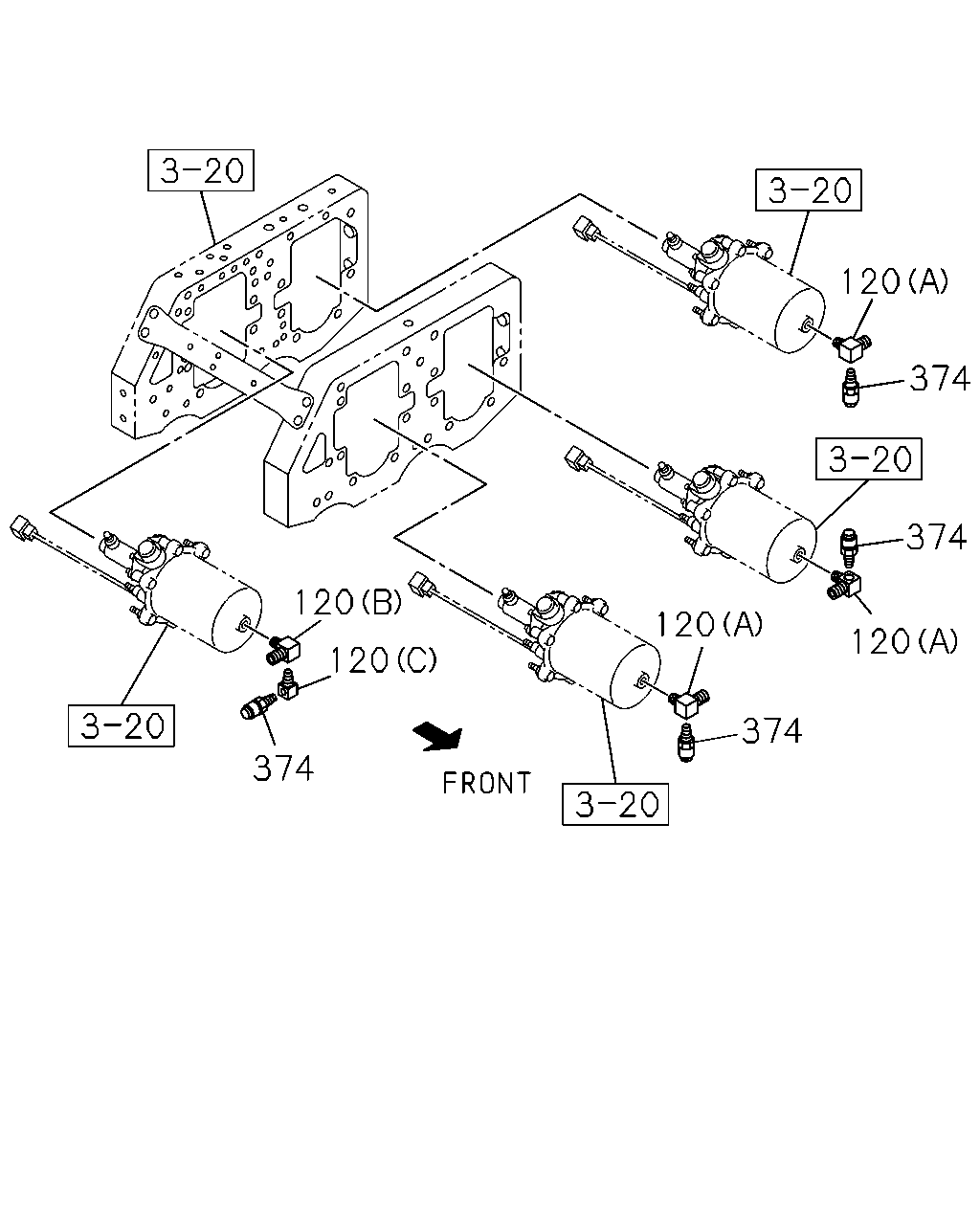

çizim 512713
374 120 120 120 120 374 374 374 120
BalonParca AdiParca NoAdetTipApplied Date A B
120 CONNECTOR; AIR PIPE
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 03 1 1601- ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1601- ●
120 CONNECTOR; AIR PIPE
(C) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1601- ● ●
120 CONNECTOR; AIR PIPE
(A) M16 & PT1/4 & PT3/8 3WAY 		1-09656-671-0 02 1 1601- ●
120 CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 02 1 1601- ●
374 CONNECTOR
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 04 1 1601- ● ●

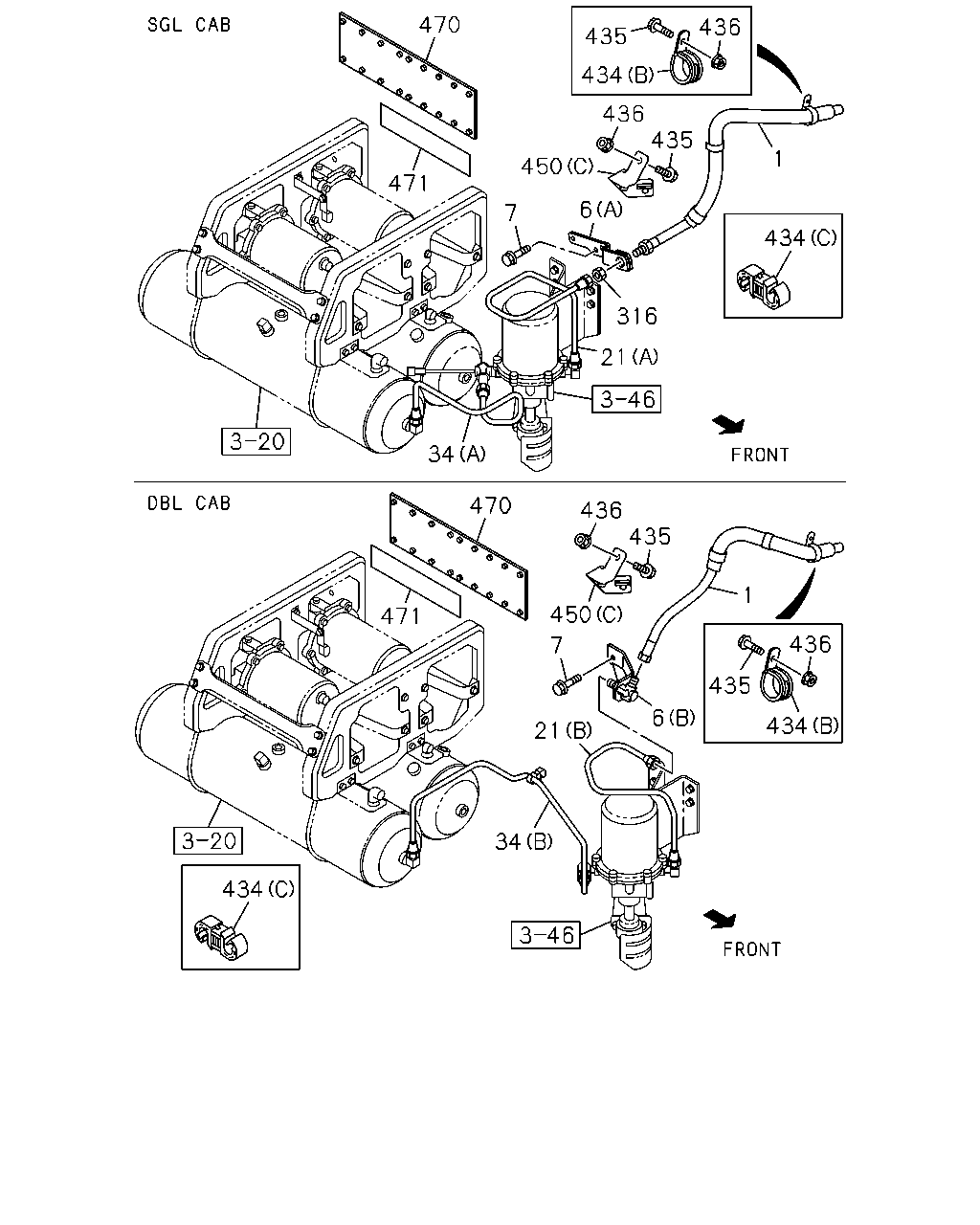

çizim 513018
470 436 434 435 436 450 7 471 6 316 21 434 1 34 436 435 1 435 436 434 34 21 7 470 450 471 434 435 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98171-660-0 01 1 1601- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98189-237-0 01 1 1601- ●
1 HOSE; FLEX,AIR TANK
POWER TAKE OFF-FLYWHEEL(6SZ) 		1-09363-800-0 01 1 1601- ●
1 HOSE; FLEX,AIR TANK
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98191-094-0 01 1 1601- ●
6 BRACKET; FLEX HOSE,AIR TANK
(A) 		8-98119-929-0 01 1 1601- ●
6 BRACKET; FLEX HOSE,AIR TANK
(B) 		8-97640-147-0 01 1 1601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 1601- ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 01 1 1601- ●
21 PIPE; AIR,UNION TO AIR DRYER
(A) L=826 		8-98234-138-0 01 1 1601- ●
21 PIPE; AIR,UNION TO AIR DRYER
(B) L=768 		8-98316-772-0 01 1 1601- ●
34 PIPE; AIR
(A) L=651 SERVICED BY L=660 		1-49115-480-0 01 1 1601- ●
34 PIPE; AIR
(B) 		8-98316-773-0 01 1 1601- ●
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 1601- ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1601- ● ●
434 CLIP
(B) ID=31 L=33 		8-98190-830-1 02 1 1601- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1601- ● ●
434 CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=31 L=33 		8-98190-830-1 01 1 1601- ● ●
434 CLIP
(B) ID=31 L=33 		8-98190-830-1 01 1 1601- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1601- ● ●
435 BOLT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
450 BRACKET; CLIP
(A) 		8-98157-748-0 02 1 1601- ● ●
450 BRACKET; CLIP
(C) 		8-98207-820-0 01 1 1601- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1601- ● ●
450 BRACKET; CLIP
(C) 		8-98316-812-0 01 1 1601- ●
470 INSULATOR; HOSE
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98187-661-0 01 1 1601- ●
470 INSULATOR; HOSE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98188-544-0 01 1 1601- ●
470 INSULATOR; HOSE
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98180-166-0 01 1 1601- ●
470 INSULATOR; HOSE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98191-040-0 01 1 1601- ●
471 TAPE; COVER
18X185 		8-98190-442-0 04 1 1601- ●
471 TAPE; COVER
18X185 		8-98190-442-0 03 1 1601- ●

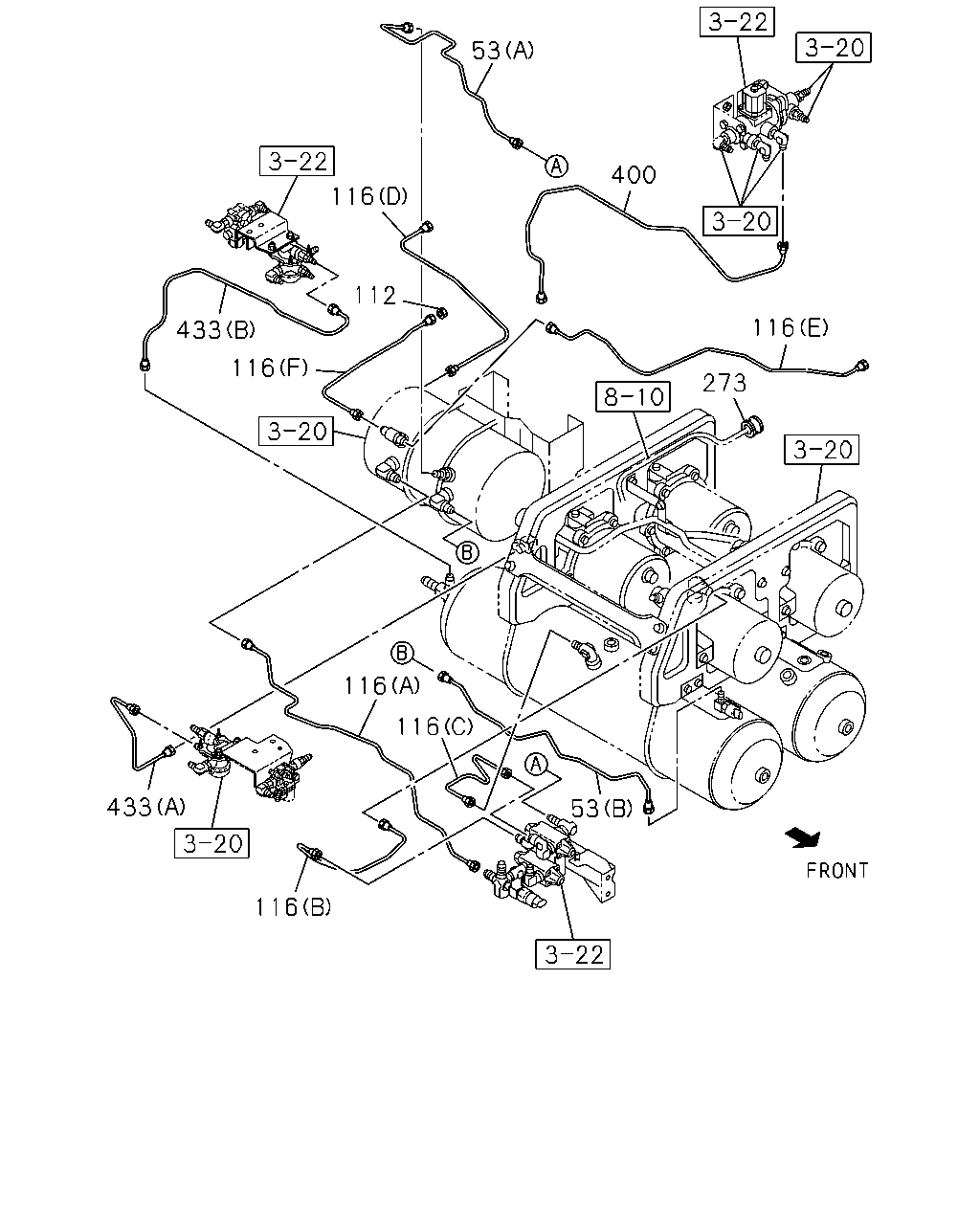

çizim 513027
53 400 116 433 112 116 116 273 116 116 53 116 433
BalonParca AdiParca NoAdetTipApplied Date A B
53 PIPE; AIR,AIR TANK TO VALVE
(B) 		8-98339-512-0 01 1 1601- ●
53 PIPE; AIR,AIR TANK TO VALVE
(B) 		8-98333-850-0 01 1 1601- ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) L=1117 SERVICED BY L=1200 		1-49115-487-0 01 1 1601- ●
53 PIPE; AIR,AIR TANK TO VALVE
(A) 		8-98305-672-0 01 1 1601- ●
112 NUT
M12 		9-09840-280-0 02 1 1601- ● ●
116 PIPE; AIR,PROTECTION VLV
(A) L=946 		8-98333-855-0 01 1 1601- ●
116 PIPE; AIR,PROTECTION VLV
(E) L=778 SERVICED BY L=800 		1-47428-812-0 01 1 1601- ●
116 PIPE; AIR,PROTECTION VLV
(A) L=976 SERVICED BY L=1000 		1-47428-814-0 01 1 1601- ●
116 PIPE; AIR,PROTECTION VLV
(F) L=497 		8-98237-000-0 01 1 1601- ●
116 PIPE; AIR,PROTECTION VLV
(C) L=515 		8-98230-363-0 01 1 1601- ● ●
116 PIPE; AIR,PROTECTION VLV
(B) L=460 		8-98236-892-0 01 1 1601- ● ●
116 PIPE; AIR,PROTECTION VLV
(D) L=438 		8-98233-872-0 01 1 1601- ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1601- ● ●
400 PIPE; AIR,HSA VLV
L=816 SERVICED BY L=900 		1-47428-813-0 01 1 1601- ●
400 PIPE; AIR,HSA VLV 8-98316-781-0 01 1 1601- ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
(A) L=486 		8-98236-978-0 01 1 1601- ● ●
433 PIPE; AIR,AIR TANK TO RELAY VLV
(B) L=950 		8-98244-370-0 01 1 1601- ● ●

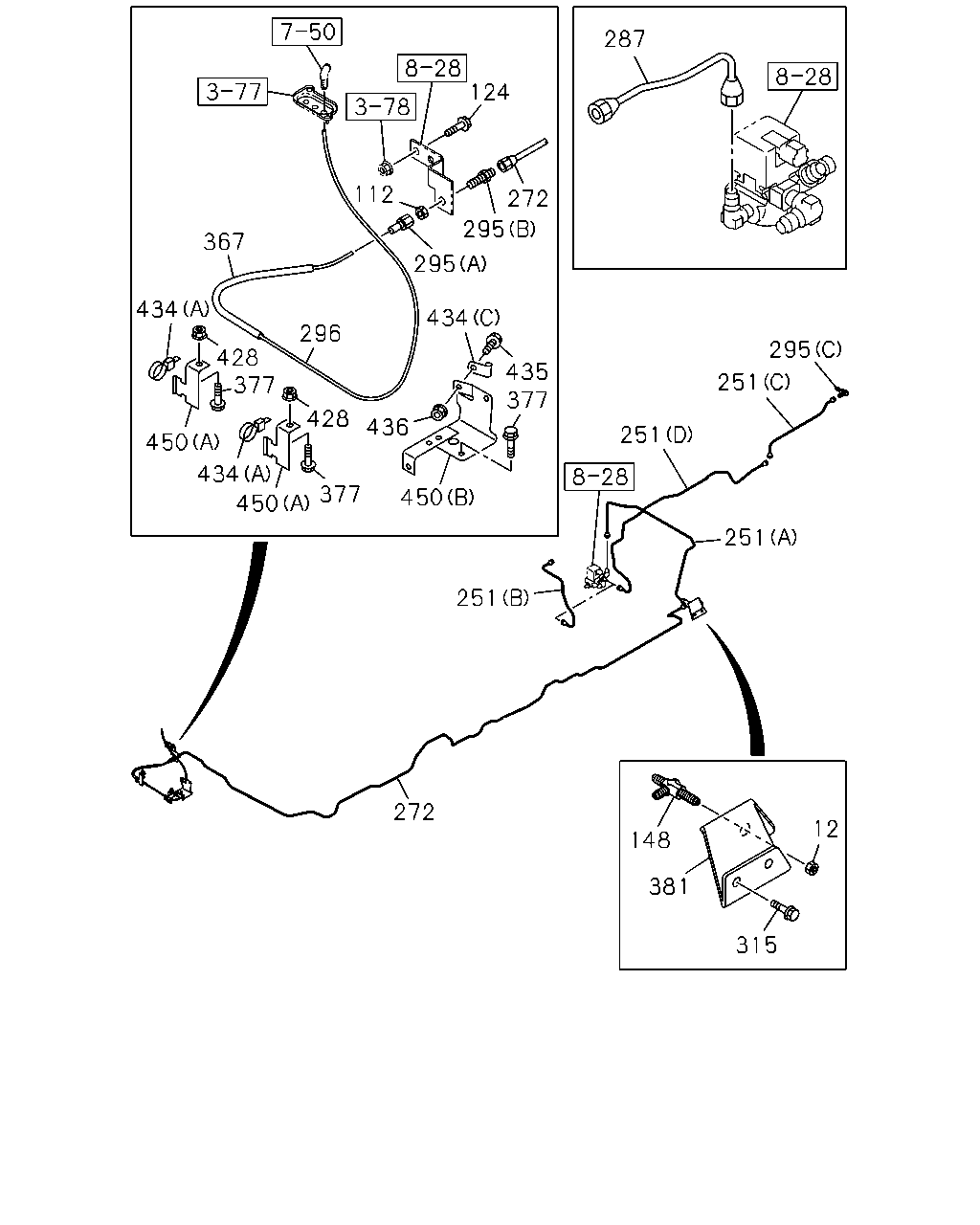

çizim 513056
367 434 428 450 296 428 434 377 450 450 436 377 435 434 295 112 124 272 295 251 272 148 381 315 12 251 251 251 295 287 377
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		0-91111-512-0 01 1 1601- ● ●
112 NUT
M12 		9-09840-280-0 02 1 1601- ● ●
124 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 1601- ● ●
148 CONNECTOR; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 2WAY 		1-09654-059-2 01 1 1601- ● ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=961 SERVICED BY L=1000 		1-47428-814-0 01 1 1601- ●
251 PIPE; AIR,UNION TO MAG VLV
(B) L=415 		8-98234-208-0 01 1 1601- ●
251 PIPE; AIR,UNION TO MAG VLV
(D) L=1315 SERVICED BY L=1370 		1-47428-818-0 01 1 1601- ●
251 PIPE; AIR,UNION TO MAG VLV
(C) L=415 		8-98233-972-0 01 1 1601- ●
251 PIPE; AIR,UNION TO MAG VLV
(A) L=937 		8-98316-806-0 01 1 1601- ●
272 PIPE; AIR,MAG VLV TO UNION
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=2946 		8-98333-838-0 01 1 1601- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=2995 		8-98333-836-0 01 1 1601- ●
272 PIPE; AIR,MAG VLV TO UNION
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=2926 		8-98333-839-0 01 1 1601- ●
272 PIPE; AIR,MAG VLV TO UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) L=2974 		8-98333-837-0 01 1 1601- ●
287 PIPE; AIR,MAG VLV
L=186 		8-98234-128-0 01 1 1601- ●
295 CONNECTOR; NYLON TUBE
(B) M12 L=56.5 		0-92113-106-0 01 1 1601- ● ●
295 CONNECTOR; NYLON TUBE
(C) M12 ELBOW 		0-92125-206-0 01 1 1601- ● ●
295 CONNECTOR; NYLON TUBE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1601- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1601- ● ●
315 BOLT; CONNECTOR
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE 		0-28651-030-0 02 1 1601- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1601- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 04 1 1601- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1601- ● ●
381 BRACKET
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98131-569-0 01 1 1601- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
434 CLIP
(A) L=350 		1-09707-183-0 02 1 1601- ● ●
434 CLIP
(B) ID=31 L=33 		8-98190-830-1 02 1 1601- ●
434 CLIP
(C) ID=7 L=20 		0-95234-635-0 01 1 1601- ● ●
434 CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=31 L=33 		8-98190-830-1 01 1 1601- ● ●
434 CLIP
(B) ID=31 L=33 		8-98190-830-1 01 1 1601- ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1601- ● ●
435 BOLT; CLIP
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
450 BRACKET; CLIP
(A) 		8-98157-748-0 02 1 1601- ● ●
450 BRACKET; CLIP
(C) 		8-98207-820-0 01 1 1601- ●
450 BRACKET; CLIP
(B) 		8-98070-479-0 01 1 1601- ● ●
450 BRACKET; CLIP
(C) 		8-98316-812-0 01 1 1601- ●

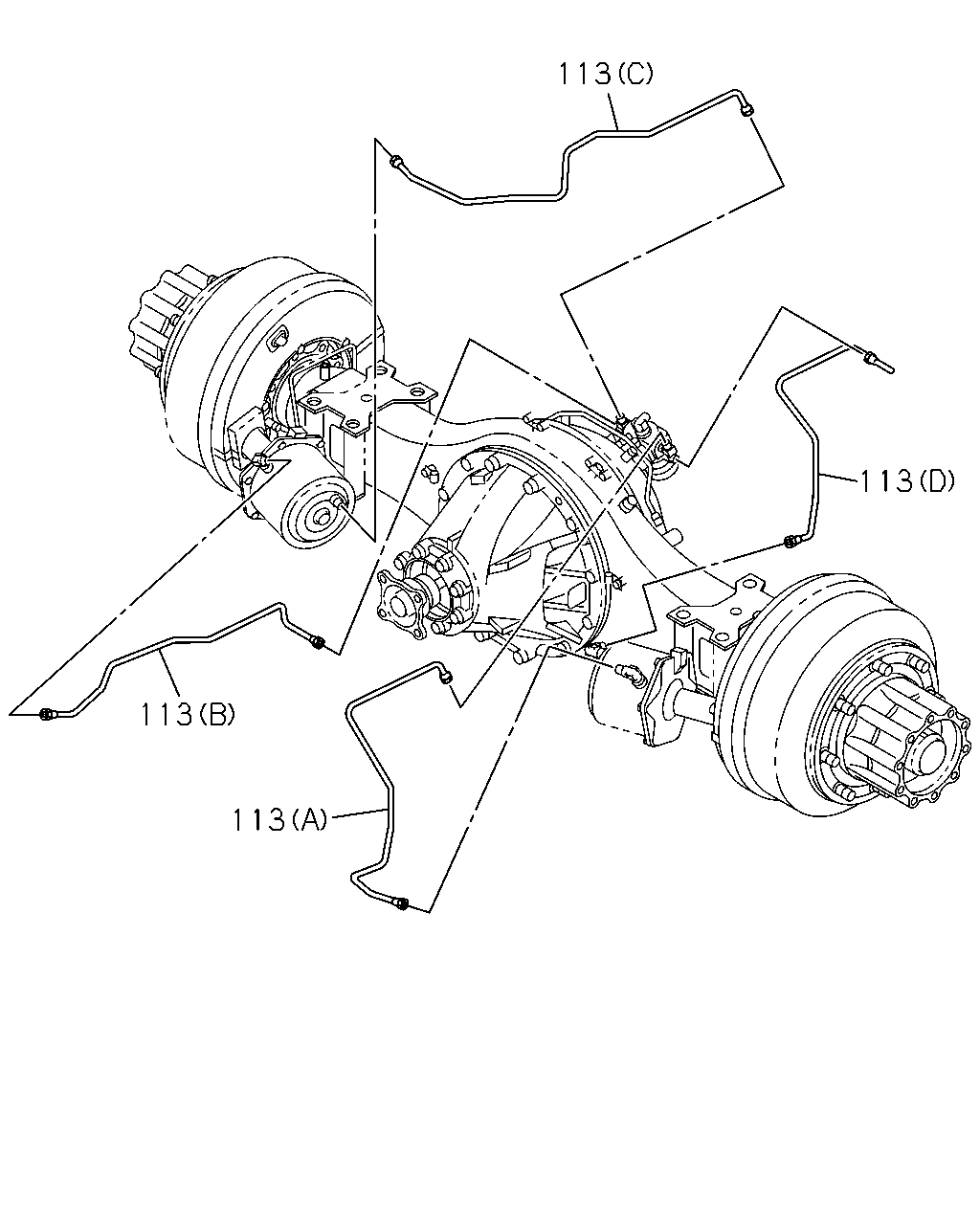

çizim 513625
113 113 113 113
BalonParca AdiParca NoAdetTipApplied Date A B
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(B) L=1064 		8-98089-688-0 01 1 1601- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(A) L=1064 		8-98089-689-0 01 1 1601- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(C) L=838 		8-98095-146-0 01 1 1601- ● ●
113 PIPE; AIR,QUICK RELAY VLV TO SPR CHAMB
(D) L=838 		8-98095-147-0 01 1 1601- ● ●
