Isuzu WW
▶
TRUCKS
▶
FSS
▶
11722 - FSS AUST/NZ JNLT09
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#175847) — 25 parça
Tümü
A - FCS5MS
B - FCS5WS
◀

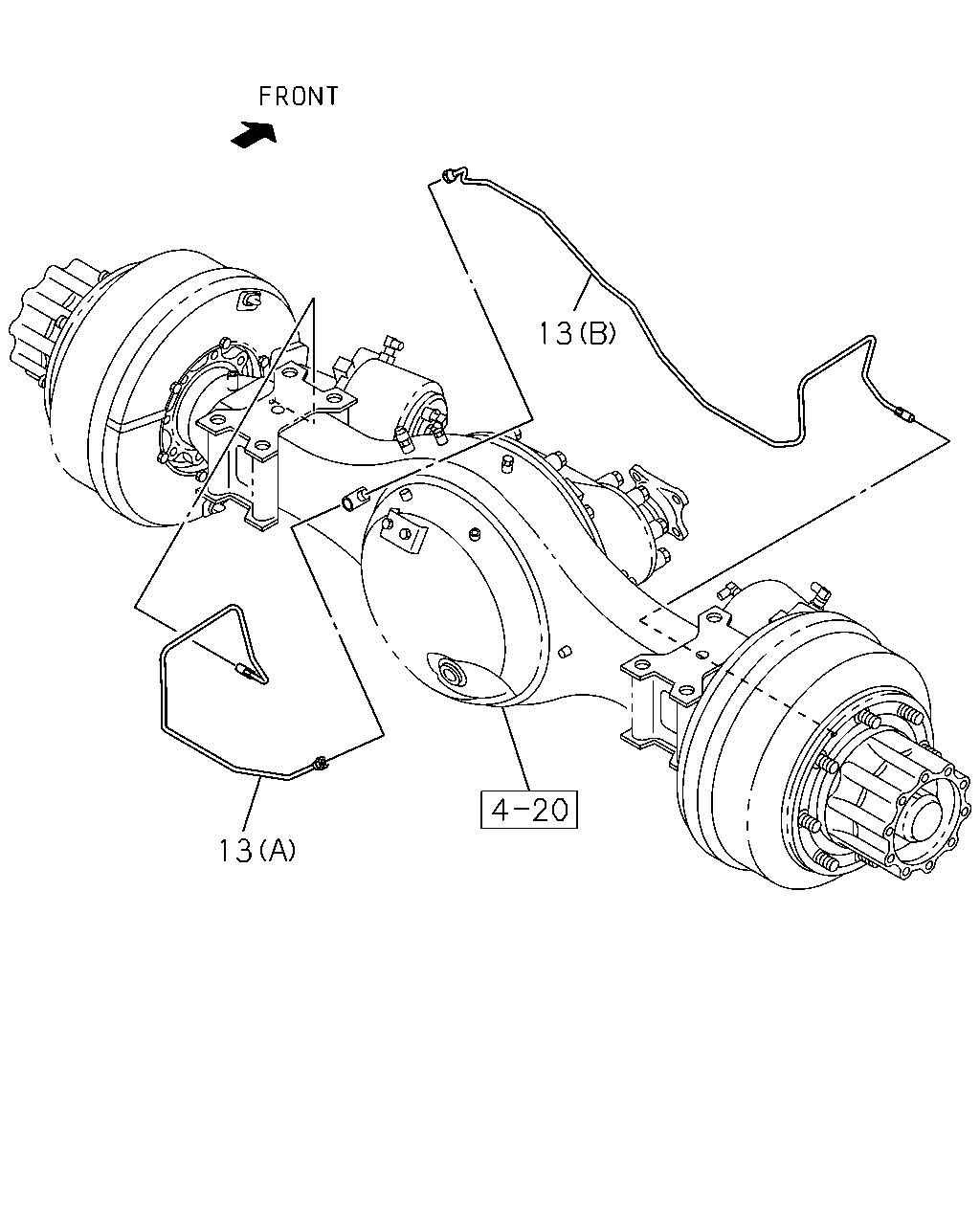

[355A] REAR AXLE SIDE (2 parça)

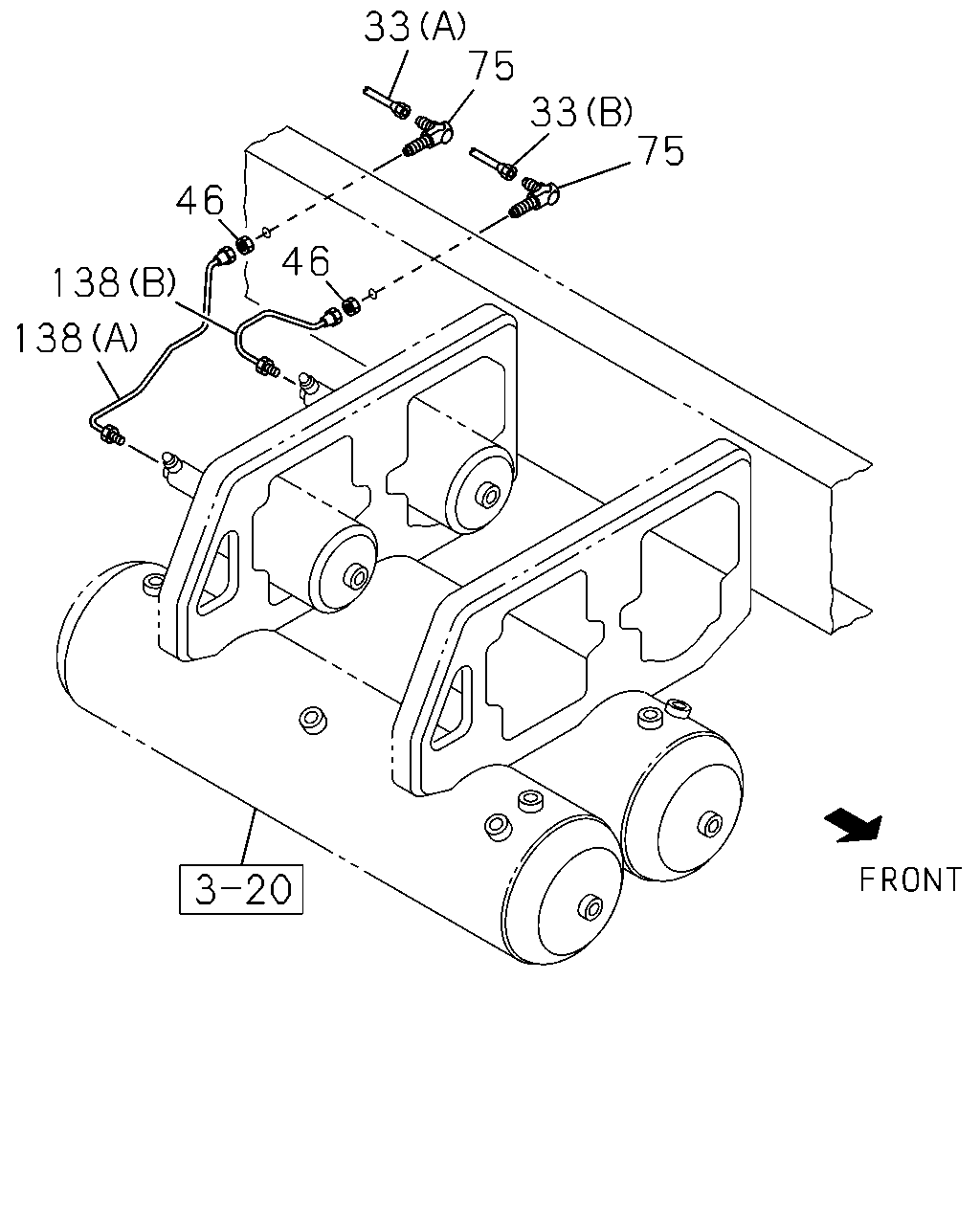

[355A] AIR TANK SIDE (10 parça)

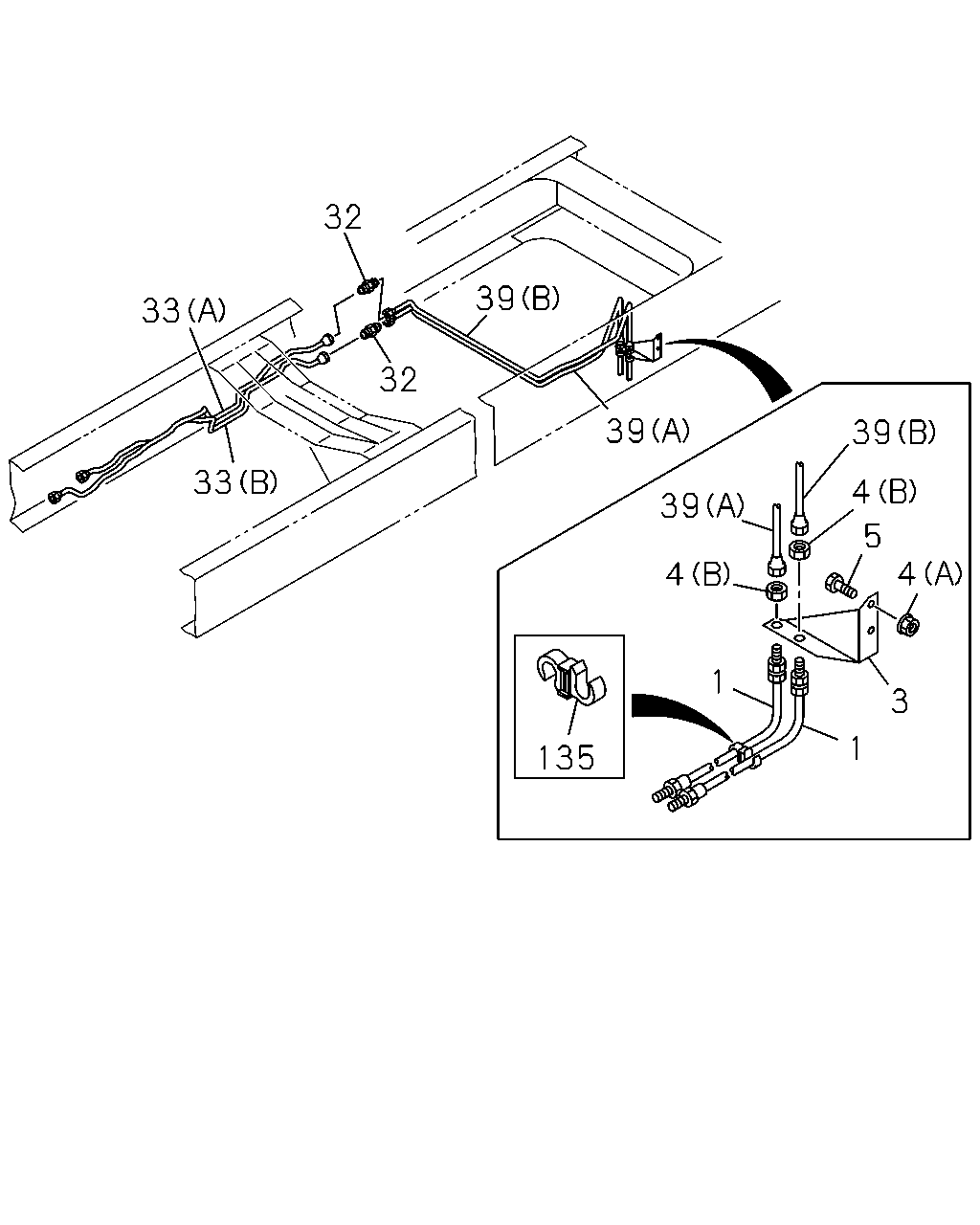

[355A] FRAME SIDE (13 parça)
▶
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
13
PIPE; BRK,RR AXLE
(B)
8-98232-734-1
01
1
1601-
●
●
13
PIPE; BRK,RR AXLE
(A)
8-98232-735-1
01
1
1601-
●
●
33
33
46
75
46
138
138
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
PIPE; OIL,UNION TO UNION
(A) L=1273 SERVICED BY L=1370
1-47428-734-0
01
1
1601-
●
33
PIPE; OIL,UNION TO UNION
(B) L=1089 SERVICED BY L=1100
1-47428-731-0
01
1
1601-
●
33
PIPE; OIL,UNION TO UNION
(A) L=1026 SERVICED BY L=1100
1-47428-731-0
01
1
1601-
●
33
PIPE; OIL,UNION TO UNION
(B) L=976 SERVICED BY L=1000
1-47428-730-0
01
1
1601-
●
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
02
1
1601-
●
●
75
UNION; OIL PIPE
M12 ELBOW
8-97325-150-0
02
1
1601-
●
●
138
PIPE; HYDRAULIC UNIT
(A) L=237
8-98244-163-0
01
1
1601-
●
138
PIPE; HYDRAULIC UNIT
(B) L=413
8-98244-164-0
01
1
1601-
●
138
PIPE; HYDRAULIC UNIT
(A) L=515
8-98233-908-0
01
1
1601-
●
138
PIPE; HYDRAULIC UNIT
(B) L=348
8-98233-910-0
01
1
1601-
●
33
32
33
32
39
39
39
4
135
1
1
5
3
4
4
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
HOSE; FLEX,RR BRK
L=730
0-05213-730-0
02
1
1601-
●
●
3
BRACKET; FLEX HOSE,RR BRK
8-98093-550-0
01
1
1601-
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
(A) M8 FLANGE
0-91180-108-0
02
1
1601-
●
●
4
NUT; BRKT,FLEX HOSE,RR BRK
(B) M12
9-09840-280-0
02
1
1601-
●
●
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1601-
●
●
32
UNION; OIL PIPE
M12 L=40
0-92113-006-0
02
1
1601-
●
●
33
PIPE; OIL,UNION TO UNION
(A) L=1273 SERVICED BY L=1370
1-47428-734-0
01
1
1601-
●
33
PIPE; OIL,UNION TO UNION
(B) L=1089 SERVICED BY L=1100
1-47428-731-0
01
1
1601-
●
33
PIPE; OIL,UNION TO UNION
(A) L=1026 SERVICED BY L=1100
1-47428-731-0
01
1
1601-
●
33
PIPE; OIL,UNION TO UNION
(B) L=976 SERVICED BY L=1000
1-47428-730-0
01
1
1601-
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) L=2028 SERVICED BY L=2200
1-47428-740-0
01
1
1601-
●
●
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) L=2100 SERVICED BY L=2200
1-47428-740-0
01
1
1601-
●
●
135
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1601-
●
●
