3-52 — BRAKE PIPING; OIL,FRONT (#175846) — 43 parça

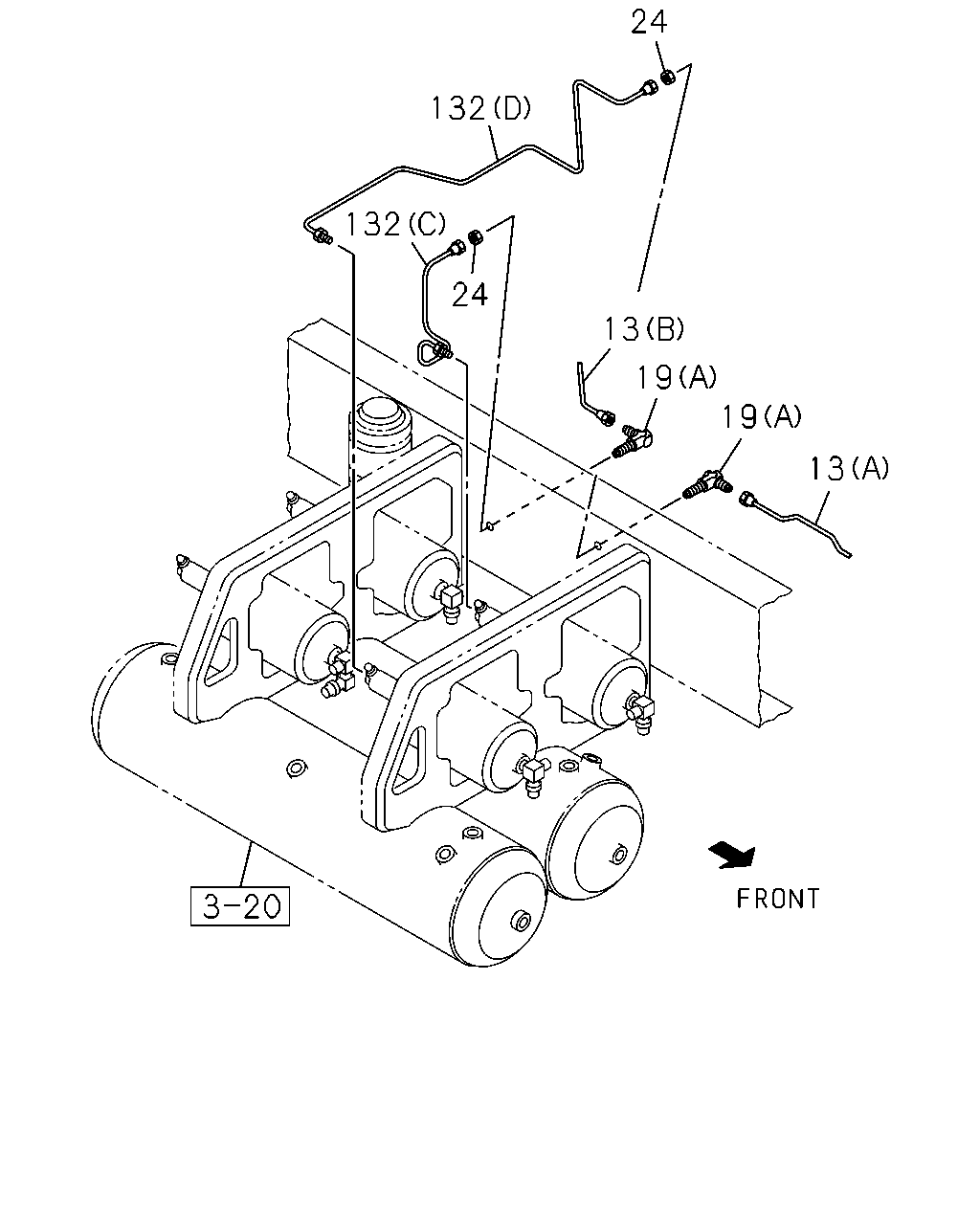

çizim 512670
24 132 132 13 24 19 13 19
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
(B) L=1978 		8-98337-885-0 01 1 1601- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1974 		8-98316-768-0 01 1 1601- ●
13 PIPE; OIL,UNION TO UNION
(A) L=1358 		8-98316-767-0 01 1 1601- ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 01 1 1601- ●
19 UNION; OIL PIPE
(A) M12 ELBOW 		8-97325-150-0 02 1 1601- ● ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1601- ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 02 1 1601- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=762 		8-98339-364-0 01 1 1601- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) L=354 		8-98236-937-0 01 1 1601- ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=273 		8-98281-126-0 01 1 1601- ●
132 PIPE; OIL,BRK,HYD UNIT
(D) L=635 		8-98281-127-0 01 1 1601- ●

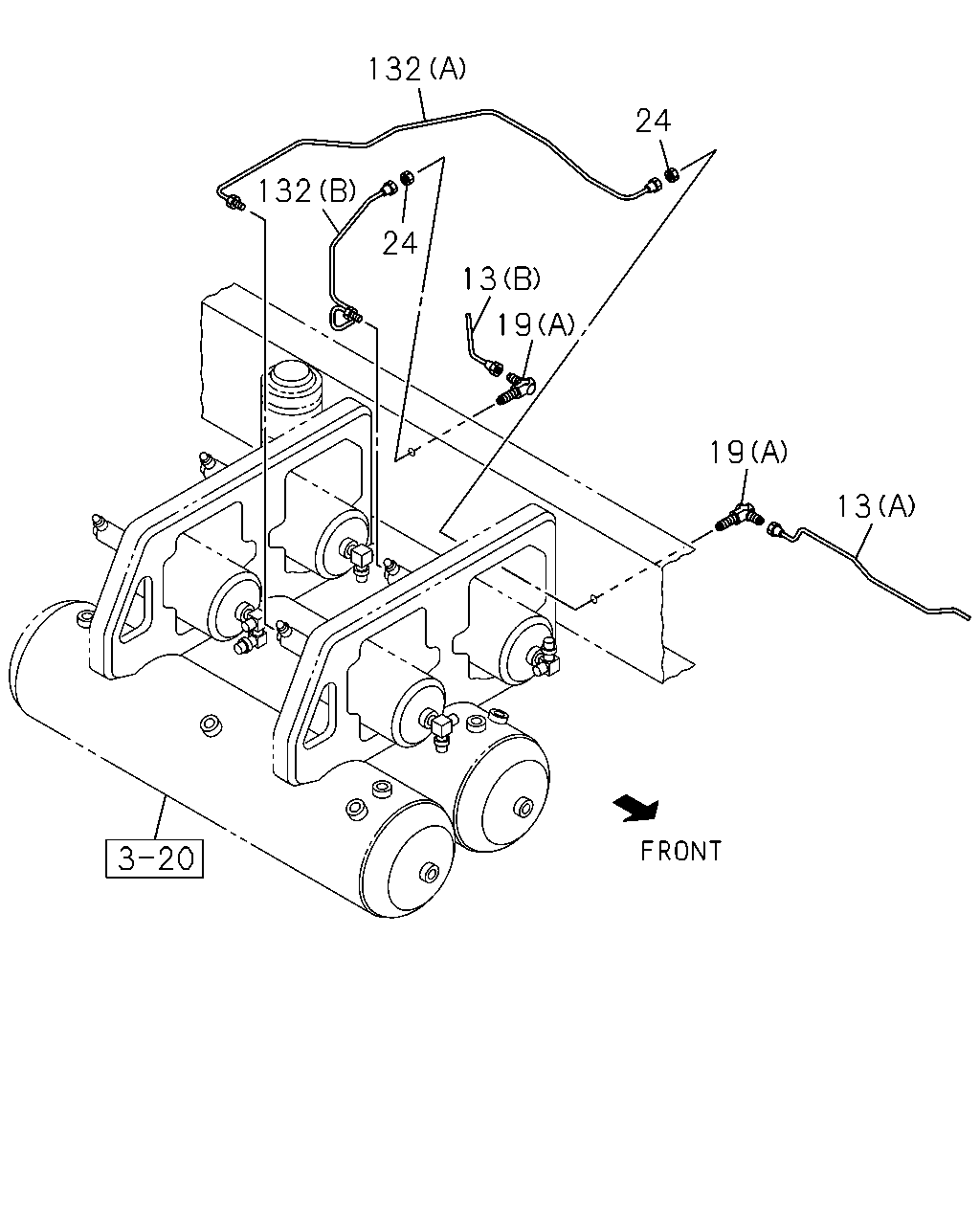

çizim 513918
19 13 19 13 24 132 132 24
BalonParca AdiParca NoAdetTipApplied Date A B
13 PIPE; OIL,UNION TO UNION
(B) L=1978 		8-98337-885-0 01 1 1601- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1974 		8-98316-768-0 01 1 1601- ●
13 PIPE; OIL,UNION TO UNION
(A) L=1358 		8-98316-767-0 01 1 1601- ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 01 1 1601- ●
19 UNION; OIL PIPE
(A) M12 ELBOW 		8-97325-150-0 02 1 1601- ● ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1601- ●
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 02 1 1601- ● ●
132 PIPE; OIL,BRK,HYD UNIT
(A) L=762 		8-98339-364-0 01 1 1601- ●
132 PIPE; OIL,BRK,HYD UNIT
(B) L=354 		8-98236-937-0 01 1 1601- ●
132 PIPE; OIL,BRK,HYD UNIT
(C) L=273 		8-98281-126-0 01 1 1601- ●
132 PIPE; OIL,BRK,HYD UNIT
(D) L=635 		8-98281-127-0 01 1 1601- ●

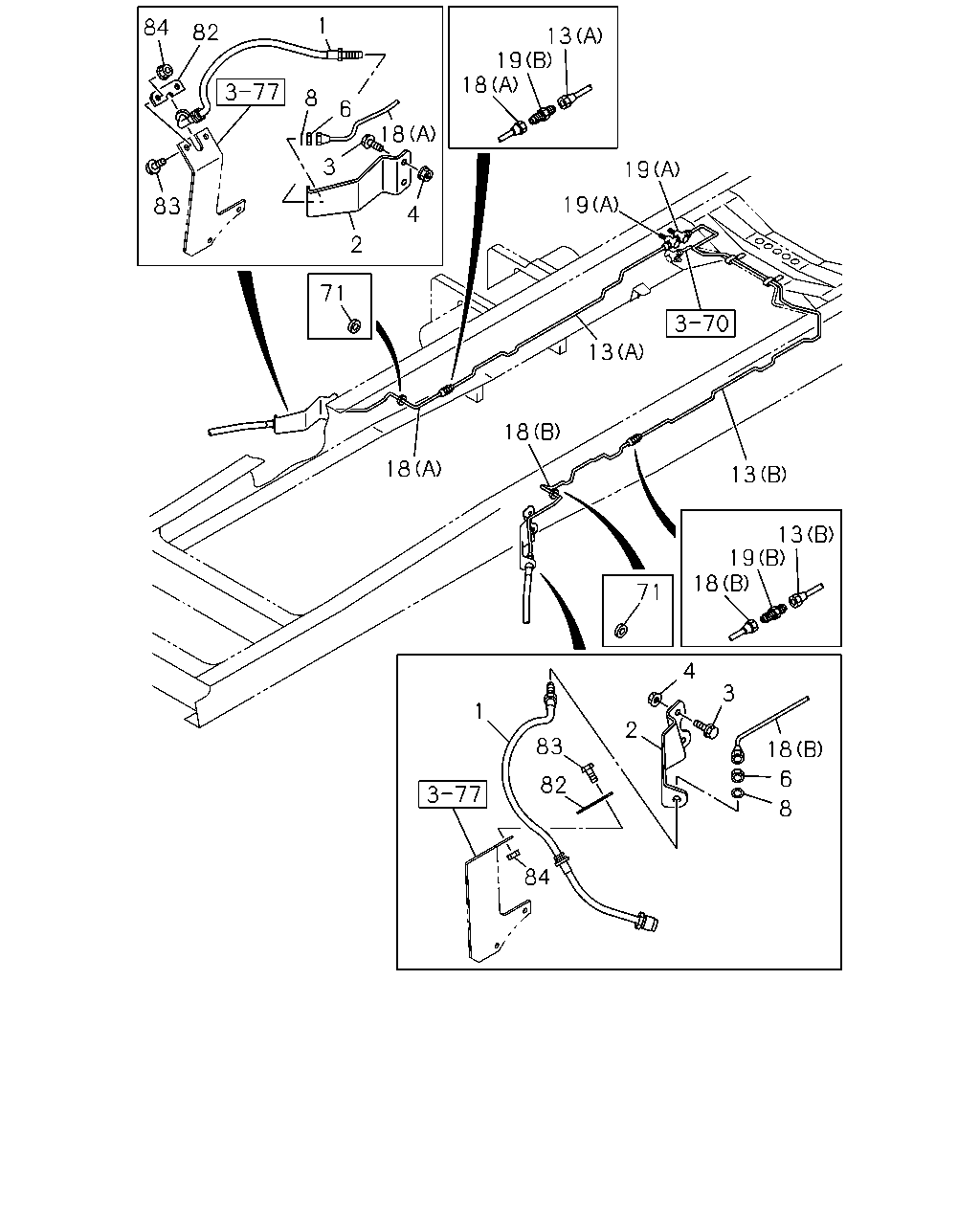

çizim 515212
13 19 19 18 18 13 19 18 13 3 4 2 18 6 8 84 82 83 71 2 4 18 3 6 8 82 84 83 18 19 13 1 71 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK 8-98140-781-0 02 1 1601- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98089-851-0 01 1 1601- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 8-98239-160-0 01 1 1601- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1601- ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 1601- ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 1601- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 1601- ● ●
13 PIPE; OIL,UNION TO UNION
(B) L=1978 		8-98337-885-0 01 1 1601- ●
13 PIPE; OIL,UNION TO UNION
(B) L=1974 		8-98316-768-0 01 1 1601- ●
13 PIPE; OIL,UNION TO UNION
(A) L=1358 		8-98316-767-0 01 1 1601- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=1094 SERVICED BY L=1100 		1-47428-731-0 01 1 1601- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=988 SERVICED BY L=1000 		1-47428-730-0 01 1 1601- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=964 SERVICED BY L=1000 		1-47428-730-0 01 1 1601- ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=598 		8-98316-769-0 01 1 1601- ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 01 1 1601- ●
19 UNION; OIL PIPE
(A) M12 ELBOW 		8-97325-150-0 02 1 1601- ● ●
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1601- ●
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1601- ● ●
82 PLATE; FLEX HOSE 1-47476-241-1 02 1 1601- ● ●
83 BOLT; PLATE
M8X20 FLANGE 		0-28650-820-0 04 1 1601- ● ●
84 NUT; PLATE
M8 FLANGE 		0-91180-108-0 04 1 1601- ● ●
