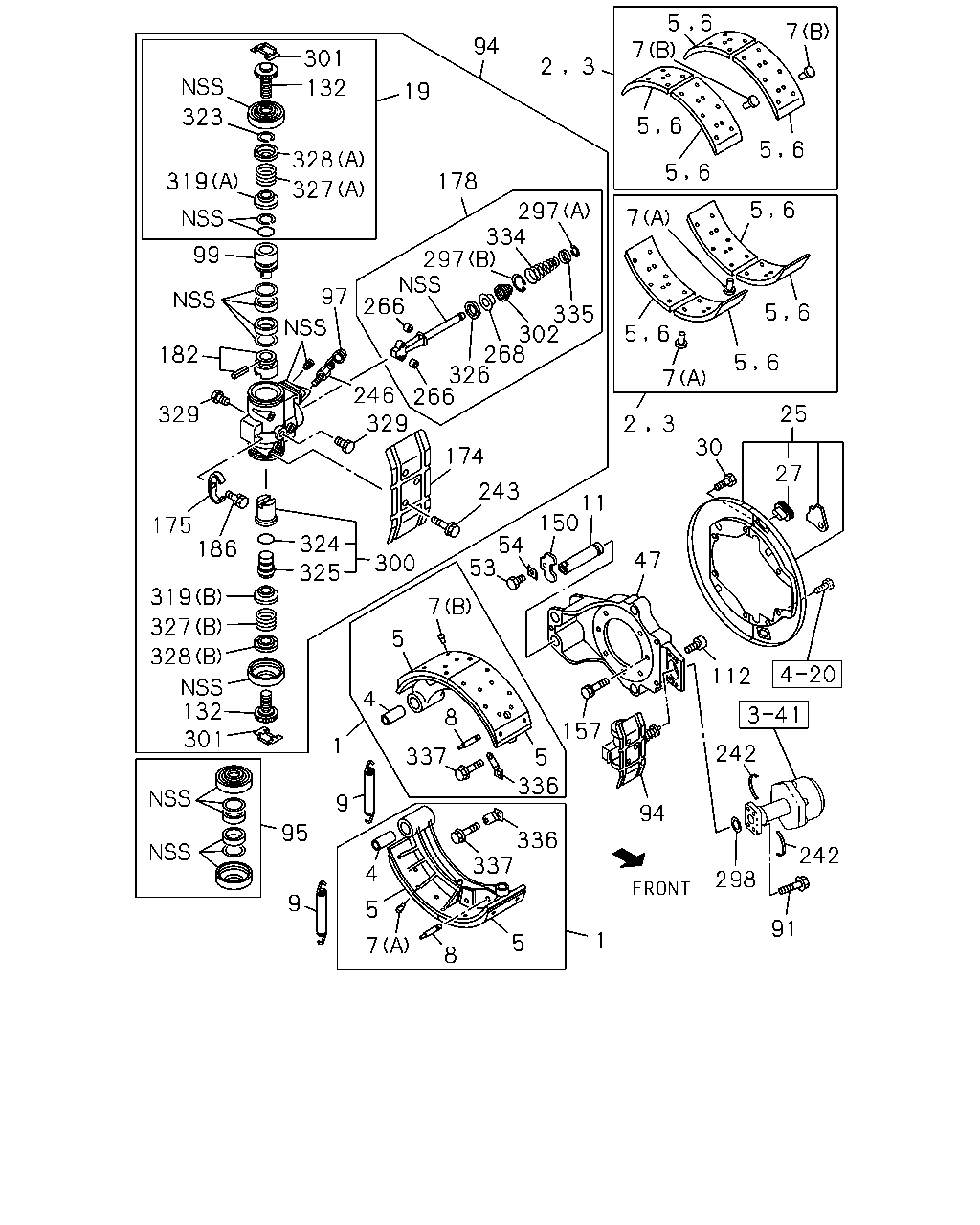

3-05 — REAR WHEEL BRAKE (#175836) — 66 parça
çizim 513779
94 3 2 178 19 301 328 132 327 319 297 334 297 266 97 182 329 175 186 319 327 328 132 301 95 9 9 1 4 5 7 8 337 5 336 336 337 5 8 4 5 300 7 325 243 324 174 329 246 266 326 268 302 335 7 5 2 3 7 6 6 5 5 6 6 5 5 5 6 6 7 6 5 7 5 6 30 25 27 112 242 298 91 242 94 157 47 11 150 54 53 1 323 99
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
LEADING 		1-47170-500-0 01 1 1601- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-501-0 01 1 1601- ● ●
1 SHOE; BRK,RR
LEADING 		1-47170-502-0 01 1 1601- ● ●
1 SHOE; BRK,RR
TRAILING 		1-47170-503-0 01 1 1601- ● ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-390-0 01 1 1601- ● ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88311-394-0 01 1 1601- ● ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-391-0 01 1 1601- ● ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88311-395-0 01 1 1601- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-011-0 04 1 1601- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47126-812-0 08 1 1601- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47126-813-0 08 1 1601- ● ●
7 RIVET; LINING,RR BRK
(B) TRAILING L=18.5 		1-09732-034-0 04 1 1601- ● ●
7 RIVET; LINING,RR BRK
(A) LEADING L=15.5 		1-09732-053-0 40 1 1601- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-134-0 04 1 1601- ● ●
9 SPRING; RETURN,BRK SHOE 1-09583-359-0 04 1 1601- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
L=106.5 		1-47131-038-0 04 1 1601- ● ●
19 ADJUSTER; RR BRK 1-47623-029-1 02 1 1601- ● ●
25 COVER SET; RR BRK DRUM 1-47151-805-0 01 1 1601- ● ●
25 COVER SET; RR BRK DRUM 1-47151-848-0 01 1 1601- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 1601- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1601- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 8-98245-555-0 01 1 1601- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 8-98245-556-0 01 1 1601- ● ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1601- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 1601- ● ●
91 BOLT; CHAMBER
M10X45 		1-47139-174-0 08 1 1601- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47601-180-0 01 1 1601- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47601-181-0 01 1 1601- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-984-0 02 1 1601- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 1601- ● ●
99 PISTON; RR WHEEL CYL 1-47624-388-0 02 1 1601- ● ●
112 BOLT; WHEEL CYL SETTING
M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1601- ● ●
132 SCREW; ADJ,RR BRK 1-47623-031-2 04 1 1601- ● ●
150 PLATE; LK,ANCHOR PIN 1-47133-005-0 02 1 1601- ● ●
157 BOLT; RR BRK SET
M14X50 		1-09040-066-0 02 1 1601- ● ●
174 COVER; CYL,RR WHEEL CYL 1-47619-152-0 02 1 1601- ● ●
175 HANGER; RR WHEEL BRK 1-47619-145-0 02 1 1601- ● ●
178 WEDGE; RR WHEEL CYL 1-47640-009-0 02 1 1601- ● ●
182 TAPPET; RR WHEEL CYL 1-47629-264-0 02 1 1601- ● ●
186 BOLT; HANGER
M8X16 W/LK WASHER 		0-50540-816-0 02 1 1601- ● ●
242 SEAL 1-47159-186-0 04 1 1601- ● ●
243 BOLT; WHEEL CYL COVER SETTING
M6X10 		9-01900-610-0 06 1 1601- ● ●
246 BLEEDER 1-47615-002-0 02 1 1601- ● ●
266 ROLLER; WEDGE 1-47643-005-0 04 1 1601- ● ●
268 RETAINER; WEDGE 1-47649-028-0 02 1 1601- ● ●
297 RING; SNAP
(B) 		1-47649-031-0 02 1 1601- ● ●
297 RING; SNAP
(A) 		1-47649-034-1 02 1 1601- ● ●
298 GASKET 1-48259-231-0 02 1 1601- ● ●
300 SLEEVE 1-47629-207-1 02 1 1601- ● ●
301 CLIP; ANTI LOTATION 1-47621-017-0 04 1 1601- ● ●
302 BOOT; ROD 1-47649-022-0 02 1 1601- ● ●
319 RING; DRIVE
(A) 		1-47629-199-0 02 1 1601- ● ●
319 RING; DRIVE
(B) 		1-47629-200-0 02 1 1601- ● ●
323 RING; SNAP,SLEEVE 1-47629-190-0 02 1 1601- ● ●
324 RING; RETAINER 1-47629-210-0 02 1 1601- ● ●
325 SLEEVE; ADJ 1-47629-208-1 02 1 1601- ● ●
326 RETAINER; ROD 1-47649-026-0 02 1 1601- ● ●
327 SPRING; ADJ
(A) 		1-47629-195-0 02 1 1601- ● ●
327 SPRING; ADJ
(B) 		1-47629-196-0 02 1 1601- ● ●
328 CAGE; SPRING
(A) 		1-47629-191-0 02 1 1601- ● ●
328 CAGE; SPRING
(B) 		1-47629-192-0 02 1 1601- ● ●
329 SCREW; LOCATING 1-47619-149-1 04 1 1601- ● ●
334 SPRING; ROD 1-47649-024-0 02 1 1601- ● ●
335 RETAINER; SPRING 1-47649-020-0 02 1 1601- ● ●
336 PLATE; PIVOT 1-47119-132-0 04 1 1601- ● ●
337 BOLT; PLATE
M8X12 W/LK WASHER 		0-50540-812-0 04 1 1601- ● ●
