2-61 — TRANSFER CASE AND GEAR SHIFTER (#175828) — 98 parça

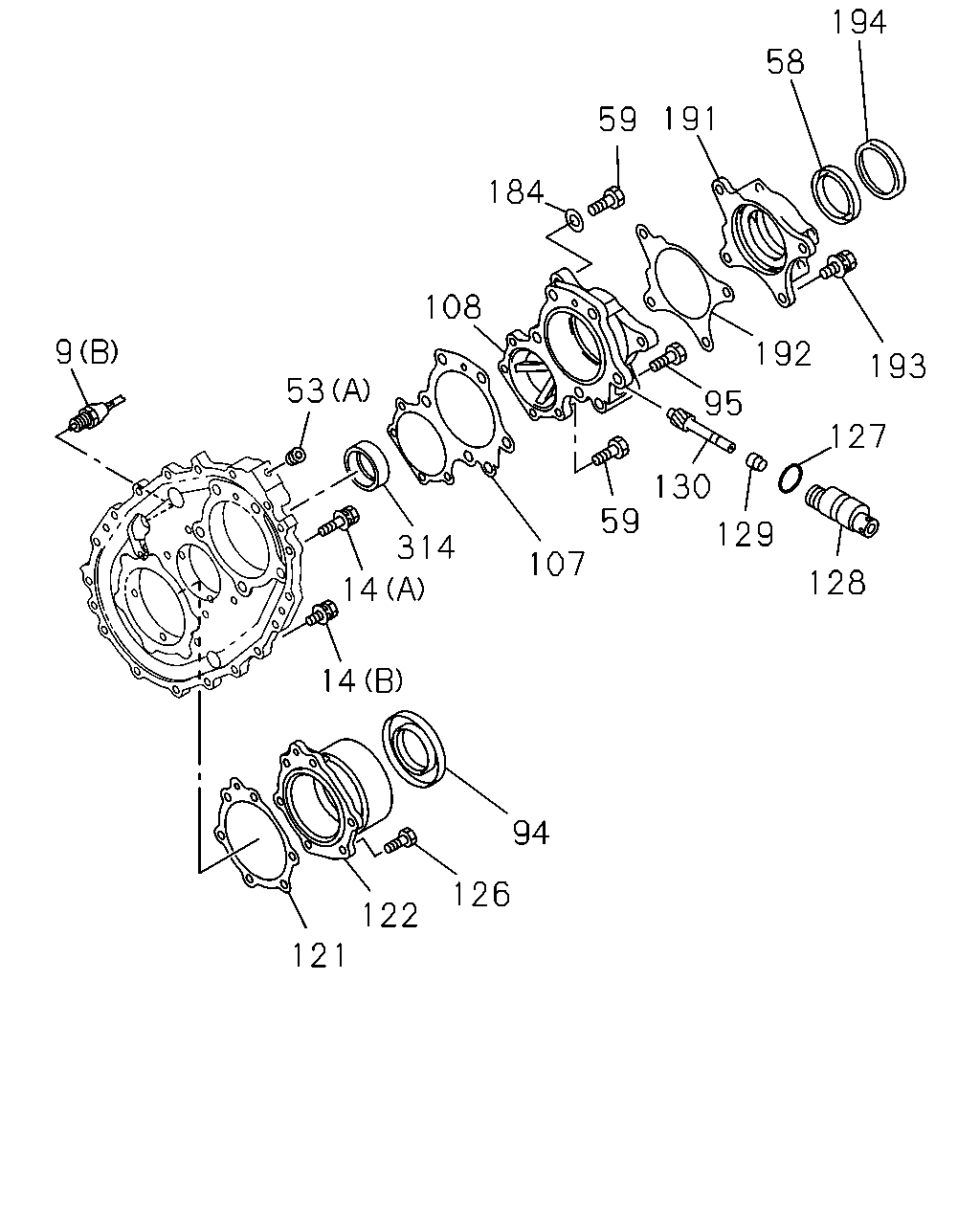

çizim 512837
9 53 108 184 59 191 58 194 193 192 95 130 129 128 127 59 107 314 14 14 94 126 122 121
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1601- ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1601- ● ●
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 01 1 1601- ● ●
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 1601- ● ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 1601- ● ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 1601- ● ●
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 1601- ● ●
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 1601- ● ●
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 1601- ● ●
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 1601- ● ●
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 1601- ● ●
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1601- ● ●
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 1601- ● ●
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 1601- ● ●
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 1601- ● ●
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 1601- ● ●
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 1601- ● ●
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 1601- ● ●
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 1601- ● ●
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 1601- ● ●
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 1601- ● ●
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 1601- ● ●
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 1601- ● ●
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 1601- ● ●
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 1601- ● ●
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 1601- ● ●
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 1601- ● ●

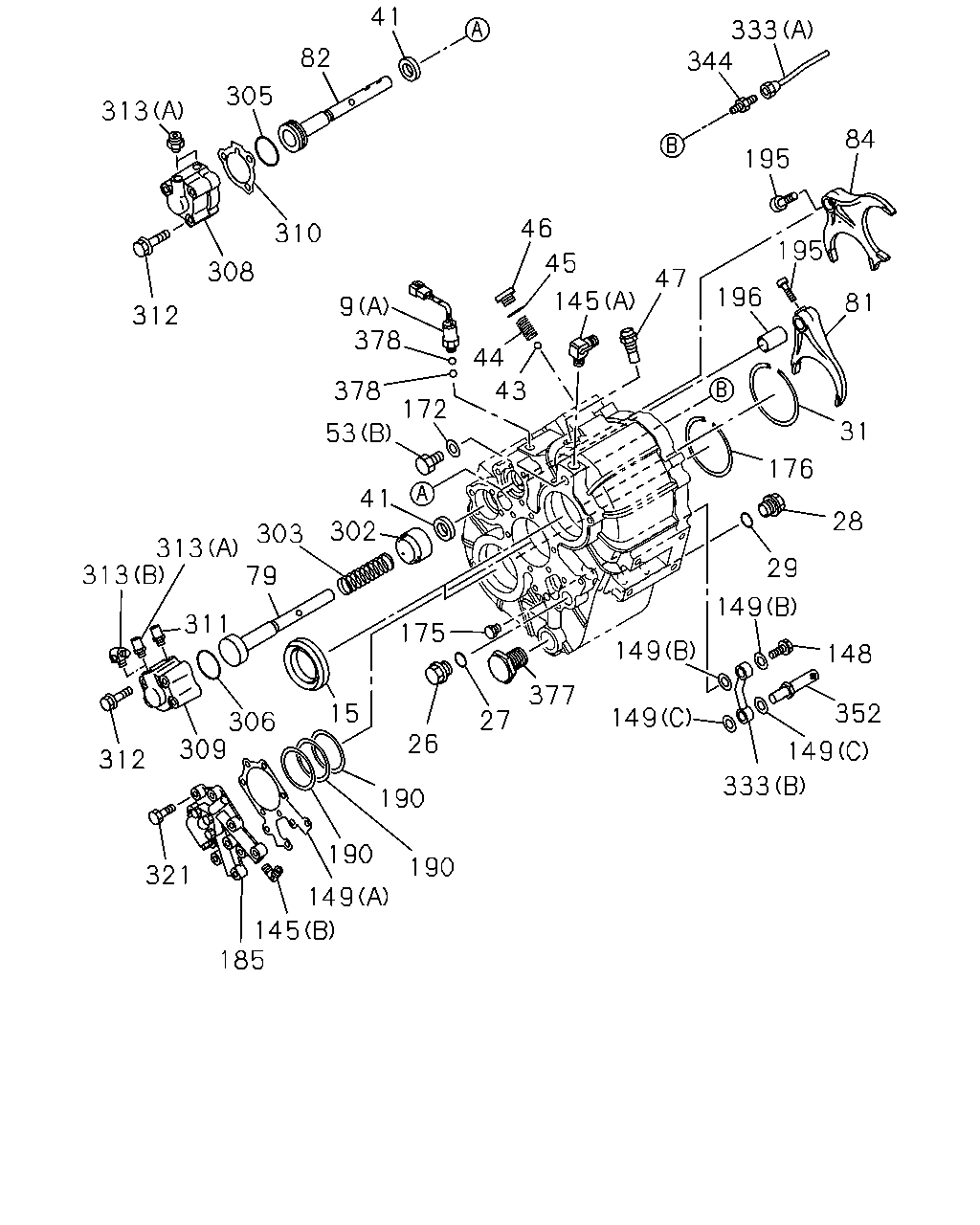

çizim 513187
313 305 82 41 310 308 312 313 313 311 306 309 312 321 185 145 149 190 190 190 26 15 27 175 377 149 149 333 149 352 148 149 29 28 176 31 81 195 196 195 84 344 333 47 145 45 46 43 44 172 41 302 303 79 53 378 378 9
BalonParca AdiParca NoAdetTipApplied Date A B
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1601- ● ●
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1601- ● ●
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 1601- ● ●
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1601- ● ●
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1601- ● ●
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1601- ● ●
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1601- ● ●
31 RING; SNAP,INPUT 9-09950-184-0 01 1 1601- ● ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 1601- ● ●
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 1601- ● ●
44 SPRING; COIL,LK 9-09940-323-0 01 1 1601- ● ●
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 1601- ● ●
46 SEAT; SPR 9-09862-175-0 01 1 1601- ● ●
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 1601- ● ●
53 PLUG; COVER
(B) M16X12 		0-92002-416-0 02 1 1601- ● ●
53 PLUG; COVER
(A) 		9-09205-510-0 01 1 1601- ● ●
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 1601- ● ●
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 1601- ● ●
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 1601- ● ●
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 1601- ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1601- ● ●
145 CONNECTOR; OIL PIPE,TRANSFER
(A) 		1-09650-325-1 01 1 1601- ● ●
148 BOLT; EYE,OIL PIPE
M12X27 FLANGE 		1-09675-085-0 01 1 1601- ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (A) 		1-36289-029-0 01 1 1601- ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (B) ID=12.2 		9-09572-012-0 02 1 1601- ● ●
149 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN REPAIR KIT(T/F). (C) 		9-09572-016-0 02 1 1601- ● ●
172 GASKET; PLUG
ID=16.2 		9-09571-616-0 02 1 1601- ● ●
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 1601- ● ●
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 1601- ● ●
185 PUMP ASM; OIL,TRANSFER 1-13110-036-2 01 1 1601- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 1601- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 1601- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 1601- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 1601- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 1601- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 1601- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 1601- ● ●
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 1601- ● ●
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 1601- ● ●
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 1601- ● ●
302 SEAT; SPRING 1-36572-002-1 01 1 1601- ● ●
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 1601- ● ●
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 1601- ● ●
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 1601- ● ●
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 1601- ● ●
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 1601- ● ●
310 GASKET; AIR CYL 1-36579-001-0 01 1 1601- ● ●
311 BREATHER; AIR CYL 9-36122-013-0 01 1 1601- ● ●
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 1601- ● ●
313 CONNECTOR; AIR CYL
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1601- ● ●
313 CONNECTOR; AIR CYL
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1601- ● ●
321 BOLT; PUMP HSG
M10X35 FLANGE 		0-28151-035-0 08 1 1601- ● ●
321 BOLT; PUMP HSG
M10X50 FLANGE 		0-28151-050-0 02 1 1601- ● ●
333 PIPE; OIL,TRANSFER
(A) 		1-36161-030-0 01 1 1601- ● ●
333 PIPE; OIL,TRANSFER
(B) 		1-36161-033-0 01 1 1601- ● ●
344 CONNECTOR 0-92111-808-0 01 1 1601- ● ●
352 FILTER; OIL 1-36289-001-0 01 1 1601- ● ●
377 ADAPTER; OIL PIPE 1-09669-131-0 01 1 1601- ● ●
378 BALL; CONT SWITCH 9-00097-013-0 02 1 1601- ● ●

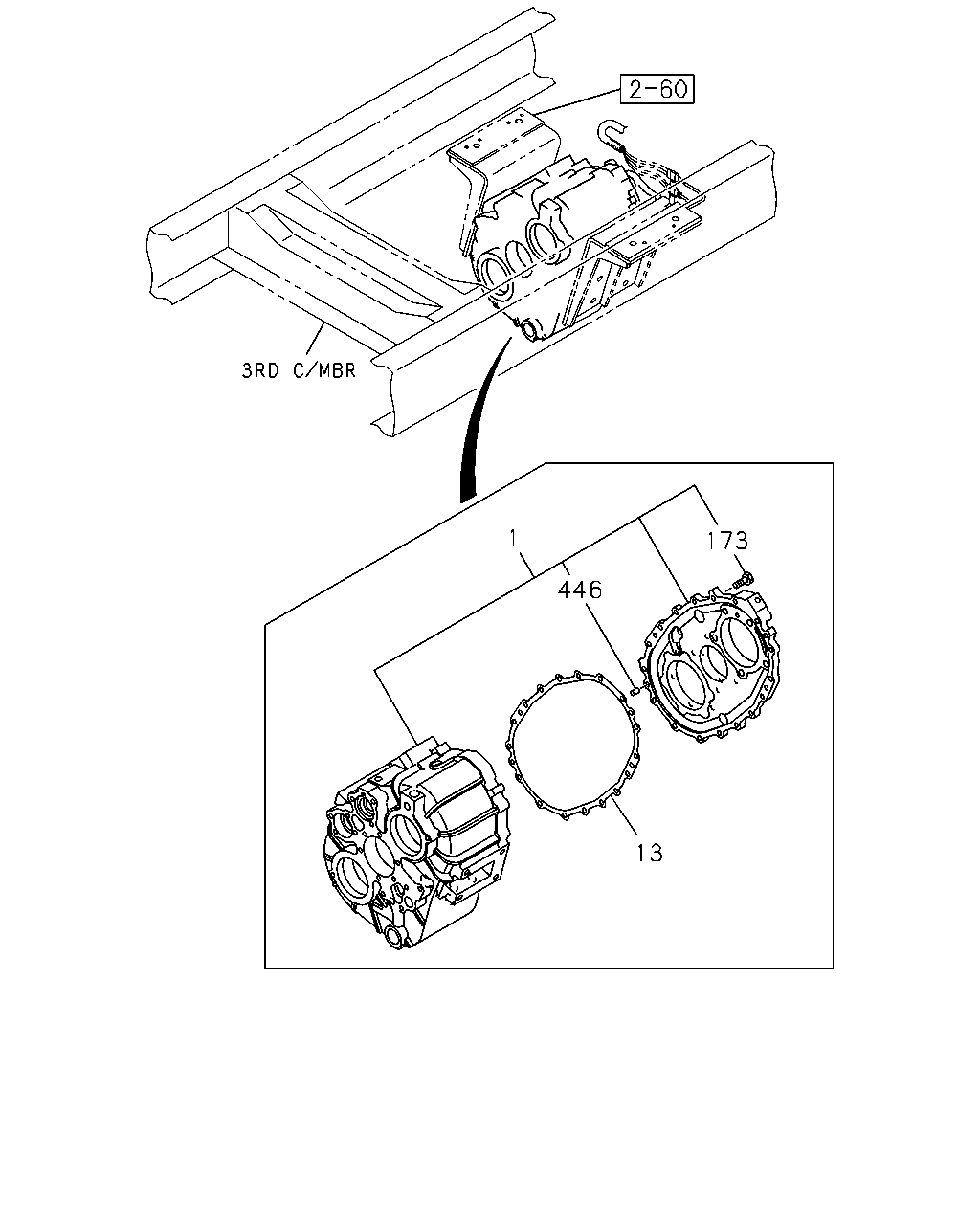

çizim 513753
1 446 13 173
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER 1-36110-051-0 01 1 1601- ● ●
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 1601- ● ●
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50551-030-0 14 1 1601- ● ●
446 PIN; STRAIGHT 9-08161-016-0 02 1 1601- ● ●
