◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#175823) — 32 parça

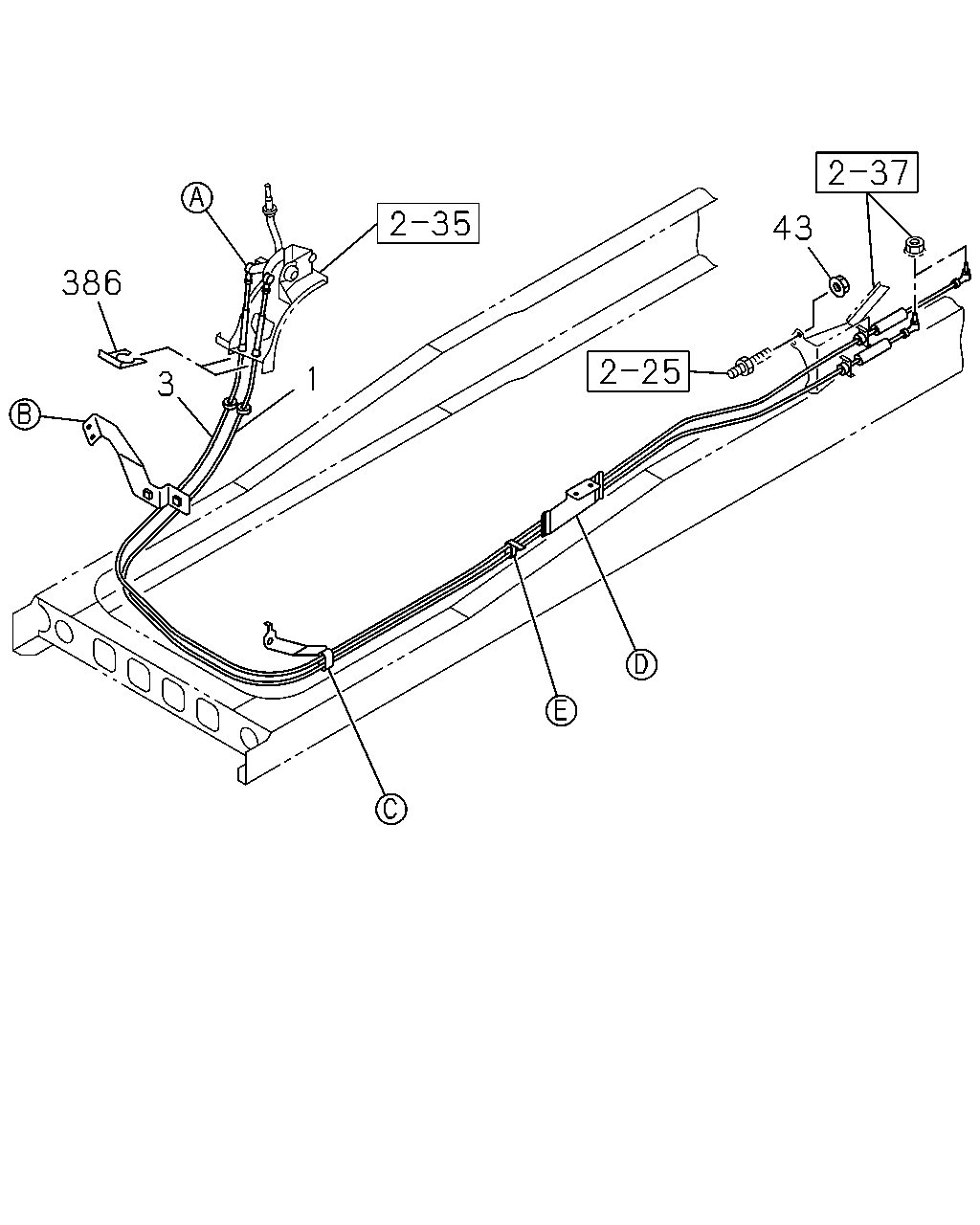

çizim 512593
43 1 3 386
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) L=3275 		8-97638-621-2 01 1 1601- ●
1 CABLE; SHIFT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3220 		8-97638-620-2 01 1 1601- ●
1 CABLE; SHIFT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) L=3335 		8-98315-447-0 01 1 1601- ●
1 CABLE; SHIFT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3280 		8-98315-446-0 01 1 1601- ●
3 CABLE; SELECT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) L=3485 		8-97638-623-0 01 1 1601- ●
3 CABLE; SELECT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3430 		8-97638-622-0 01 1 1601- ●
3 CABLE; SELECT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) L=3545 		8-98315-445-0 01 1 1601- ●
3 CABLE; SELECT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3490 		8-98315-444-0 01 1 1601- ●
43 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 1601- ● ●
çizim 512812
1 221 225 199 3 282 293 291 201 474 201 6 474 487 282 297 291
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) L=3275 		8-97638-621-2 01 1 1601- ●
1 CABLE; SHIFT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3220 		8-97638-620-2 01 1 1601- ●
1 CABLE; SHIFT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) L=3335 		8-98315-447-0 01 1 1601- ●
1 CABLE; SHIFT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3280 		8-98315-446-0 01 1 1601- ●
3 CABLE; SELECT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) L=3485 		8-97638-623-0 01 1 1601- ●
3 CABLE; SELECT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3430 		8-97638-622-0 01 1 1601- ●
3 CABLE; SELECT,TRANS CONT
POWER TAKE OFF-FLYWHEEL(6SZ) L=3545 		8-98315-445-0 01 1 1601- ●
3 CABLE; SELECT,TRANS CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3490 		8-98315-444-0 01 1 1601- ●
6 CLIP; CABLE
ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 1601- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 1601- ● ●
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1601- ● ●
201 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1601- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1601- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 1601- ● ●
282 BRACKET; TRANS SIDE
(A) 		8-98127-809-0 01 1 1601- ● ●
282 BRACKET; TRANS SIDE
(B) 		8-98148-173-3 01 1 1601- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 1601- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) 		8-98148-478-1 01 1 1601- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
M8X16 FLANGE 		0-28050-816-0 01 1 1601- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 1601- ● ●
487 BRACKET; CONT CABLE 8-98183-009-0 01 1 1601- ● ●
