2-26 — MANUAL TRANSMISSION GEAR (#175820) — 97 parça

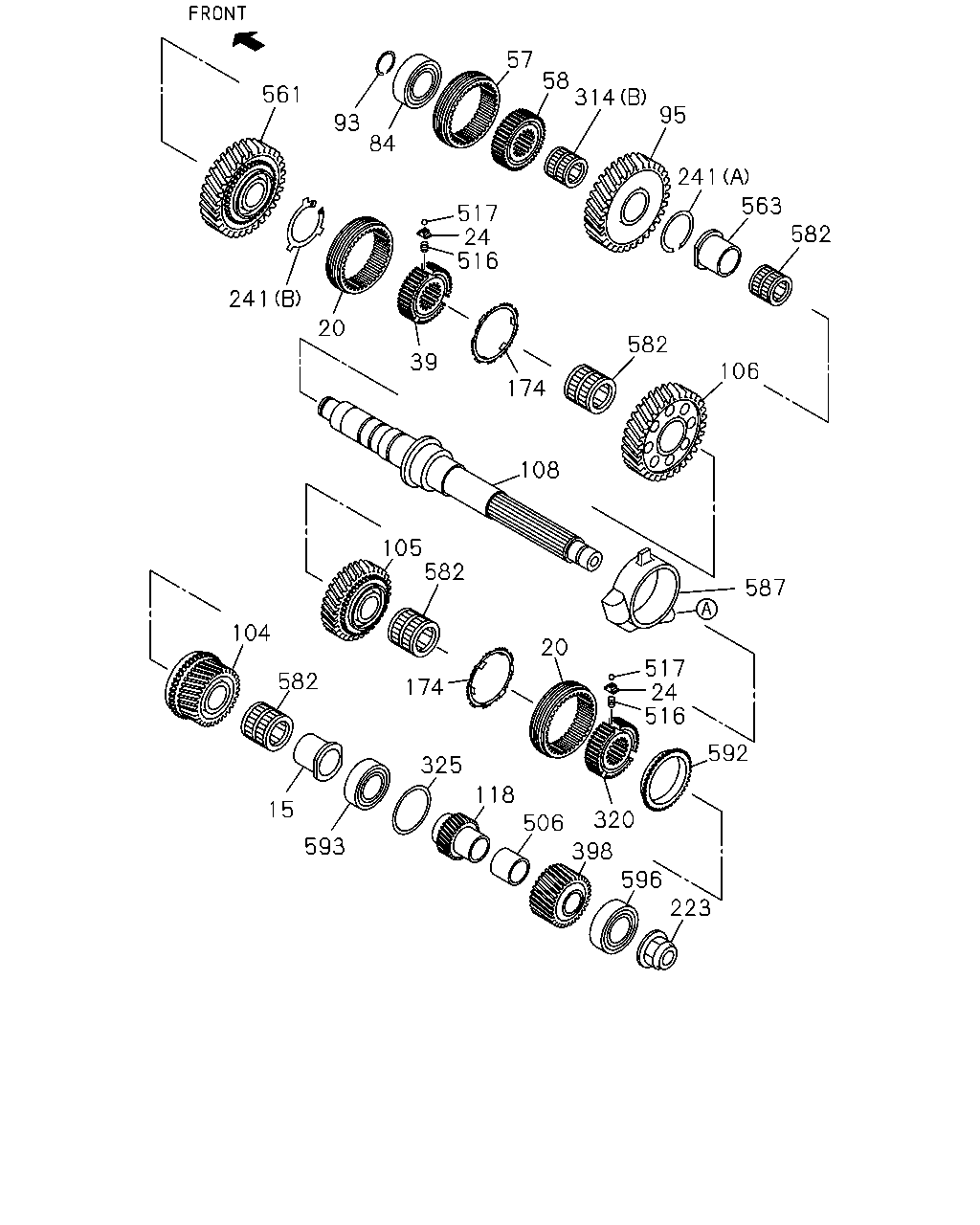

çizim 513389
561 57 93 58 84 314 241 95 563 106 582 582 174 39 20 241 516 24 517 108 587 517 24 516 592 20 582 105 174 325 118 593 15 582 104 506 398 596 320 223
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1601-
20 SLEEVE
Z=45 		8-98258-279-0 03 1 1601-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1601-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1601-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1601-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1601-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1601-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1601-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1601-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1601-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1601-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1601-
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1601-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1601-
174 SYNCHRONIZER ASM; 2ND-3RD 8-98315-823-2 02 1 1601-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1601-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1601-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1601-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1601-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1601-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1601-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1601-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1601-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1601-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1601-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1601-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1601-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1601-
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1601-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1601-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1601-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1601-

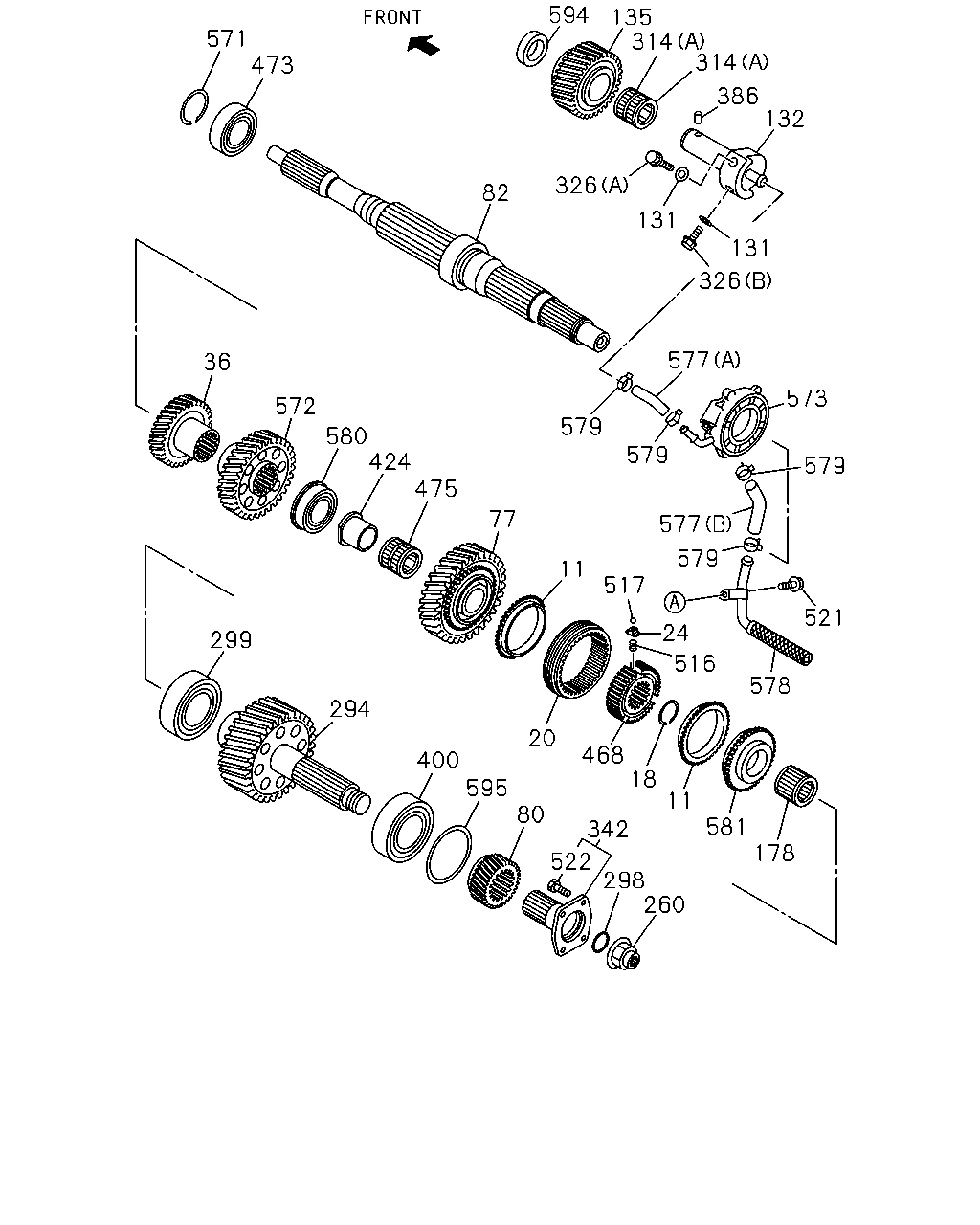

çizim 513784
571 82 473 594 314 135 314 132 386 131 326 131 326 577 573 579 579 577 579 579 521 578 516 24 517 11 77 475 424 580 572 36 299 294 400 595 80 522 298 342 260 178 581 11 18 468 20
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1601-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1601-
20 SLEEVE
Z=45 		8-98258-279-0 03 1 1601-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1601-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1601-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1601-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1601-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1601-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1601-
132 SHAFT; REV 8-98009-372-0 01 1 1601-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1601-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1601-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1601-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1601-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1601-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1601-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1601-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1601-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1601-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1601-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1601-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1601-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1601-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1601-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1601-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1601-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1601-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1601-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1601-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1601-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1601-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1601-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1601-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1601-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1601-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1601-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1601-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1601-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1601-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1601-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1601-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1601-
