2-07 — CLUTCH BOOSTER; MINIPACK (#175815) — 50 parça

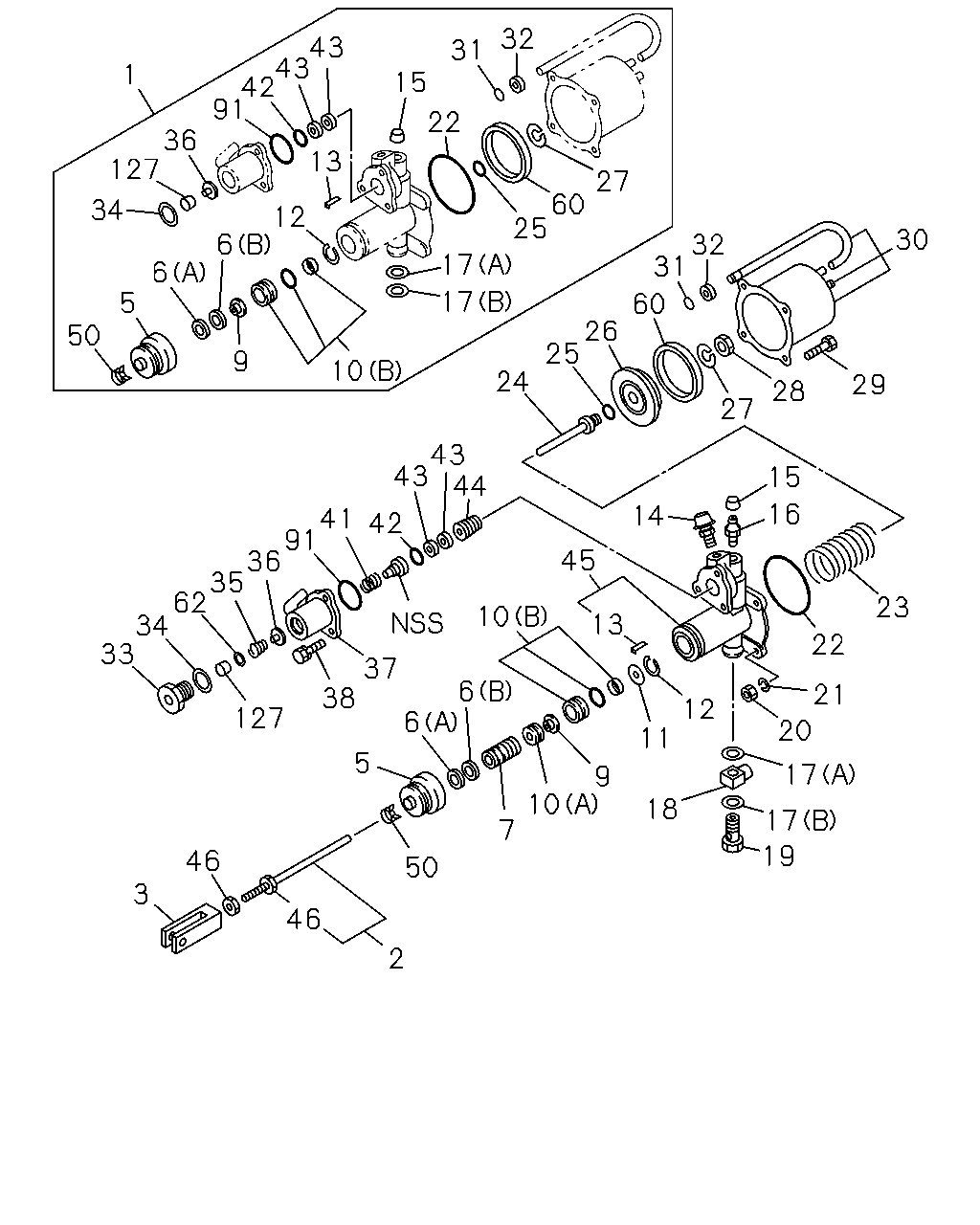

çizim 513353
1 34 127 36 91 42 43 43 50 5 6 6 12 13 15 31 32 22 27 60 25 17 10 17 9 33 62 34 36 35 41 91 42 43 43 24 44 127 37 38 3 46 46 2 50 5 7 6 10 6 10 9 45 13 11 18 12 19 17 17 20 22 21 23 16 15 14 25 26 60 31 32 30 29 28 27
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-603-0 01 1 1601-
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1601-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1601-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1601-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 1601-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 1601-
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1601-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1601-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1601-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1601-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1601-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1601-
13 PIN; SPR 1-31829-109-0 01 1 1601-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1601-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1601-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1601-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1601-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1601-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1601-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1601-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1601-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1601-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1601-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1601-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1601-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1601-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1601-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1601-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1601-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1601-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1601-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1601-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1601-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1601-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1601-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1601-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1601-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-147-0 01 1 1601-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1601-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1601-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1601-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1601-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1601-
45 PLATE; END,CLU BOOSTER 1-31811-143-0 01 1 1601-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1601-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1601-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1601-
62 RETAINER; POPPET 1-31829-489-0 01 1 1601-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1601-
127 FILTER; POPPET 1-31829-495-0 01 1 1601-
